15 years of practice creates classic
High pressure system specifications
Model
WL30018Z
WL38030Z
WL42037Z
Max. Pressure
300Mpa
380Mpa
420Mpa
Continuous working pressure
260Mpa
340Mpa
Power
18KW
30KW
37KW
Maximum water flow
3.7L/min
Maximum nozzle diameter
0.33mm
Working power supply
380V/50HZ
Technical parameters of gantry cutting platform
WL2015BA
WL2030BA
WL3020BA
WL2040BA
WL2060BA
WL3060BA
X axis
2000mm
3000mm
Y axis
1500mm
4000mm
6000mm
Z axis
150mm
Running speed
9000mm/min
Cutting accuracy
±0.1mm
control precision
±0.01mm
Repeat accuracy
±0.05mm
Delivery Time
30days
Payment Term
T/T,30% in advance,70% before shipment(negotiable)
Packaging details
Normal packaging is container. We can also according to the special requirements of customers for packaging
port
Dalian
Validity
45 days from the date we offered validity
Waterjet Cutting Machine for glass, metal, stone and rubber, plastic, etc.
Product Description
15
Years
Experience

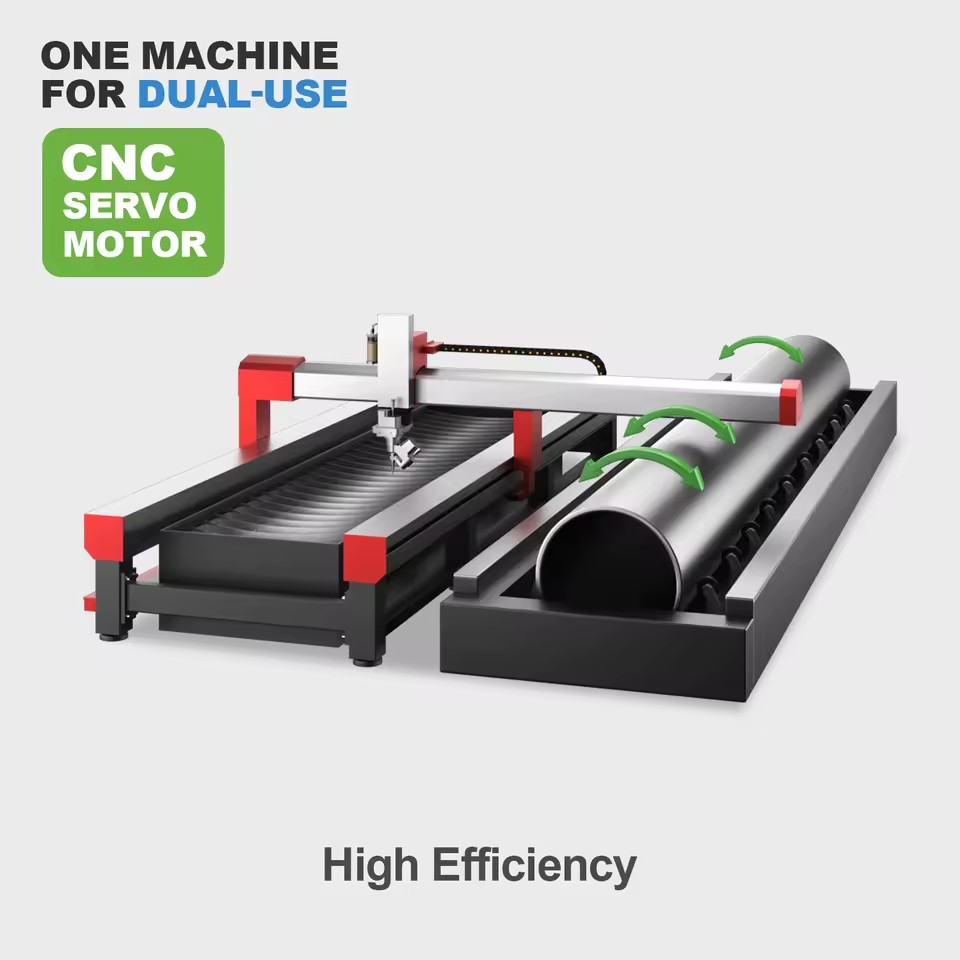

Plate and tube integrated water jet cutting machine
✔
Support non-standard customization
Provide free sample trial cutting service for you
new generation water jet cutting machine
√
All cast iron bed
Oil-immersed structure
Automatic variable pump
Fully intelligent system

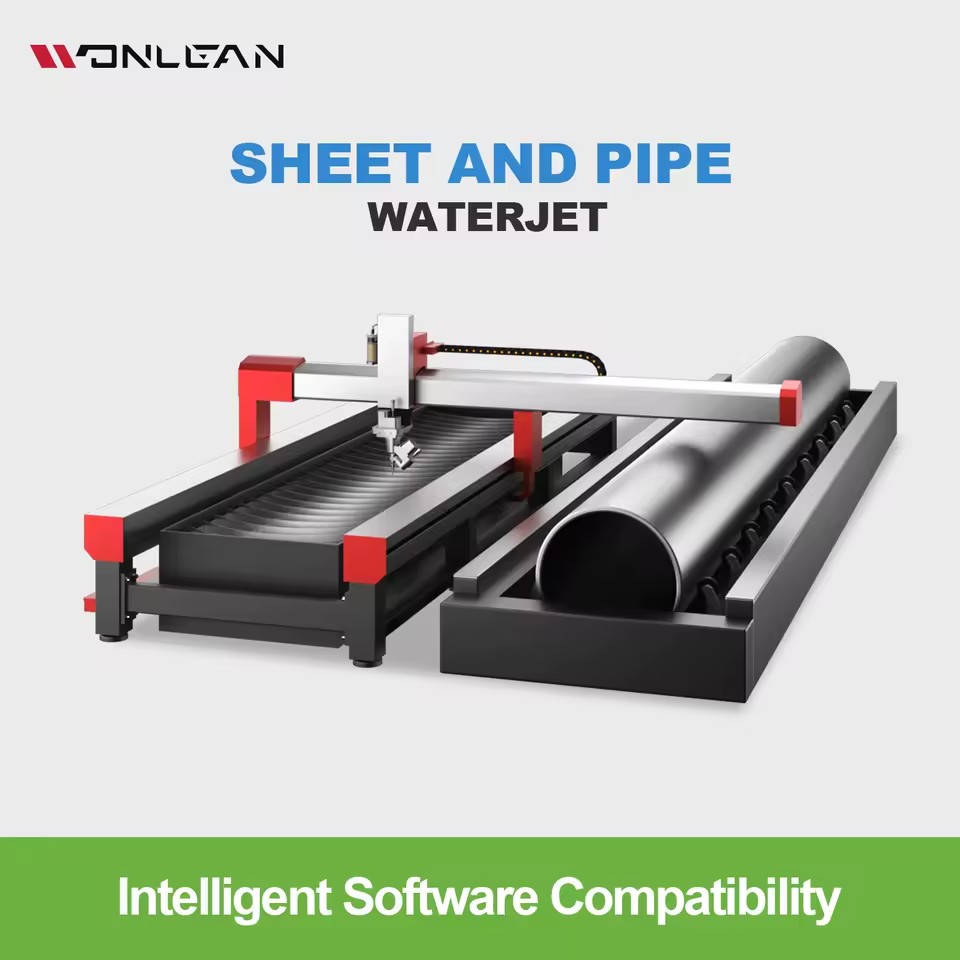

Intelligent software compatibility
The rotary shaft control module is built in the software, which does not need to borrow other transmission shaft data. No matter plate cutting or pipe cutting, it can start directly without switching data, which is convenient and fast.

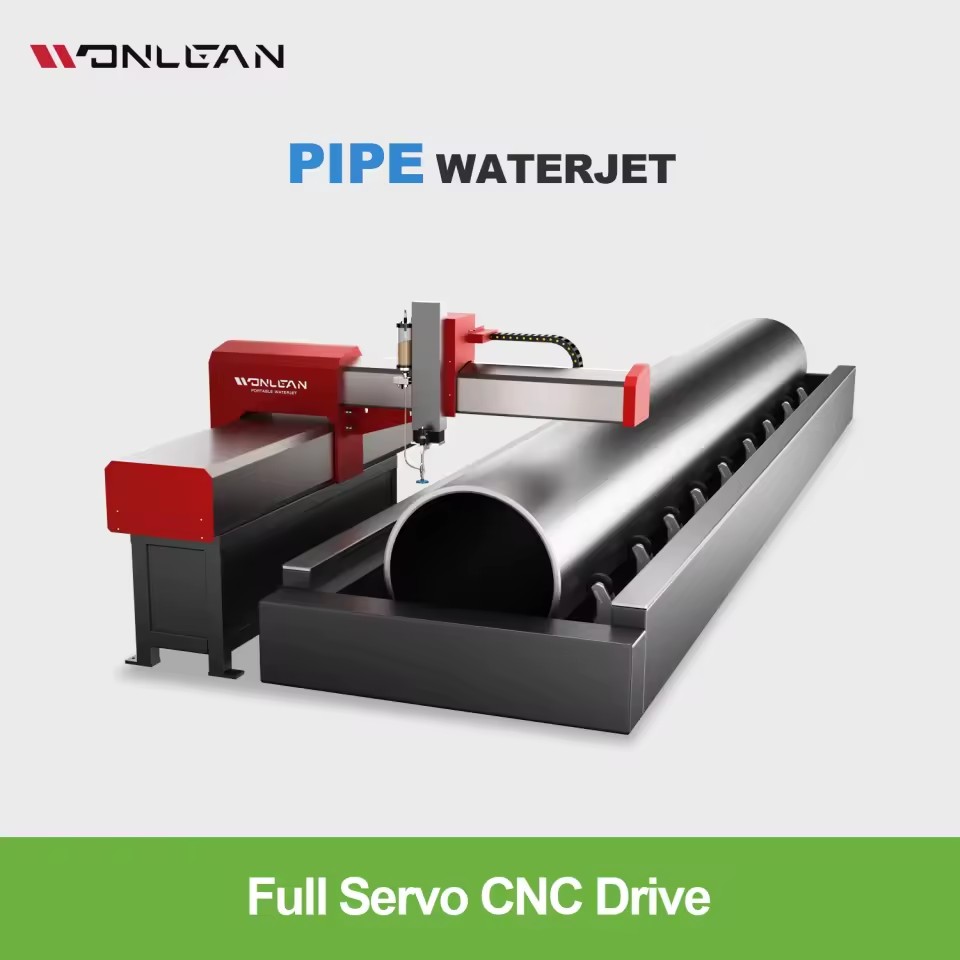

Full servo CNC drive
The tube rotation mechanism is driven by a CNC servo motor, which can meet the requirements of arbitrary graphics and curve cutting of the tube surface. The error of both plate cutting and tube cutting is within millimeters, and the accuracy must be reached.
Concrete casting bed
Through finite element analysis, the bed is fully welded with the best stress point and support structure. After aging treatment, the bed is poured with concrete, which makes it have strong stability and excellent shock absorption. Greatly reduce the stress of the bed and maintain the accuracy for a long time.

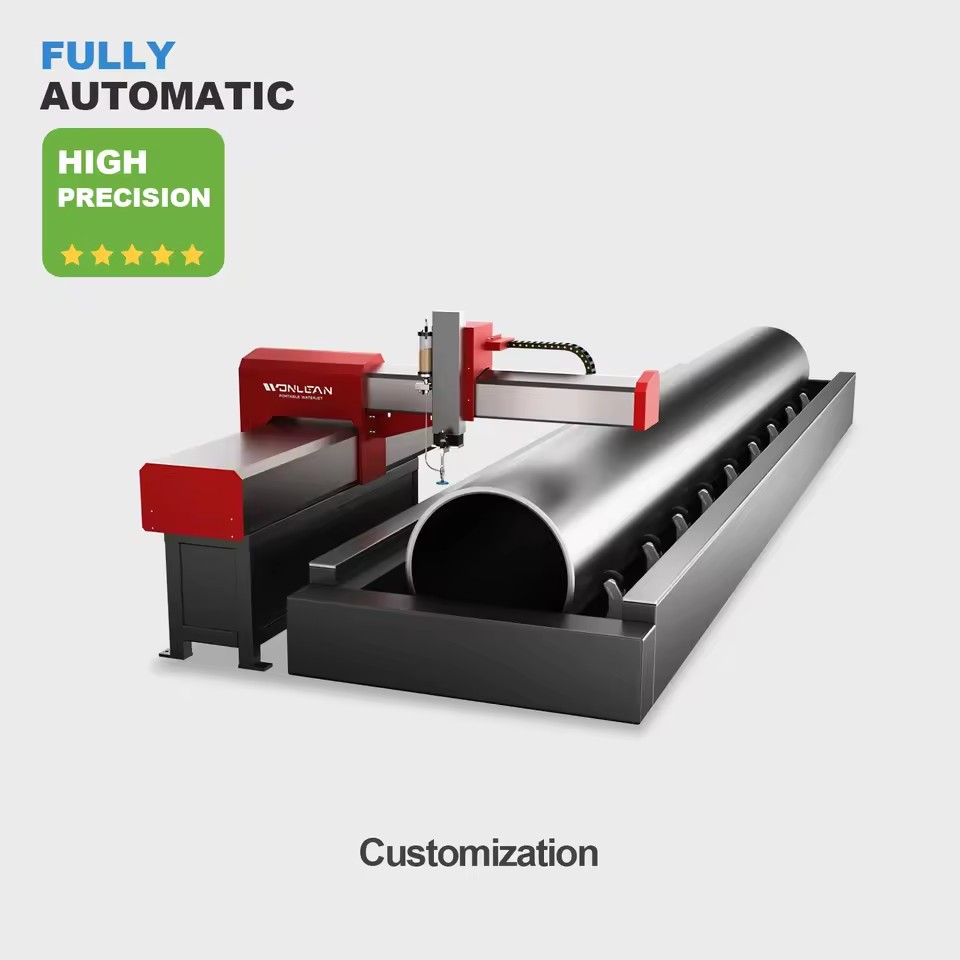

Customized
We can design the bed according to the size of your work piece. Only the most suitable one is the best.
The guide screw is completely immersed in the oil tank, which can fully lubricate and prevent the wear of the transmission system from the splashing of abrasive and water. And it has high cutting accuracy, but also greatly improves the service life of the equipment, and solves the serious accuracy attenuation problem of water jet cutter in the past, and the cutting is accurate at any time.
Direct connection transmission system
The high-power servo motor is directly connected with the large-diameter guide screw. Compared with the traditional synchronous pulley belt connection, it has less transmission loss, higher precision, better stability. High accuracy without the slightest error.

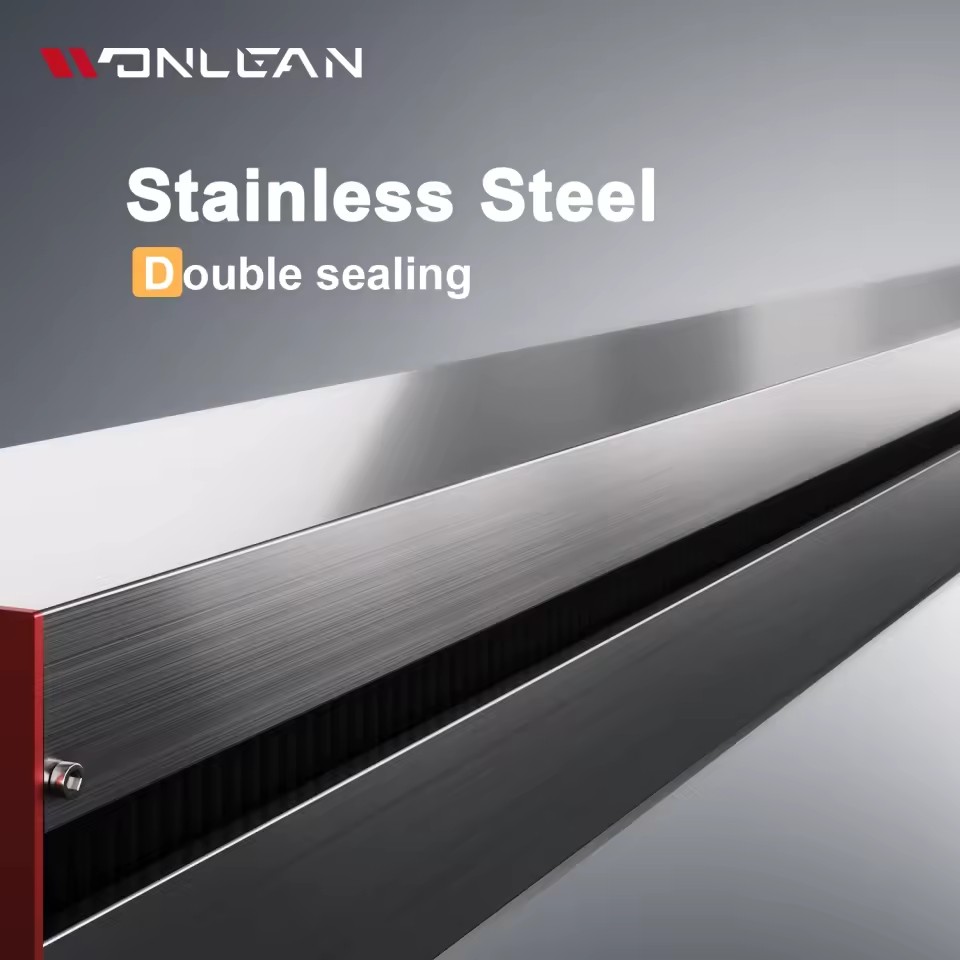

Stainless steel body
The X,Y,Z axis adopts double sealing design, with external high-quality stainless steel brushed shell and high-quality dust-proof folding cloth, which can provide effective hard protection and full sealing for the equipment, and is the most effective sealing form of waterjet cutter at present.
Intelligent 3D cutting
It can achieve fixed and variable angle 3D cutting within 75 degrees. The cutting head mechanism is made of aluminum alloy, with light weight, high strength and small load. The offset of the cutting position under the reaction of 380Mpa high pressure water is
less than 0.01 mm, and the cutting accuracy is extremely high.
Tilting compensation system
Through the dynamic compensation of the intelligent five axis software and two Japanese Yaskawa servo motors, the "V"shaped incision of the waterjet is accurately compensated to make the cutting incision vertical up and down or achieve bevel cutting
within 8 degrees.
Wireless remote control handle everything under control
More flexible and convenient for tool setting Control equipment operation at any time Display feed values in real time
Magnetic design for easy access.
Intelligent identification and one-touch processing
Identify CAD E-drawings, automatically generate cutting path and access parameters, reduce manual coding and repeated operations, simple operation, improve production capacity.
The main components adopt internationally renowned brands
World-leading quality accomplishes the classic
Why Choose Us
Company Profile
ABOUT US
Service
Packing and Delivery
FAQ
Q: What is the advantage of water jet cutting machine?
A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects; cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universal cutting machine.
Q: How to choose the cutting table?
A:You need to offer the size of the materials you want to process or the size of the cutting table.
Q:How to solve the incision problem of water cutting?
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
Q:Is the equipment easy to operate?
A: intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operation.
