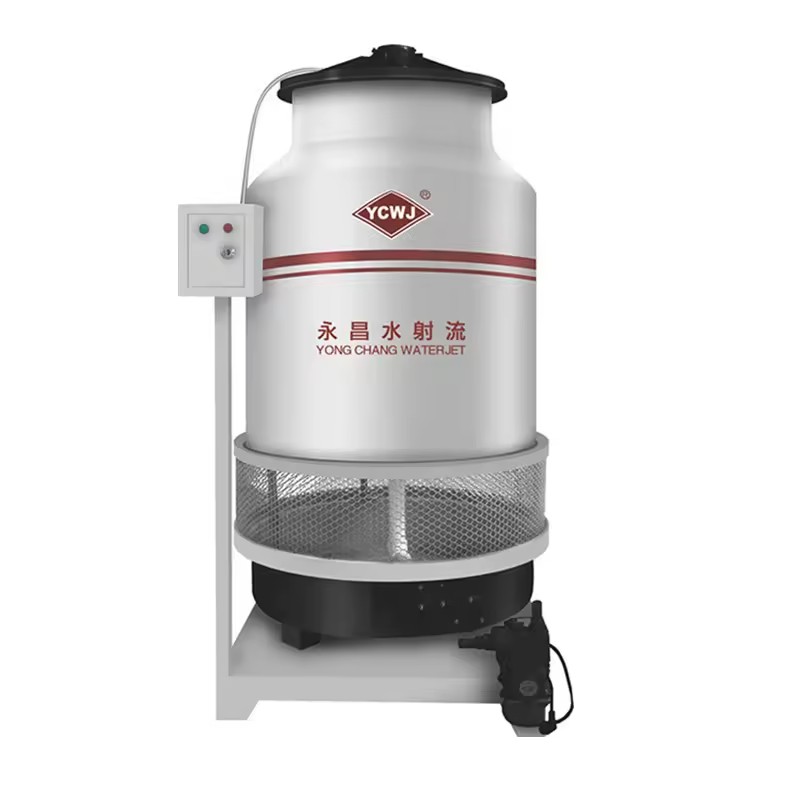

CNC Waterjet Cutting Machine With Water Cooling System

CNC Water Jet Cutting Machine P arameter (L=Gantry type)

Parameters

Unit

YCWJ-L1010

YCWJ-L2015

YCWJ-L3015

YCWJ-L3020

YCWJ-L2060

Efficient Cutting Area

mm

1000×1000

2000×1500

3000×1500

3000×2000

2000×6000

Axis Travel

X

1000

2000

3000

Y

1500

6000

Z

150-180

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa

Cutting Accuracy

±0.1

Positioning Accuracy

±0.025

X,Y Dry-run Speed

m/min

0-15 (if need 30m/min speed,we can do as request )

Cutting Speed

as to detail material and thickness

Company Profile

00:00

Straight to do the most professional water jet cutting machine, for different customers in different industries we will provide a variety of solutions.

Product Details

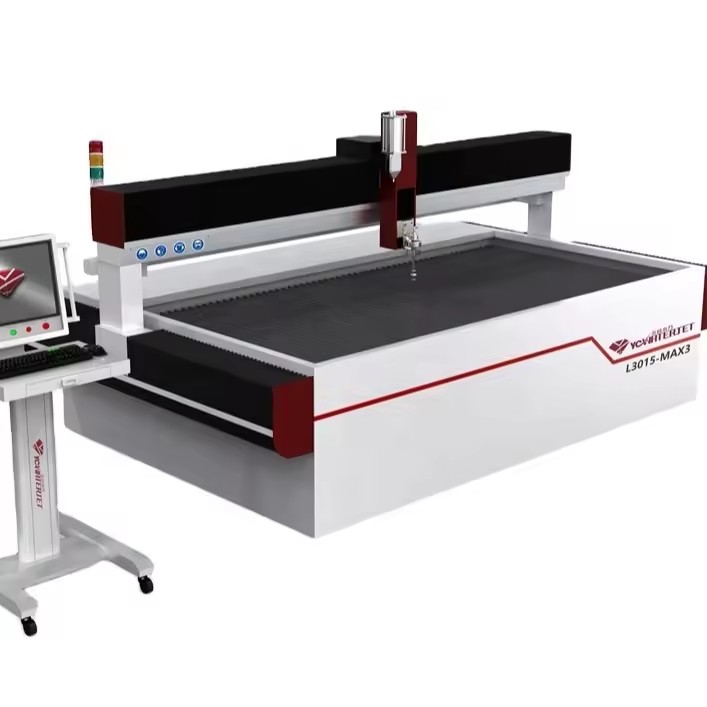

3 axis waterjet cutting machine

A high pressure water jet cutting machine is a tool which slices into metal and other materials, using a jet of water at high

velocity and pressure. Because of its advantages of low noise, no pollution, high precision and good reliability, it has been

widely used in mining, automobile, paper-making, food, art, construction and other industries.Waterjet can cut almost every thing

including metal, glass

plexiglass,ceramic,marble, granite, rubber and compound material etc.

Cutting accuracy:+/- 0.1mm

Repeat accuracy:+/- 0.05mm

CNC Water Jet Cutting Machine P

arameter

(L=Gantry type)

X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt

MITSUBISHI or Yaskawa

Core compoenent options

FAQ

Q: What is the advantage of water jet cutting machine?

A:Cold processing, no heat deformation; Strong cutting ability, it can cut almost any material; pure water jet can cut soft materials, abrasive waterjet can cut hard materials, evenit can cut flammable and explosive objects; cutting accuracy is high, edge is neat. Waterjet also has the title of universal cutting machine.

Q: How to choose a standard cutting table?

A:You need to offer the size of the materials you want to process or the size of the cutting table.

Q:How to solve the incision bevel problem by 3 axis water cutting?

A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required

precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. It can make a small angle

compensation in the software.

Q:Is the equipment easy to operate?

A:Based on the good waterjet software, opertaor can learn it easily. and if customer order new machine, our technician will

provide training for the machine’s running and maintenance.
