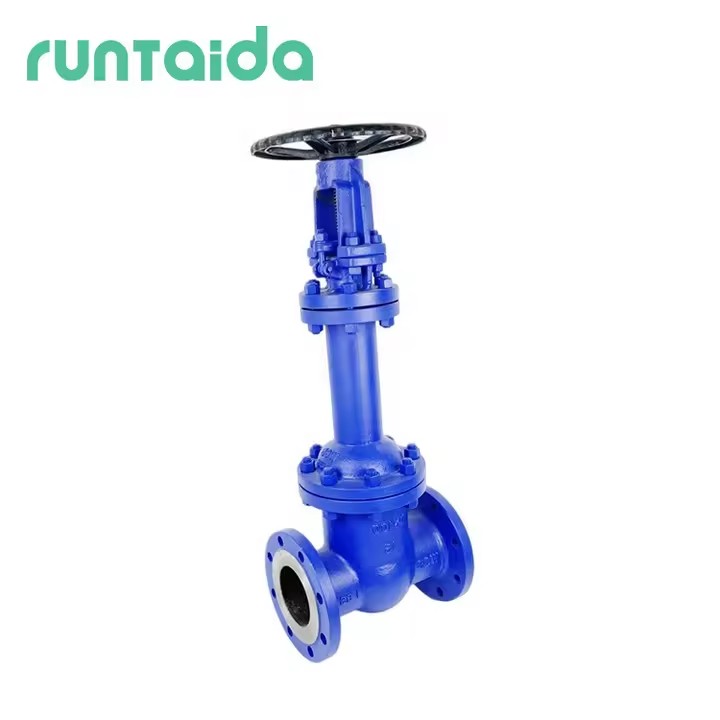

Name: 3inch DN100 Ductile Iron Flanged Bellows Gate Valve Price
SKU: B2B-10742
Price: 40.0 USD
Availability: PreOrder

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

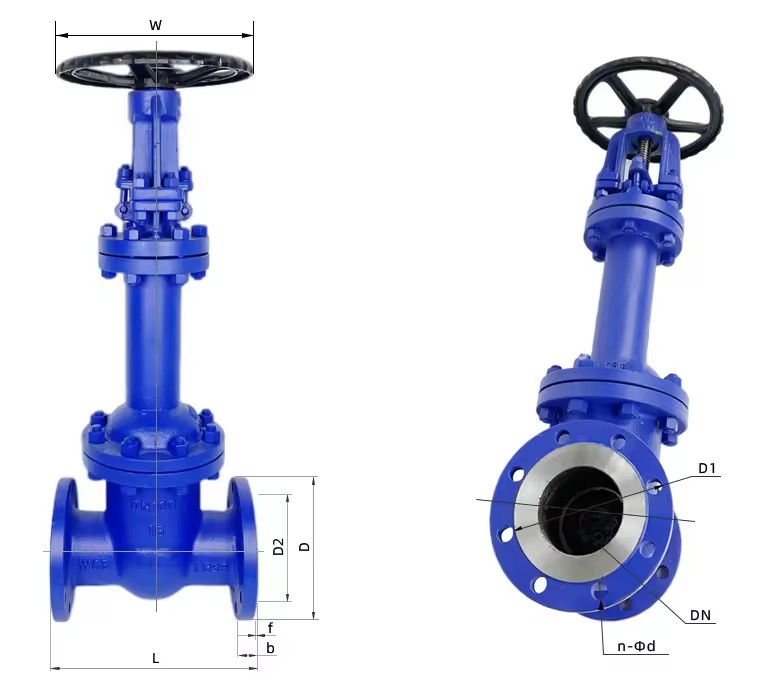

N	L	D	D1	D2	b	f	n-∅d
PN16
50	250	160	125	100	20	3	4-∅18
65	265	180	145	120	20	3	4-∅18
80	280	195	160	135	20	3	8-∅18
100	300	215	180	158	20	3	8-∅18
125	325	245	210	188	22	3	8-∅18
150	350	280	240	212	22	3	8-∅18
200	400	335	295	268	24	3	12-∅22
250	450	405	355	320	26	3	12-∅26
300	500	460	410	378	28	4	12-∅26
350	550	520	470	438	30	4	16-∅26
400	600	580	525	490	32	4	16-∅30
450	650	640	585	550	40	4	20-∅30
500	700	705	650	610	44	4	20-∅33
600	800	840	770	725	54	5	20-∅36
PN25
50	250	160	125	100	20	3	4-∅18
65	265	180	140	120	22	3	8-∅18
80	280	195	160	135	24	3	8-∅18
100	300	230	190	160	24	3	8-∅22
125	325	270	220	188	26	3	8-∅26
150	350	300	250	218	28	3	8-∅26
200	400	360	310	278	30	3	12-∅26
250	450	425	370	332	32	3	12-∅30
300	500	485	430	390	34	4	16-∅30
350	550	550	490	450	38	4	16-∅34
400	600	610	550	505	40	4	16-∅34
450	650	670	600	555	46	4	20-∅34
500	700	730	660	615	48	4	20-∅36
600	800	845	770	720	58	5	20-∅41
PN40
50	250	160	125	100	20	3	4-∅18
65	280	180	145	120	22	3	8-∅18
80	310	195	160	135	24	3	8-∅18
100	350	230	190	160	24	3	8-∅22
125	400	270	220	188	26	3	8-∅26
150	450	300	250	218	28	3	8-∅26
200	550	375	320	285	34	3	12-∅30
250	650	445	385	345	38	3	12-∅33
300	750	510	450	410	42	4	12-∅33
350	850	570	510	465	46	4	16-∅36
400	950	660	585	535	50	4	16-∅39
450	1050	685	610	560	57	4	20-∅39
500	1150	755	670	615	57	4	20-∅42
600	1350	890	795	735	72	5	20-∅48

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 2 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Media

Base

Temperature of media

Medium Temperature, High Temperature

Power

Manual

Port Size

DN50-DN600

Application

General

Structure

Gate

Warranty

12 Months

Customized support

OEM, ODM

Model number (Specification)

Place of origin

China, Henan

Temperature

196~600°C

Body Material

Ductile Iron

Drawing

Offer

Suitable medium

Water, etc., oil, steam

Certificate

ISO 9001:2008

Packing

Wooden Box

Selling Units

Single item

Single package size

50X50X50 cm

Single gross weight

400.0 kg

Material (Product option)

ductile iron

Size (Product option)

DN50-DN600

Pressure (Product option)

Low Pressure, Medium Pressure

Lead time

20 days

Minimum order

2 Units
