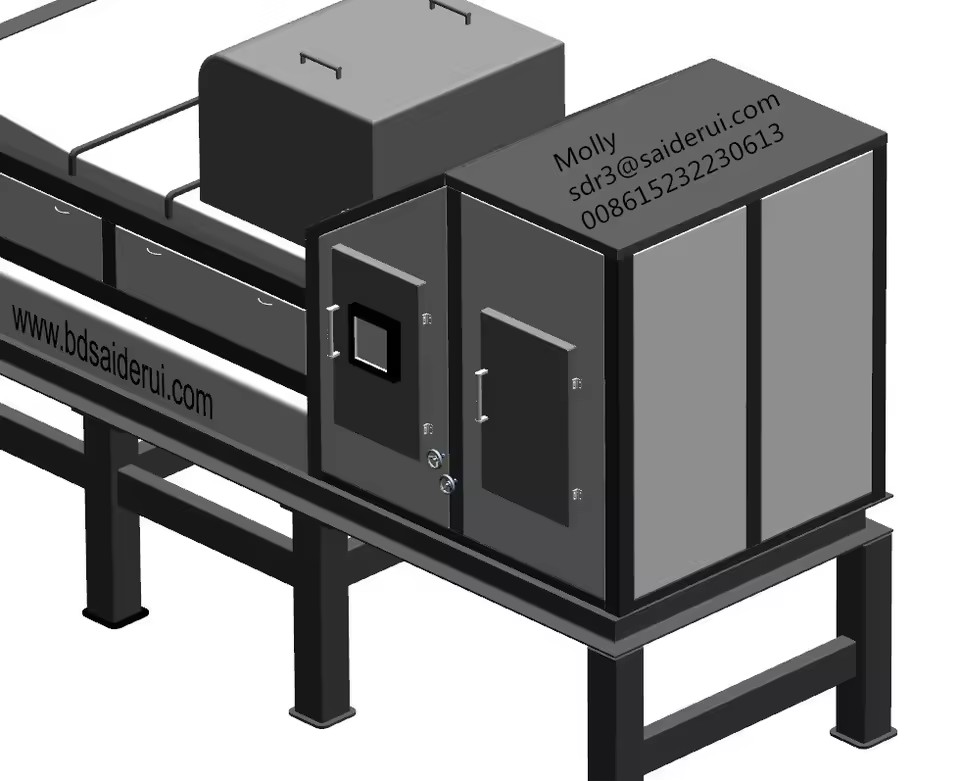

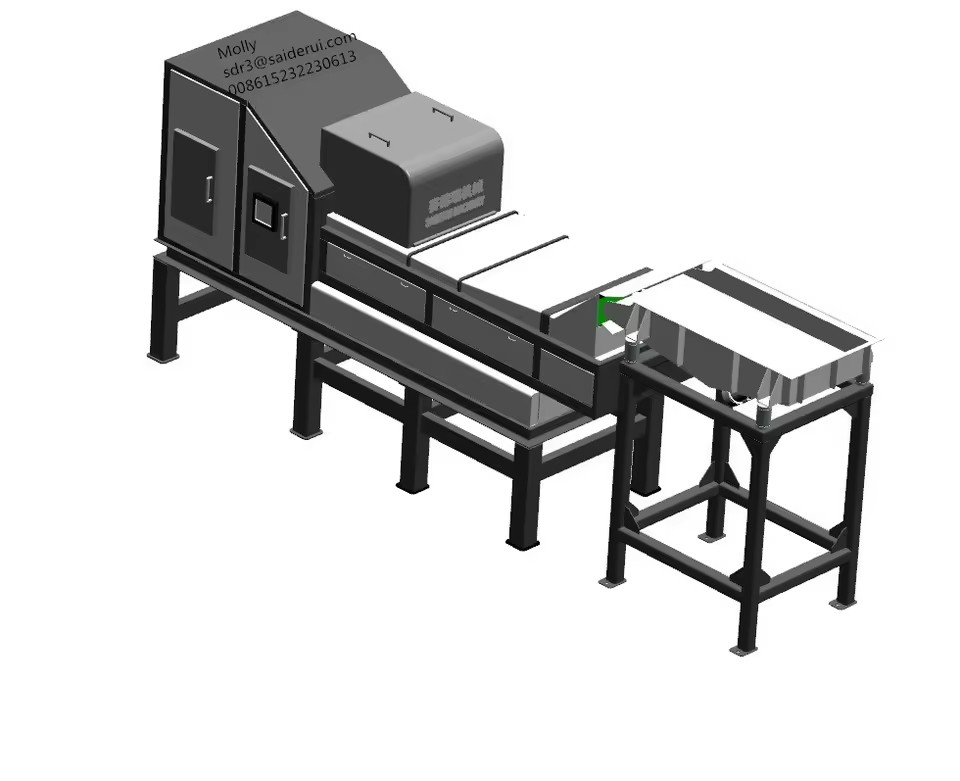

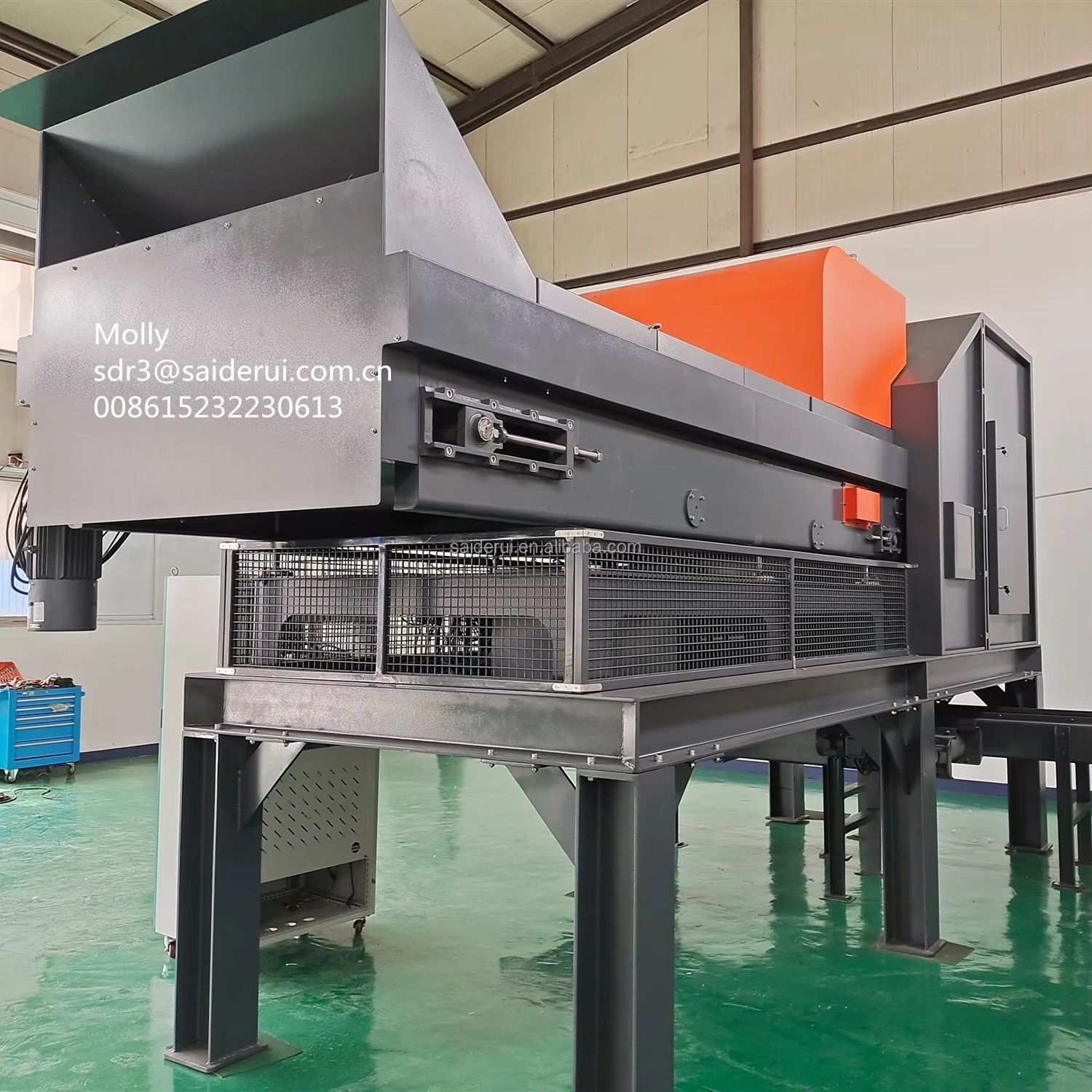

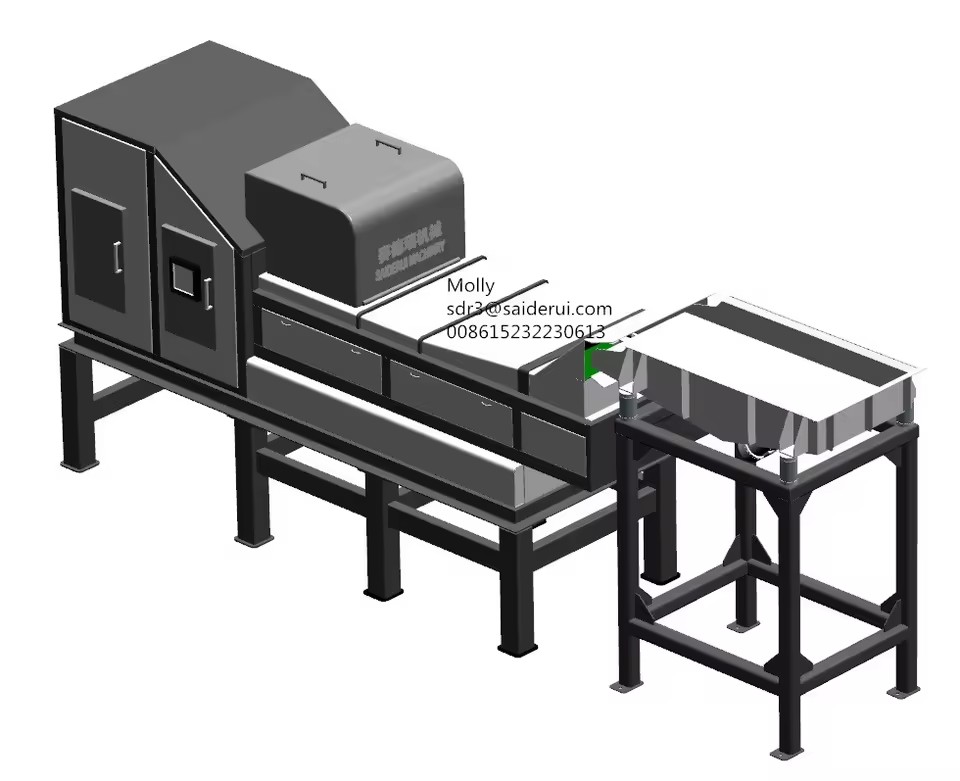

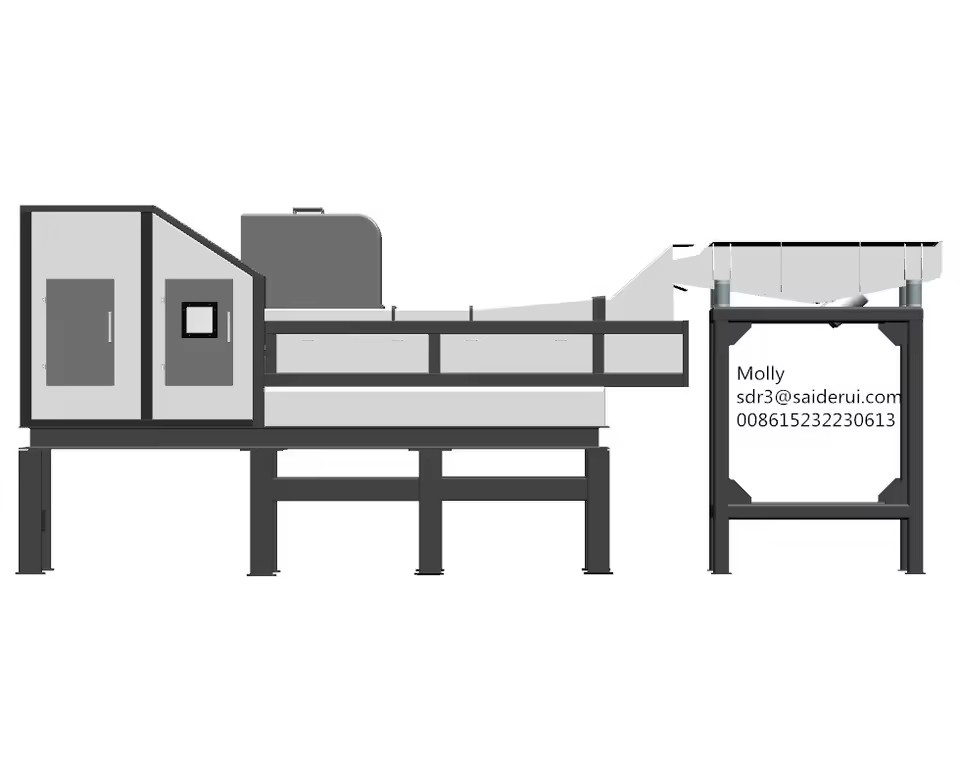

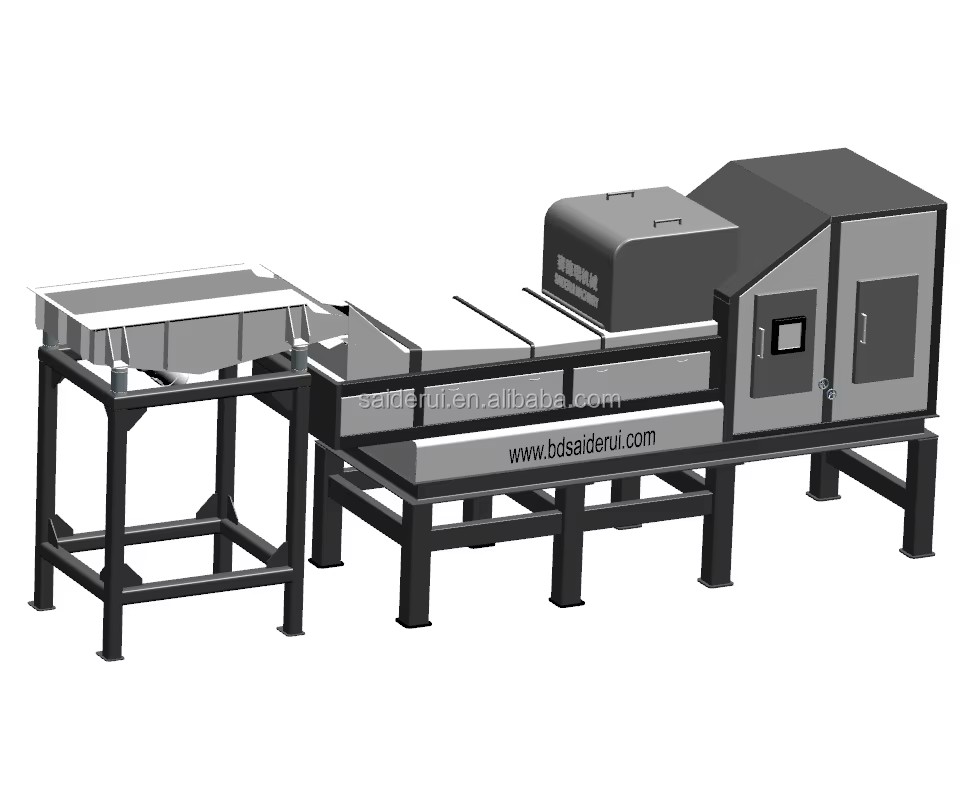

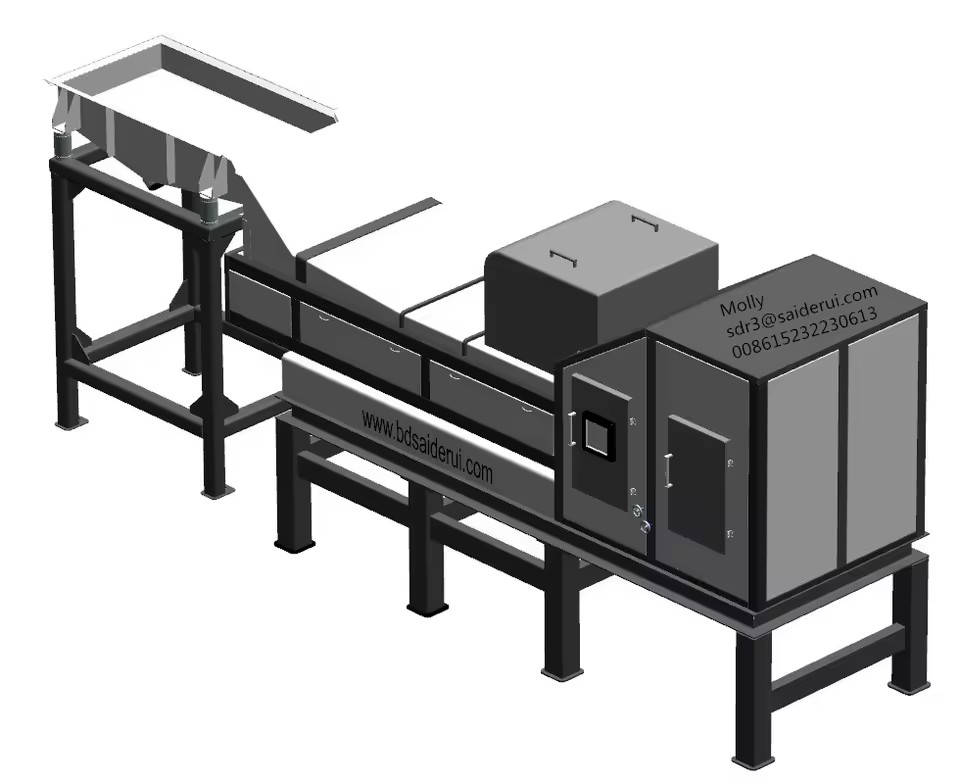

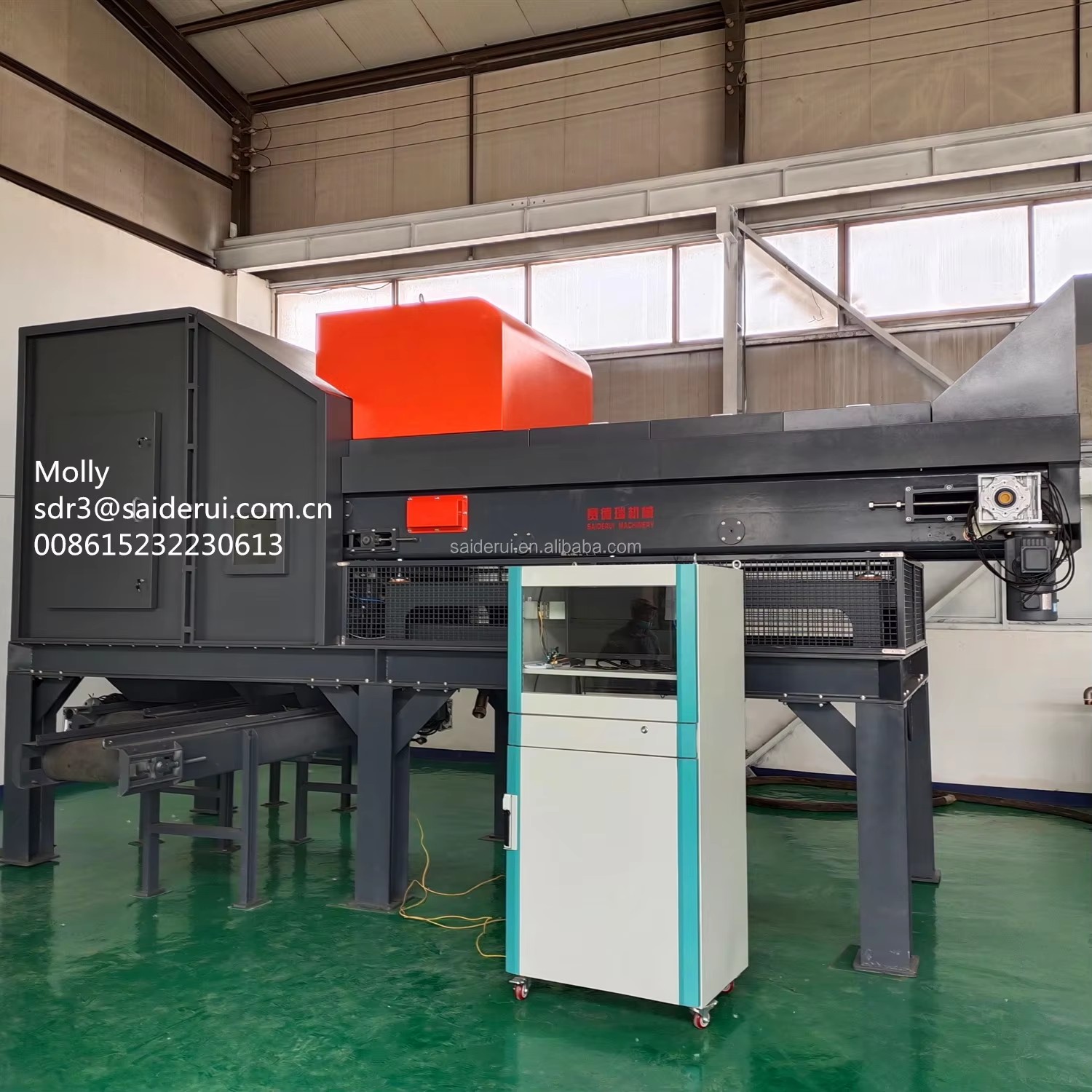

High Efficiency X Ray Mineral Separator/ore Separator/X Ray Sorting Machine

The separation technology developed by SAIDERUI Sorting Mining maximizes efficiency, precision and speed. Though it works much faster than traditional sorting technologies such as dense media separation, this intelligent system captures even the smallest particle sizes.

Regardless of whether the particle content is non-ferrous, diamond, gold, limestone or coal, sensors recognize the target material according to typical characteristics such as color, atomic density, transparency or conductivity. This diverse range of advanced recognition technologies offers the ideal sensor combination for any type of NON-FERROUS. Materials which pass through the sorting process are often heavy, dusty and abrasive, and thus demand a technological design which is incredibly robust in every respect. SAIDERUI Sorting Solutions combine material handling, recognition and pressurized air ejection technologies in a thoroughly optimized system which reliably separates valuable NON-FERROUS from mixed material.

X-RAY TRANSMISSION (XRT) SORTING - HOW IT WORKS The X-ray transmission technology enables materials to be recognized and separated based on their specific atomic density.

This technology makes it possible to obtain a high purity level in sorting materials irrespective of size, moisture or surface pollution level.

The COM Tertiary XRT uses an electric X-ray tube and a highly sensitive cutting-edge X-ray camera with DUOLINE sensor technology - using two independent sensor lines with different spectral sensitivities. Data supplied by this camera is processed using SAIDERUI Sorting’s proprietary high speed X-ray processing unit. The system is able to identify the atomic density of the material – regardless of its thickness.

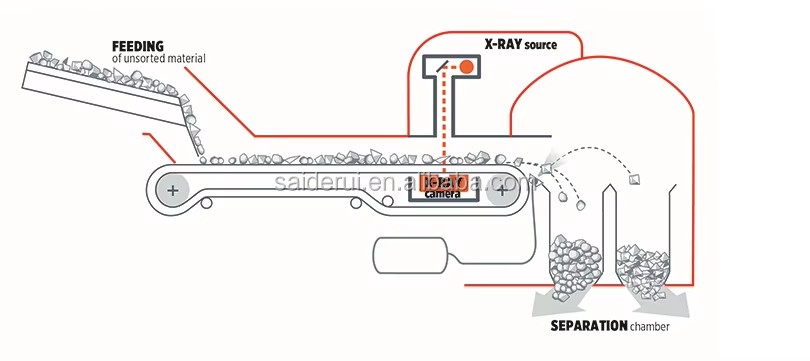

SIMPLIFIED SORTING PRINCIPLE

Input material is evenly fed via a screen feeder or vibration feeder over a transition chute (both not shown) onto a conveyor belt. An electric X-ray tube creates a broad-band radiation. This radiation penetrates the material and provides spectral absorption information that is measured with an X-ray camera using DUOLINE sensor technology. The resulting sensor information is then processed to provide a detailed “density image” of the material allowing it to be separated into high and low density fractions. If the sensor detects material to be sorted out, it commands the control unit to open the appropriate valves of the ejection module at the end of the conveyor belt. The detected materials are separated from the material flow by jets of compressed air. The sorted material is divided into two fractions in the separation chamber.

WHAT WE CAN RECYCLE

Mineral

Ore

Mixed scrap metal

OUR ADVANTAGES

More efficient recovery

Reduced water consumption

Better utilization of existing deposits

Less pollution

Greater yields

Small size, save space

FAQ

Q

1). Several Year's Experience

We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and and so on.)

2). Manufacturer, Not Dealer

Factory direct sale makes price more competitive.Customers are always welcome to visit

3). Fast Delivery

We promise the goods can be shipped out on delivery date after confirmation of the order.

Q: How do I know the quality of your machine?

A: You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit

Q: When we only purchase one shredder machine

A: Yes, you can. It depends on the difference of blades teeth and quantity, which can be customized.

Q: Which brand of motor will you use?

A: We use domestic motor manufatured by Chinese-famous suppliers, but you can choose Siemens or other brand motor. Don't worry about our machine's quality.

Q: Will you dispatch the engineer to guide installation?

A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
