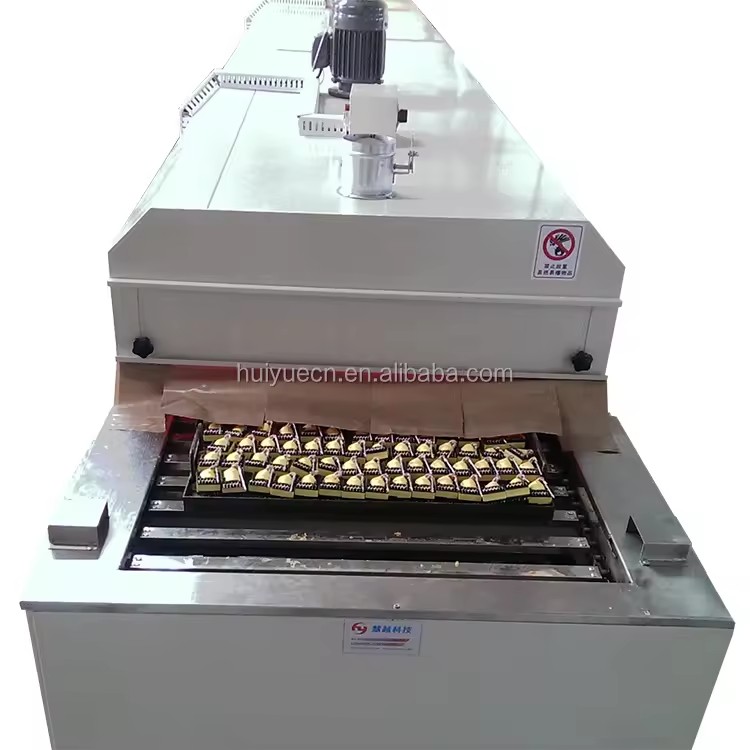

Continuous Electric Infrared Tunnel Oven Industrial Drying Equipment with Automatic Control for Paint Coating Curing

Available for enquiry 0.0 · 0 reviews
USD

$ 8,600.00 8600.0 USD $ 8,600.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Infrared tunnel furnace
Voltage
380
Heating method
Electric Heating
Material
Carbon Steel, insulation board, thermal insulation cotton
Power(w)
9000 W
Application
Electronic product processing
Product description

Highlights at a glance

  • The body is made of 2.0/3.0 angle iron square tubing, with a segmented assembly design for easy disassembly and installation.
  • Adjustable casters and feet are installed at the bottom for easy movement and positioning, and to adjust the height and level.
  • Dustproof, safe, aesthetically pleasing, and features a hook-and-loop installation structure for easy maintenance and assembly.
  • A set of 1800:1 speed reducers with frequency conversion adjustment for precise speed control.
  • The conveyor head uses a spiral method to adjust the tension of the mesh belt, which is both aesthetically pleasing and durable.
  • The furnace body consists of an outer shell, a rock wool layer, and an inner liner, and adopts a special heat insulation structure to ensure low surface temperature and good heat insulation effect.
  • Made with imported insulation cotton, it has excellent heat retention and saves energy, reducing electricity costs by 30% compared to ordinary ovens.

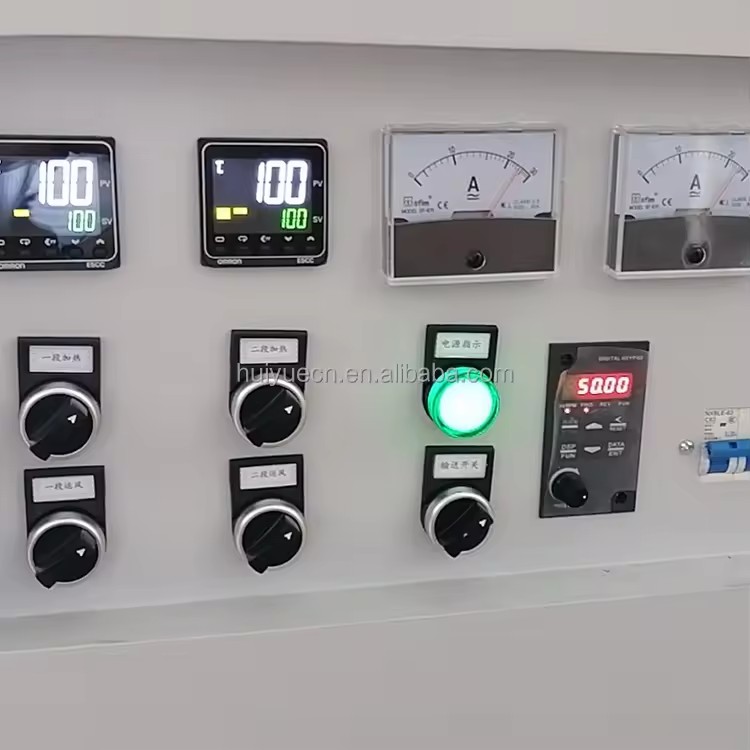

  • The microcomputer intelligent temperature control system provides more reliable and stable temperature control than machines that use conventional temperature controllers, and the temperature can be controlled in segments.
  • The design includes emergency stop, photoelectric sensing, electrical protection and overcurrent protection devices, and over-temperature alarm protection.
    • Frequently asked questions

    An infrared tunnel oven is a continuous heating system that uses infrared radiation to rapidly heat, dry, cure, or bake products as they move through the oven on a conveyor belt. It is widely used for high-volume industrial production.

    Infrared heating offers fast heat transfer, high energy efficiency, uniform product heating, reduced processing time, and lower operating costs compared with many conventional heating methods.

    Our infrared tunnel ovens are widely used in electronics, PCB manufacturing, LED production, automotive parts, powder coating, printing, packaging, plastics, rubber, glass, ceramics, and other industrial applications.

    Standard models are available from ambient temperature up to 200°C, 300°C, or 500°C. Higher temperature models can be customized according to production requirements.

    Yes. The conveyor speed is fully adjustable through the control system, allowing customers to optimize heating time for different products.

    We offer stainless steel mesh belts, chain conveyors, roller conveyors, and customized conveying systems based on product size, weight, and production requirements.

    Yes. We provide OEM and ODM customization, including tunnel length, chamber width and height, heating zones, conveyor width, inlet and outlet height, and overall equipment dimensions.

    Yes. The heating system is designed to provide stable infrared radiation and consistent temperature distribution, ensuring reliable product quality throughout the production process.
    Description images

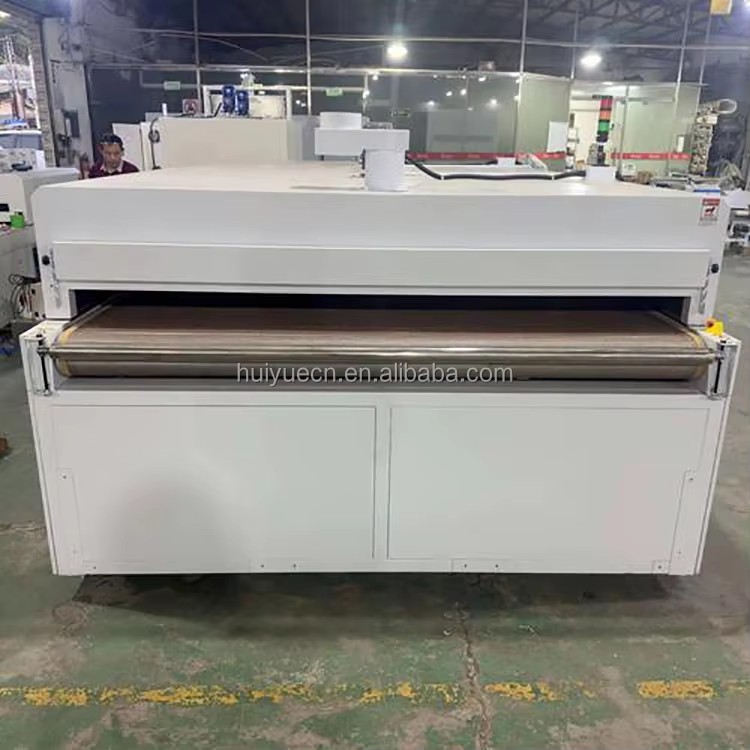

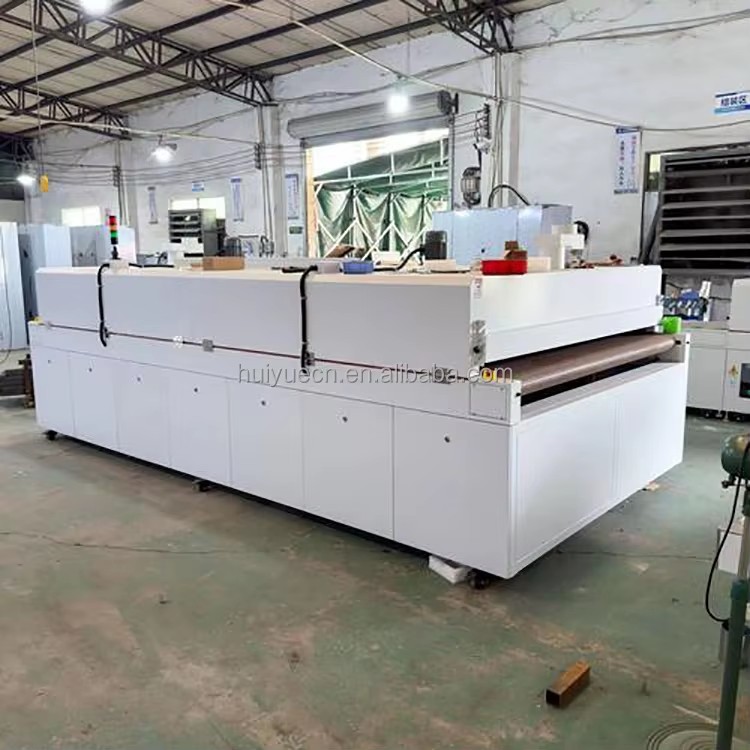

    Product detail

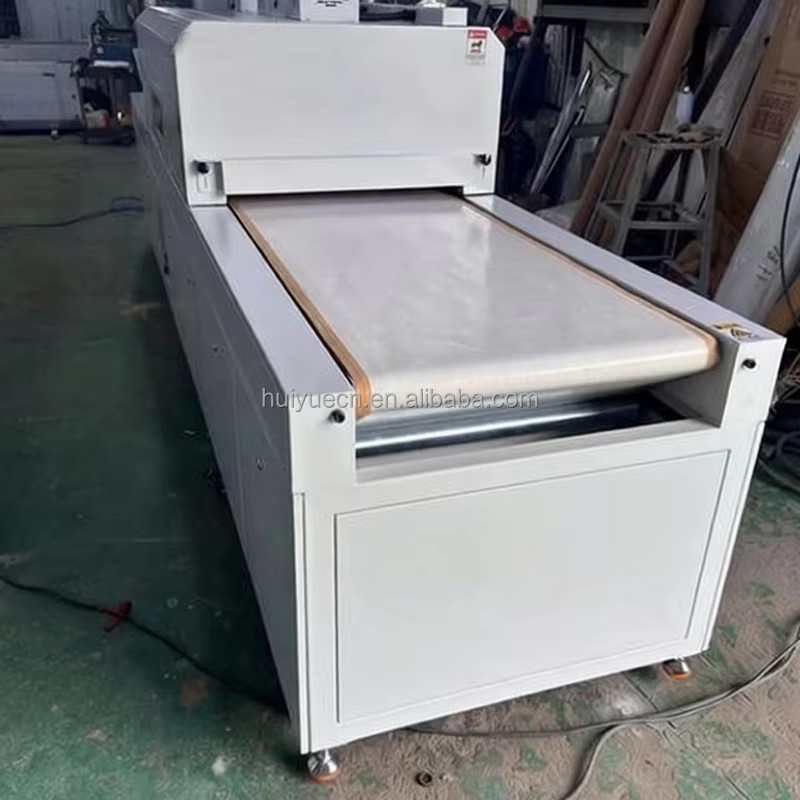

    Product detail

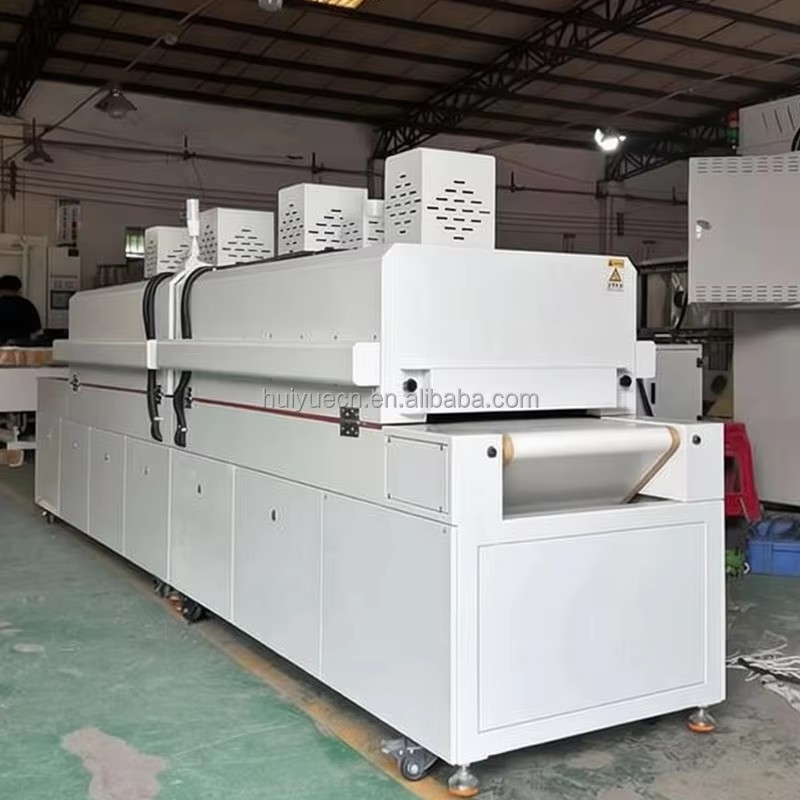

    Product detail
    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      30 days

    • Step 3

      Packaging and dispatch

      (Ocean) · Approx. shipping fee: $ 950.00 for 1 set · Estimated delivery: Nov 4–Nov 18 (63–77 days)

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 29 fields
    Type
    Infrared tunnel furnace
    Voltage
    380
    Heating method
    Electric Heating
    Material
    Carbon Steel, insulation board, thermal insulation cotton
    Power(w)
    9000 W
    Application
    Electronic product processing
    Core components
    PLC
    Key selling points
    Automatic, Easy To Operate, Multifunctional, High-Accuracy, Long Service Life, High Productivity, Eco-Friendly, Energy Saving, Low Noise Level, Flexible Manufacturing, High Rigidity
    Warranty
    1 Year
    Machinery test report
    Provided
    Video outgoing-inspection
    Provided
    Operating System Language
    English, Chinese
    Place of origin
    China, Guangdong
    Weight (kg)
    450
    Dimension(L*W*H)
    External dimensions: L4000 W950 H1450mm
    External dimensions
    L4000*W950*H1450mm
    Heating zone dimensions
    L3000mm*W700mm*H120mm
    Material placement area size
    Feeding area 500mm, unloading area 500mm
    Entrance/exit height adjustment range
    30-120mm
    Number of fuselage sections
    Divided into two heating zones, independently controlled
    Furnace inner wall material
    1.0 stainless steel
    Body Material
    2.0/3.0 Angle Iron Square Sheet
    Temperature range
    Adjustable from room temperature to 200°C
    Input rated voltage
    AC380V 50/60Hz (Three-phase four-wire + ground wire)
    Equipment power
    Rated power 9KW, constant temperature power 4-6KW
    Selling Units
    Single item
    Single package size
    400X95X145 cm
    Single gross weight
    450.0 kg
    Model number
    HY-K02
    Lead time
    30 days
