Product video
Certifications CE

Available for enquiry 0.0 · 0 reviews
USD

$ 21,240.00 21240.0 USD $ 21,240.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Portable Hydraulic Drive DTH Drilling Machine
Drilling Depth
Max.20m
Drilling Diameter
80~120mm(3.15~4.72in)
Power Type
Diesel
Core components
chain feed
Warranty
1 Year
Product description

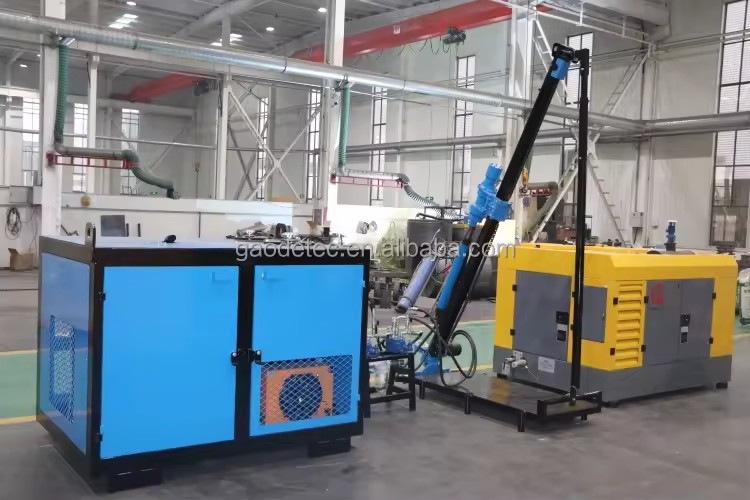

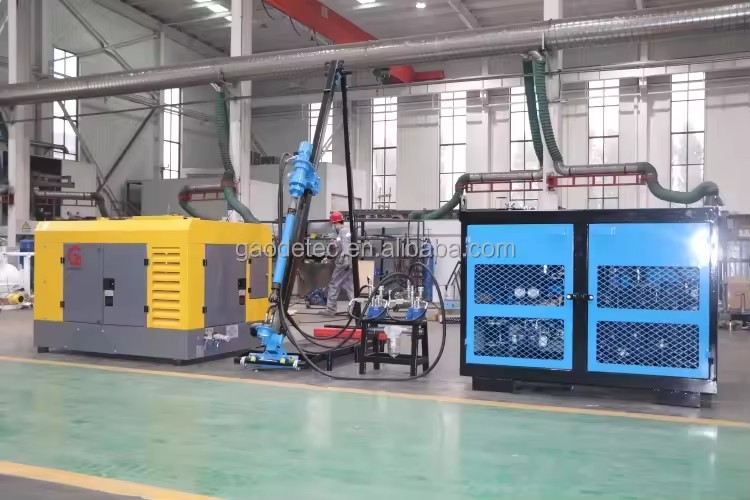

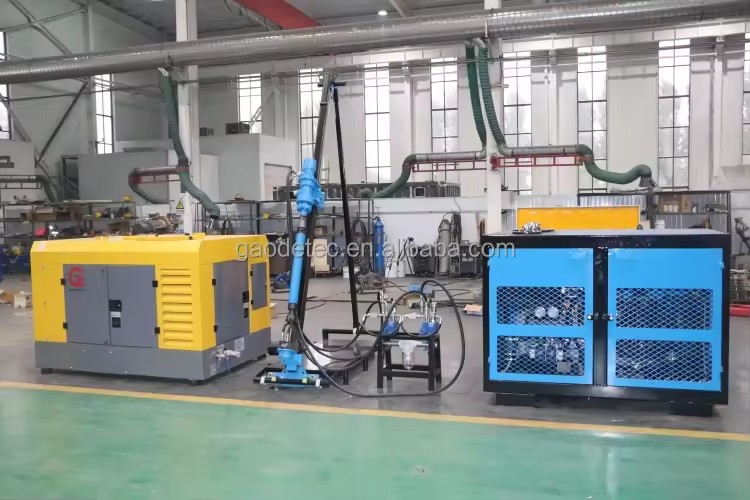

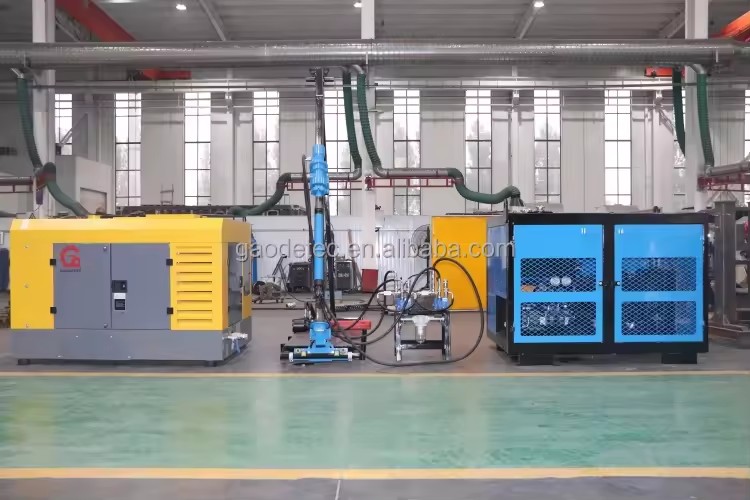

GPD100H-D Diesel Portable Hydraulic DTH Drilling Rig

Main Features

ModelGPD100H
Hole Diameter80~120mm
Hole Depth20m
Feed Force12KN
Rotate Speed90~120rpm
Torque1000NM
Air Pressure0.5~0.7Mpa
Air consumption3.5~5m3/min
Drill Rod60x2000mm
Drilling DirectionAny Angle
Weight170Kg (Only drill machine)
Dimension3230x560x415mm
Diesel Drive Hydraulic station
TypeBHPP15/55X2-30D
Output capacity2x55L/min
Outlet pressure15MPa
Diesel powerYanmar diesel engine 2110 26KW
Dimensions1760X1150X1300mm
Weight960kg
Certifications & compliance
CE
Complies with EU standards
Description images

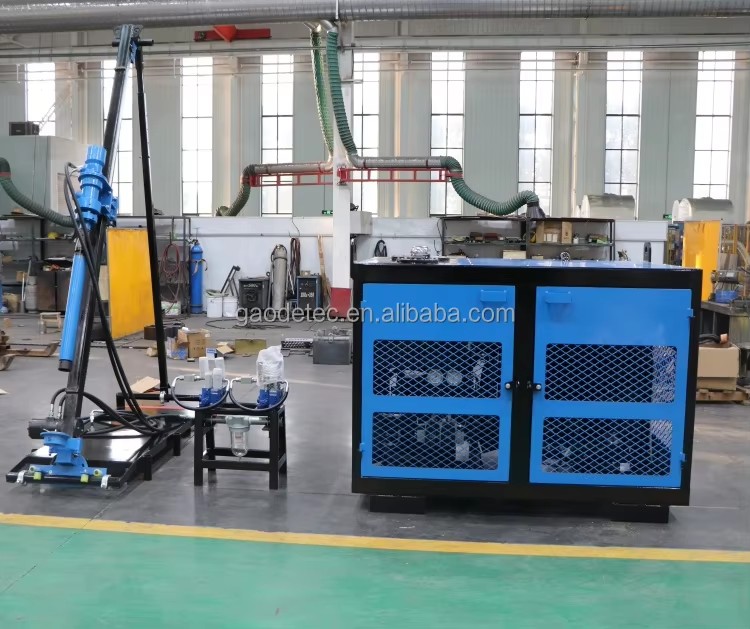

Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    20 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Type
Portable Hydraulic Drive DTH Drilling Machine
Drilling Depth
Max.20m
Drilling Diameter
80~120mm(3.15~4.72in)
Power Type
Diesel
Core components
chain feed
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Henan
Weight
170 KG(374.79lb)
Dimension (L*W*H)
3230x560x415mm(127.17x22.05x16.34in)
Hole Diameter
80~120mm
Hole depth
20m
Feed force
12KN
Rotate speed
90~120rpm
Torque
1000NM
Air pressure
0.5~0.7Mpa
Air consumption
3.5~5m3/min
Drill rod
60x2000mm
Drilling direction
Any Angle
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
GPD100H
Power (W) (Product option)
Diesel
Certifications & Compliance
CE
Lead time
20 days
Minimum order
1 Units
