Product video
Certifications 2006/42/EC

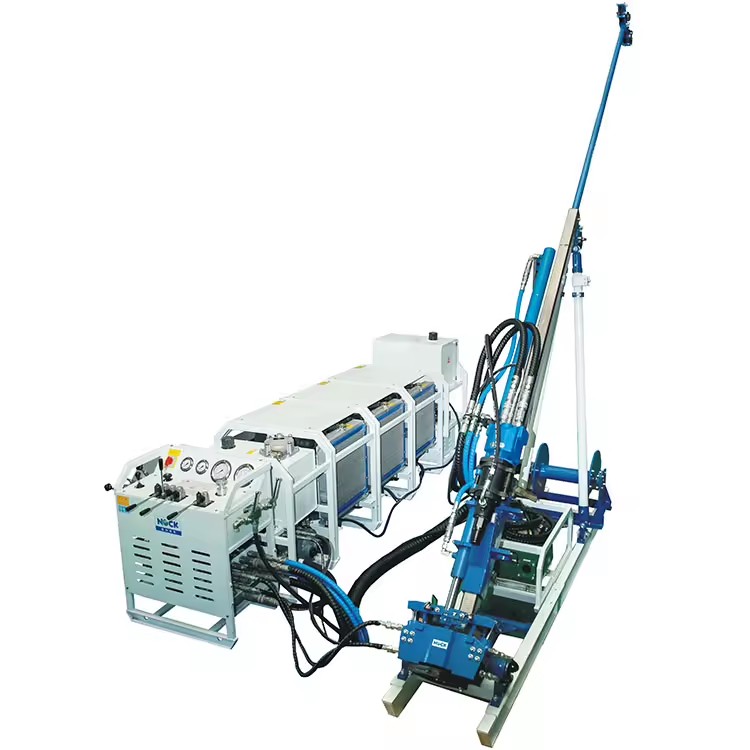

ROCK-800 Man Portable Diamond Drilling Rig Gold Mining Machinery Equipment Core Drilling Rigs

Available for enquiry 0.0 · 0 reviews
USD

$ 169,900.00 169900.0 USD $ 169,900.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Coal/Ore
Type
Core Drilling Rig
Drilling Depth
PQ 200, HTW 400, NTW 800, BTW 1000
Drilling Diameter
60 mm(2.36in), 76mm(2.99in), 96mm(3.78in), 123mm(4.84in)
Power Type
Diesel
Core components
Engine Motor pump
Product description
nameROCK-800
brand
power systemDiesel engine:Kubota four cylinder turbocharged; output power: 99(33*3)kw; Max Rotational Speed:2800RPM; Diesel tank capacity 90L

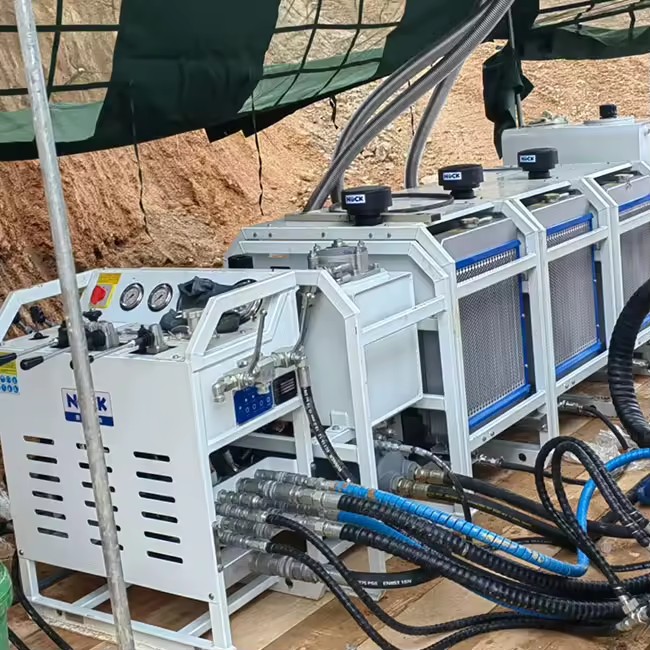

Hydraulic systemOil supply loop:Multi-pump parallel oil supply circuit; Multi-channel pressure display, integrated operating platform;water-cooling system; Max pressure:21MPa Hydraulic tank capacity 50L
Rotating systemTop drive type drill head; Rotational Speed:50-1500RPM Continuous adjustable; Max torque:1300N.M
Feeding systemFeeding Angle adjustment: 45°-90°(can be extended to 0°-90°); Cylinder stroke:1.8m; Lifting force (single/double) 6.3t/12.6t; Propulsion (single /double ) 3.2t/6.4t
Mud systemHydraulic power drive; Max flow:109L/min; Max pressure:7MPa
Foot Clampslide jaws foot clamp Hydraulic cylinder drive Max.passing diameter: 150mm

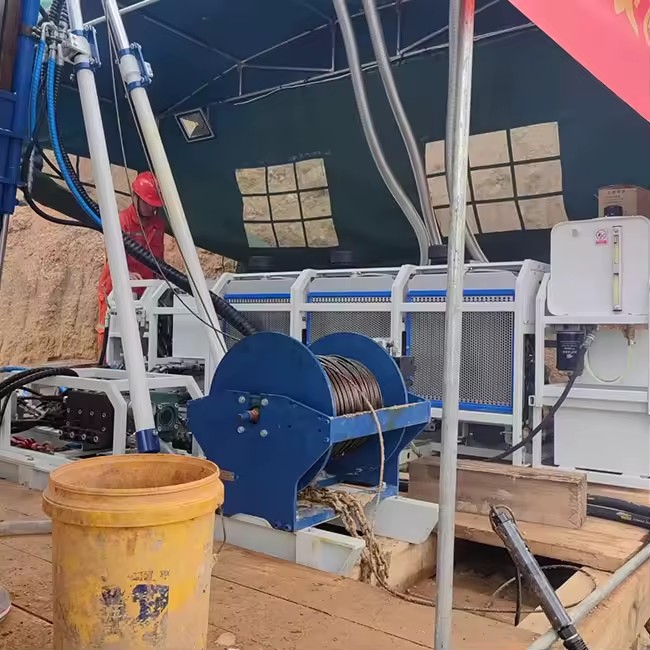

Wire-line Hoisthydraulic motor direct drive; Wire diameter 6 mm;Rope load capacity:900 m； Lifting force:26KN； Max feeding speed：260 m/min
Certifications & compliance
2006/42/EC
EU Machinery Compliance
Description images

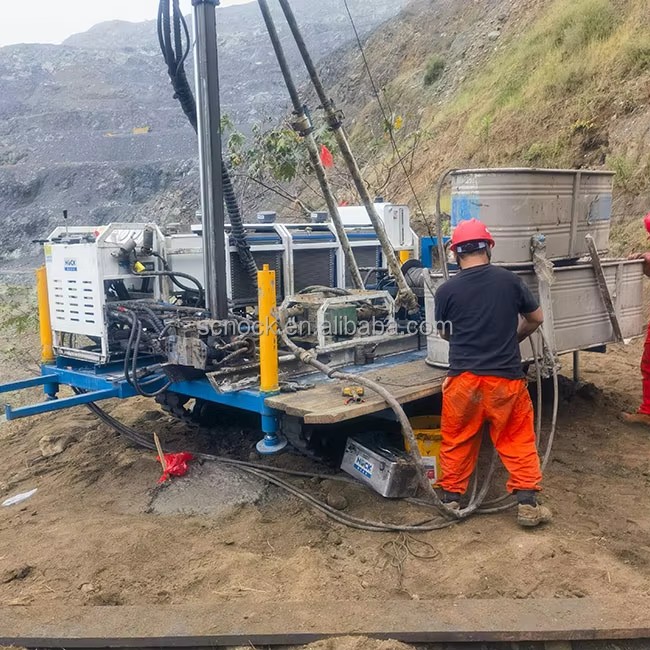

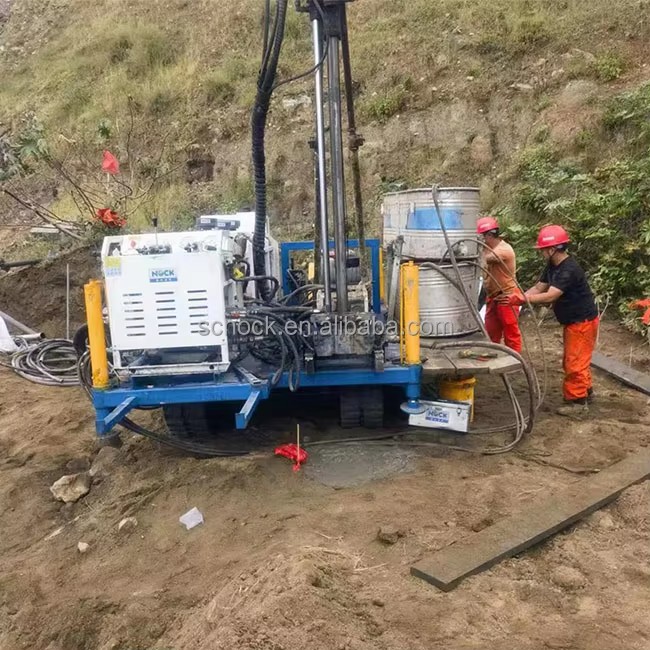

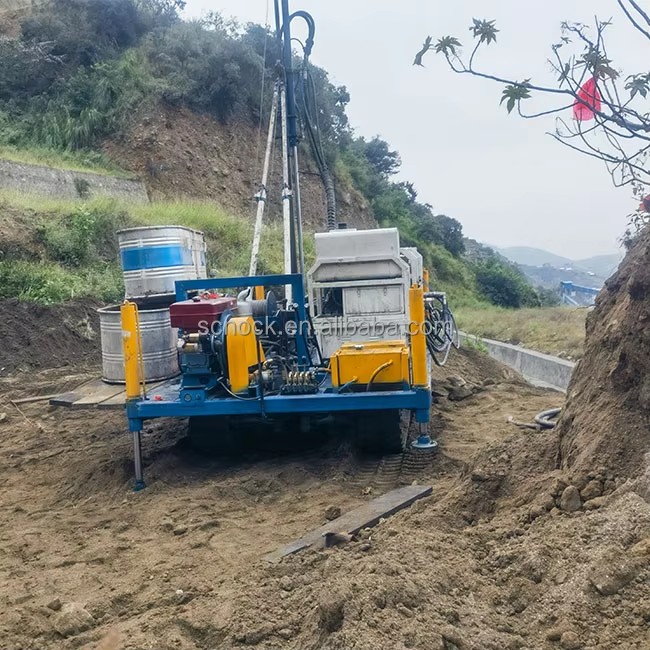

Product detail
Product detail
Product detail
Product detail
2006/42/EC
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 28 fields
Usage
Coal/Ore
Type
Core Drilling Rig
Drilling Depth
PQ 200, HTW 400, NTW 800, BTW 1000
Drilling Diameter
60 mm(2.36in), 76mm(2.99in), 96mm(3.78in), 123mm(4.84in)
Power Type
Diesel
Core components
Engine Motor pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Portable
Place of origin
China, Sichuan
Weight
1300 KG(2866.01lb)
Color
Blue and white
Applicable drill pipe (M)
1.5
Applicable drilling tool (M)
1.5/3
Drill pipe specification
PQ, HTW, NTW, BTW
Drilling depth capacity (M)
PQ 200, HTW 400, NTW 800, BTW 1000
Drilling Diameter (mm)
PQ 123, HTW 96, NTW 76, BTW 60
Drill core diameter (MM)
PQ 85, HTW 71, NTW 56, BTW 42
OEM
Accept
Drilling angle(°)
45°-90°(Expandable to 0° - 90°)
Application
Geological Exploration
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
ROCK-800
Power (W) (Product option)
99kw(132.76hp)
Certifications & Compliance
2006/42/EC
Lead time
30 days
Minimum order
1 Units
