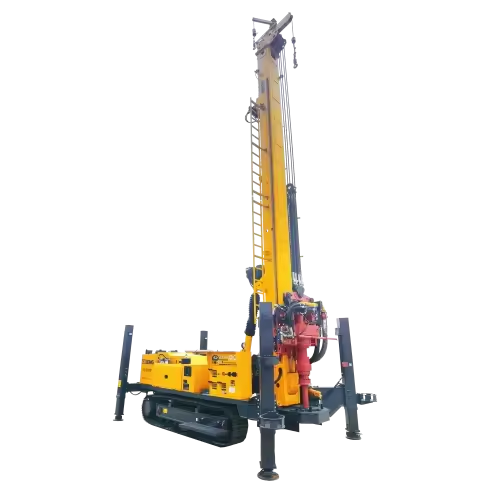

XSL600B Deep Well Mine Drilling Rig for Shallow Oil/Gas & Geothermal Construction 600mm Diameter Deep Hole Drill

Product Introduction Comfortable and convenient operating system

Integrated operating table, compact structure, easy operation

Dual pump confluence rotation system controlled by a single handle, comfortable operation

Windling priority operating system, reducing auxiliary operation time

Mature and reliable top drive power head

More than 20 years of mature experience in power head development technology, reliable use and long life

Patented technology double isolation rotary joint, meet the air and mud drilling process

Large-amplitude telescopic drill mast

Large-amplitude drill mast structure, higher construction stability

Gap-adjustable telescopic drill mast, meet the needs of large-stroke pipe construction, short transportation size

Great value Upgrade space

Optional generator, centrifugal pump, foam pump and other configurations to meet users' value-added needs

Safe and considerate detail design

Desert Storm air filter system to maximize the engine's powerful output

Tower lifting cylinder safety locking, gas manifold acupuncture treatment, etc. to ensure personal safety during construction

Each electrical component is equipped with independent circuit breaker protection for easy maintenance

Powerful and efficient hydraulic system

Based on the working condition matching of "torque, speed, lifting force, lifting speed", the main pump flow and pressure are accurately configured, and energy-saving is efficient

Selected hydraulic components of first-class domestic and foreign brands, with strong power

Parameter configuration Item Unit XSL600B crawler deep well drilling rig Drilling depth m 1200 (φ114) Maximum through diameter mm φ520 Maximum lifting force kN 600 Maximum feed force kN 240 Fast lifting speed m/min 30 Fast lowering speed m/min 42 Stroke mm 7000 Maximum torque kN 20000/10000 Maximum speed r/min 70/140 Spindle diameter mm φ105 Engine model - YCA08260-T401 Engine rated power kW 191 Wind lifting force kN 15 Manifold diameter mm Φ76 Manifold maximum pressure Mpa 15 Maximum travel speed km/h 2.5 Maximum climbing grade ° 39 Working size mm 6450×3700×13020 Transportation size mm 12700×2250×3090 Machine weight t 23.5

Expert evaluation: The XSL series crawler deep well drilling rig is a special energy mining equipment independently developed by XCMG Group to meet the needs of the shallow resource mining industry. It is mainly used for various deep hole drilling construction such as shallow oil and gas wells, geothermal wells, mining wells, industrial and agricultural water wells, etc. The drilling rig can adopt various construction processes such as air down-the-hole hammer drilling and mud drilling, and has the advantages of fast drilling speed and good hole-forming effect.
