Name: 32 Blades Metric Feeler Gauge High Precision 0.04-0.88 Thickness Gages Gap Filler Feeler Gauges Measuring Tool Plug Feeler
SKU: B2B-17482
Price: 20.0 USD
Availability: PreOrder

Product description

32 Blades Metric Feeler Gauge High Precision 0.04-0.88 Thickness Gages Gap Filler Feeler Gauges Measuring Tool Plug Feeler

Product number	KC0724
Product Name	32pcs feeler gauge
Material	Manganese steel+stainless steel
Product weight	121g
Product Color	silvery
Product Size	99mm
Product packaging	Plastic bag packaging

usage method

(1) Wipe the measuring surface of the feeler gauge with a clean cloth, and do not measure when the feeler gauge is stained with oil or metal chips, otherwise the accuracy of the measurement results will be affected.

(2) Insert the feeler gauge into the measured gap, pull the feeler gauge back and forth, and feel a slight resistance, indicating that the gap value is close to the value marked on the feeler gauge; If the resistance is too large or too small when pulling, the clearance value is less than or greater than the value marked on the feeler gauge.

(3) When measuring and adjusting the clearance, first select a feeler gauge that meets the clearance requirements and insert it into the measured clearance, then pull the feeler gauge while adjusting until the lock nut is tightened when a slight resistance is felt. At this time, the value marked by the feeler gauge is the measured clearance value.

Precautions

(1) It is not allowed to bend the feeler gauge violently or insert the feeler gauge into the measured gap with a large force during the measurement process, otherwise the accuracy of the measuring surface of the feeler gauge or the surface of the parts will be damaged.

(2) After use, the feeler gauge shall be wiped clean and coated with a thin layer of industrial vaseline, and then the feeler gauge shall be folded back into the clamp frame to prevent corrosion, bending and deformation.

(3) When storing, do not put the feeler gauge under heavy objects to avoid damaging the feeler gauge.

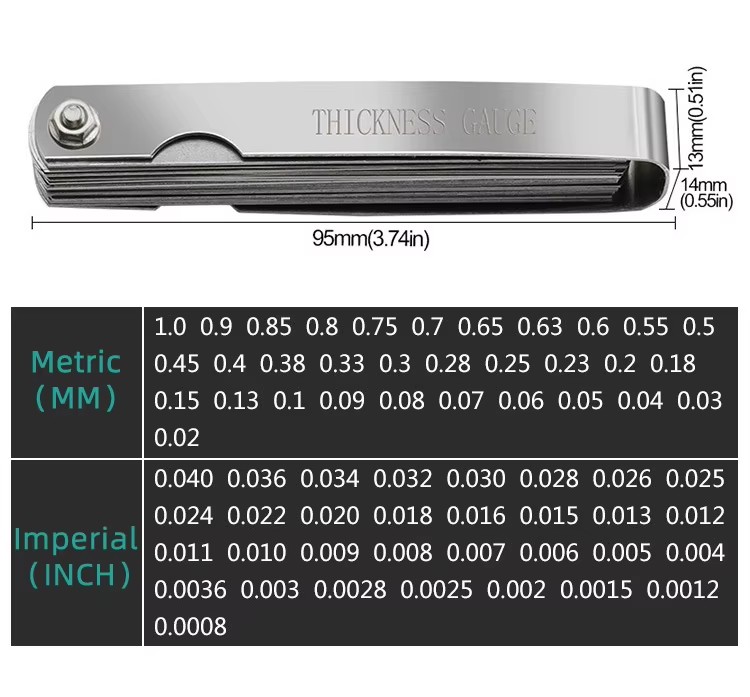

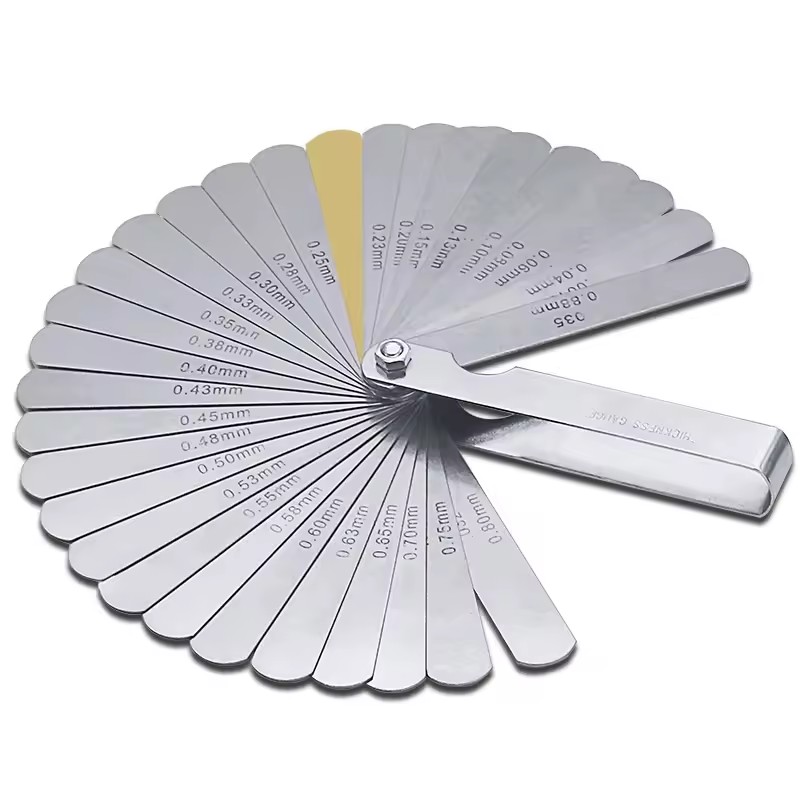

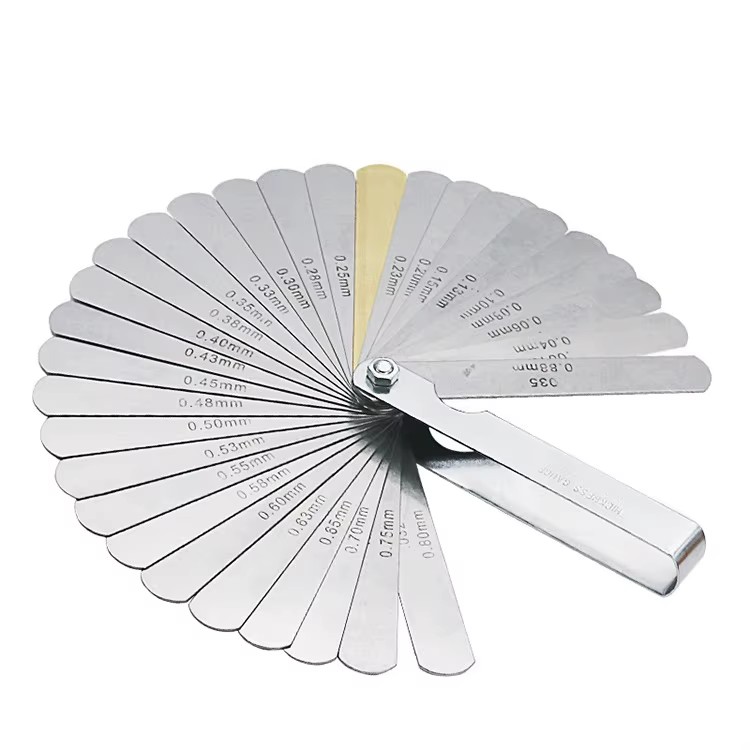

Description images

32 Blades Metric Feeler Gauge High Precision 0.04-0.88 Thickness Gages Gap Filler Feeler Gauges Measuring Tool Plug Feeler

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 10 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 15 fields

Warranty

1 years

Customized support

OEM, ODM

Place of origin

China, Guangdong

Item weight

121g(4.27oz)

Model number (Specification)

KC0724

Material

Manganese steel+stainless steel

Product number

KC0724

Application

Range finder

Size

99mm

Capacity

other

Operation mode

other

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Color (Product option)

A:32pcs feeler gauge, B:26 piece stainless steel plug gauge set, C:15 gauge plug gauges with thickness ranging from 0.02mm to 1mm

Lead time

7 days

Minimum order

10 Units
