Product video

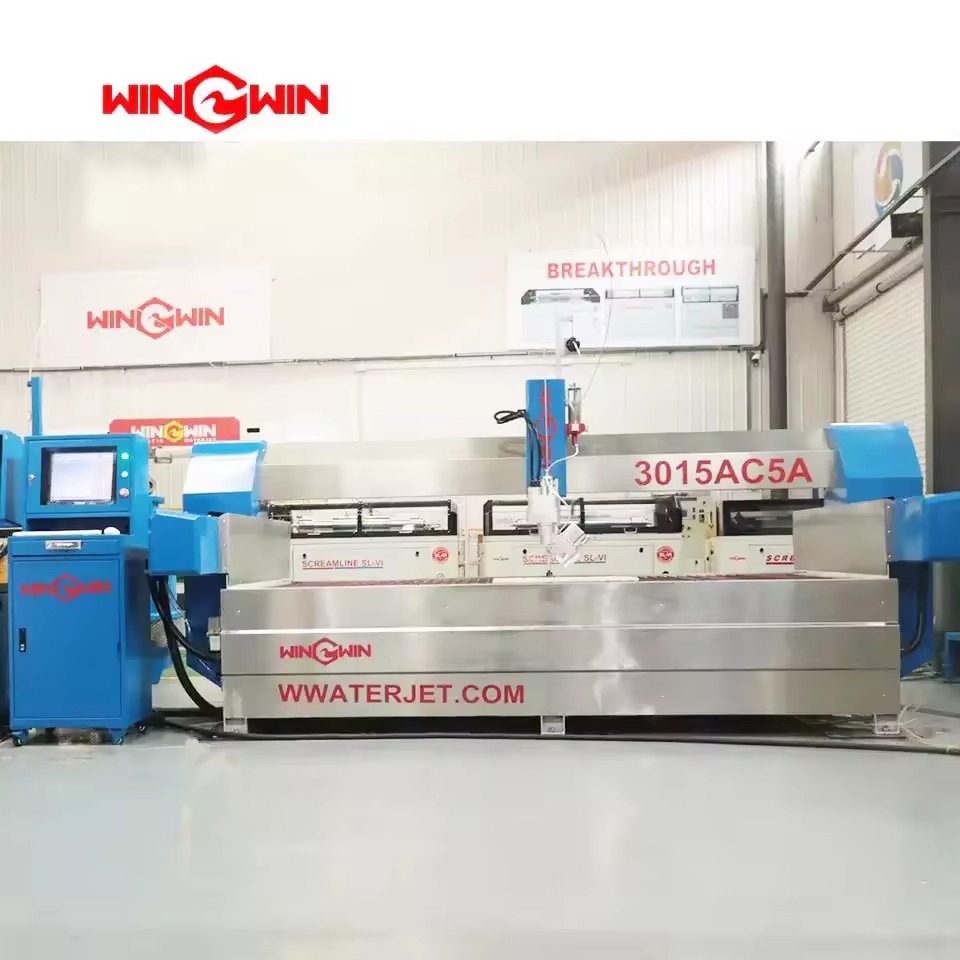

3015 AC 5 Axis Water Jet Cutting Machine Waterjet Cutter CNC Waterjet Cut Machine for Marble Cutting

Available for enquiry 0.0 · 0 reviews
USD

$ 40,670.00 40670.0 USD $ 40,670.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Repeatability (x/y/z) (mm)
  • Number of axes
  • Core components
  • Voltage
  • Warranty
  • Key selling points
  • Machinery test report
  • Video outgoing-inspection
  • Place of origin
  • Weight (kg)
  • Table travel (x) (mm)
  • Table travel (y) (mm)
  • Table travel (z) (mm)
  • Application
  • Type
  • Control system
  • Cutting material
  • MOQ
  • After-sales Service Provided
  • Port of dispatch
  • Selling Units
  • Single package size
  • Single gross weight
  • Supply Ability
  • Model number
  • Effective cutting range (mm)

This combination is unavailable.

Key attributes

View all
Repeatability (x/y/z) (mm)
±0.01
Number of axes
5
Core components
Pump
Voltage
380
Warranty
1 Year
Key selling points
High-Accuracy
Product description

AC 5 Axis 3015 Waterjet Cutting Machine

Series

AC-3015 Water Jet

Type

Gantry Cutting Table

Cutting Angle

0-±68 Degrees

Control Accurcy

±0.01mm

Table Size

3800mmx2200mmx200mm

Travel Of Z Axis

200mm

Cutting Precision

±0.1mm

RE-Positioning Accuracy

±0.05mm/m

Cutting Speed

11000mm/min

Certificate

CE ISO

Motor

30kw / 40HP

After-sales Service

Installation Online Service

MAX.Cutting Range

3000mmx1500mmx200mm

Material

Stainless steel

Thickness

0.33mm orifice

320Mpa

380Mpa

420Mpa

Aluminum

0.25"(6mm)

400-520mm

460-590mm

500-580mm

0.50"(13mm)

300-800mm

350-420mm

400-510mm

0.75"(19mm)

220-280mm

260-380mm

300-420mm

200-260mm

240-310mm

260-350mm

80-120mm

100-150mm

125-180mm

0.76"(20mm)

50-65mm

70-90mm

100-120mm

1.18"(30mm)

15-25mm

30-40mm

40-50mm

Glass

1200-1400mm

1600-1900mm

2100-2300mm

0.39"(10mm)

600-700mm

700-800mm

820-900mm

0.79"(20mm)

330-400mm

400-500mm

600-800mm

Marble

0.24"(10mm)

1000-1200mm

1350-1550mm

750-850mm

220-300mm

310-380mm

400-480mm

1.97"(50mm)

130-150mm

Tile

0.59"(15mm)

1400-1500mm

1600-1800mm

Copper plate

0.20"(5mm)

500-600mm

900-1000mm

190-220mm

80-100mm

120-150mm

00:00

Customer Orders

After our assembly and debugging, we finally delivered the product to our

customer. The fast delivery speed and high quality of the product made the customer very satisfied with our product.

Product Description

company supports color customization, this equipment is WW40jet intensifier pump + 3015 AC 5 cutting table, full stainless steel protective structure, good protection, no rust, oil immersed structure, long service life of ball screw and linear guide, fully aluminum alloy cutting head, light weight, reduce the load of the cutting table, AC 5 axis head, cutting angle can reach ±68°, C axis can be 360° rotation.

The cutting table adopts an Oil-Immersed structure to reduce the wear of the lead screw and the slider. It has a long service life, a full-protection structure and better sealing. The use of stainless steel materials prevents metal corrosion. It is as new for ten years.

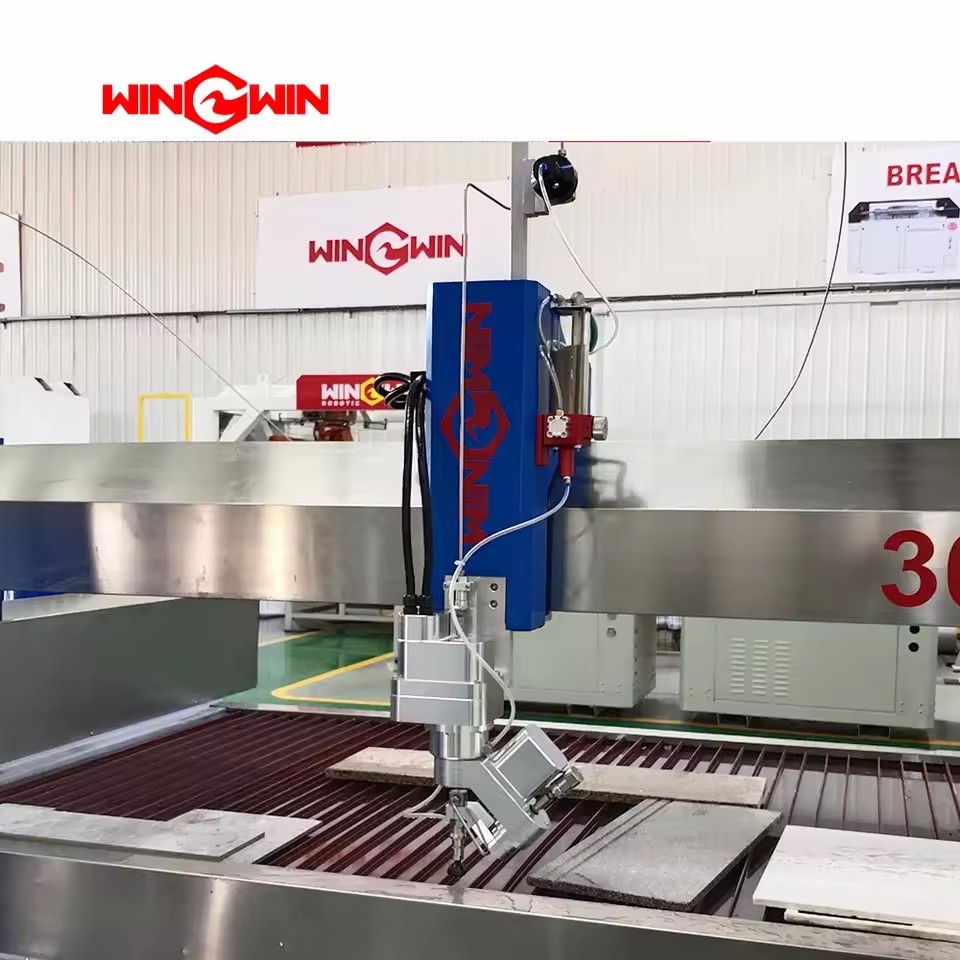

Swing angle ±68°, absolute encoder control system.

AC cutting head is equipped with high quality hardware, swing Angle can reach ±68°, equipped with Weihong system and servo motor, high precision, accurate calculation, with altimetry system, first choice waterjet equipment for cutting large Angle parts

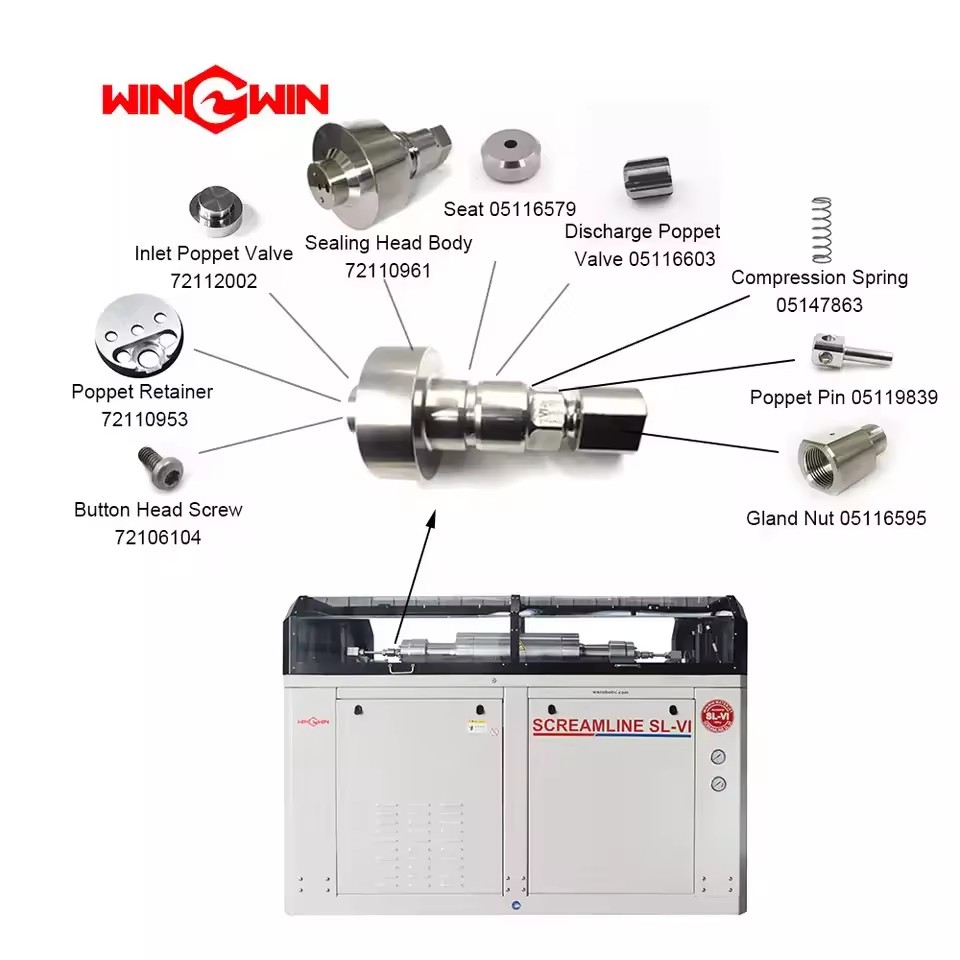

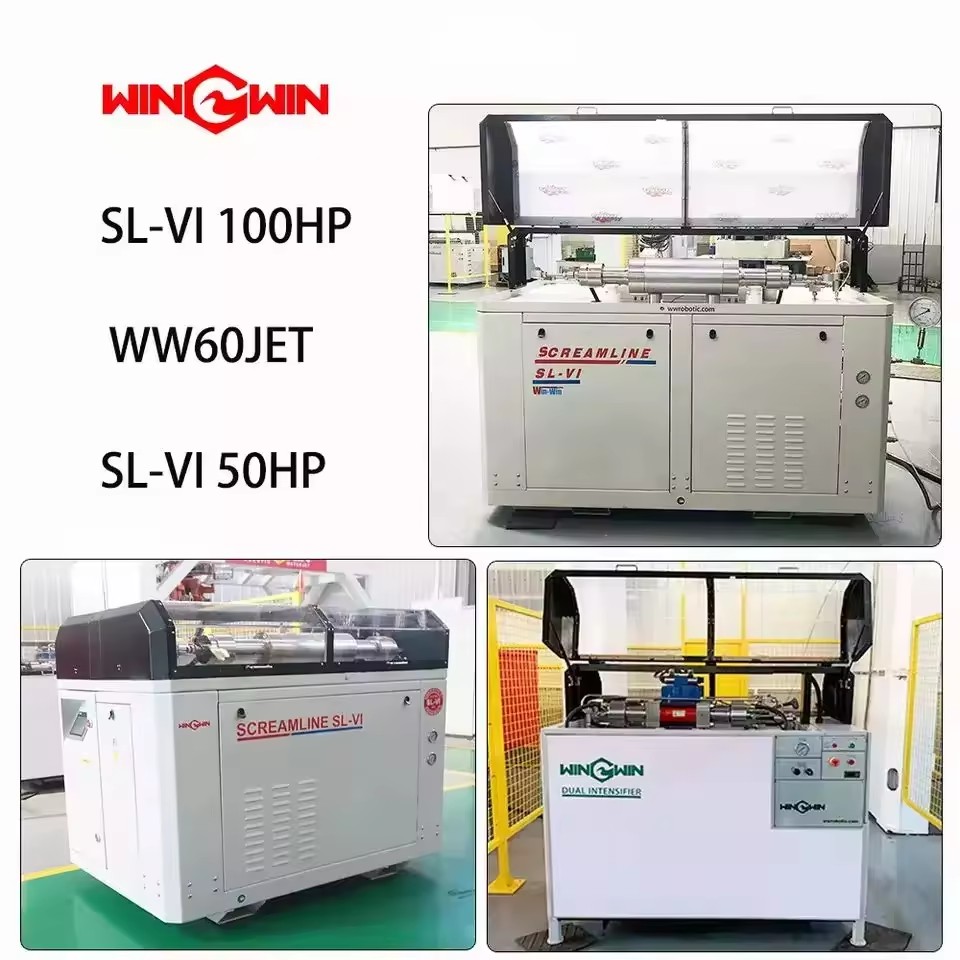

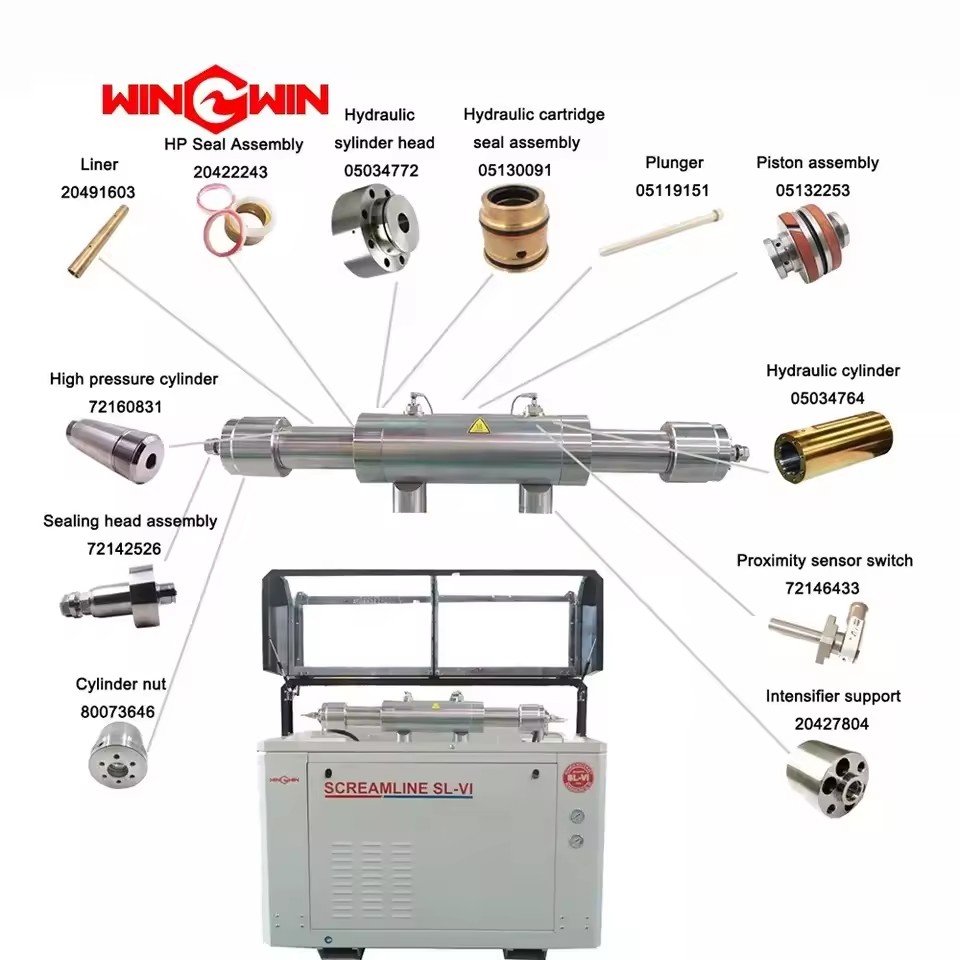

WW5060JET intensifier pump is highly versatile intensifier pump, American imported core components, Sandvik high pressure pipelines,Omron PLC electrical components. This pump is a basic, economic intensifier pump, widely used in the market, large wearing parts seller, simple to use, the pressure can be up to 330Mpa, often used in marble cutting, metal cutting, glass cutting, rubber cutting and other industries.

17-inch industrial display, placed in the CNC control shield, good protection, wireless keyboard, mouse and wireless remote control handle, speed can be adjusted under any circumstances, large memory capacity, no delay, smooth operation

You May Also Like

About Us

Win-Win has been focusing on Waterjet Industry for over 20 years, our founder is the leader of waterjet technology. We have a complete technical team, who always focus on the R&D of Ultra High-Pressure Technology, so that Win-Win owns more than ten patents of core technology. We have been cooperating with the interior part manufacturers for many years as the authorized supplier. And now, Win-Win becomes the largest and most reliable UHP waterjet system supplier. We have a standard production plant of 2800㎡, you will see the full automation production line, strict QC phase, 100% testing before sell. The slogan of Win-Win is “To provide the best products and the best service, make customers and us to get mutual benefit together.

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    5 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Repeatability (x/y/z) (mm)
±0.01
Number of axes
5
Core components
Pump
Voltage
380
Warranty
1 Year
Key selling points
High-Accuracy
Machinery test report
Provided
Video outgoing-inspection
Provided
Place of origin
China, Liaoning
Weight (kg)
5000 KG
Table travel (x) (mm)
3000
Table travel (y) (mm)
1500
Table travel (z) (mm)
200
Application
Industrial Metal Cutting
Type
Waterjet Cutting Machine
Control system
CNC Controller
Cutting material
Metal.alloy.aluminum.stone.glass.or Soft Materials
MOQ
1 Piece
After-sales Service Provided
Engineers
Port of dispatch
Dalian
Selling Units
Single item
Single package size
20X20X20 cm
Single gross weight
20.0 kg
Supply Ability
50 sets per Month
Model number
3015
Effective cutting range (mm)
3000×1500, Other
Lead time
5 days
Minimum order
1 Units
