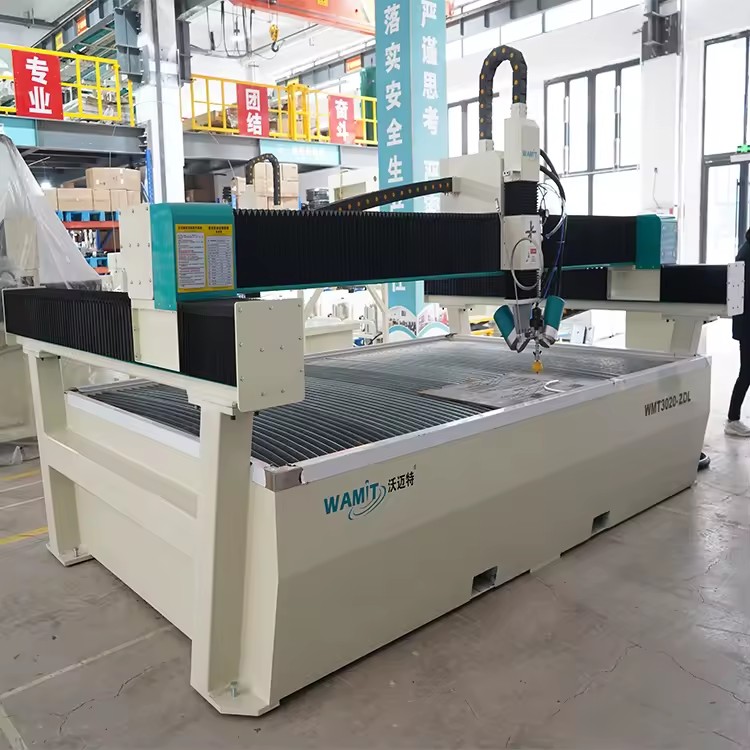

Name: 3000*2000mm Garnet Water Jet Cutting Cutter Machine for Metal
SKU: B2B-4320
Price: 41990.0 USD
Availability: PreOrder

Product description

： Starting from Technician！ Obsessed with Product！ Aiming at Customer！

SPECIFICATION

Model

WMT200- 1010

WMT200-1515

WMT200- 2515

WMT200- 3015

WMT200- 3020

WMT200-4020

Platform Size(mm)

X axis

1200

1700

3200

3950

3700

4850

Y axis

2000

2350

2550

Effective Cutting Range(mm)

1000

1500

2500

3000

4000

Max Cutting Range(mm)

Z axis

150

Water Tank Capacity(m³)

2.2

4.8

5.9

9.2

Cutting Accuracy

±0.1mm/m

X/Y-axis Running Speed

50m/min

Z-axis Running Speed

5m/min

Continuous output pressure

50000Psi-55000Psi

Cutting Material

Flexible cutting for various materials: metals, composites, stone&tile, foods, glass, marble, granite, soft material (foam, rubber, plastic, carbon fiber, blanket and so on).

General Cutting Thickness

Marble 0-120mm; Granite 0-110mm; Tile 0-40mm; Glass and Mosaic 0-80mm; Steel, Stainless Steel, Copper 0-60mm; Aluminum 0-80mm; Plastic, Acrylic, Foam 0-200mm. ( highly customizable for thicker range with different accessories choices )

Starting from

Technician！

Obsessed with

Product！

Aiming at

Customer！

Products Description

Core Advantages / Why choose us?

Source Factory

for 10+ years

lower Price

higher quality

+ whole-chain

and

reliable

technical and after-sales service support.

Top

industry

tech

's first generation of self-designed ultra-high pressure servo direct drive pumps which can at least

reduce

50%-60% using

cost

(especially in electricity).

Water jet industry specialist

excellent Industry experience

Care about what customers care about, in more than ten years of practice, we have got a lot of experience about product adaptation, technology guide, after-sales service and other aspects for solving customer needs, so we can guarantee you a one-stop solution.

Tell us your usage

scenario, we can provide the

most cost-effective product solution!!!

Higher Customization Capacity

Just tell us your requirements, we will try our 100% patience and

striving for meeting.

Platform

Size(mm)

X/Y-axis

Running Speed

Marble 0-120mm; Granite 0-110mm; Tile 0-40mm; Glass and Mosaic 0-80mm; Steel, Stainless Steel, Copper 0-60mm; Aluminum 0-80mm; Plastic, Acrylic, Foam 0-200mm.

( highly customizable for thicker range with different accessories choices )

Certificates

Optional Water Jet Cutting Head

“FLOW” ECL high efficiency cutting head: 15% faster cutting.

Compensation angle of cutting head is ±10 degree, suitable for fine cutting of tile mosaics and marble mosaics.

Compensation angle of cutting head is ±60 degree, suitable for bevel cutting of rock slabs and metal plates.

Optional Intensifier Pump

Cheaper price for pump

2. Mature and stable technology from market

3. Easy Operation

Cheaper

Price in Using

use 15kw servo motor replace 37kw asynchronous motor, directly -60% electricity, around

$3 per hour.

Eco-friendly

no hydraulic oil oil, clean and no pollution.

lower noise

higher safety

4. Lighter weight and small size

Product Details

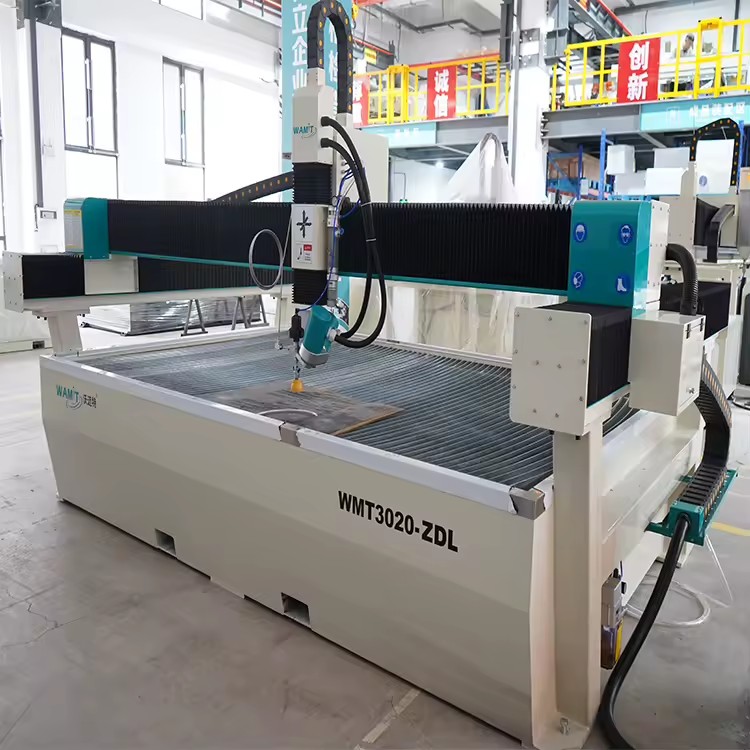

Cutting Platform

1. Gantry-style balanced design structure is more stable and improves the accuracy of the machine.

2. X/Y axis adopts 's high-quality guide rail and ball screw.

3.Heavy-duty machine tools, high-temperature forging, so that the machine will not be deformed during use.

WEIHONG CNC Controller

pecially present good quality in details of cutting, optimized the trailing made by water stream.

2. Easy draw with point, arc, polyline, shapes, ellipse, polygon, text.

3.Equipped with WEIHONG system as standard, providing professional and higher control.

4. Support multi-language operation environment, even customized service.

Abrasive Delivery System

1. Provide abrasives for water jet cutting machine.

2. It can improve the automation of the machine and reduce the labor intensity

of the operator.

3. High-precision sensor reminds the operator when to replenish the abrasive material.

4. No need for electric control, simple, reliable and

maintenance-free operation.

About Company

is a high-tech enterprise

specialized in

the development, manufacturing, sales, and technical services of

water jet cutting machine for more than 10 years since 2014.

The company's

independently also first developed new generation

of ultra-high pressure generator

servo motor direct drive pump

have been widely praised since their launch in 2016. Their advantages of energy saving, environmental protection, high efficiency, and flexibility have been fully utilized.

is dedicated to the innovation and application of ultra-high pressure water jet technology, creating a brand with high quality, high cost-performance, and excellent service.

We insist on caring about what customer care about (like how to reduce customers' buying cost and using cost)

and believe that only

satisfy customers

can build long relationship with customers, finally leads to long-time company life, and there are

no shortcuts!!!

focuses on developing ultra-high pressure water jet technology, and have

established a water jet laboratory for in-depth research

and promoting new water cutting equipment aimed at reducing customer costs. The goal is to expand the application of water cutting technology from metals, stone, glass, and rubber/plastics industries to the food and medical field.

Innovative R&D is the foundation for the company's long-term survival, and the application of technology ensures meeting customer needs and contributing to society!!!

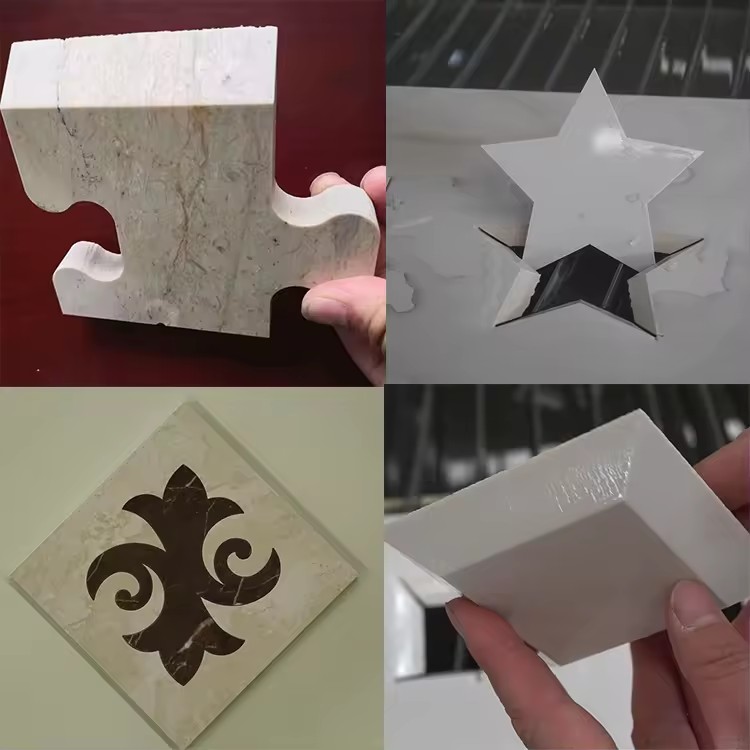

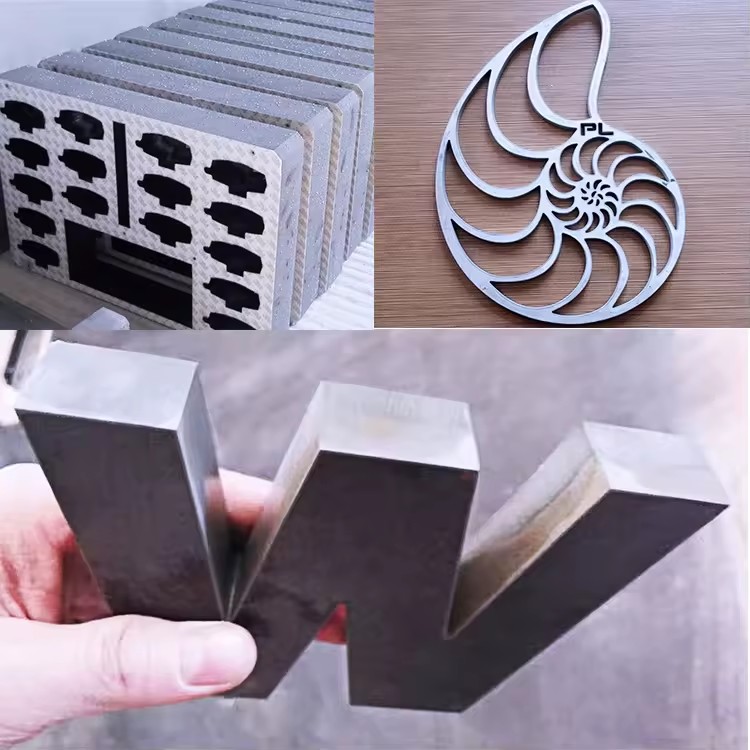

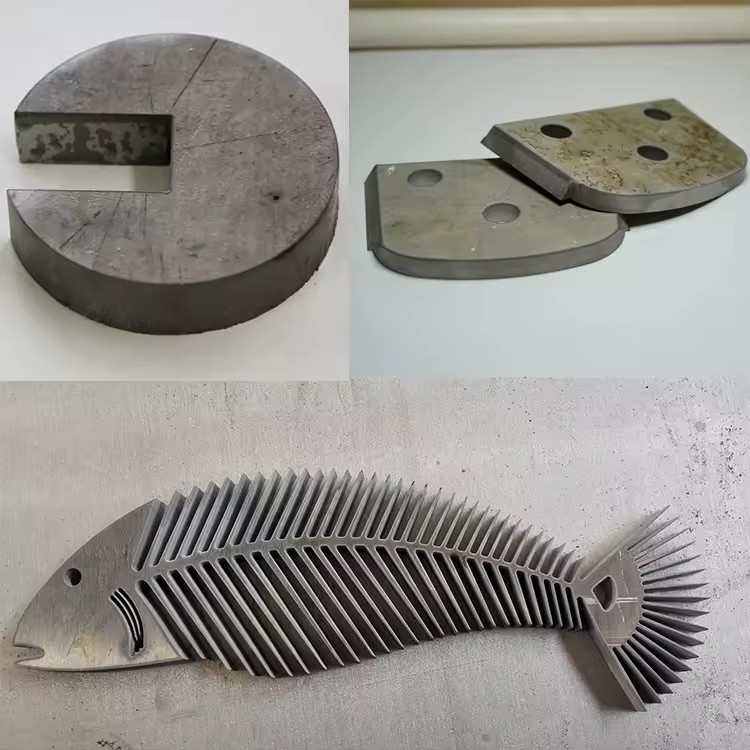

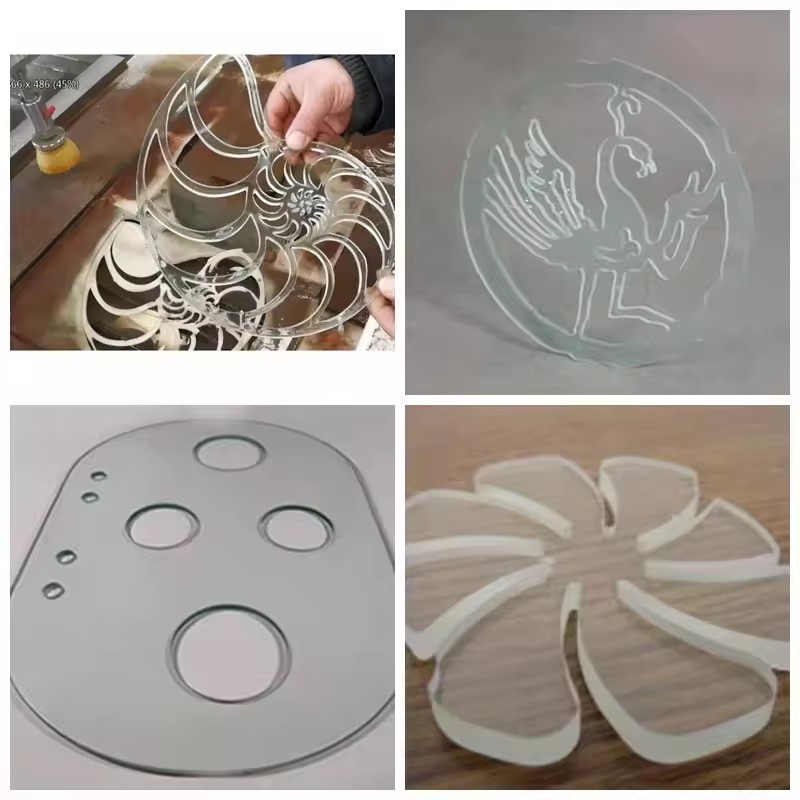

Cutting Sample

Our Customer

Packing&Delivery

FAQ

1. Are you a manufacturer or a trading company?

We are manufacturer of water jet cutting machine in Jinan, Shandong Province,. We have been established for more than 10 years, and have professional designers and R&D team, which can provide you with the best quality service.

2. What materials can your water jet cutting machine cut?

Our water jet cutting machine can cut many

materials, such as stone, ceramics, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel,titanium, nickel-chromium alloy and casting alloy.

3. What is the maximum cutting thickness of CNC water jet cutting machine?

Generally, if cutting steel, our water jet cutting machines can cut up to 240 mm thick, but we recommend cutting no thicker than 150 mm to ensure a smooth cut. Now our Z-axis distance is 170 mm and we can customize it for our customers. For regular thickness, please refer to: Marble 0-120mm; Granite 0-110mm; Tile 0-40mm; Glass and Mosaic 0-80mm; Steel, Stainless Steel, Copper 0-60mm; Aluminum 0-80mm; Plastic, Acrylic, Foam 0-200mm.

4. How do we provide after-sales service?

Some countries have after-sales service department, we will provide local service, if there is no local service, we will arrange engineers for overseas installation and training. The installation and training time is usually 7-10 days. We can also provide installation video.

5. What is your delivery time?

Generally 7-15 working days if in stock, 30-40 working days for customized machine.

Best Selling

$34,000-39,000

set

$29,000-31,000

$12-16

piece

$4,500-5,500

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.70 for 1 unit · Transit time: Est. 24-31 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 31 fields

Repeatability (x/y/z) (mm)

±0.05

Number of axes

3 or 5

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Voltage

380V

Warranty

1 Year

Key selling points

Multifunctional

Machinery test report

Provided

Video outgoing-inspection

Provided

Dimension(L*W*H)

640cm*440cm*250cm

Rated power

47kw

Place of origin

China, Shandong

Weight (kg)

3000

Table travel (x) (mm)

3000

Table travel (y) (mm)

2000

Table travel (z) (mm)

150

Cutting accuracy(mm)

±0.1mm/m

Table size

3700*2350mm

Pump Type

Hydraulic Intensfier Pump/Servo Direct Drive Pump

Control system

WEIHONG CNC Controller

Certification

CE ISO

Ball screw

TAIWAN HIWIN

SERVO MOTOR

Japan Yaskawa

Table Loading

1000kg/m2

Water Tank Capacity

6.5m3

Application

Metal, Glass, Plastic, marble, granite, Rubber Cutting

Repositioning Accurancy

±0.05mm

Selling Units

Single item

Single package size

640X440X250 cm

Single gross weight

3300.0 kg

Effective cutting range (mm)

3000×2000

Model number

WMT200 3020-3Axis, WMT200 3020-5Axis

Lead time

35 days

Minimum order

1 Units
