Product video
Certifications CE/ISO · CE

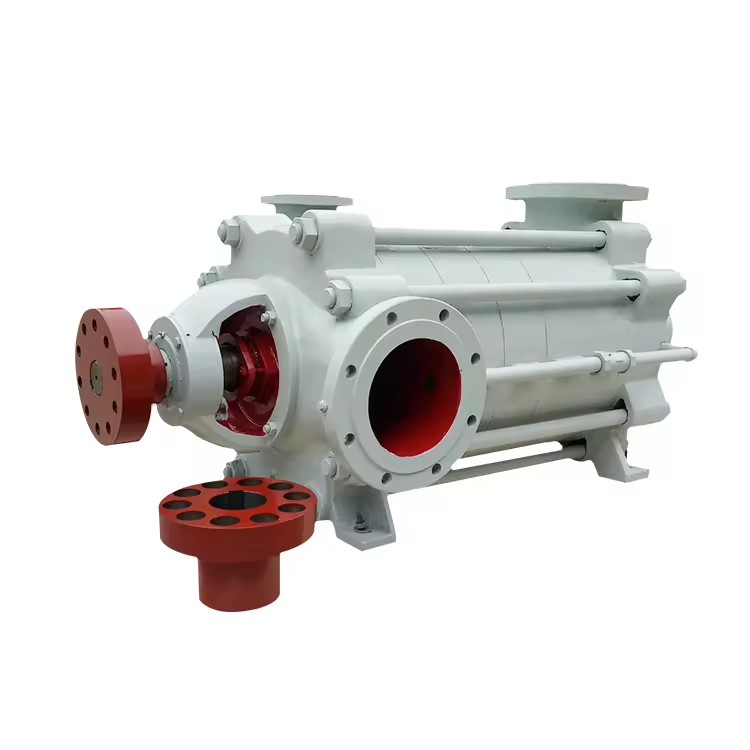

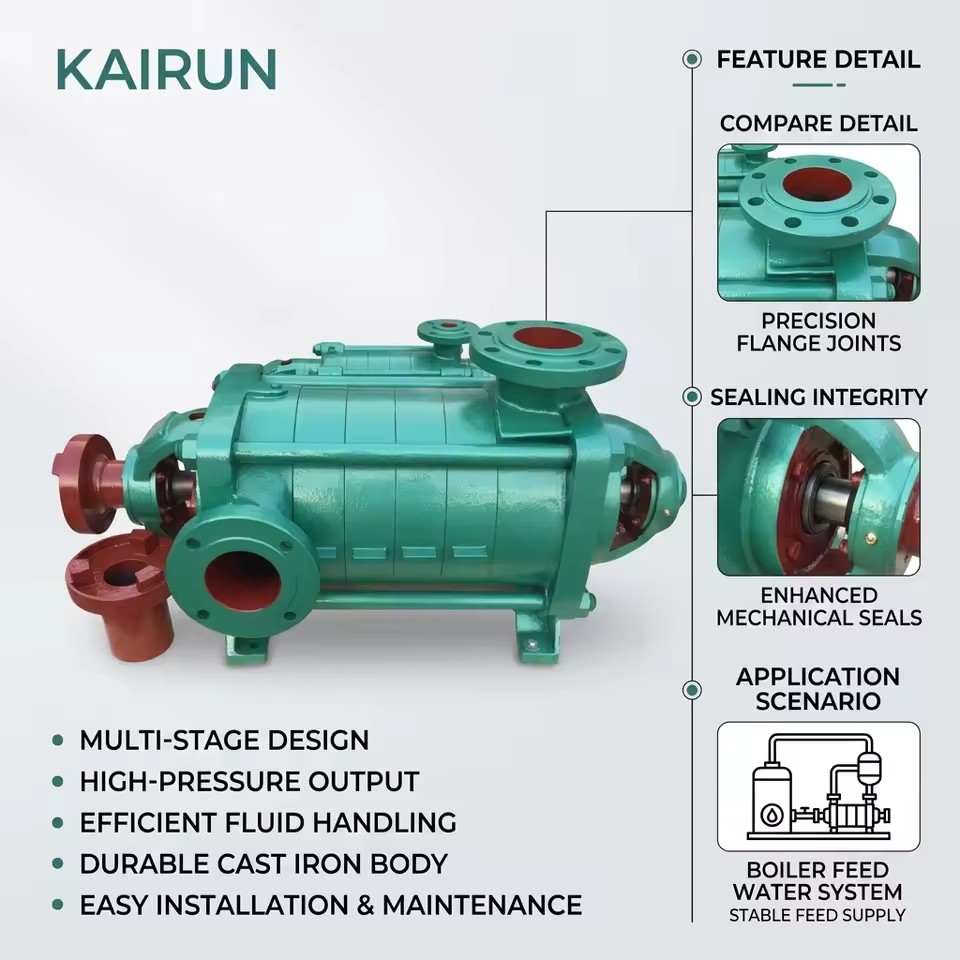

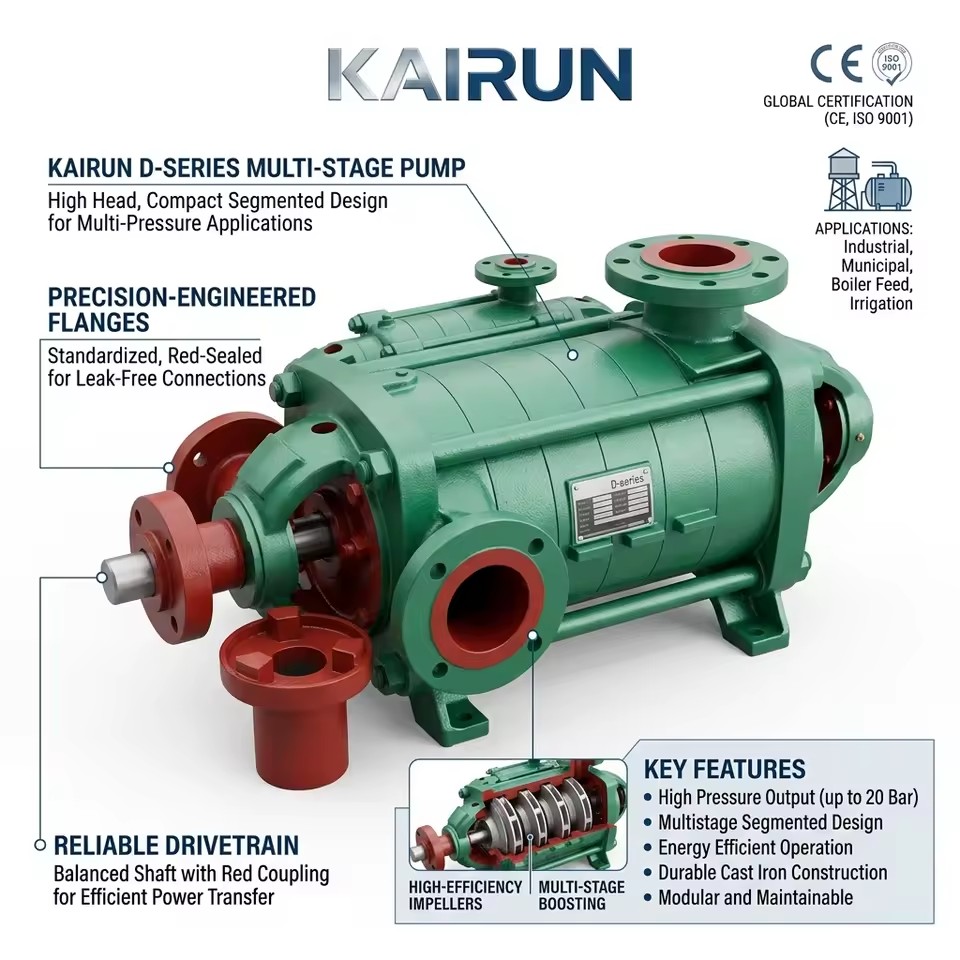

Industrial Horizontal Centrifugal Multistage Pump Electric/Diesel Powered High Pressure for Oil Field Water Injection Crude Oil

Available for enquiry 0.0 · 0 reviews
USD

$ 1,220.00 1220.0 USD $ 1,220.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Application
Industrial Utilities
Structure
Multistage Pump
Power source
Electric/Diesel engine
Outlet size
150mm as customer request
Motor
As customer request
Warranty
1 Year, 1 year except for wear liner
Product description

Product details

Adjust import and export directions based on user needs

Flow components are available in options such as cast iron, 304/316L stainless steel, and 2205 duplex steel

Rotor and Pump Shaft Dynamic Balancing

Supports variable frequency control and multi-pump parallel scheduling

Immediate response within 8 hours, solution provided within 48 hours

Certifications & compliance
CE
Complies with EU standards
Frequently asked questions

A: Our D-type multistage pump is designed for high-pressure water supply. Key applications include industrial boiler feed, water supply for high-rise buildings, firefighting systems, irrigation, mine dewatering, and high-pressure cleaning. It is ideal for any scenario requiring consistent, high-pressure liquid transfer.

A: This pump is primarily designed for clean, thin, non-flammable, non-explosive liquids that are chemically similar to water, free of solid particles, and with a viscosity not exceeding 1.5°E. It is not suitable for thick slurries, highly abrasive fluids, or corrosive chemicals beyond the limits of its construction material (e.g., 304 SS).

A: Multistage pumps use multiple impellers to generate pressure incrementally. This allows them to achieve much higher pressures (heads up to 1000m) with a more compact design and greater energy efficiency compared to a single-stage pump for the same duty, especially in high-pressure applications.

A: Yes, the D-type multistage pump is engineered for robust, long-life service and is well-suited for continuous operation, provided it is installed correctly and operates within its specified performance envelope with adequate system support.

A: We offer three primary materials: Cast Iron for standard water applications, Ductile Iron for higher pressure strength, and 304 Stainless Steel for enhanced corrosion resistance. The material can be selected based on your fluid properties and application requirements.

A: This pump series can achieve a maximum flow rate of 1500 m³/h and a maximum head of 1000 meters. The exact performance for your unit will depend on the specific model, number of stages, and impeller diameter.

A: The pump can be driven by a standard electric motor (customizable voltage and frequency) or a diesel engine. The horsepower range is from 10 HP to 800 HP to match the required performance.

A: "10-stage" indicates the pump contains ten impellers and diffusers stacked in series. Each stage increases the water pressure. A 10-stage pump generates approximately ten times the pressure of a single-stage pump at zero flow, allowing it to reach very high heads.
Description images

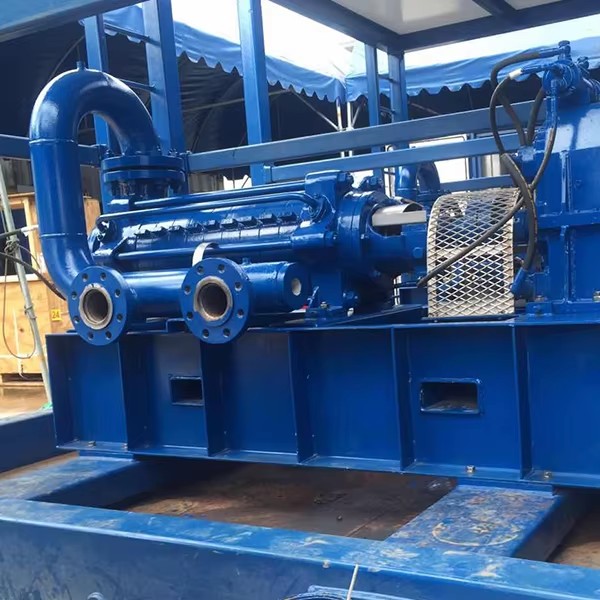

Product detail

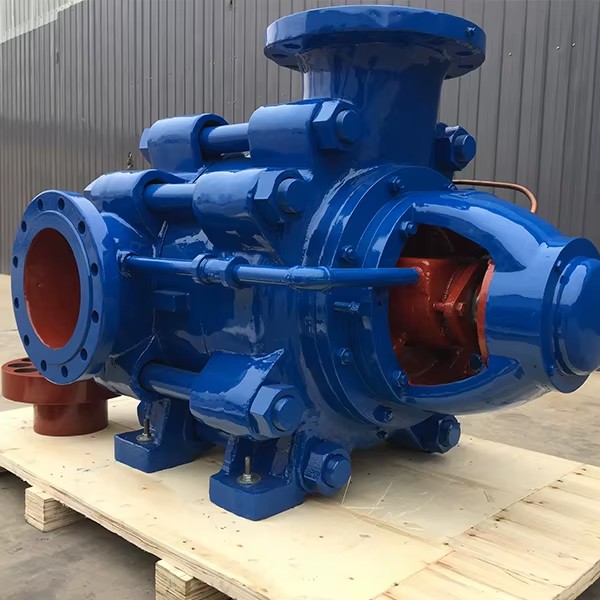

Product detail

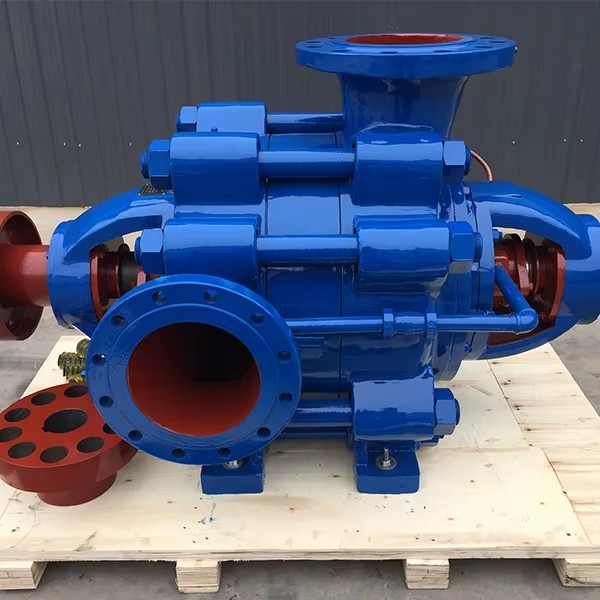

Product detail

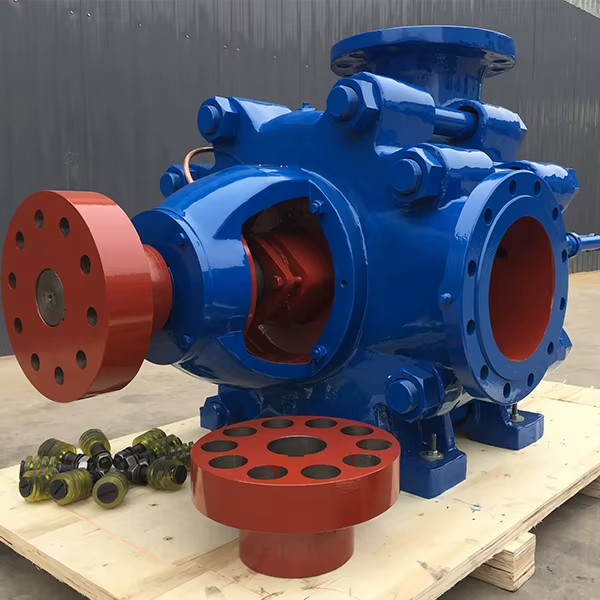

Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Ocean + Truck via Maersk · Approx. shipping fee: $ 148.24 for 1 set · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Application
Industrial Utilities
Structure
Multistage Pump
Power source
Electric/Diesel engine
Outlet size
150mm as customer request
Motor
As customer request
Warranty
1 Year, 1 year except for wear liner
Customized support
OEM, ODM
Cable length
as customer required
Horsepower
10hp-800hp
Pressure
5bar-200bar(72.52psi-2900.75psi)
Model number (Specification)
D
Place of origin
China, Tianjin
Color
Customized
Material
Cast Iron/ Ductile Iron/ Cast Steel
Power
Electric/Diesel engine
Theory
Centrifugal
Feature
Long Life
Certification
CE/ISO
Selling Units
Single item
Single package size
170X34X39 cm
Single gross weight
380.0 kg
Flow Rate (Product option)
1500m3/h(52972ft3/h)
Maximum head
1000m(3280.84ft)
Type (Product option)
Boiler feed pump
Voltage (Product option)
380v/400v/415v etc.
Certifications & Compliance
CE
Lead time
15 days
Minimum order
1 Units
