Product video
Certifications ISO9001 · CCS · REACH · RoHS

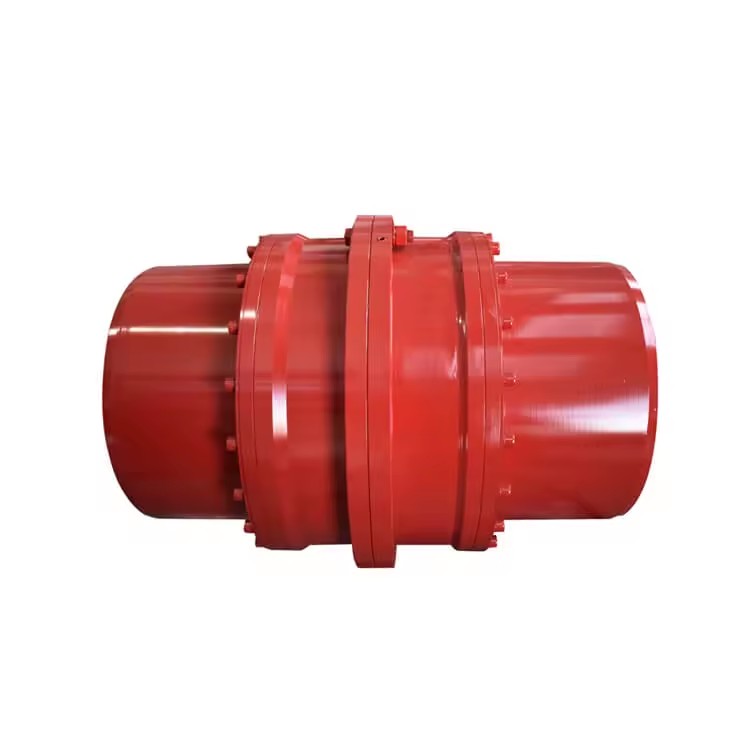

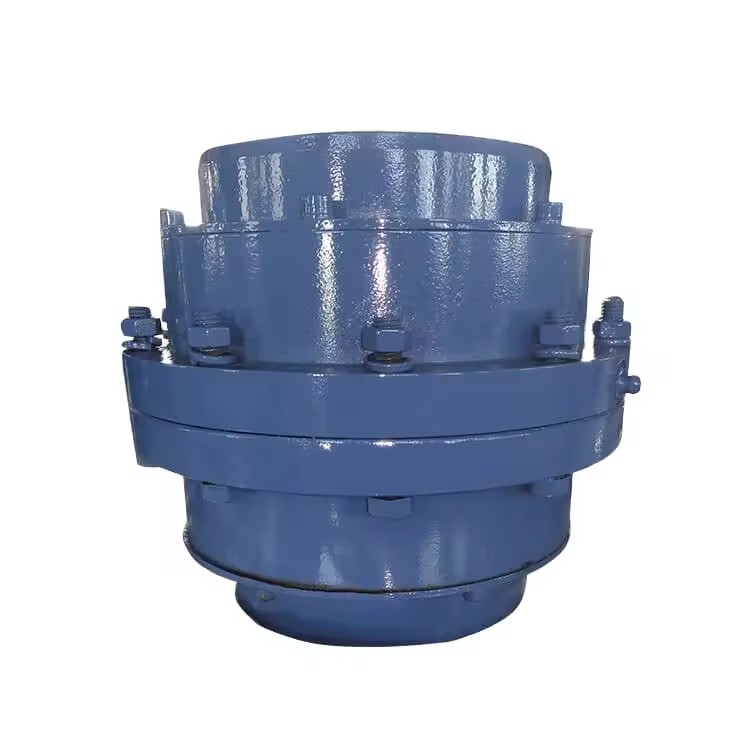

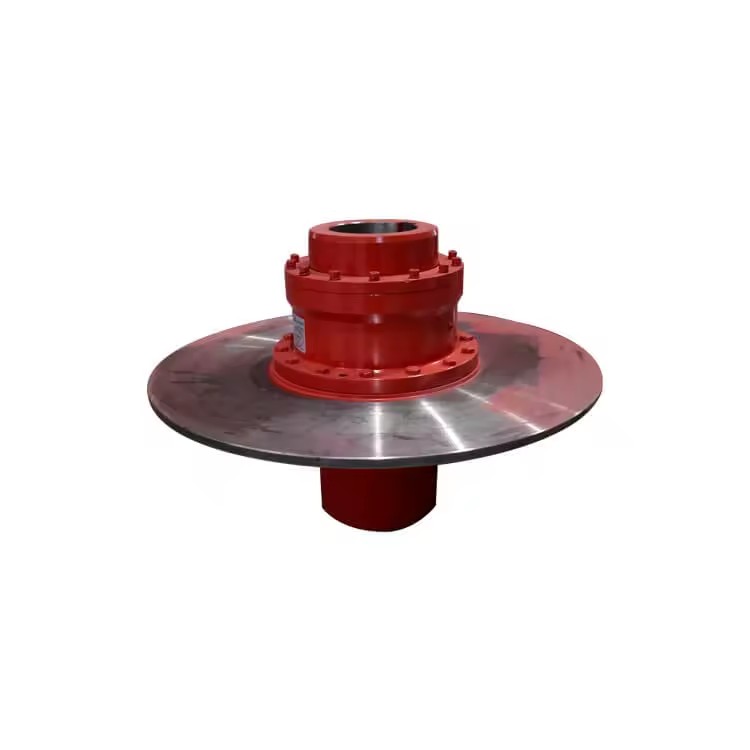

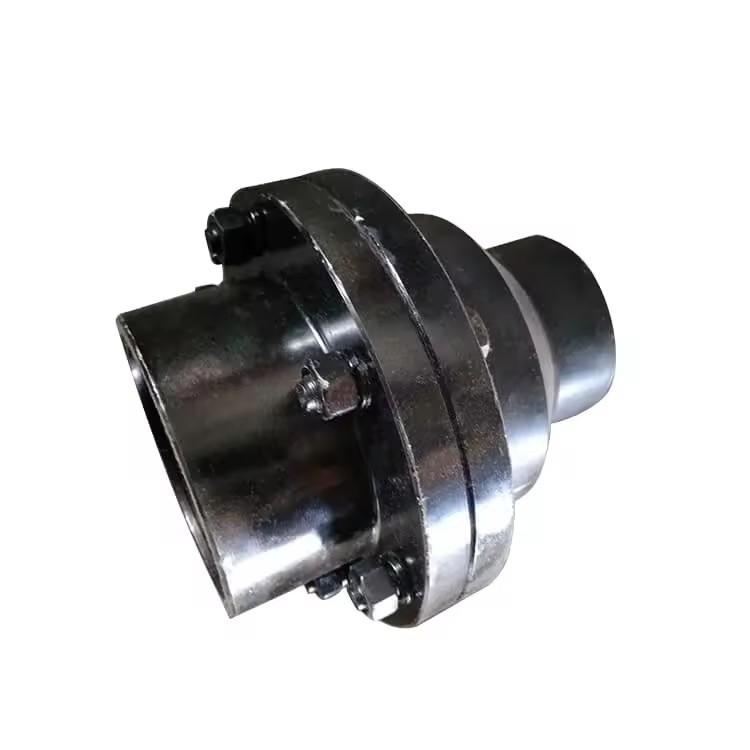

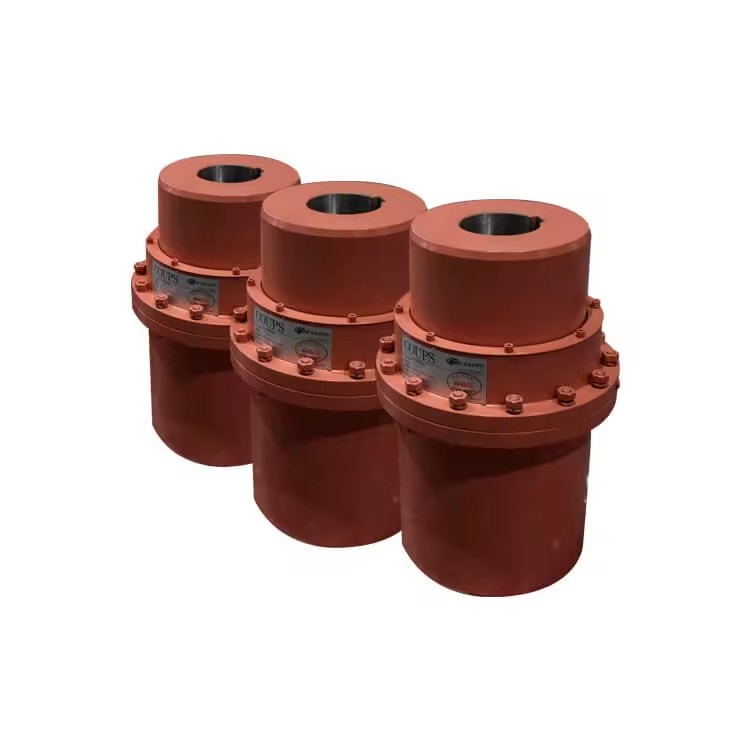

Densen Customized GIICL Type Rolling Mill Gear Coupling Double-Jointed Gear Coupling With Good Service

Available for enquiry 5.0 · 2 reviews
USD

$ 60.00 60.0 USD $ 60.00

Not Available For Sale

Minimum order quantity: 2 Units

Key attributes

View all
Type
Gear
Bore Diameter
100 mm(3.94in)
Rated Torque
2000n-m(1475.12lb.ft)
Maximum speed
5 000 RPM
Structure
Gear
Material
Steel
Product description

Densen Customized GIICL Type Rolling Mill Gear Coupling Double-Jointed Gear Coupling With Good Service

Product NameDensen Customized GIICL Type Rolling Mill Gear Coupling Double-Jointed Gear Coupling With Good Service
OD mm1200mm
Rated Torque800~3500000 N·m
Allowable speed7100~700 RPM
Material42CrMo/45# steel
ApplicationWidely used in metallurgy, mining, engineering and other fields.

Typical case of diaphragm coupling applied to variable frequency speed control equipment

JMB type coupling is applied to Daqing Oilfield Thermal Power Plant

According to the requirements of Daqing Electric Power Corporation, Daqing Oilfield Thermal Power Plant should dynamically adjust the power generation according to the load of the power grid and market demand, and carry out the transformation of the frequency converter and the suction fan. The motor was originally a 1600KW, 730RPM non-frequency variable speed motor matched by Shenyang Motor Factory. The speed control mode after changing the frequency is manual control. Press the button speed to increase 10RPM or drop 10RPM. The coupling is still the original elastic decoupling coupling, and the elastic de-coupling coupling after frequency conversion is frequently damaged, which directly affects the normal power generation.

It is found through analysis that in the process of frequency conversion speed regulation, the pin of the coupling can not bear the inertia of the speed regulation process (the diameter of the fan impeller is 3.3 meters) and is cut off, which has great damage to the motor and the fan.

Later, they switched to the JMB460 double-diaphragm wheel-type coupling of

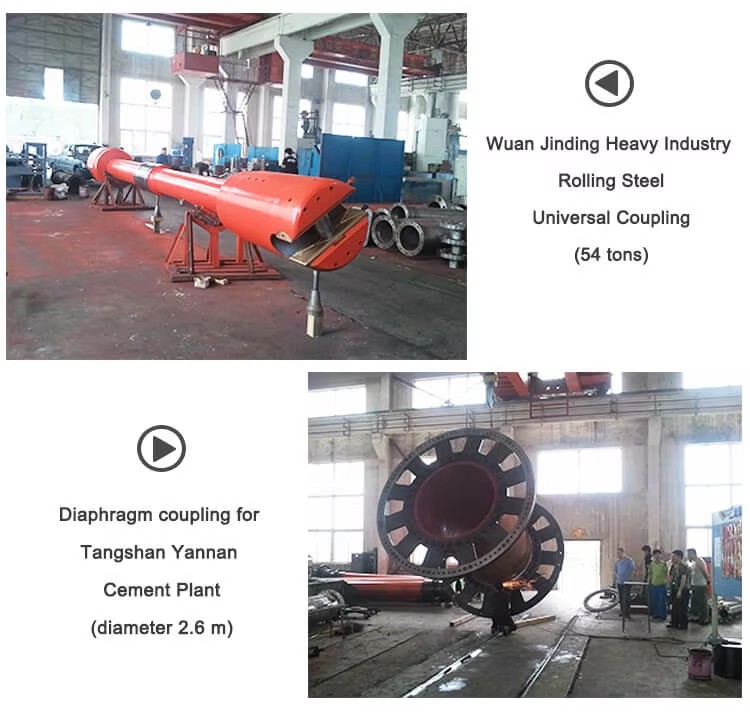

Other Application Case

Certifications & compliance
RoHS
RoHS compliant
REACH
REACH Certified
Description images
Densen Customized GIICL Type Rolling Mill Gear Coupling Double-Jointed Gear Coupling With Good Service
Densen Customized GIICL Type Rolling Mill Gear Coupling Double-Jointed Gear Coupling With Good Service
Densen Customized GIICL Type Rolling Mill Gear Coupling Double-Jointed Gear Coupling With Good Service
Densen Customized GIICL Type Rolling Mill Gear Coupling Double-Jointed Gear Coupling With Good Service
RoHS
REACH
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 2 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    35 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Type
Gear
Bore Diameter
100 mm(3.94in)
Rated Torque
2000n-m(1475.12lb.ft)
Maximum speed
5 000 RPM
Structure
Gear
Material
Steel
Standard or Nonstandard
Standard
Flexible or Rigid
Flexible
Customized support
OEM, ODM
Applicable Industries
Garment Shops, Manufacturing Plant, Machinery Repair Shops, Building Material Shops, Farms, Construction works, Energy & Mining, Other
Warranty
3 Years
Place of origin
China, Liaoning
Color
Yellow, red, blue etc.
Certification
ISO9001, CCS
Body Material
42CrMo,45#steel,35CrNiMo
MOQ
1 Set
Quality
High-quality
Packing
Wooden Box
Bore Type
Finished bore
Weight
Within 50 ton
Heat treatment
Quenching Hardening
Selling Units
Single item
Single package size
1X1X1 cm
Single gross weight
1.0 kg
Model number
Densen customized
Certifications & Compliance
REACH, RoHS
Lead time
35 days
Minimum order
2 Units
