Product video
Certifications CE

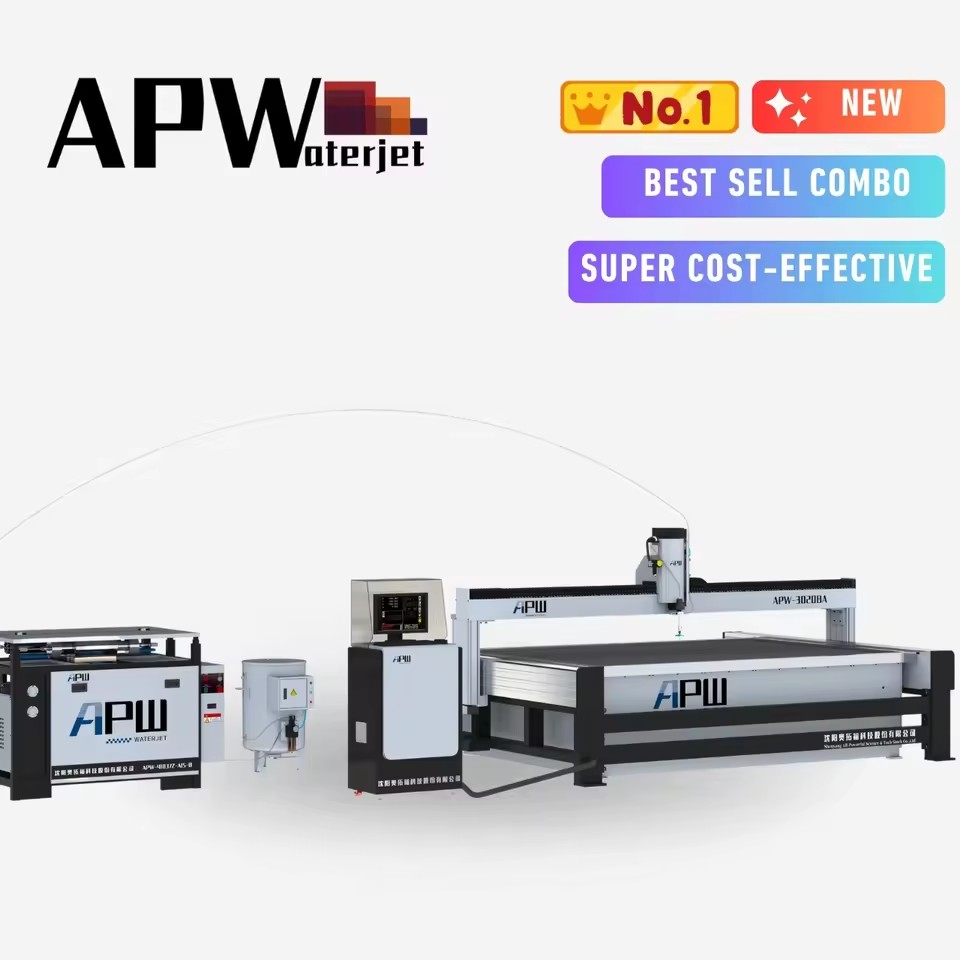

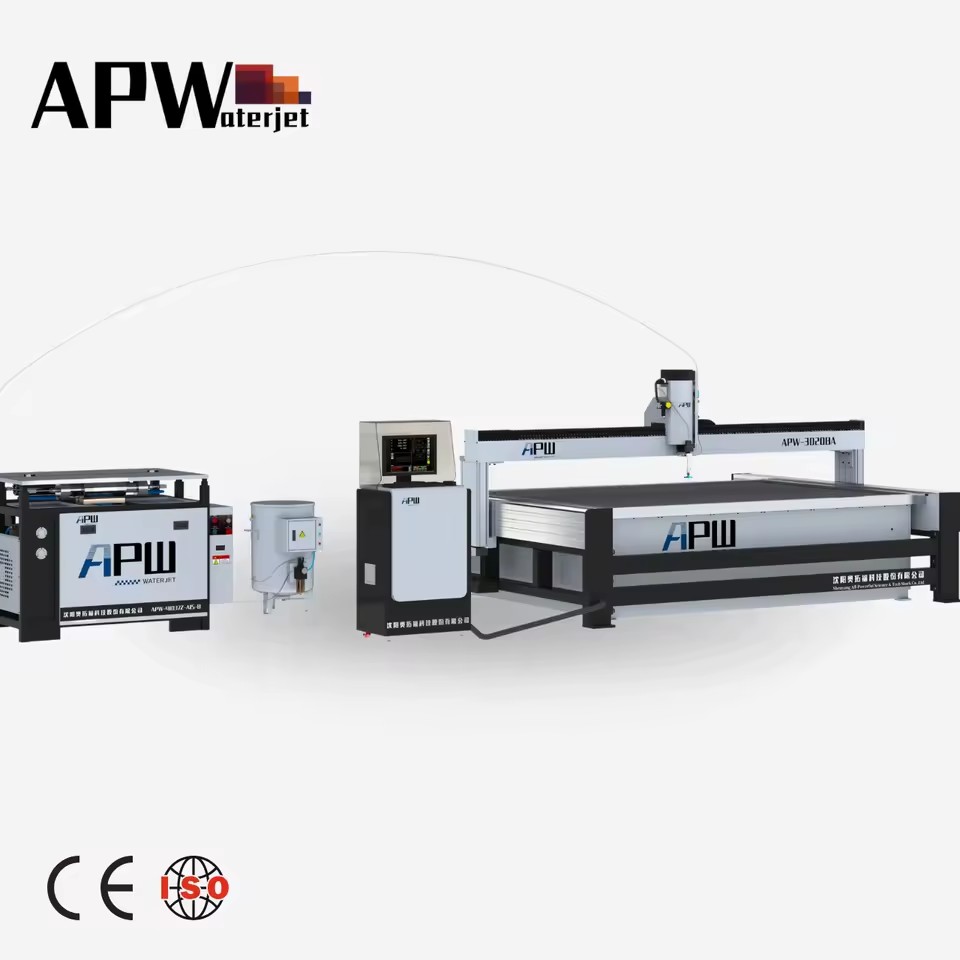

APW ultra High Pressure Water Jet Cutting Machine 5 Axis Cnc Waterjet Machine

Available for enquiry 0.0 · 0 reviews
USD

$ 52,340.00 52340.0 USD $ 52,340.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Voltage
380V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.01
Core components
Bearing, PLC, Motor, Pressure Vessel, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
3 Years
Product description

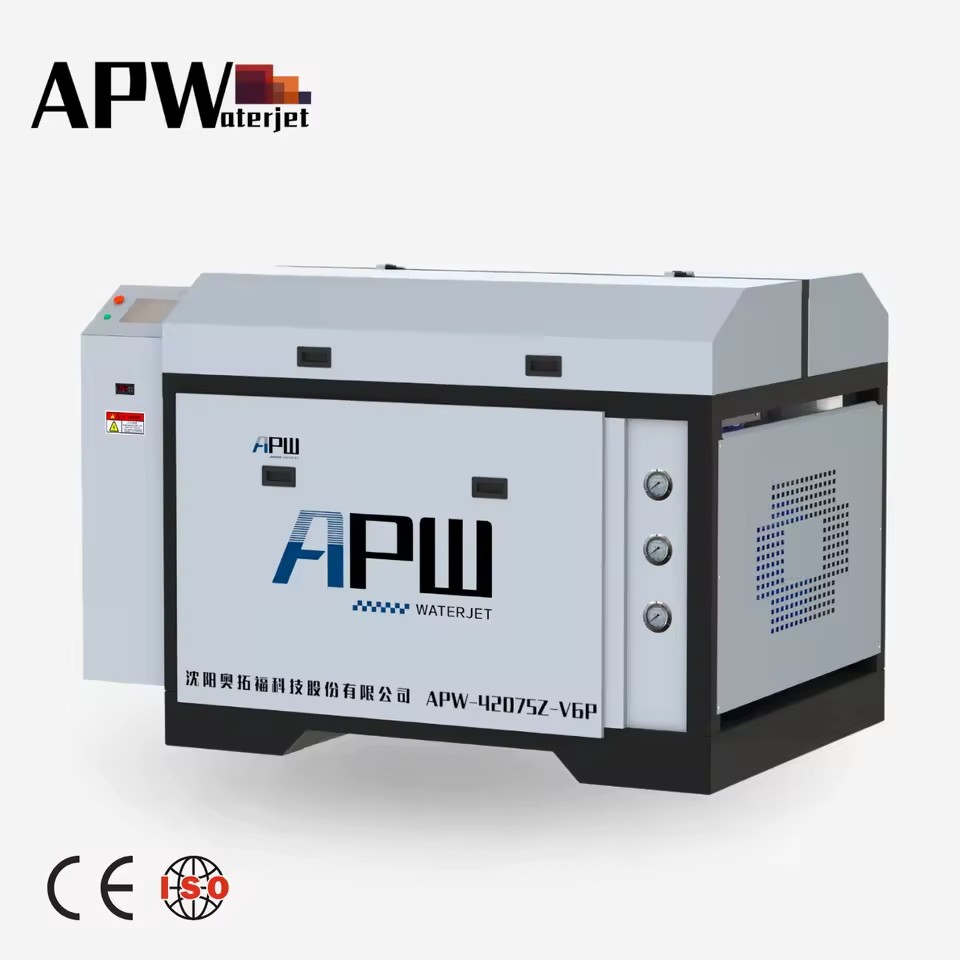

APW-A15 pump

update

power rate

37KW

Max.Pressure

420MPa

intensifier

1 pic

dual-intensifier

HP Flow Rate

3.7L/MIN

Max. Orifice

0.33mm

electricity supply

AC380V 50HZ 3PH

ambient Temp.

5-40℃

accumulator

1.0L

1.2L

oil tank

114L

size

1710*1025*1191mm

Weight

980KG

color

white

customerizel

TABLE-3020BA

table size(X-Y)

3000-2000mm

repeatability

0.03mm

cutting accuracy

0.1mm

traverse speed

10m/min

transform system

ball crew

gear rack with grating

load capacity

500KG/square meter

structure

bridge style

drive way

servo control

ball screw

TBI

linear guide

WON

Sand supplier-DN500

120KG

300KG

supply style

negative pressure

Head-BP

axis

3

AC 5-axis

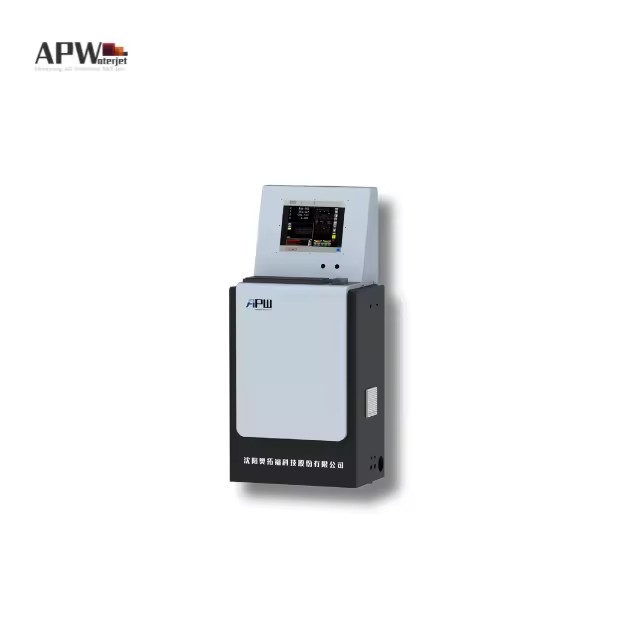

Control system

NC studio

CHiller

chill style

heat exchanger

oil cooler

APW IS PROFESSIONAL.

1.drafts chinese national standard of waterjet cutter (GB/T 26136)

2.offer 1200 combos of waterjet to 70+ countries,8000+ end users

3.23 years history since 2001

4.totally OBM factory

5.ONLY thing we do is waterjet

6.follow 9001 QC processing

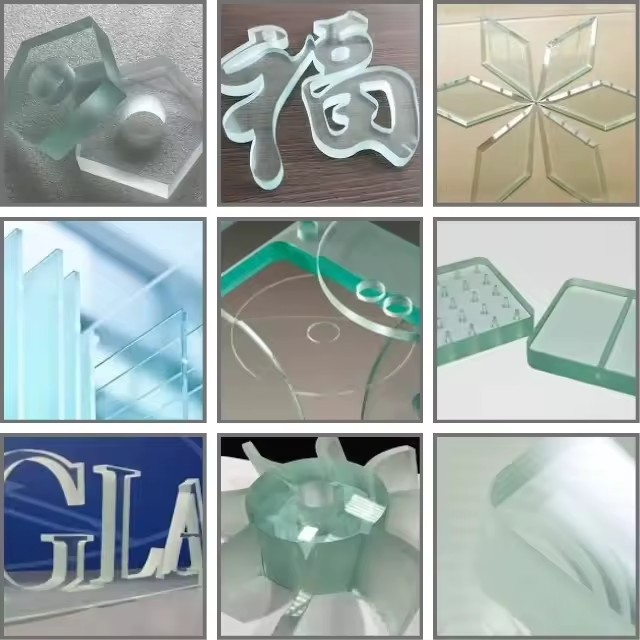

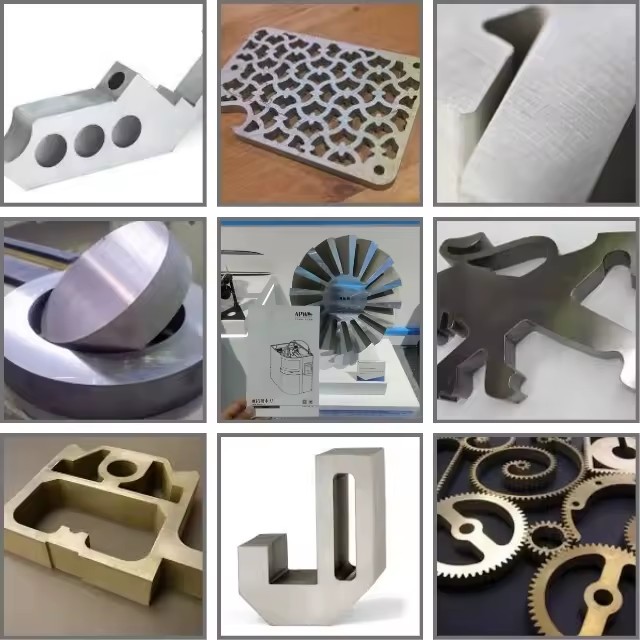

7.customers’industry include glass/quartz stone/marble/concrete/ceramic tile metal rubber /nylon/carbon fiber/plastic/nylon/

foam.....

Products Details

Data

Customer

Company Profile

Certifications & compliance
CE
Complies with EU standards
Description images
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    25 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 32 fields
Voltage
380V
Number of axes
5
Repeatability (x/y/z) (mm)
±0.01
Core components
Bearing, PLC, Motor, Pressure Vessel, Engine, Pump, Gearbox
Machinery test report
Provided
Warranty
3 Years
Video outgoing-inspection
Provided
Dimension(L*W*H)
1500x1500x300mm
Key selling points
Energy Saving
Rated power
37KW
Place of origin
China, Liaoning
Weight (kg)
3200
Table travel (x) (mm)
1500
Table travel (y) (mm)
1500
Table travel (z) (mm)
300
Cutting accuracy(mm)
±0.1
Name
cnc water jet cutter
Max.working pressure
410Mpa/60000PSI
Main motor power
50Hp/37Kw
Max.water flow rate
3.7L/min(1gallon/min)
Max.orifice diameter
0.33mm
Nozzle diameter
1.02mm
Cutting accuracy
0.1mm
The hydraulic pump brand
Rexroth
The brand of motor
Siemens
The brand of intensifier
Made in USA
Selling Units
Single item
Single package size
15X16X18 cm
Single gross weight
1.0 kg
Model number
1515BA
Effective cutting range (mm)
3000×2000
Certifications & Compliance
CE
Lead time
25 days
Minimum order
1 Units
