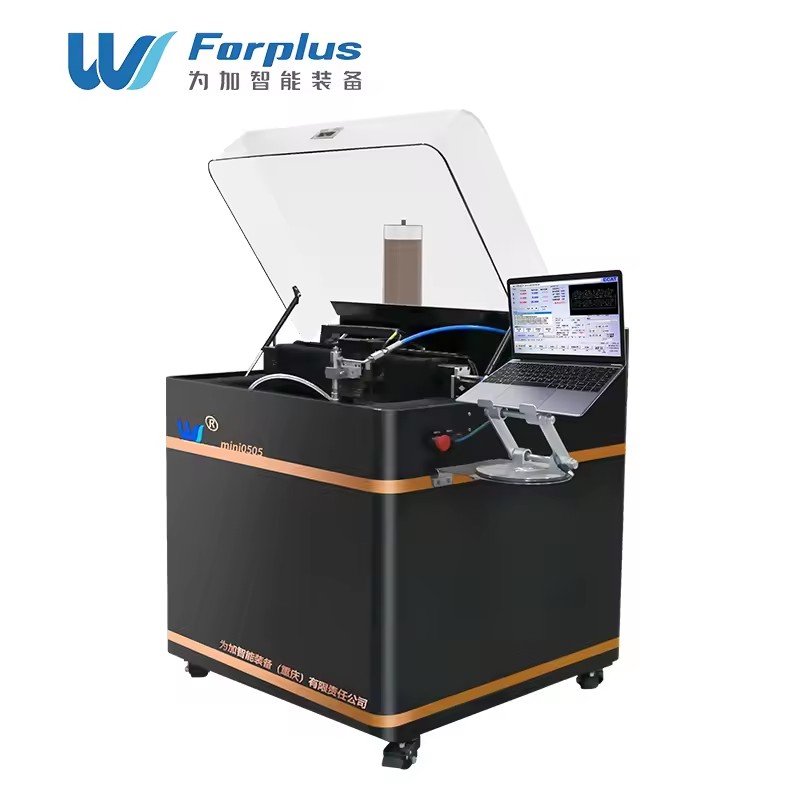

Forplus Cnc Machine Waterjet Cutter Small Water Jet Cutting Machine Mini High Pressure Water Jet Cnc Waterjet Cutting Machine

Forplus MiNi water jet cutting machine

Model

Forplus-M0505-30K

X、Y、Z travel

500mm、500mm、50mm

Rated pressure

30000psi(200MPa)

Rated power

4KW

Rated flow

0.96L/min

Max gem orifice

0.19mm

1.

Compact size, easy to move.

220V AC power supply, easy to install and use.

2.

Low power, low energy consumption.

3.Surface treatment using automobile chassis process

2000 hours + salt spray test

anti-corrosion, anti-rust, wear-resistant.

4.Equipped with a transparent window on the top flap, you can easily observe the cutting status.

The whole machine runs about 60

decibels chanting

very quiet.

5.

Configuration of embedded passivation water treatment system

passivation of calcium and magnesium particles in water, lubrication of high-pressure sealing parts, extending the service life of seals more than double, without additional water purification equipment.

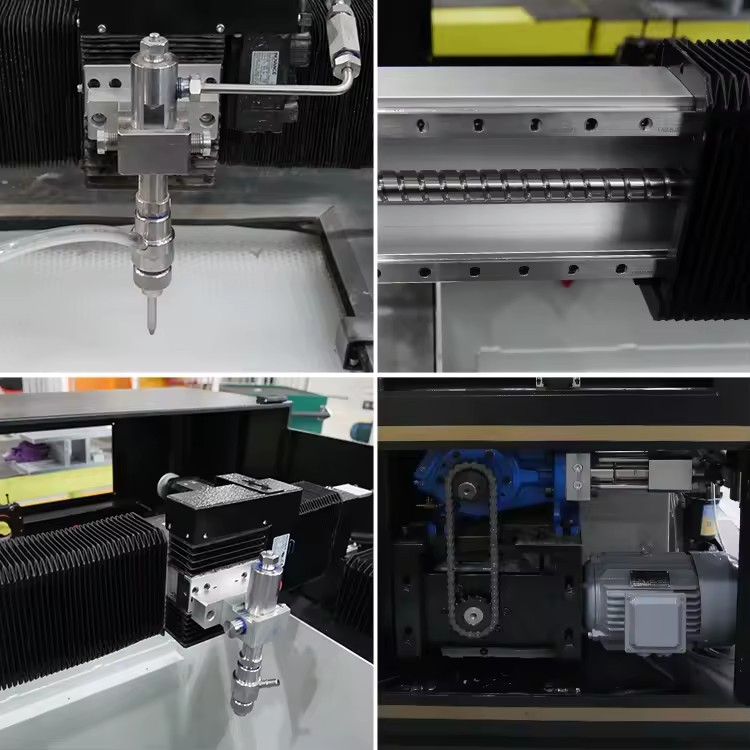

Absolute encoder servo motor with high quality ball screw, bus interface.Stable structure and high control precision.

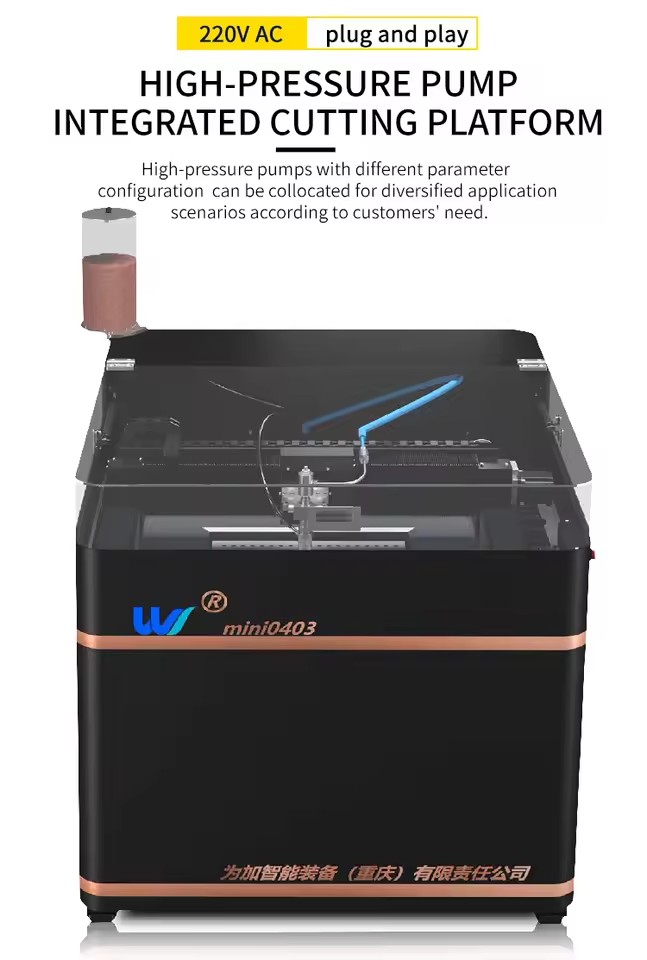

High-pressure pumps with different parameter configuration can be collocated for diversified application scenarios according to customers' need.

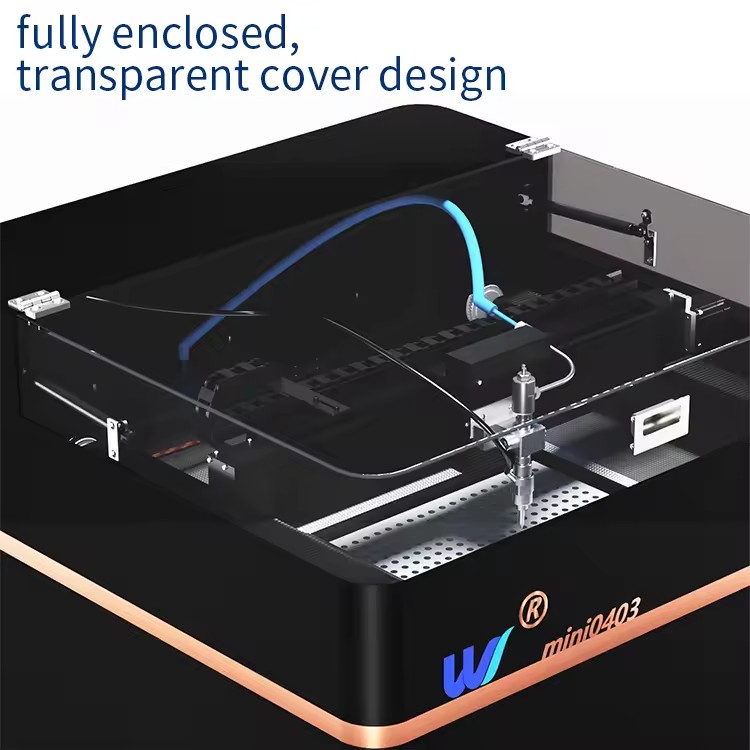

Fully enclosed transparent top cover

Equipped with a transparent window on the top flap, you can easily observe the cutting status. The whole machine runs about 60 decibels chanting, very quiet.

No need installation,easy commissioning.

Mini series adopts Xiamen XieLi professional waterjet cutting software as the operating CNC platform. The bus-type connection makes it easy to install, use and maintain. With Chinese and English interfaces, it can be operated by installing the software on any computer, plugging in the dongle and connecting the network cable.

Configure standard 3-axis cutting head

The platform part of Mini series adopts the classic double gantry structure with compact and simple structural design, stable operation and easy maintenance. Equipped with standard three-axis water cutting heads, and a small abrasive supply tank. It can meet a variety of cutting applications in pure water, abrasive, and small lightweight.

Simple Connection

Tap-water quick plug,plug and play, no need filtering or cooling.

Configuration of embedded passivation water treatment system, passivation of calcium and magnesium particles in water, lubrication of high-pressure sealing parts, extending the service life of seals more than double, without additional water purification equipment.

Adopt same automotive chassis electrophores process and spray-painting for the shell,wear resistance and corrosion resistance without rust.
