Product video
Certifications CE

Rotary Drilling Rig XR160E Mine Drilling Rig Electric with Core Components and 56m Depth Good Quality and Service

Available for enquiry 0.0 · 0 reviews
USD

$ 92,970.00 92970.0 USD $ 92,970.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
coal
Type
Rotary Drilling Rig
Drilling Depth
56m(183.73ft)
Drilling Diameter
1200mm(47.24in), 1 500 mm, 100 mm(3.94in), 1800 mm(70.87in), 1000 mm(39.37in), 800 mm(31.50in), 1300 mm(51.18in)
Power Type
Electric
Core components
Motor
Product description
Applicable IndustriesConstruction works
Showroom LocationViet Nam
Video outgoing-inspectionProvided
Machinery Test ReportProvided
Marketing Type
Warranty of core components1 Year
Core ComponentsPLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Power270KW
Place of Origin
Jiangsu
Brand NameCMEC
Dimension(L*W*H)7862*4200*19028mm
Weight530000kg
Warranty1 Year
Hydraulic Pump BrandTop brand
Hydraulic Valve BrandTop brand
Engine BrandTop brand
UNIQUE SELLING POINTLow Maintenance Cost
Track shoe width(mm)700
Max. pull-down piston push(KN)160KN/180KN
Max.pull-down piston pull(KN)160KN/180KN
Max.pull-down piston stroke(m)4.2M
Max.Pulling force(KN)160KN/180KN
Max.line speed (m/min)80
Mast Rake Side/forwards/backwards+4°/5°/90°
Max.traveling speed(km/h)2.1
Max.grade ability(%)35
Min.Clearance(mm)384.5
Distance between tracks(mm)2960-4200
Certifications & compliance
CE
Complies with EU standards

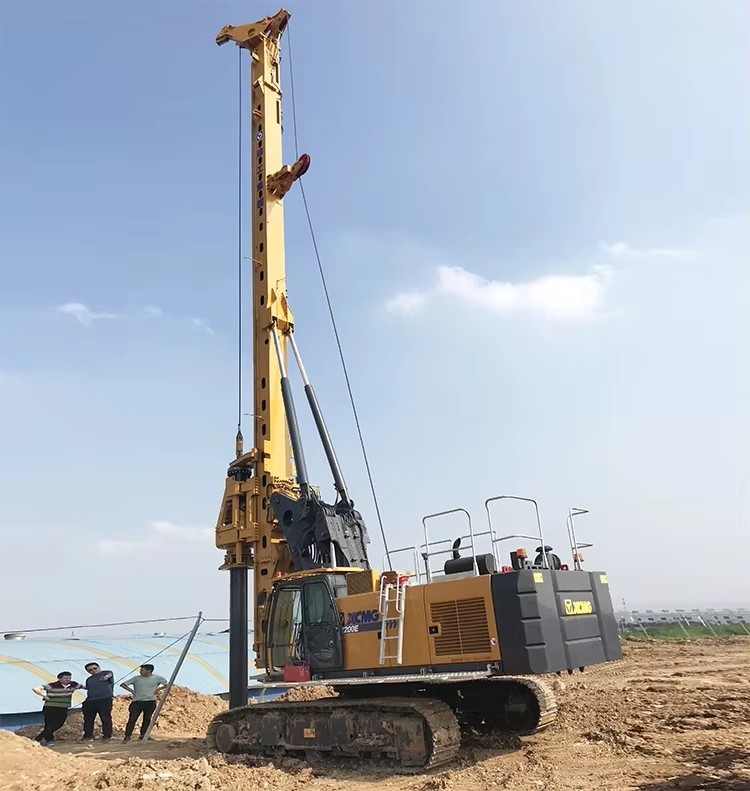

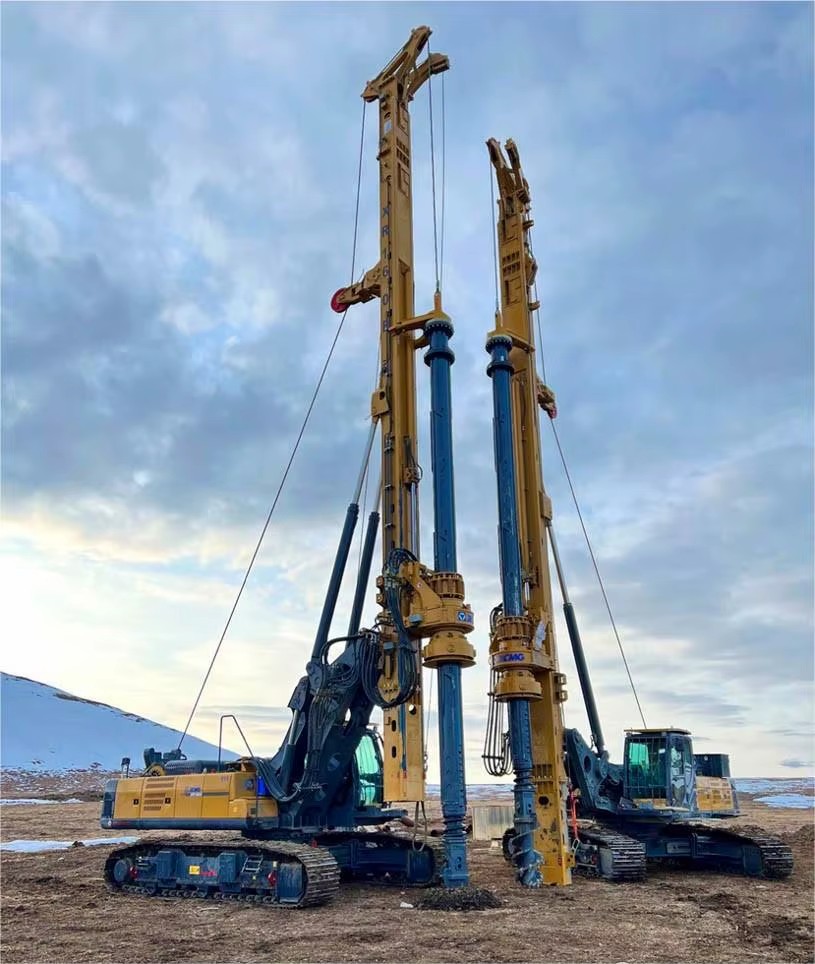

Description images
Rotary Drilling Rig XR160E Mine Drilling Rig Electric with Core Components and 56m Depth Good Quality and Service
Rotary Drilling Rig XR160E Mine Drilling Rig Electric with Core Components and 56m Depth Good Quality and Service
Rotary Drilling Rig XR160E Mine Drilling Rig Electric with Core Components and 56m Depth Good Quality and Service
Rotary Drilling Rig XR160E Mine Drilling Rig Electric with Core Components and 56m Depth Good Quality and Service
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Usage
coal
Type
Rotary Drilling Rig
Drilling Depth
56m(183.73ft)
Drilling Diameter
1200mm(47.24in), 1 500 mm, 100 mm(3.94in), 1800 mm(70.87in), 1000 mm(39.37in), 800 mm(31.50in), 1300 mm(51.18in)
Power Type
Electric
Core components
Motor
Warranty
3 Years
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Flexible Manufacturing
Place of origin
Zhejiang, China
Weight
530000 KG(1168449.99lb)
Dimension (L*W*H)
8700 x 4400 x 22798
Mobility
2.1Km/h
Enaing
OSB7-C202
Rated Power(kw)
150KW/2050r/min
Max.output torque(KN m)
160
Rotary speed(r/min)
5-35
Max.Drilling Diameter(mm)
1500/1300
Max.Drilling Depth(m)
56
Working conditio(mm)
7862*4200*19028
Transportation condition(mm)
13993*2960*3464
Working pressure(mpa)
35
Max.traveling speed(km/h)
2.1
Selling Units
Single item
Single package size
1000X1000X1000 cm
Single gross weight
1000.0 kg
Model number
XR160E
Power (W) (Product option)
150KW/2050r/min
Certifications & Compliance
CE
Lead time
30 days
Minimum order
1 Units
