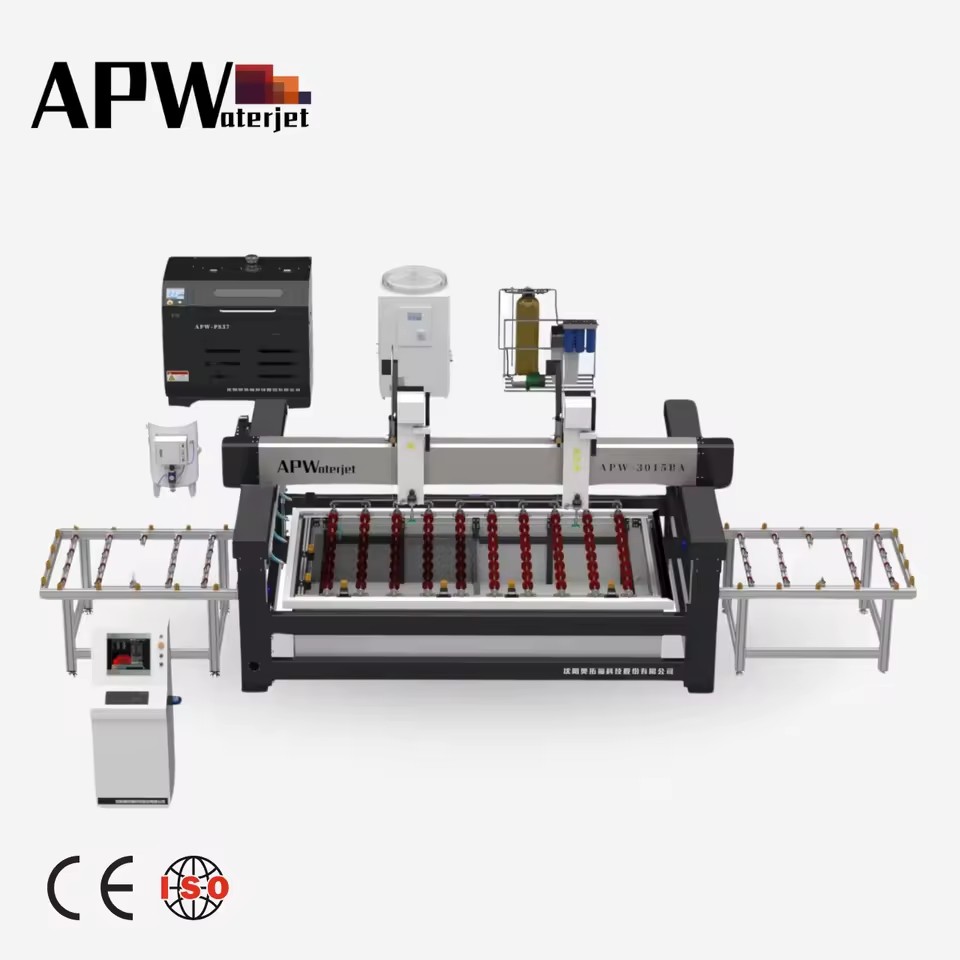

High pressure glass water jet cutting machine marble water jet

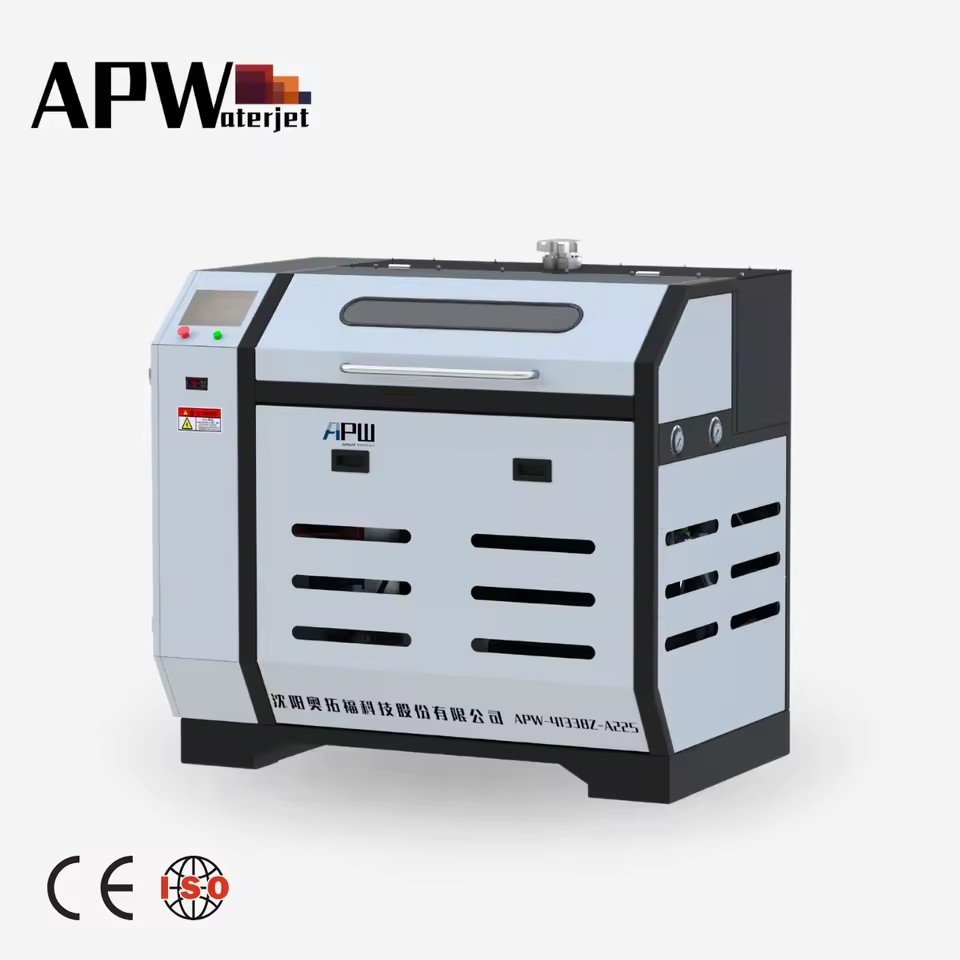

APW-A15 pump

update

power rate

37KW

Max.Pressure

420MPa

intensifier

1 pic

dual-intensifier

HP Flow Rate

3.7L/MIN

Max. Orifice

0.33mm

electricity supply

AC380V 50HZ 3PH

ambient Temp.

5-40℃

accumulator

1.0L

1.2L

oil tank

114L

size

1710*1025*1191mm

Weight

980KG

color

white

customerizel

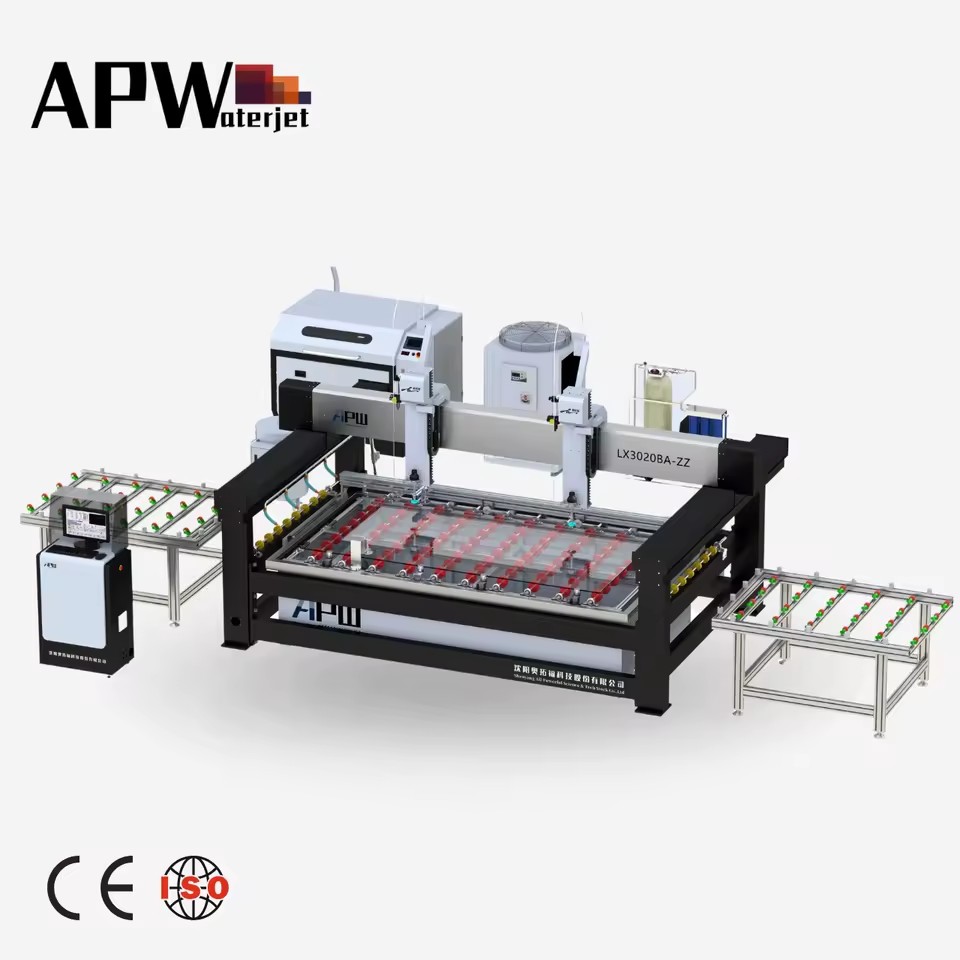

TABLE-3020BA

table size(X-Y)

3000-2000mm

repeatability

0.03mm

cutting accuracy

0.1mm

traverse speed

10m/min

transform system

ball crew

gear rack with grating

load capacity

500KG/square meter

structure

bridge style

drive way

servo control

ball screw

TBI

linear guide

WON

Sand supplier-DN500

120KG

300KG

supply style

negative pressure

Head-BP

axis

3

AC 5-axis

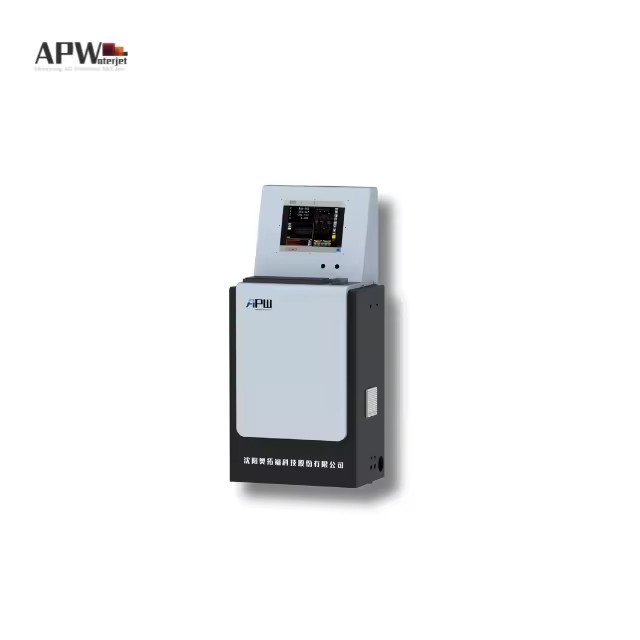

Control system

NC studio

CHiller

chill style

heat exchanger

oil cooler

APW IS PROFESSIONAL.

1.drafts chinese national standard of waterjet cutter (GB/T 26136)

2.offer 1200 combos of waterjet to 70+ countries,8000+ end users

3.23 years history since 2001

4.totally OBM factory

5.ONLY thing we do is waterjet

6.follow 9001 QC processing

7.customers’industry include glass/quartz stone/marble/concrete/ceramic tile metal rubber /nylon/carbon fiber/plastic/nylon/

foam.....
