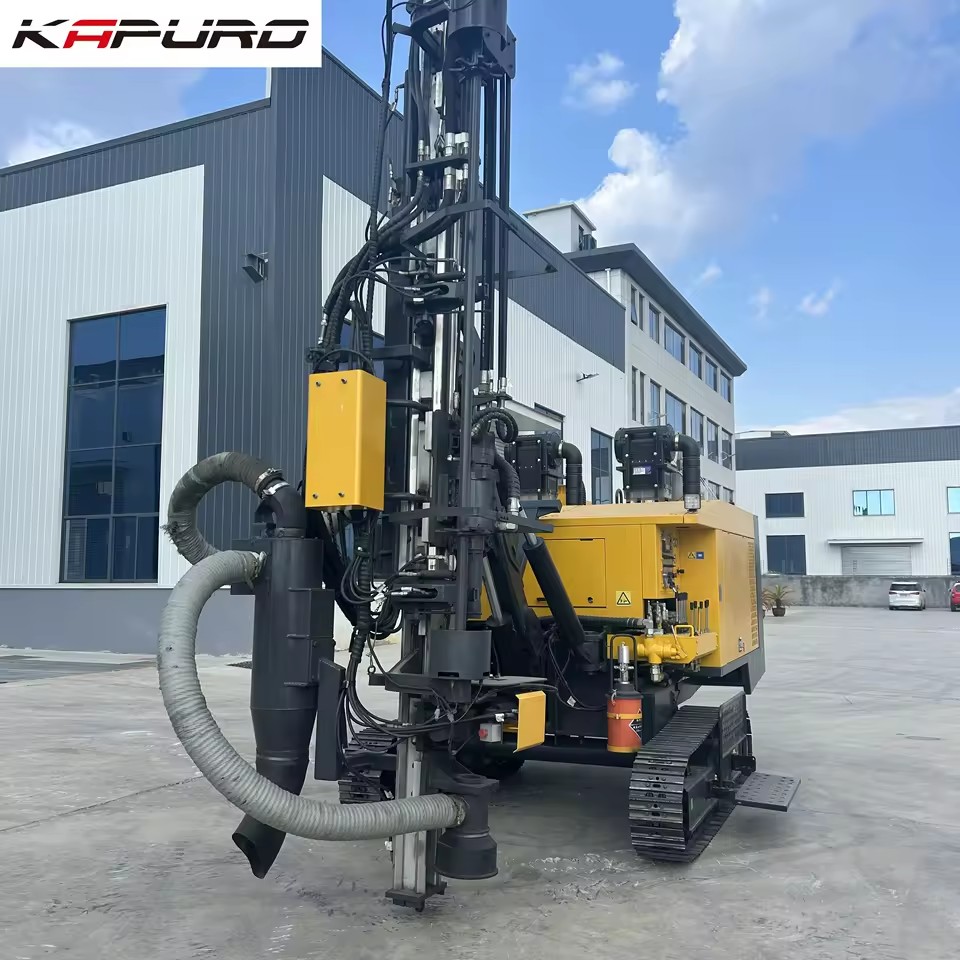

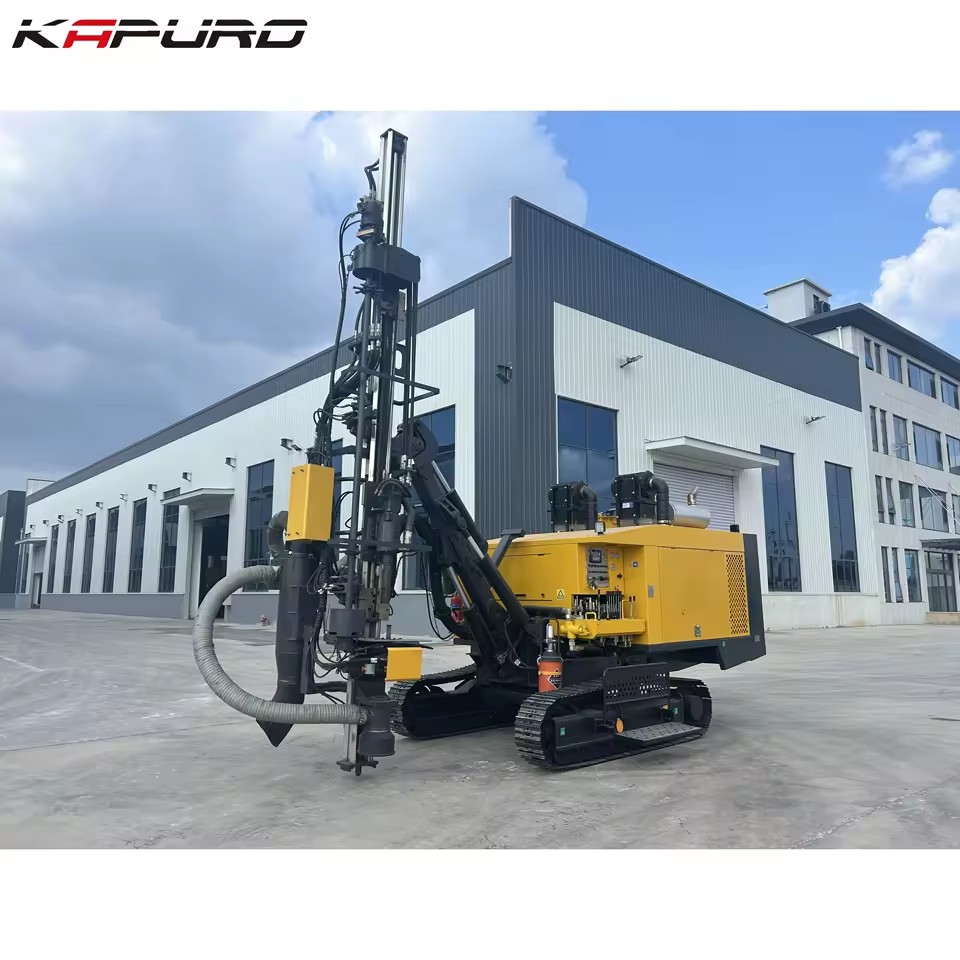

Geotechnical Drill Rig Performance Down the Hole Hammer Machine Portable for Mining Projects DTH Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 75,090.00 75090.0 USD $ 75,090.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
24m(78.74ft)
Drilling Diameter
90-138, 90-138mm
Power Type
Diesel
Voltage
24 V
Product description
Product NameKP-35 Hydraulic DTH Integrated Drilling Rig
drilling depth24m
drilling diameterΦ90-Φ138mm
impactor hammer3.5 / 4
drill pipe Qty7
Engine brandYCA07240 T300
Rated power176kw
air displacement15m³/m in
working pressure1.8Mpa
compression typetwo stage
propulsion modehydro-cylinder/wirerope
propulsion arm L3400mm
propulsion arm MQCaviation-aluminium
adjust arm L1100mm
max drilling force20kN
max lift force25kN
rotary torque2000Nm
rotary speed120rpm
travel speed1.5-3.0km/h
Grade ability25°
ground clearance350mm
chassis swing angle±10°
voltage24v
filter cartridges Qty14
drilling rods diameterφ60*3000/φ76*3000mm
drill boom pitch angletop28/bottom45°
drill boom L/R swing angleleft25/right25°
bracket L/R swing angleleft10/right91°
propeller pitch angle130°
Description images

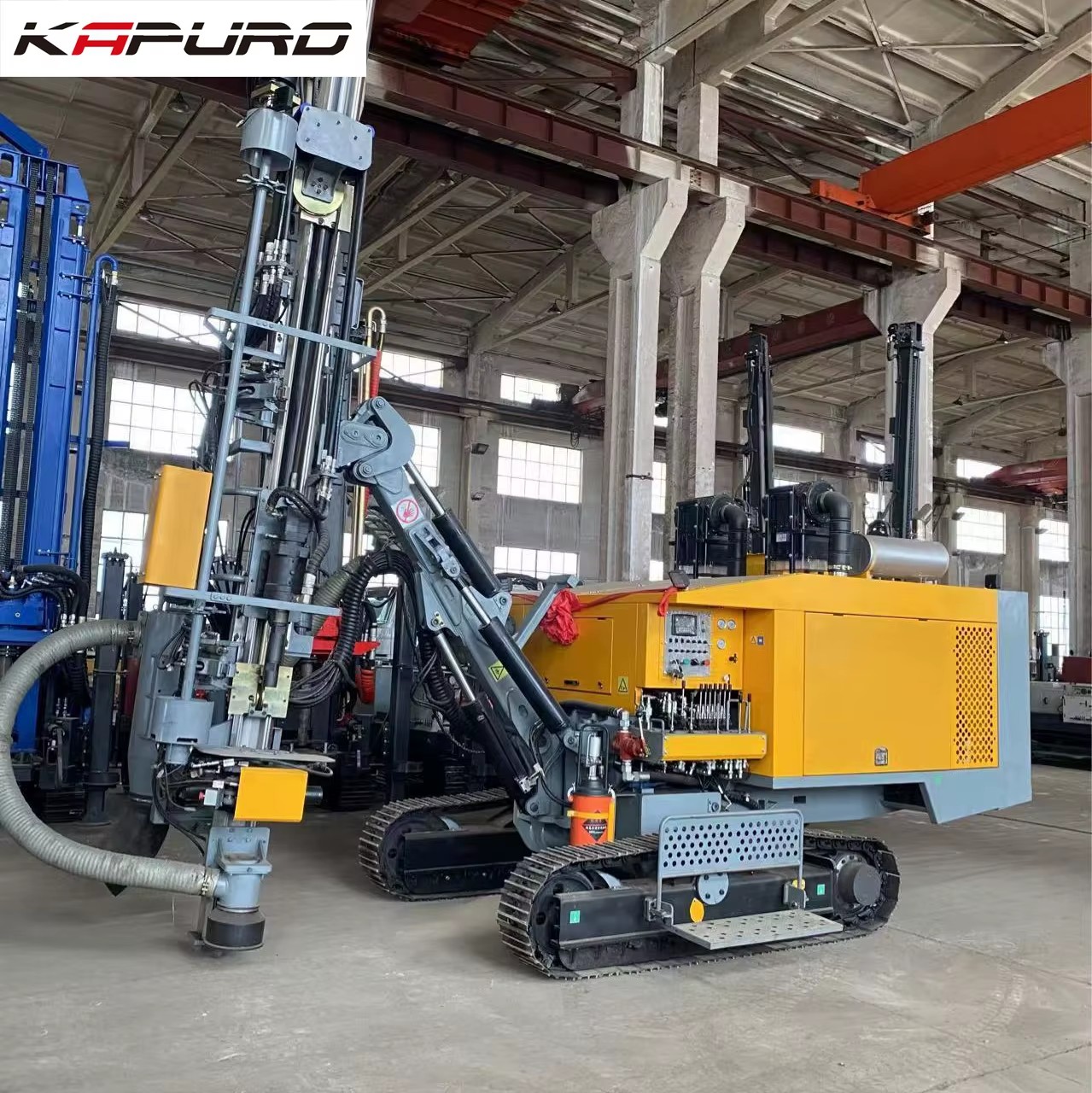

Product detail

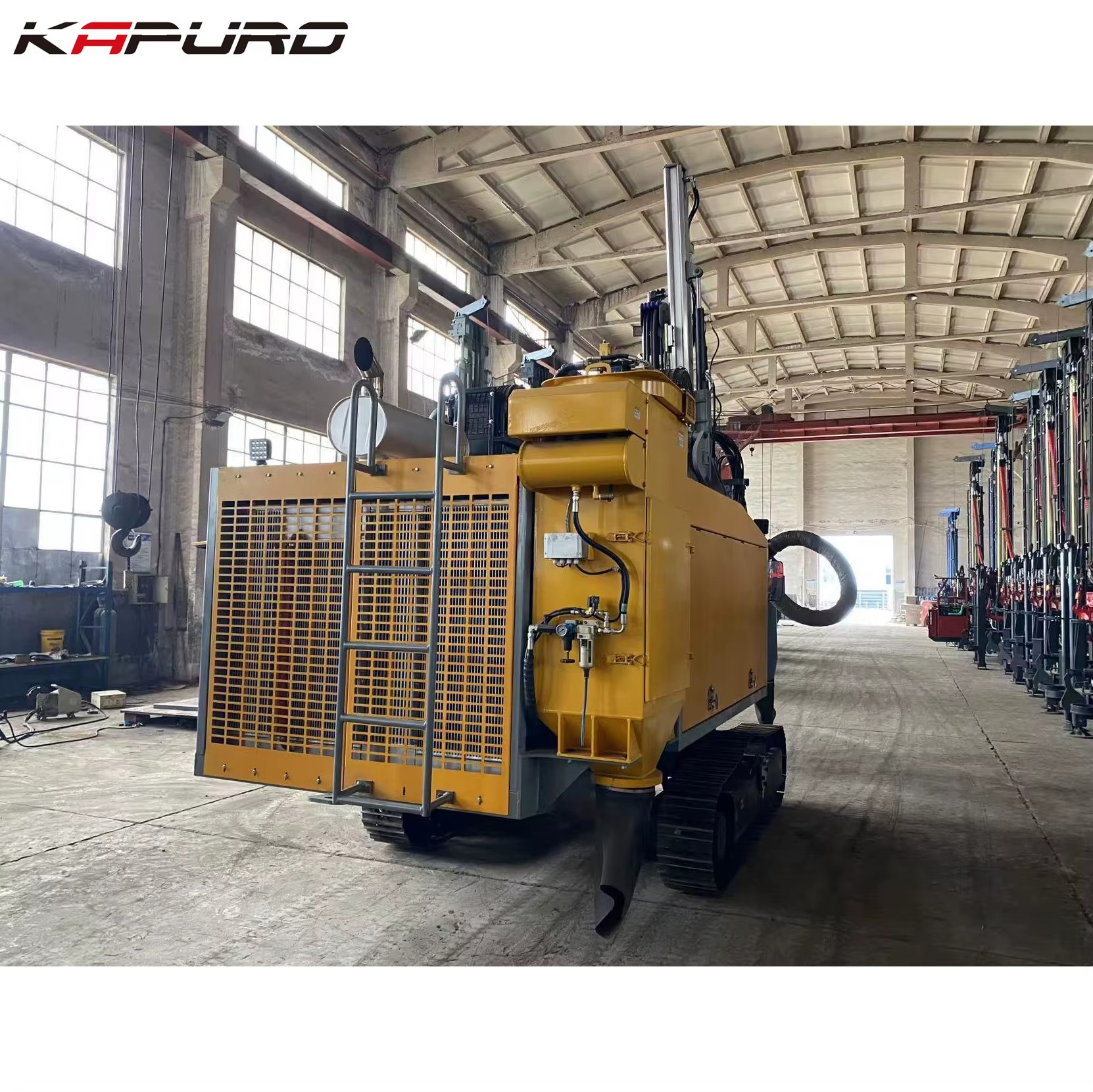

Product detail

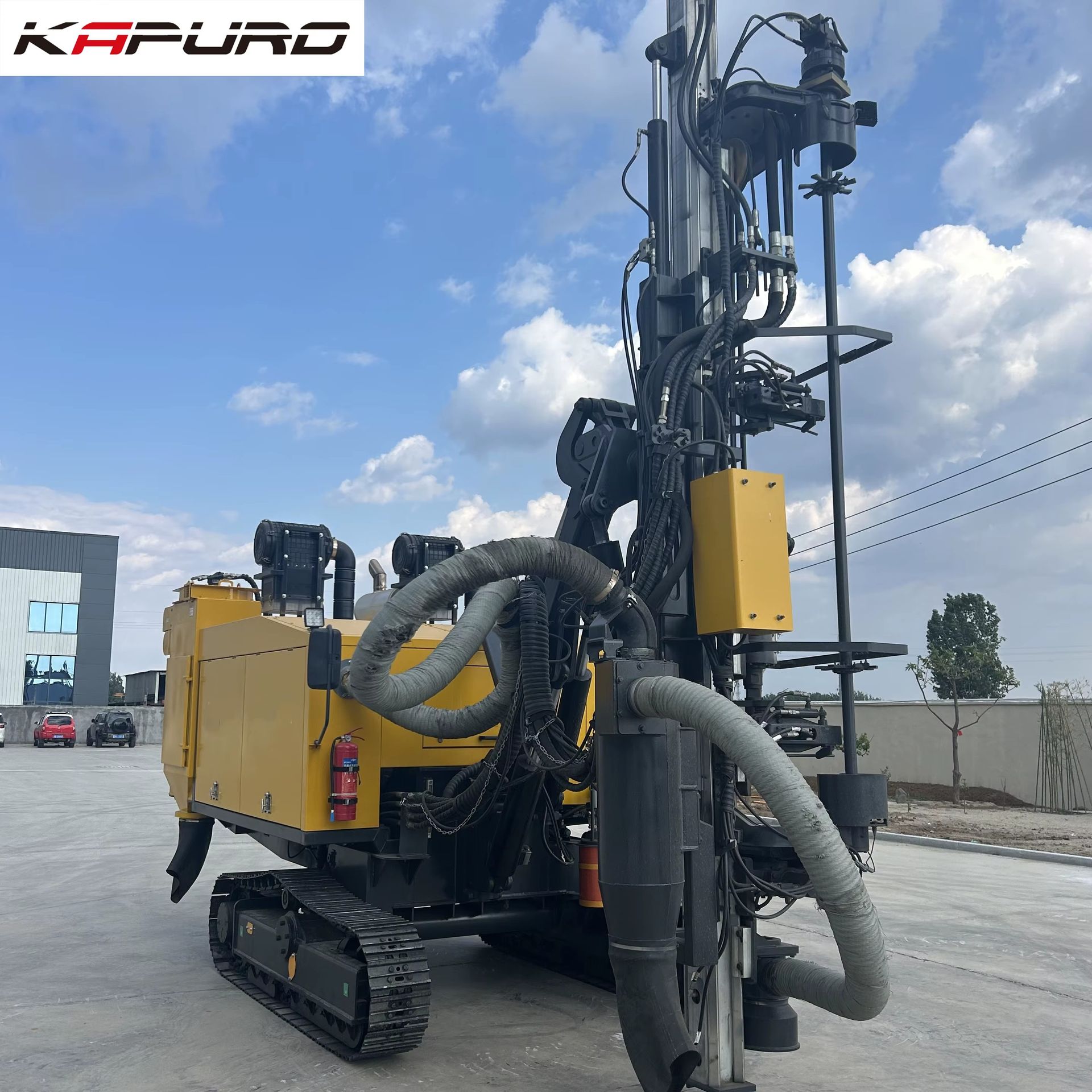

Product detail

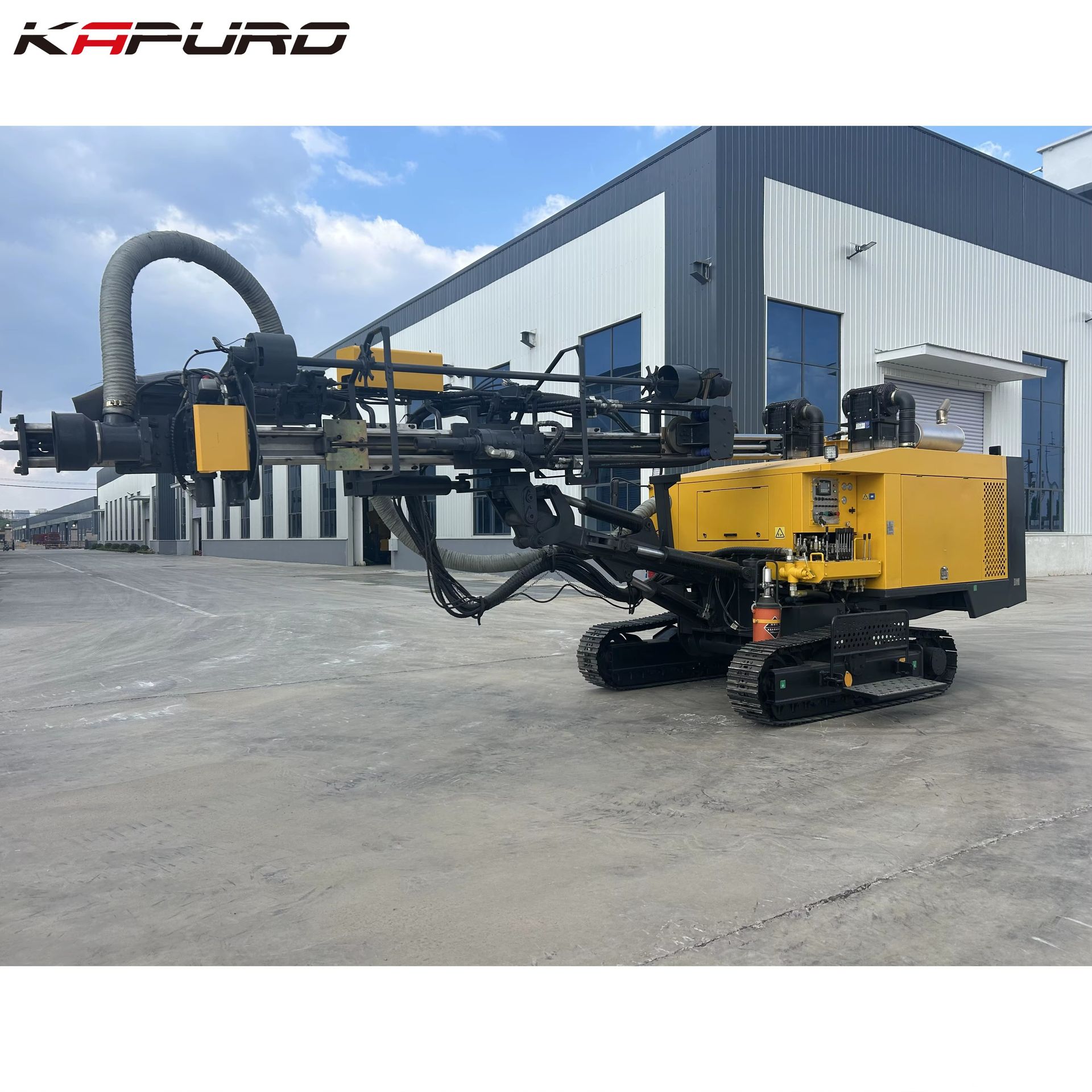

Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
24m(78.74ft)
Drilling Diameter
90-138, 90-138mm
Power Type
Diesel
Voltage
24 V
Core components
Bearing, Motor, Pressure Vessel, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Shandong
Weight
10500 KG(23148.54lb)
Dimension (L*W*H)
8010*2400*2950mm(315.35*94.49*116.14in)
Drill rod diameter
24m
Engine
Diesel
Rated power
176kw
Grade Ability
25°
Ground Clearance
350mm
Condition
New
Warranty of core components
1 Year
Marketing Type
New Product 2025
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
KP-35
Power (W) (Product option)
176KW(236.02hp)
Lead time
15 days
Minimum order
1 Units
