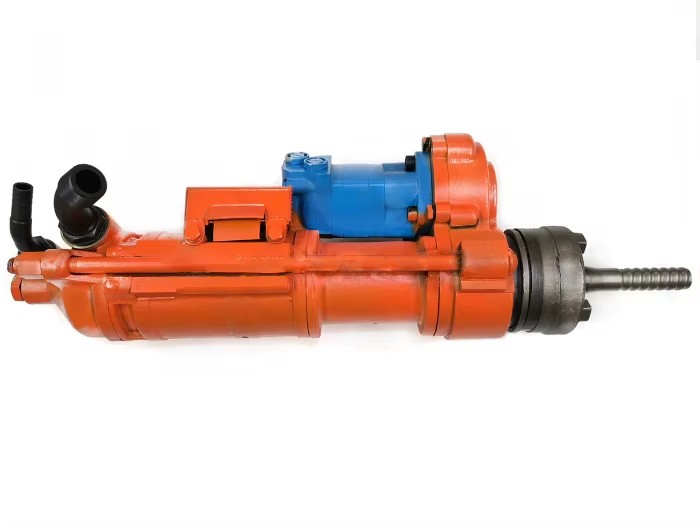

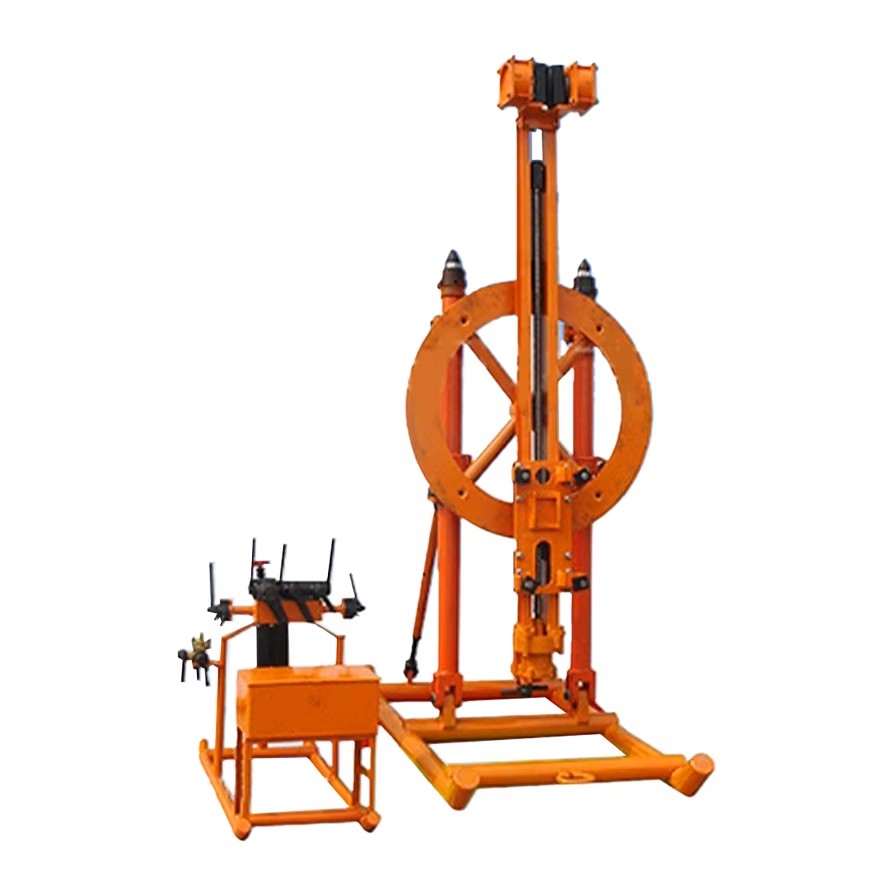

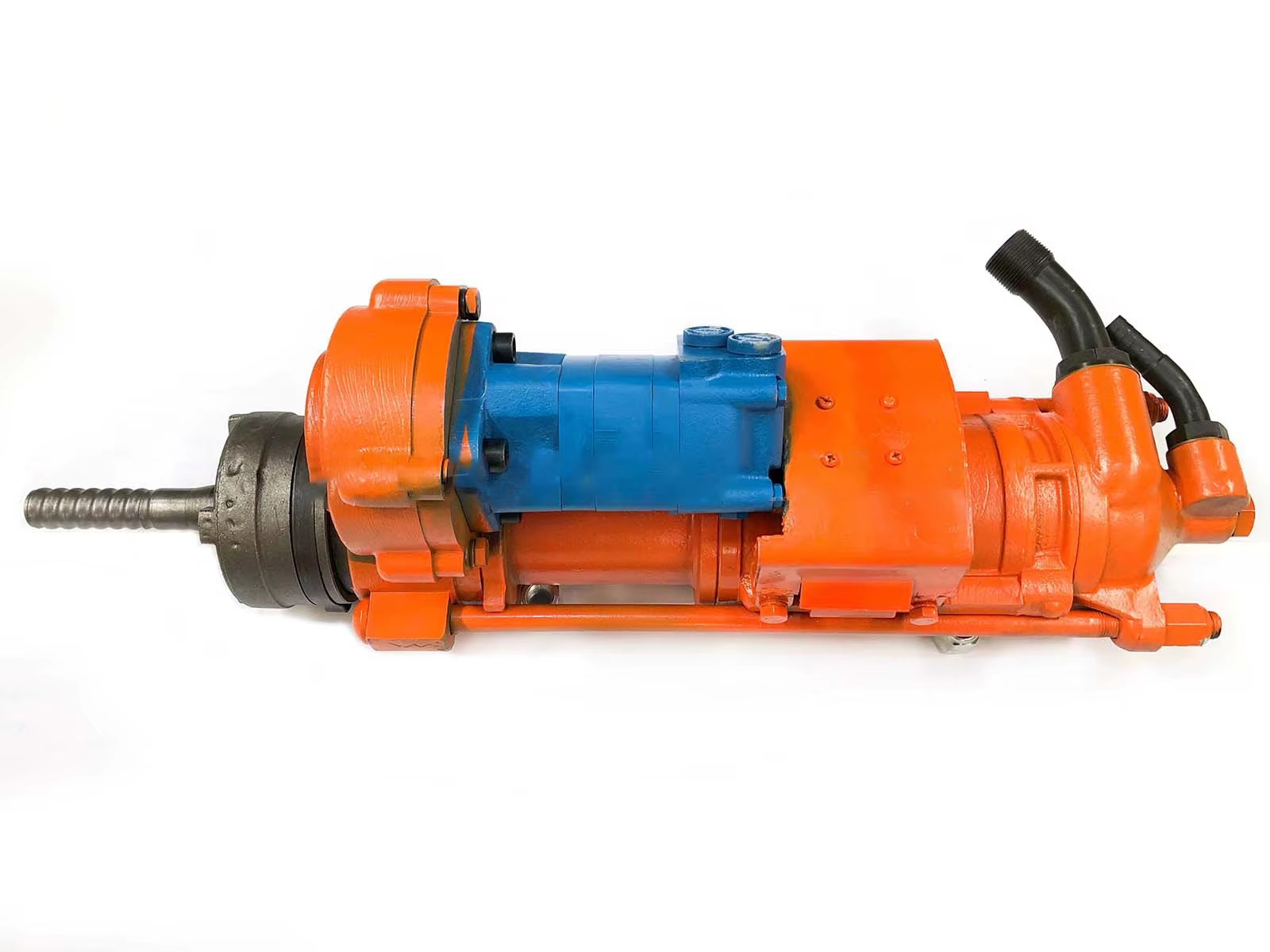

Manufacturing Excellent Quality Disc-type Drill Frame YGZ90 Rock Drill Matching 360° Drilling Rig for Mining
Price
$
7500.00
Product information
Attributes
Usage
MINING
Type
pneumatic rock drill
Drilling Depth
25m(82.02ft)
Drilling Diameter
50-80mm(1.97-3.15in)
Core components
Bearing
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
Zhejiang, China
Weight
95 KG(209.44lb)
Dimension (L*W*H)
1130*675*965MM(44.49*26.57*37.99in)
Cylinder Diameter
125mm
Piston stroke
98mm
Working Air Pressure
0.5-0.7Mpa
Impact energy
≥225J
Rock drilling impact frequency
≥34Hz
Torque of rotating drill rod
≥140N.m
Gas consumption for rock drilling
≤225L/S
Working water pressure
0.4-0.6Mpa
Brazing tail
38*90mm
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
YGZ90 Disc-type Drill Frame
Fulfilment
Delivery
Lead time
30 days
Shipping and estimated delivery
Shipping fees and delivery dates are confirmed with your quotation.
