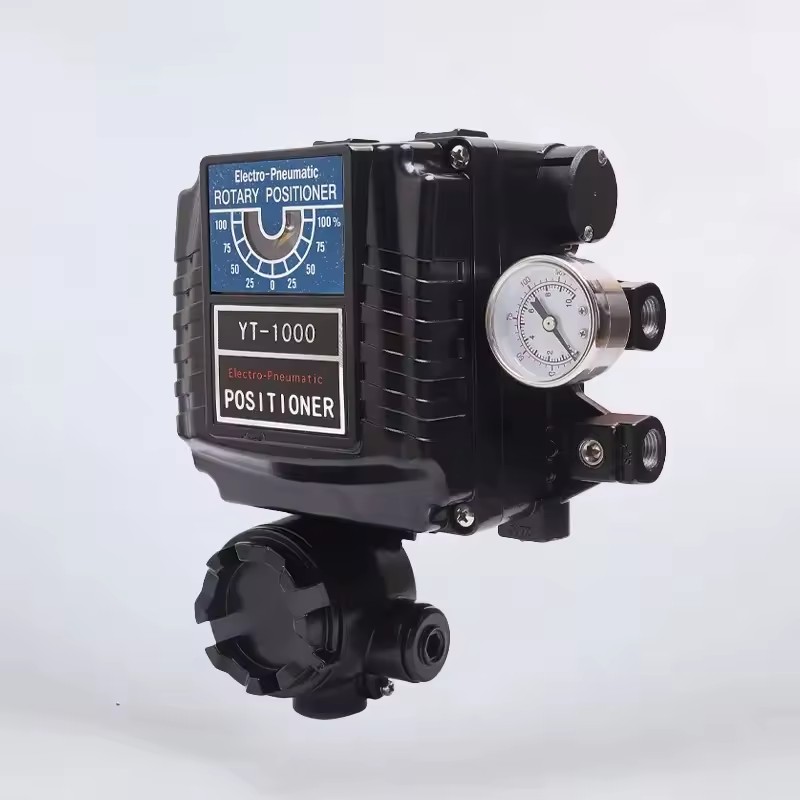

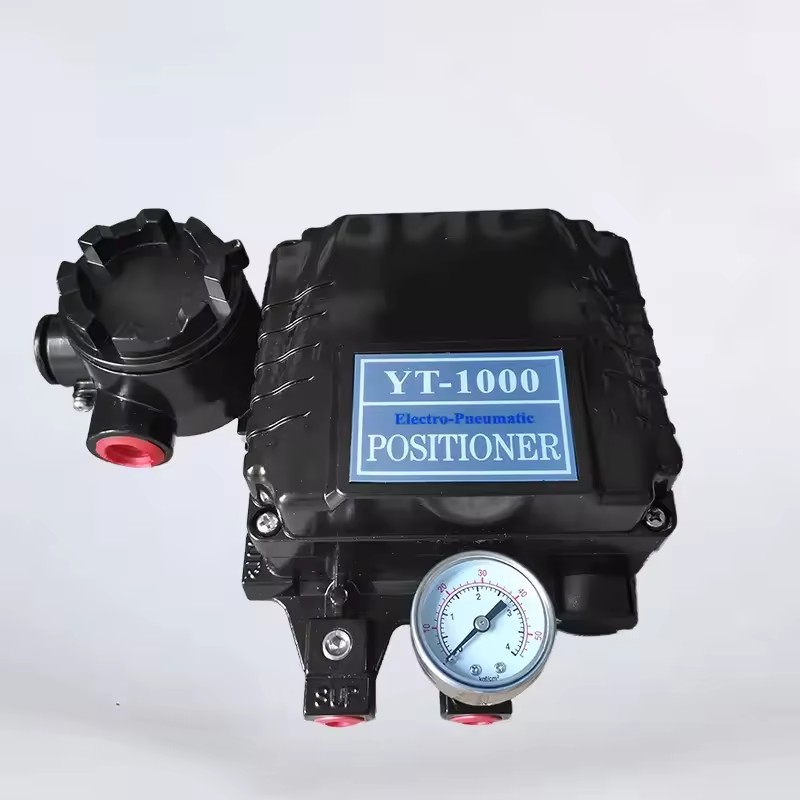

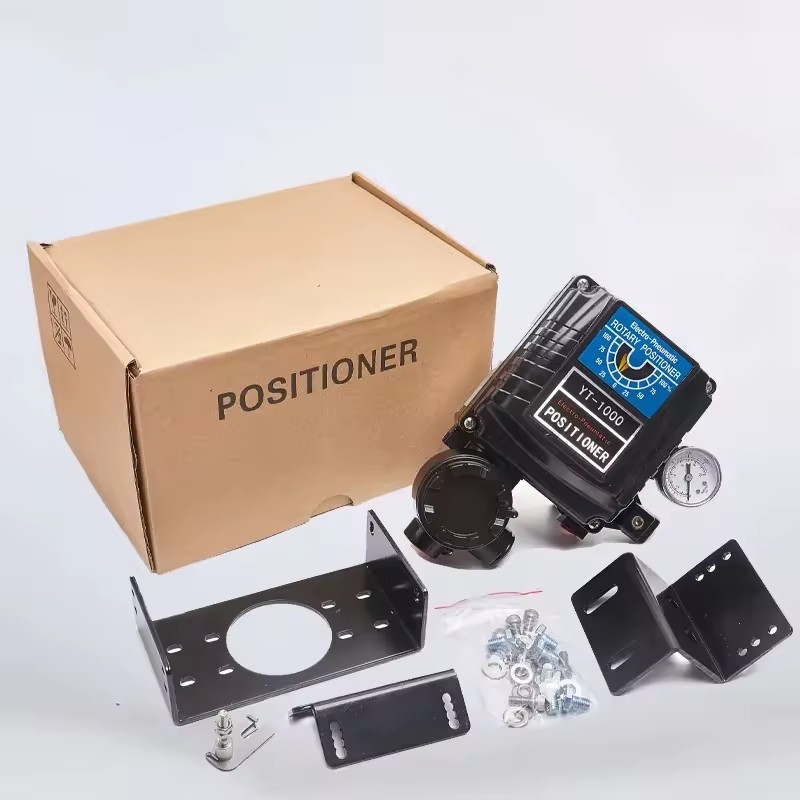

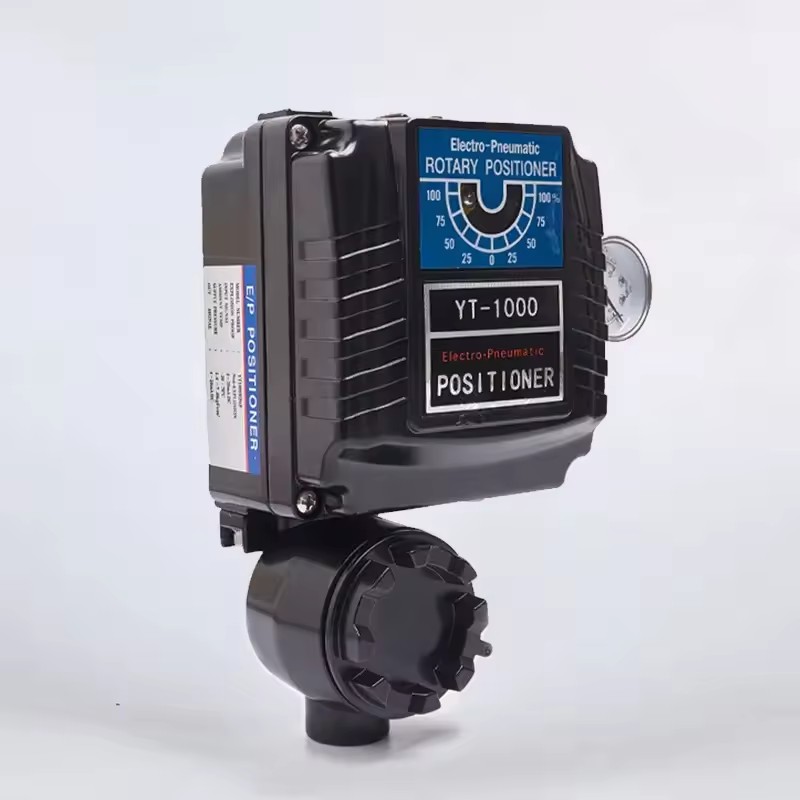

Electro pneumatic positioner smart positioner YT1000 valve Rotary Linear Type with 4-20mA signal
Advantages
• aims to provide
• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.
• 3 production base, large stock, SHORT LEAD TIME, same day shipping.
• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.
• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS, BV, explosion & fire safe.
• OEM / ODM service available.
Feature of Pneumatic Actuator
1. Preloaded coating springs are made from the high-quality material for resistance to corrosion and longer service life, which can be demounted safely and conveniently to satisfy different requirements of torque by changing the number of springs. 2. ISO5211 standard for ball valves or butterfly valves. 3. DIN3337 and NAMUR Standard for pneumatic accessories. 4. Twin rack pistons are made from die-casting aluminum treated with hard anodized or made from cast steel with galvanization, symmetric mounting position, long cycle life and fast operation, reversing rotation by simply inverting the pistons. 5. It has a number of springs inside and will auto return once air is interrupted and it could keep the valve and project safe.
Technical Parameters
| Item | Single Acting/Double Acting Pneumatic Actuator |
| Acting Mode | Double Acting, Spring Return (Single Acting) are Available |
| Air Supply Pressure | 2.5 to 8bar |
| Output Torque | 14 to 1170Nm |
| Lifespan | 1,000,000 (1 Million) Times |
| Angle of Rotation | 90° ±4° |
| Shell Material | Aluminum Alloy Extruded |
| Applicable Media | Filtered, Dry Compressed Air, Non-Corrosive Medium |
| Ambient Temp. | Standard Type: -20 to +80°C (-4 to 176°F) |

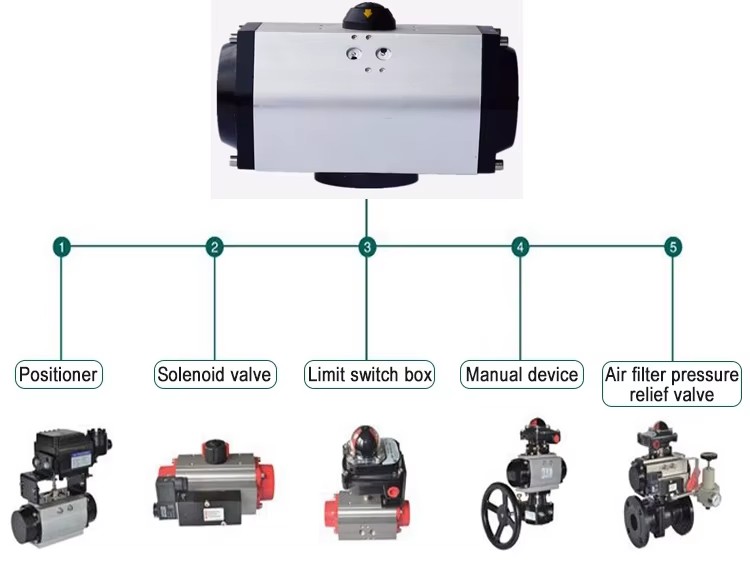

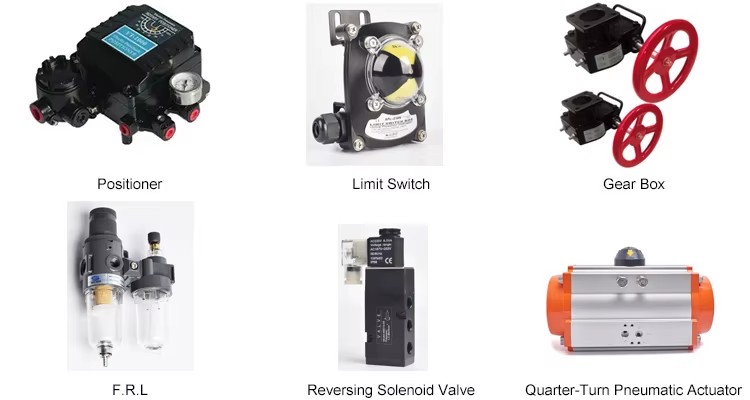

| Optional Accessories | Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device |
| Application | Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries |
| Lubrication | There is no need for lubrication for standard type under normal operating conditions. Special lubricants should be used under low or high temperature operating conditions. |
Pneumatic Actuator
Q
Q: How long is your delivery time? A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Can I have a sample order? A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Do you test all your goods before delivery? A: Yes, all products are fully inspected before delivery.
A: Yes, all products are fully inspected before delivery.
Q: What are your payment term and delivery time? A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
Q. What is the warranty? A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
