2000m/3000m/5000m Oil Well Drilling Rig ZJ20/ZJ30/ZJ40/ZJ50

Available for enquiry 0.0 · 0 reviews
USD

$ 3,575,020.00 3575020.0 USD $ 3,575,020.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Rotary Drilling Rig
Power Type
Diesel
Machinery test report
Provided
Warranty
1 Year
Core components
Bearing, Engine
Video outgoing-inspection
Provided
Product description

ZJ30/1700DB Oil exploration drilling rig

ZJ30/1700DB Drill driven by ac frequency conversion motor, according to the function is divided into: derrick floor area, power and electrical transmission control, pump room area, mud circulation area, oil tank area and other auxiliary equipment. Adapted to the well depth within 3000 m of lateral drilling, directional well and vertical well drilling operation.

The rig drawworks and rotary table adopts the form of independent drive. Winch driven by a 600 kw ac frequency conversion motor, rotary table driven by a 300 kw ac frequency conversion motor. Two sets of F - 500 mud pump by another two YJ23A500kW ac frequency conversion motor drive, respectively. Powered winch motor via a set of two gears transmission speed and the chain box powered winch, implementation of winch is second gear. Rotary table with motor and rotary shaft straight association-like structure.

Product features

1, Rig adopts modular structure, using pin connection between block and block, can realize quick move. Derik is front opening K type, the structure to suit two telescopic. Base for high and low a telescopic structure, installation, low on power drill itself, put up as a whole.

2, Drilling machine driven by ac frequency conversion mode and control, made a special work station of driller, the trachea, tubing adopts the rapid joint and remove the obvious installation tag.

Technical reference number
I n the name of the drilling depth (114mm Drill pipe )1600~ 3000mNominal diameter turntable openingsφ 520mm (20.5 ” )
Maximum hook load1700kNDiesel generator sets× power2× 800kW
Hoisting system structure5× 6Winch gear number2 Positive +2 reverse Infinitely variable speed
Diameter of wire ropeΦ 29mmDrill floor height5m
The transmission wayAC-DC-ACDerrick type and Effective heightDouble section telescopic K type 3

1.About Feedback

  • 1) After your inquiry we will give you a quick revert within 12 hours
  • 2) Any questions do free to let me know and my trade manager will stay on line all the time
  • 3) The time you consult us,the convenience will follows you.

    • 2.

  • 1) Choose us,you will find a cost-efficient way.
  • 2) Choose us,convenience will follows you all the time.
  • 3) After inquiry you will realize we are the one that you are looking for.
    • Description images

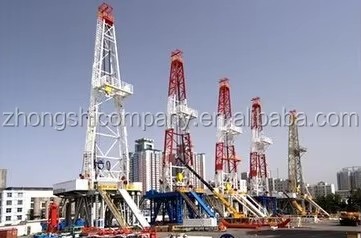

    2000m/3000m/5000m Oil Well Drilling Rig ZJ20/ZJ30/ZJ40/ZJ50

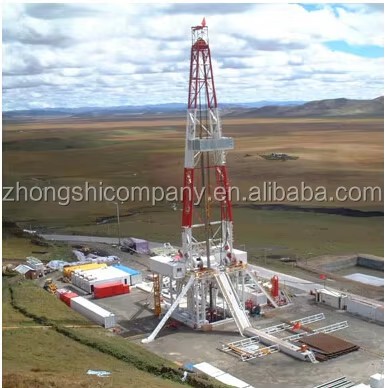

    2000m/3000m/5000m Oil Well Drilling Rig ZJ20/ZJ30/ZJ40/ZJ50

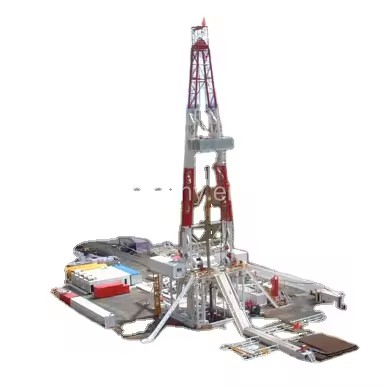

    2000m/3000m/5000m Oil Well Drilling Rig ZJ20/ZJ30/ZJ40/ZJ50
    2000m/3000m/5000m Oil Well Drilling Rig ZJ20/ZJ30/ZJ40/ZJ50
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      120 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 17 fields
    Type
    Rotary Drilling Rig
    Power Type
    Diesel
    Machinery test report
    Provided
    Warranty
    1 Year
    Core components
    Bearing, Engine
    Video outgoing-inspection
    Provided
    Place of origin
    China, Henan
    Weight
    Actual weight, 100000 KG(220462.26lb)
    Dimension (L*W*H)
    Regular
    Model number (Specification)
    ZJ50
    After-sales Service Provided
    Overseas Service Center
    Construction technology
    Rotary Drilling Technology
    Usage
    Oil Well
    Local Service Location
    None
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Lead time
    120 days
    Minimum order
    1 Units
