Product video
Certifications CE

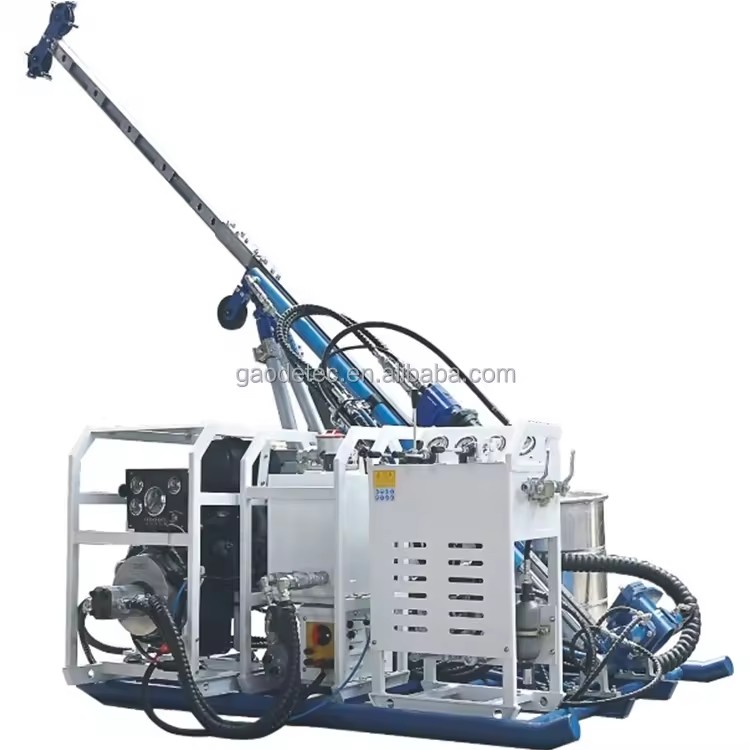

300m Portable Hydraulic Rotary Core Drill Rig Borehole Core Drilling Machine Geological Mine Drilling Rig

Available for enquiry 0.0 · 0 reviews
USD

$ 55,330.00 55330.0 USD $ 55,330.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
coal
Type
Core Drilling Rig
Drilling Depth
Max. 300
Drilling Diameter
60 mm(2.36in), 75mm(2.95in), BTW 60, 96mm(3.78in), 123mm(4.84in), PQ 123, HTW 96, NTW 76
Power Type
Diesel or Electric
Voltage
as your requirement
Product description

300m Portable Hydraulic Rotary core Drill Rig Borehole Core Drilling Machine Geological Mine Drilling Rig

Portable

Convenient for disassembly and assembly

Efficient and economical

Drill pipe sizeApplicable drill pipe outer pipe(m)Applicable pipe inner pipe(m)Drill depthHole diameter(mm)Core diameter(mm)
HTW1.51.5/3809671
NTW1.51.5/32207656
BTW1.51.5/33006042

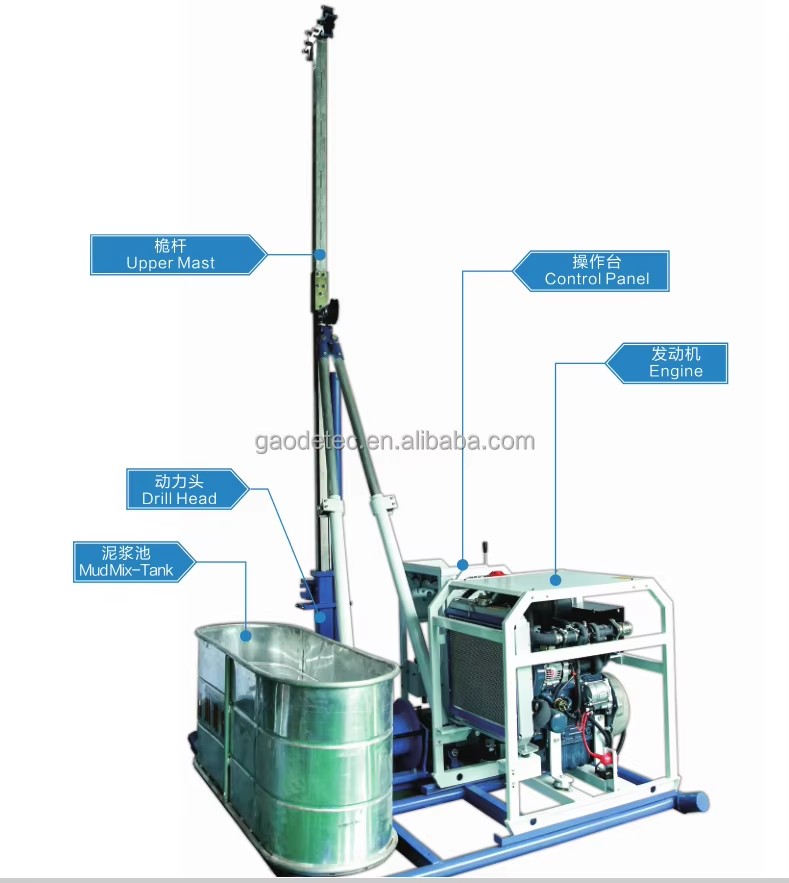

Unit module weightPower system 170Kg; motor 30Kg; Power head 35Kg; hoist (including steel cable) 55Kg; Operation platform 85Kg; mud pump 70Kg; frame 100Kg; mud mixer 8Kg; foot clamp 35Kg; hydraulic tank (full oil) 80Kg
Power systemDiesel engine: Kubota four cylinder turbocharged; output power: 33kw; Max Rotational Speed:2800RPM; Diesel tank capacity 24L

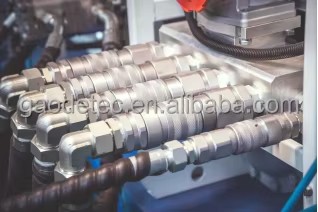

Hydraulic systemOil supply loop:Double hydraulic pump; Multi-channel pressure display, integrated operating platform;water-cooling system; Max pressure:21MPa Hydraulic tank capacity 30L
Rotating systemTop drive type drill head; Rotational Speed:50-1300RPM Continuous adjustable; Max torque:1243N.M
Feeding systemFeeding Angle adjustment: 0°-90° Cylinder stroke:1.8m; Lifting force (single/double) 4t/8t; Propulsion (single /double ) 2.1t/4.2t
Mud systemDiesel engine direct drive; Max flow:120L/min; Max pressure:2MPa
Foot ClampHydraulic gripper Hydraulic cylinder drive Max clamping diameter: 114mm
HoistHydraulic motor direct drive; Wire diameter 5 mm;Rope load capacity:500 m； Lifting force:10KN； Max feeding speed：150 m/min
Certifications & compliance
CE
Complies with EU standards
Description images
Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 33 fields
Usage
coal
Type
Core Drilling Rig
Drilling Depth
Max. 300
Drilling Diameter
60 mm(2.36in), 75mm(2.95in), BTW 60, 96mm(3.78in), 123mm(4.84in), PQ 123, HTW 96, NTW 76
Power Type
Diesel or Electric
Voltage
as your requirement
Core components
Motor, Pump, core drilling rig
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
portable movable
Place of origin
China, Henan
Weight
700 KG(1543.24lb)
Mobility
Manpower can be carried
Drilling depth capacity
80/220/300(m)
Applicable drill pipe
1.5
Applicable drilling tool
1.5/3
Drill pipe specification
HTW, NTW, BTW
Drilling depth capacity (M)
HTW 80, NTW 220, BTW 300
Drilling Diameter (mm)
HTW 96, NTW 76, BTW 60
Drill core diameter (MM)
HTW 71, NTW 56, BTW 42
Drilling angle(°)
0° - 90°
Applicable Industries
Construction works, Energy & Mining
Showroom Location
None
Condition
New
Marketing Type
Hot Product 2022
Warranty of core components
1 Year
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
GD300
Power (W) (Product option)
33kw(44.25hp)
Certifications & Compliance
CE
Lead time
7 days
Minimum order
1 Units
