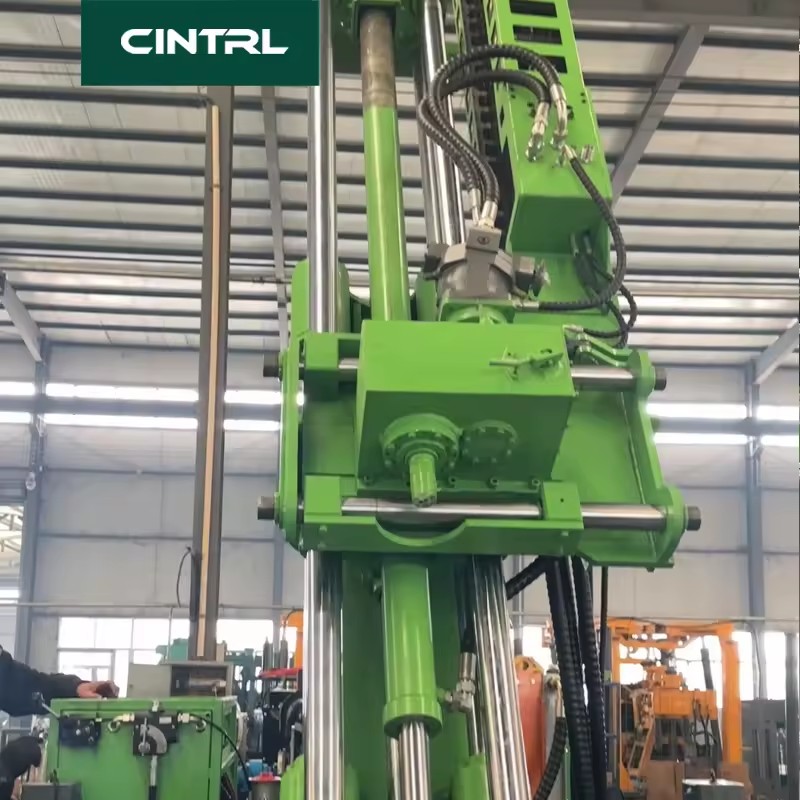

Long Lasting Durability Sampling Spt and Pump Mine Sunmoy Drilling Rig Machine

Product Importer Gallery 01 · 4c01b69f45

Product Importer Gallery 02 · d8d4d11afb

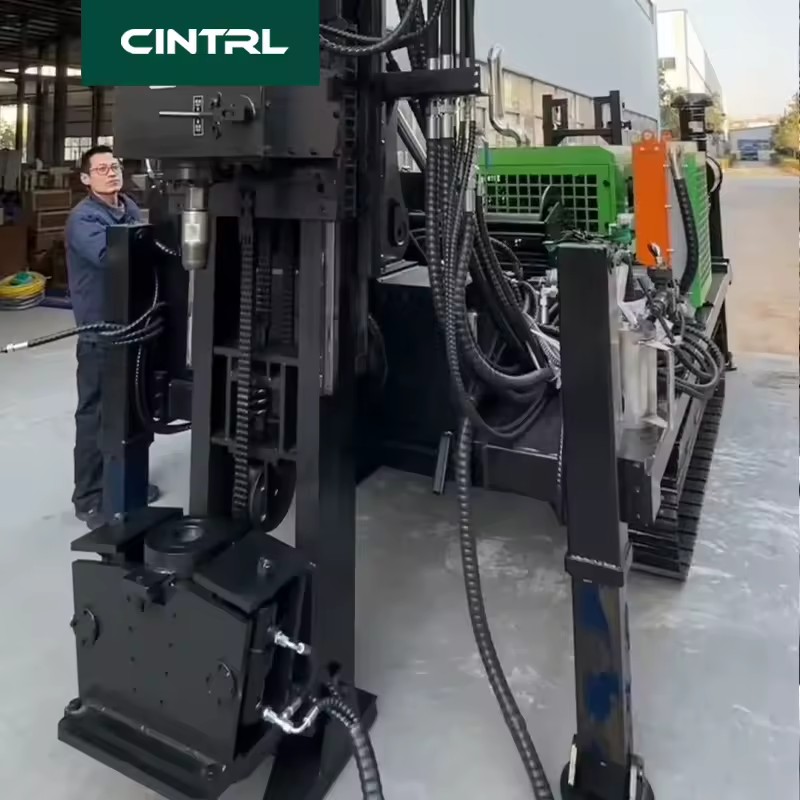

Product Importer Gallery 03 · d61068ef82

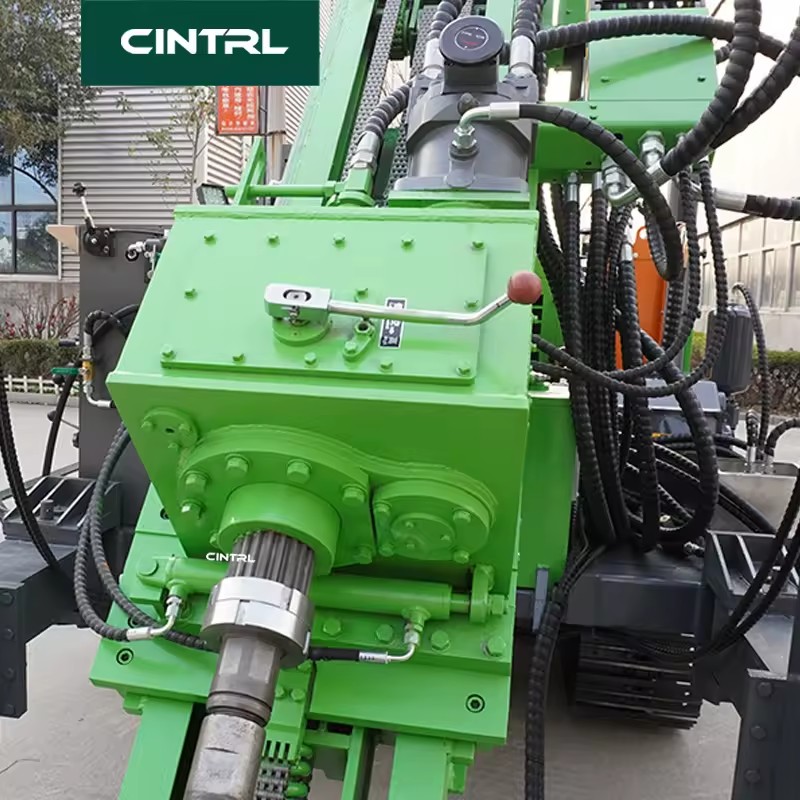

Product Importer Gallery 04 · 031a95eec8

Product Importer Gallery 05 · e317ad918a

Product video

Long Lasting Durability Sampling Spt and Pump Mine Sunmoy Drilling Rig Machine

Name: Long Lasting Durability Sampling Spt and Pump Mine Sunmoy Drilling Rig Machine
SKU: 29JY-R5KD-B398
Price: 7720.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 7,720.00 7720.0 USD $ 7,720.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

mine

Type

Core Drilling Rig

Drilling Depth

Max.1800m

Drilling Diameter

NTW(73.3mm), HTW(91.3mm), BTW(57mm)

Power Type

Diesel

Core components

Motor, Pressure Vessel, Engine, Hydraulic

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Hydraulic Control Lift.

Drilling Capacity
Type	Value	Measurement Unit
BTW （60）	1800	m
NTW （75）	1600	m
HTW（95）	1200	m

Dynamic System
Type	Value	Measurement Unit
Engine Model	Wechai / Cummins	Optional
Rated Power	147	kw (Yucha)
Rated Speed	2300	rpm

Hydraulic System
Type	Value	Measurement Unit
Control Form	Multi-pump confluence, constant flow distribution
System Pressure	32 + 25	MPa
Max Flow	145	ml/r
Cooling Mode	Water Cooling / Air Cooling

Rotary System
Type	Value	Measurement Unit
Drive Mode	Hydraulic Drive
Max Speed	1400	rpm
Max Torque	3500	N.m
Driing Angle	0 - 90	deg
Cylinder Stroke	3500	mm
Lifting Power	400	kN
Feed Force	200	kN

Mud Pump
Type	Value	Measurement Unit
Pump Model	BW160	Optional
Max Flow	160	L/min
Max Pressure	10	Mpa

Mast Data
Type	Value	Measurement Unit
Mast Height	8.5	m
Sliding Listance	1200	mm

Rod Clamp
Type	Value	Measurement Unit
Max Through-hole Diameter	146	mm

Wireline Hoist
Type	Value	Measurement Unit
Drive Mode	Hydraulic Drive
Capacity	1600m / φ6mm
Max Lifting Force	31	kN
Pulling Speed	110	m/min

Dimension & Weight
Type	Value	Measurement Unit
Climbing Angle	25	deg
Driving Speed	2	km/h
Dimension	610022003050	mm
Weight	10	t

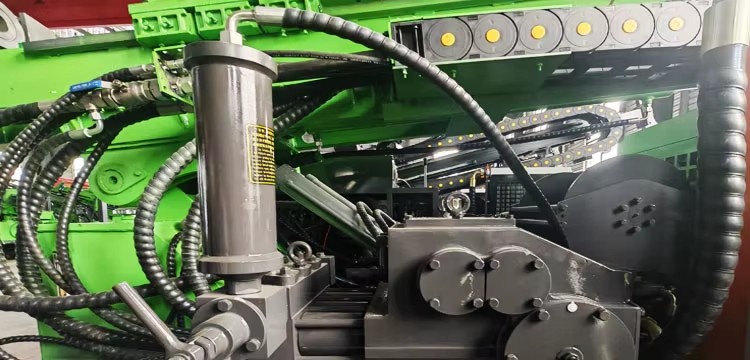

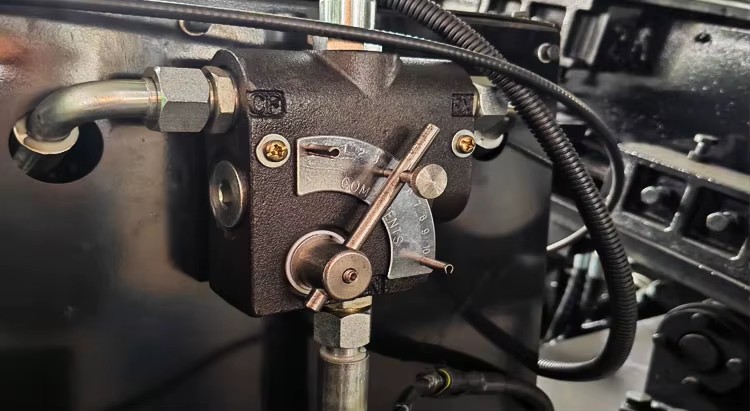

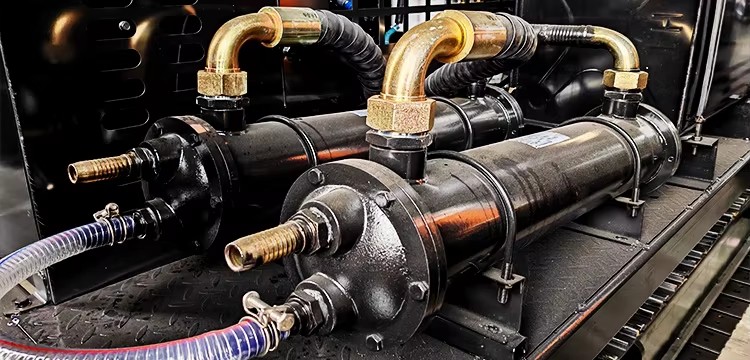

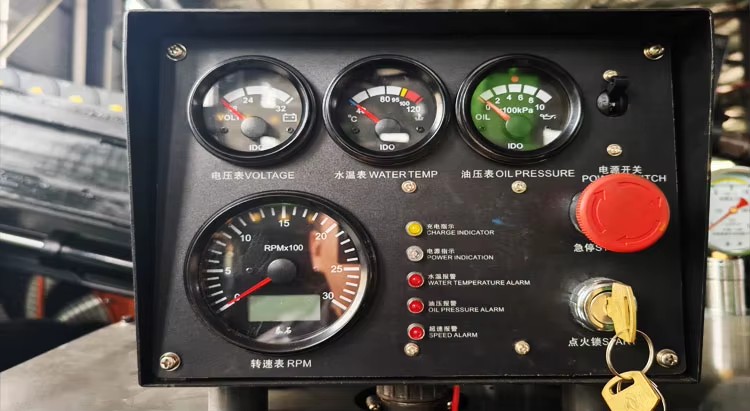

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 19 fields

Usage

mine

Type

Core Drilling Rig

Drilling Depth

Max.1800m

Drilling Diameter

NTW(73.3mm), HTW(91.3mm), BTW(57mm)

Power Type

Diesel

Core components

Motor, Pressure Vessel, Engine, Hydraulic

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

High Productivity

Place of origin

china mainland

Weight

10000 kg

Dimension (L*W*H)

6100*2200*3050 mm

Mobility

Steel Crawler Chassis

Selling Units

Single item

Single package size

630X210X250 cm

Single gross weight

14000.0 kg

Model number

HY1600

Power (W) (Product option)

147KW

Lead time

15 days

Minimum order

1 Units
