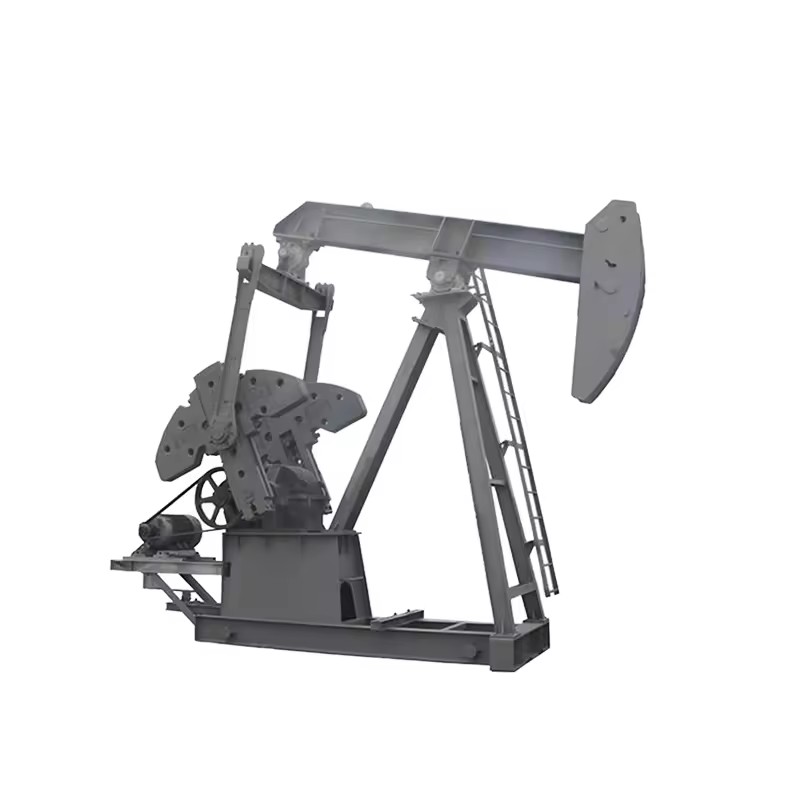

Product Importer Gallery 05 · e078007f02

Product video

Certifications API 11E

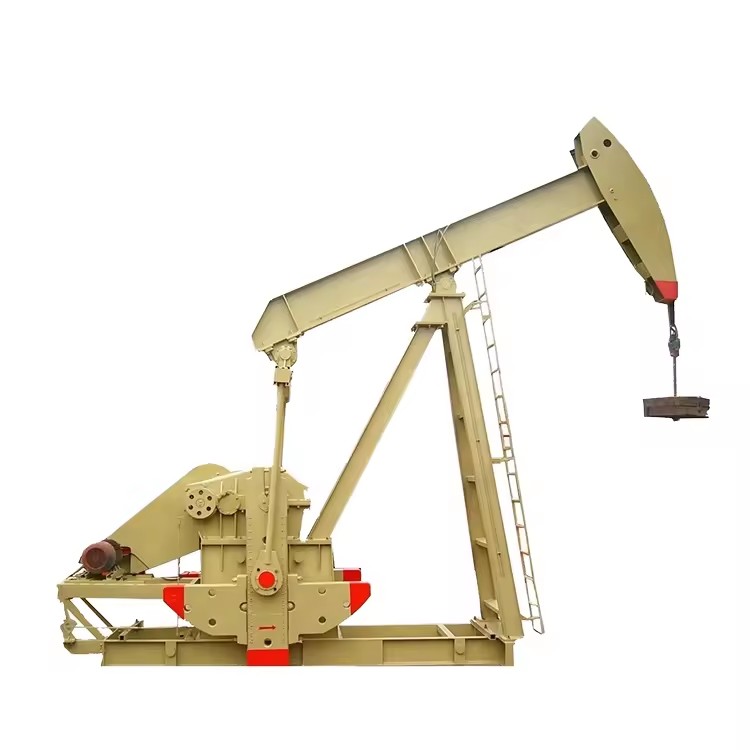

Shengji Oil Well Pumping Unit

Name: Shengji Oil Well Pumping Unit
SKU: 28WG-TQ4Y-R3GD
Price: 71520.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 71,520.00 71520.0 USD $ 71,520.00

Minimum order quantity: 1 Units

Key attributes

View all

Voltage

380V

Core components

Motor

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Production Capacity

100

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

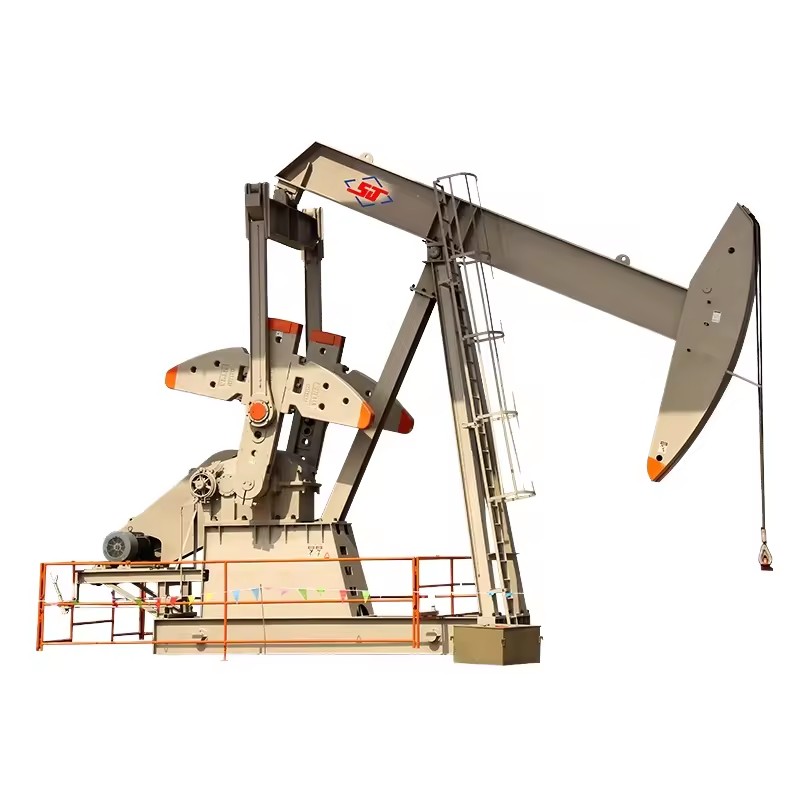

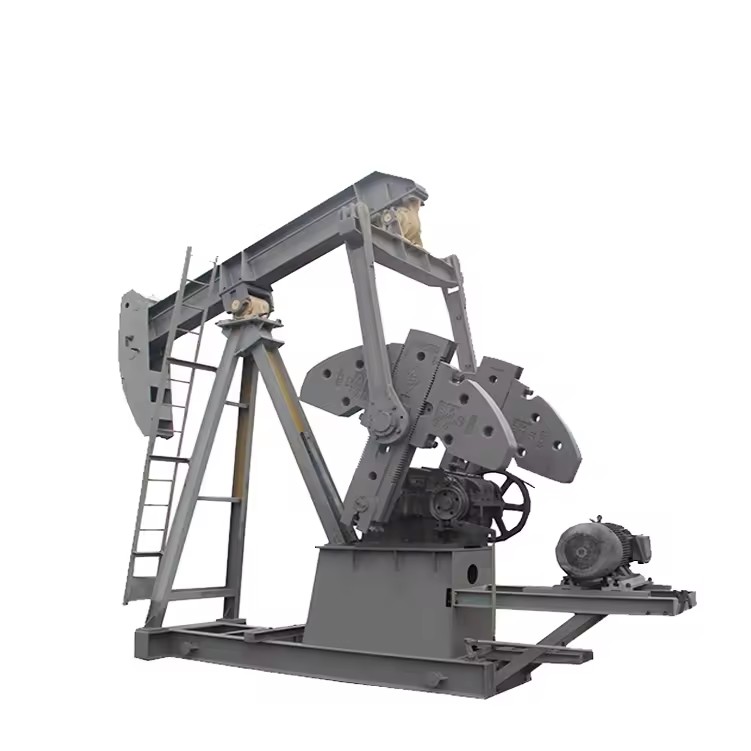

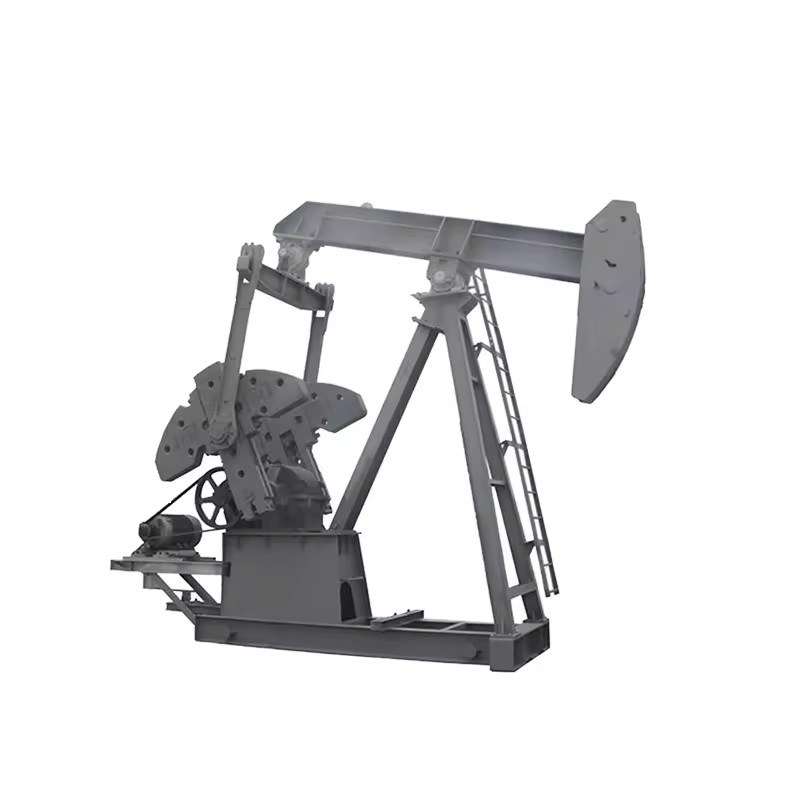

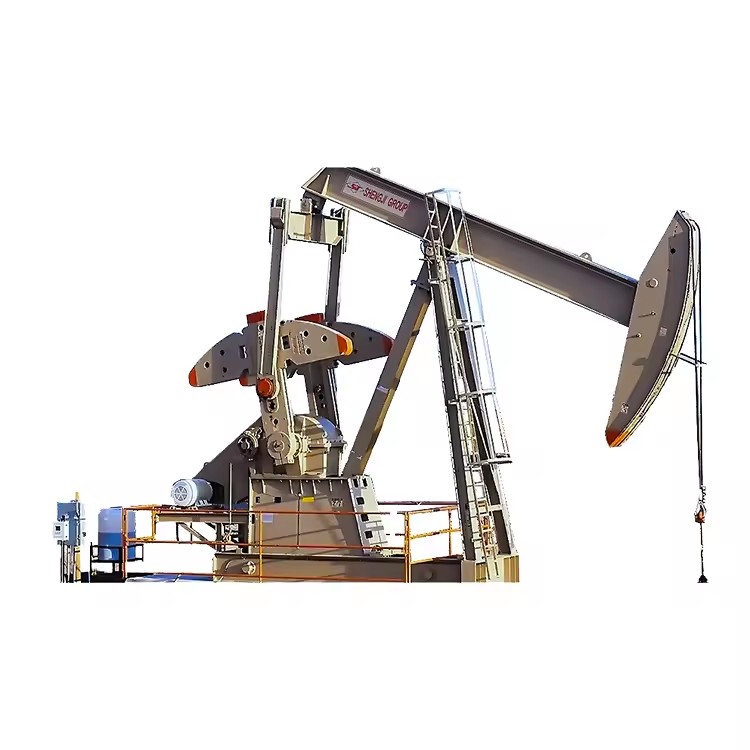

Shengji API spec11E oil well pumping unit

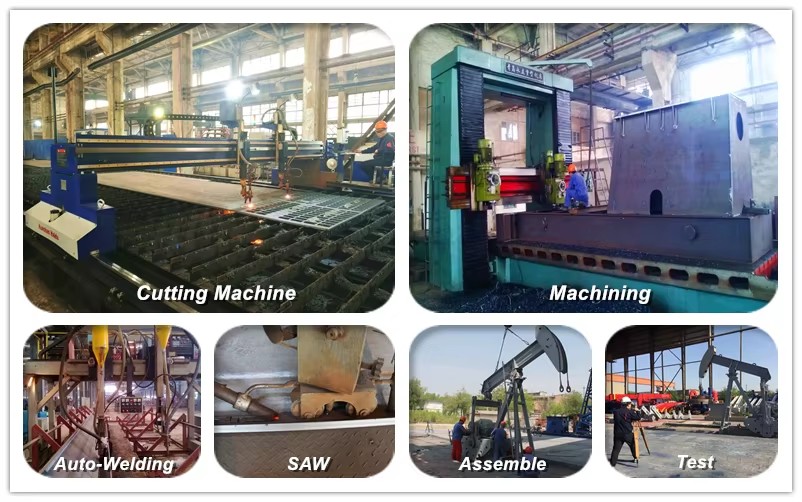

Shengji can provide a wide range of API pumping units depending on users’ requirements. They come with a 1-year warranty. Shengji API units are available according to customer requests. They can choose from double circular arc gear reducer or involute gear reducer. Shengji has nearly 200 pumping unit processing equipment and a complete production tooling that guarantees accuracy in the manufacturing process. Shengji pumping unit has the following key parts: crank pin, taper sleeve and a tailstock. By improving the supporting equipment, scientific processing technology, strict quality control,superb technical level; Shengji API pumping units are also suitable for inferior working conditions. These API pumping units are reliable and stable, hence their popularity among customers since Shengji uses forging for key parts.

Shengji exports more than 600 API pumping units annually with most products sold to reputable companies such as PDO, CENTRY, SHORESS, Schlumberger, OMV. Shengji pumping units have low failure rates.

NO.	Model	Load Rating (lbs)	Stroke length (in)	Stroke frequency (min -1 )
1	C-40D-76-48	7600	48;37;26	6;9;12
2	C-57D-76-54	7600	54;41;28	6;9;12
3	C-80D-133-54	13300	54;43;31	6;9;12
4	C-80D-119-64	11900	64;52;40	6,8,10
5	C-114D-119-86	11900	86;76;59	6,8,10
6	C-114D-143-64	14300	64;52;40	6,8,10
7	C-114D-143-74	14300	74;62;50	6,8,10
8	C-160D-173-86	17300	86;74;61	6,8,10
9	C-160D-200-76	20000	76;62;51	6,8,10
10	C-228D-213-120	21300	120;102;85	5,7,9
11	C-228D-246-86	24600	86;74;61	5,7,9
12	C-228D-173-100	17300	100;86;71	5,7,9
13	C-320D-305-120	30500	120;102;85	5,7,9
14	C-320D-256-120	25600	120;100;86	5,7,9
15	C-456D-305-120	30500	120;102;85	5,7,9
16	C-456D-305-144	30500	144;124;106	4,6,8
17	C-640D-365-144	36500	144;124;106	4,6,8
18	C-640D-365-168	36500	168;142;116	4,6,8
19	C-640D-305-168	30500	168;142;116	4,6,8
20	C-640D-365-192	36500	192;164;136;110	4,5,6
21	C-912D-365-144	36500	144;124;106	4,6,8
22	C-912D-365-168	36500	168;142;116	4,6,8
23	C-912D-305-192	30500	192;168;135;120,95,74	4,5,6
24	C-912D-365-192	36500	192;164;136;110	4,5,6
25	C-912D-427-144	42700	144;124;106	4,6,8
26	C-912D-427-168	42700	168;142;116	4,6,8
27	C-912D-427-192	42700	192;164;136;110	4,6,8
28	C-1280D-365-192	36500	192;164;136;110	4,5,6
29	C-1280D-427-192	42700	192;164;136;110	4,5,6
30	C-1280D-427-216	42700	216,192;168;144	4,5,6
31	C-1280D-427-240	42700	240;207;175;145	4,5,6
32	C-1824D-427-192	42700	192;164;136;110	4,5,6
33	C-1824D-427-216	42700	216;192;168;145	4,5,6

In 1964

In 1995, we bought in the first tubing

In 2007

In 2015, we became the supplier for Schlumberger and Haliburton.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

45 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Voltage

380V

Core components

Motor

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Production Capacity

100

Place of origin

China, Shandong

Weight

4 KG(8.82lb)

Model number (Specification)

C-40D~C-1824D

Dimension (L*W*H)

(5-13.63)*(2-3.6)*(3.5-10.6)

Features

Conventional Walking-beam

After-sales Service Provided

Engineers available to service machinery overseas

Blanced type

crank blanced

Gear reducer model

40~1824

Rated Torque

40000~1824000in.lbs

Gear Type

Double Circular Arc Gear Reducer, Involute gear reducer

Gear reducer lubricant

120# gear lubricant in winter,200# gear lubricant in summer

Crank direction

Clockwise and Counterclockwise

Dimension(L*W*H)

(5-13.63)*(2-3.6)*(3.5-10.6)

Certification

API 11E

Selling Units

Single item

Single package size

1000X1000X1000 cm

Single gross weight

1000.0 kg

Power (W) (Product option)

Electric

Lead time

45 days

Minimum order

1 Units
