Product video
Certifications CE

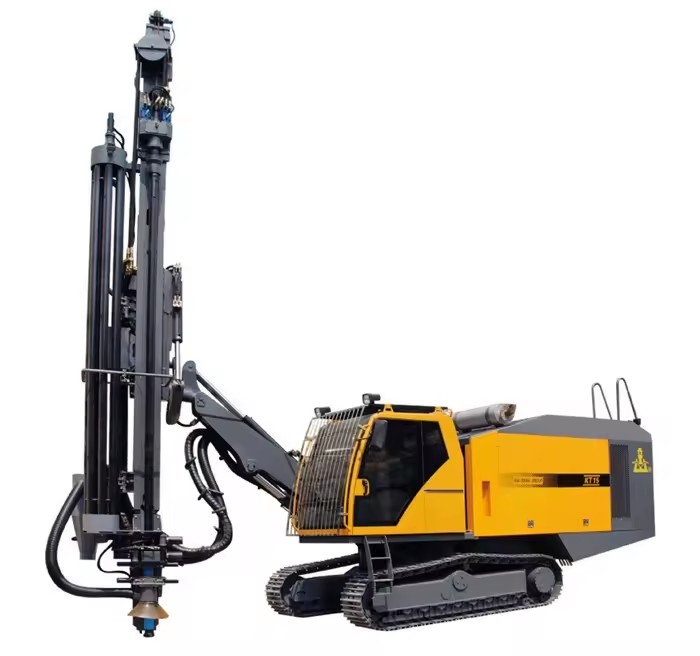

2022 Best Sale Mining Machinery Portable Hammer Drill Machine Rock Mining Drilling Rig Equipment Machine

Available for enquiry 5.0 · 3 reviews
USD

$ 198,070.00 198070.0 USD $ 198,070.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.40m
Drilling Diameter
135mm, 152mm, 190mm
Power Type
Diesel
Voltage
24v
Product description
Rock hardnessf=6-20
Hole diameter140-190mm
Economic Drill depth36m
Walking speed3.0km/h
Grade ability25°
Traction140KN
Ground clearance430mm
Machine Power298KW,2200r/min
Diesel motorQSZ13-C400
Screw compressor air delivery22m³/min
Exhaust pressure24bar
Overall Dimension(L*W*H)11000 ×2780×3600(mm)
Weight23800kg
Rotating speed0-100r/min
Rotation torque4100N·m
Lifting Power65000N
Carriage pitch angle125°
Carriage swing angleRight 97° left 33°
Drill arm swing angleRight 45° left 15°
The leveling Angle frameUp 10° down 10°
Compensation length(mm)1500mm
Feedstroke4580 mm
DTHhammerK4、K5、K6
Drill pipeφ89×4000mm/φ102×4000mm
Numberofrods8+1

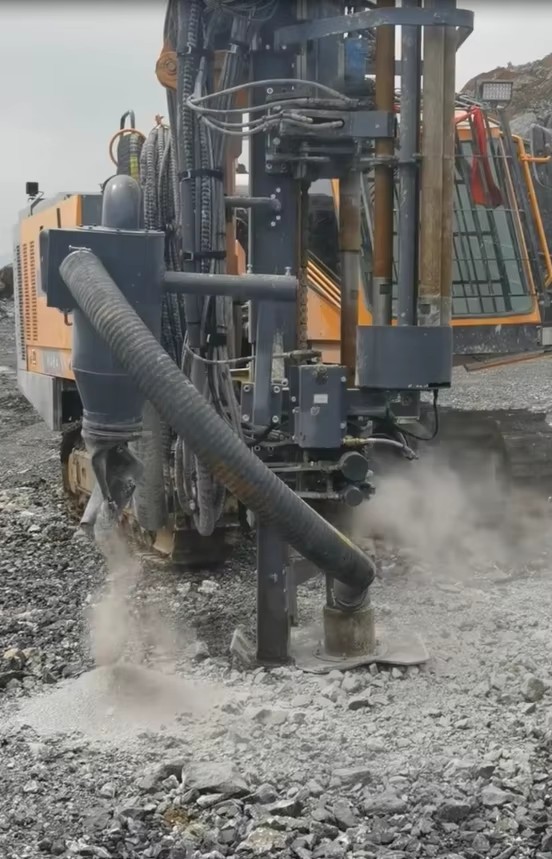

Catching dust wayDry (hydraulic drive whirlwind layer streaming)
Connecting rod modeAutomatic reeling rod
Automatic anti-jamming modeElectro-hydraulic control anti-jamming
Drilling pipe lubrication modeAutomatic oil injection lubrication
Drill pipe thread protectionEquipped with floating joints to protect drill pipe threads.
Drilling displayReal-time display of drilling angle and drilling depth
Certifications & compliance
CE
Complies with EU standards
Description images

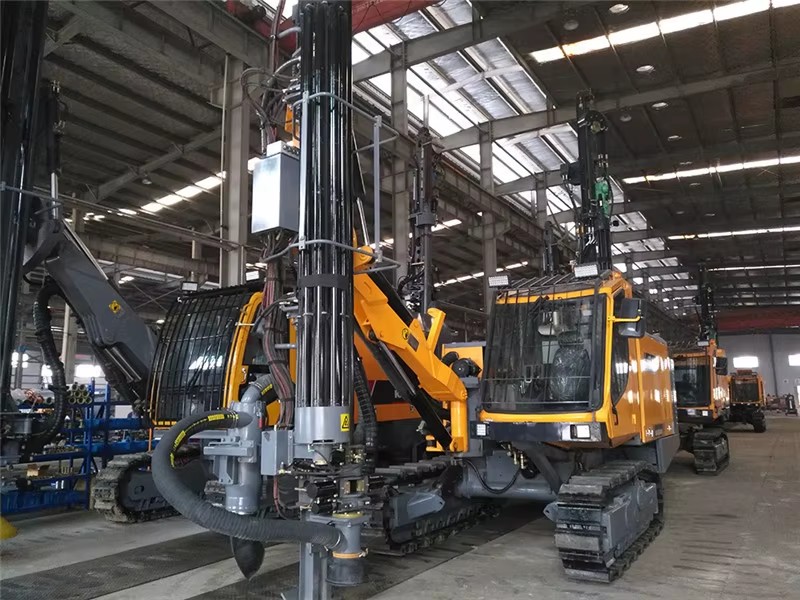

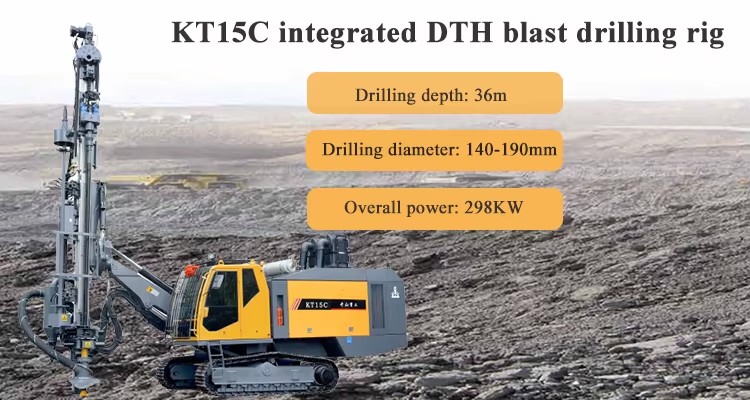

Product detail

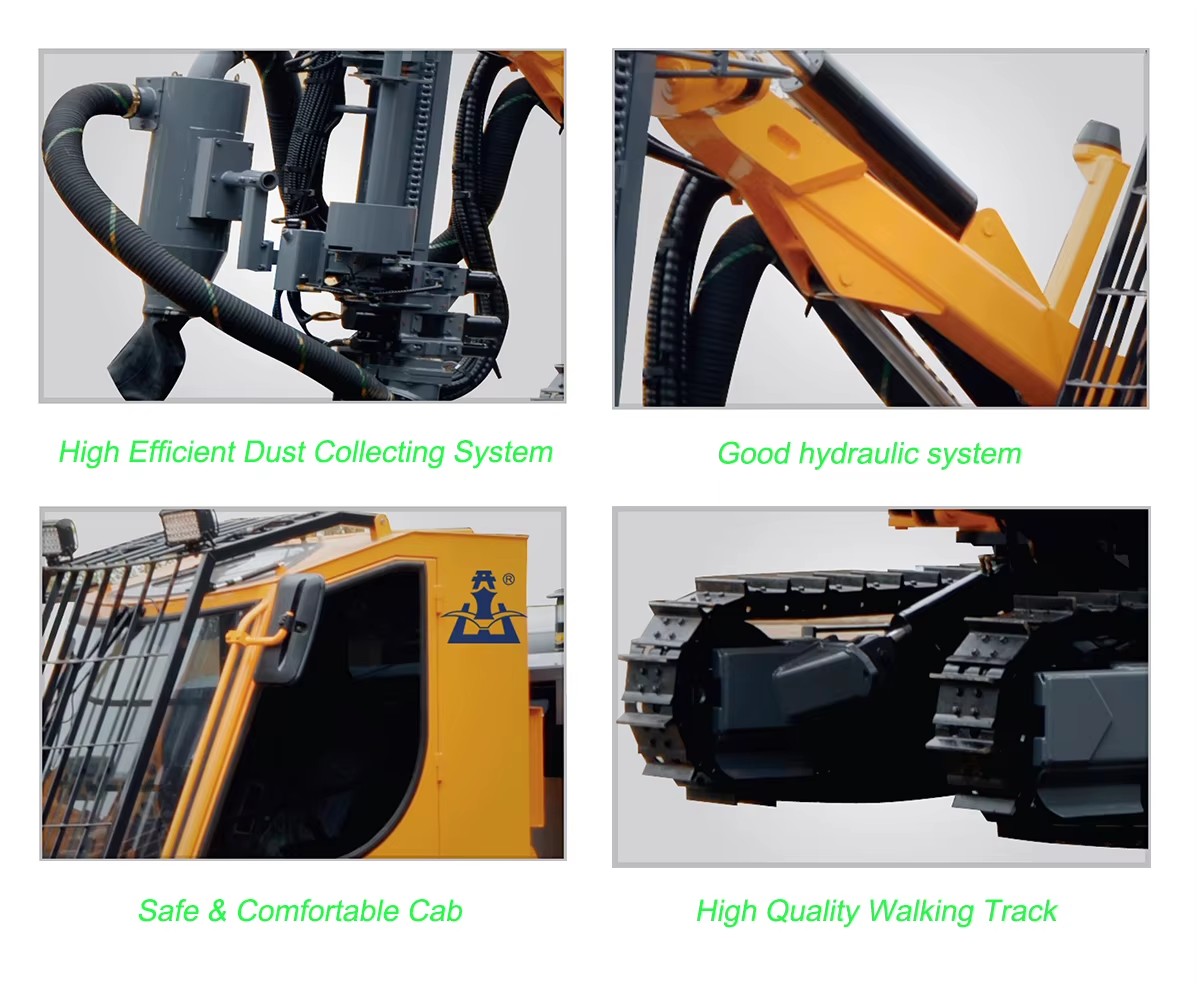

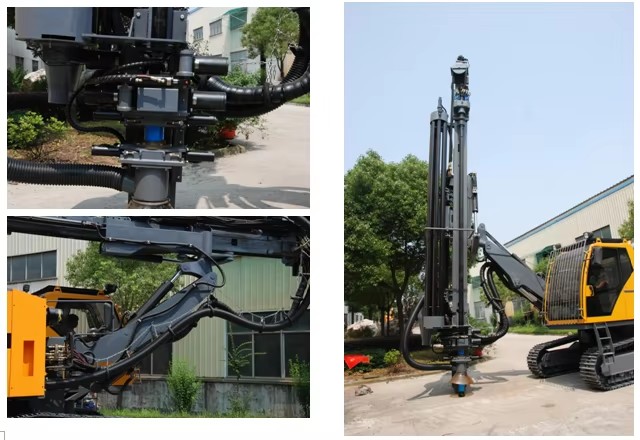

Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    75 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Usage
Ore
Type
Rotary Drilling Rig
Drilling Depth
Max.40m
Drilling Diameter
135mm, 152mm, 190mm
Power Type
Diesel
Voltage
24v
Core components
Motor, Engine
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Competitive Price
Place of origin
Zhejiang, China
Weight
23000 KG
Dimension (L*W*H)
11500*2716*3540(mm)
Mobility
portable
Drill pipe Dia*L
89*5000/102*5000
Drill hammer
HD55A
Application
multifunction
After-sales Service Provided
Online Support
Feature
High Drilling Efficiency
Keyword
DTH Blasthole Drilling Machine
Advantage
High Performance
Function
Drilling Milling Machining

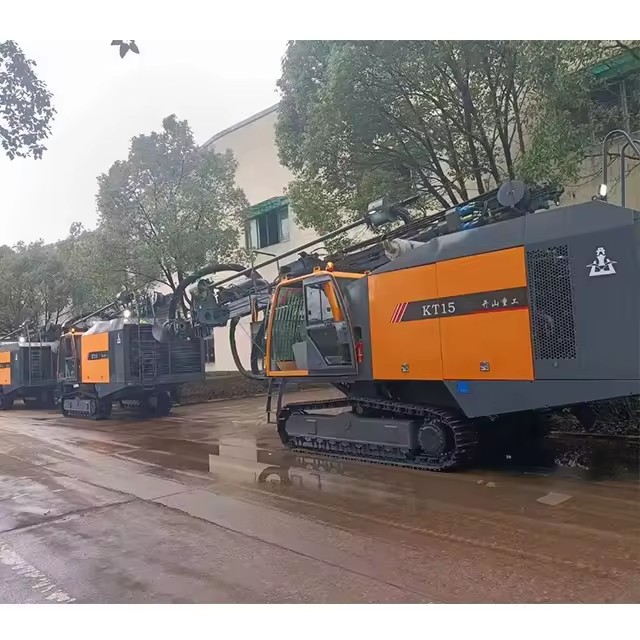

Model
KT15
Selling Units
Single item
Single package size
9000X3000X3800 cm
Single gross weight
15000.0 kg
Model number
KT15
Power (W) (Product option)
298KW
Certifications & Compliance
CE
Lead time
75 days
Minimum order
1 Units

Customer reviews

5.0 (3)
D
Devon Z. Verified buyer Repeat buyer
Chile Chile ·

After receiving the machine, the quality and use effect of the machine are very good.

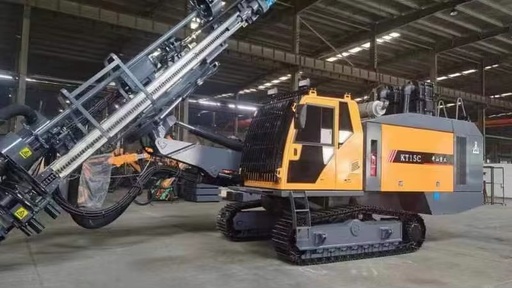

review-a90aee9106-1.jpg review-a90aee9106-2.jpg
