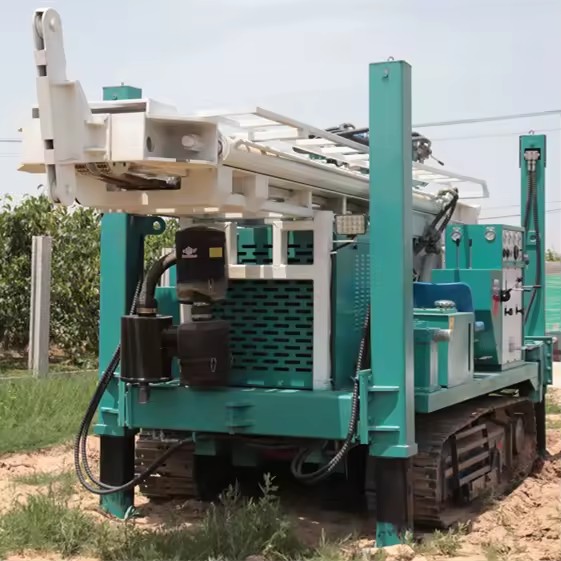

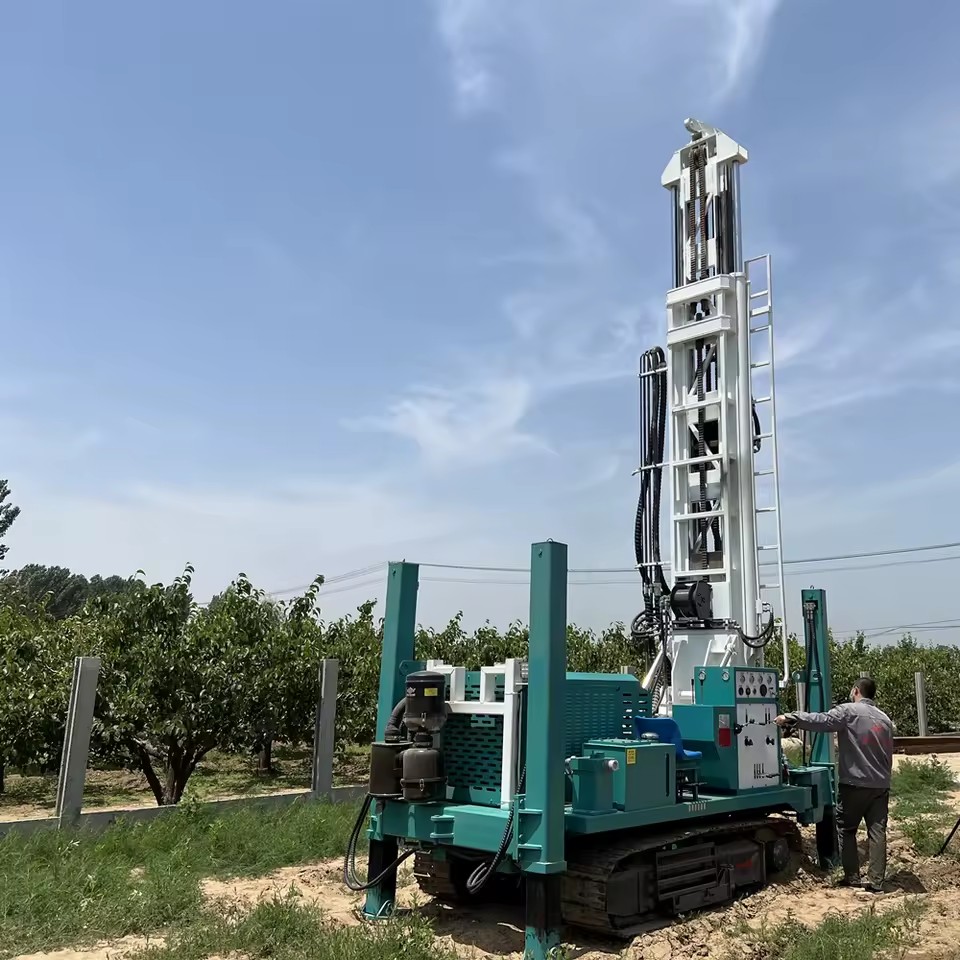

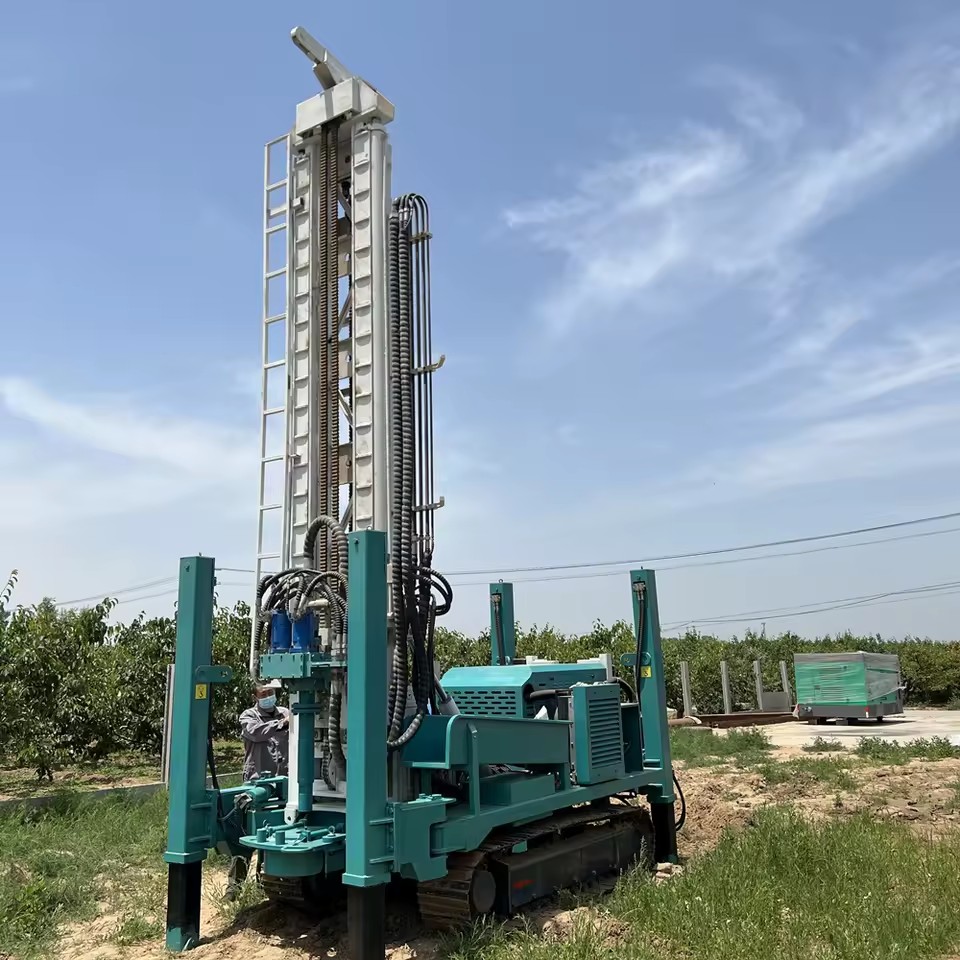

Name: 260m/360m/460m/560m Hydraulic Crawler Type Borehole Water Well Drilling Machine Rig Mine Drilling Rig
SKU: B2B-37923
Price: 11980.0 USD
Availability: PreOrder

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Model（NEW）	HFJ220A	HFJ260A	HFJ360A	HFJ460A	HFJ660A	HFJ800A	HFJ1000A
Maximum Drilling Depth (M)	220	260	360	460	660	800	1000
Recommended Working Air Pressure (MPa)	1.05-2.46	1.7-3.0	1.05-3.45	1.05-3.45	1.6-6	1.6-8	1.6-8.5
Recommended Air Consumption (M³)	16-30	16-35	16-55	16-55	16-75	16-85	16-96
Maximum Drill Rod Length per Section (M)	3	3	3/4.5/6	3/4.5/6	6	6	6
Drill Rod Diameter (mm)	76/89	76/89	89/102	89/102	76/89/102	89/102	89/102/114
Drill Hole Diameter (mm)	76-300	76-300	89-350	89-350	76-350	102-500	102-500
Axial Pressure (T)	4	4	4	4	6	8	11
Lifting Force (T)	12	14	20	24	30	40	49
Power Head Torque (Nm)	4200-5600	4500-6500	6500-8500	7500-9500	5000-8000	16000/8000	20000/10000
Power Head Speed (rpm)	45/70	50-70	60-100	60-120	150/75	140/70	140/70
Rapid Lift Speed (M/min)	15	18	25	30	30	30	30
Rapid Traverse Speed (M/min)	30	35	40	50	50	50	60
Footage Efficiency (M/h) (Varies with Formation)	10-35	10-35	10-35	10-35	10-35	10-35	10-35
Outrigger Travel (M)	1.4	1.4	1.5	1.6	1.6	1.6	1.6
Travel Speed (M/h)	2.5	3	3.5	3.5	5	5	5
Climbing Ability (degrees)	30	30	30	30	20	20	21
Engine Power (Kw)	Yuchai Power 56kW	Yuchai Power77.3kw	CUMMINS 93kw	CUMMINS 132kw	CUMMINS 154/2200rpm	CUMMINS 163/2200rpm	CUMMINS 194/2200rpm
Transport Dimensions (L x W x H) (mm)	380018502550	400020002450	510022502550	530022502550	560022002550	610022502550	630022502550
Gross Weight	5020kg	5940kg	7500kg	8500kg	9000kg	12000kg	14000kg

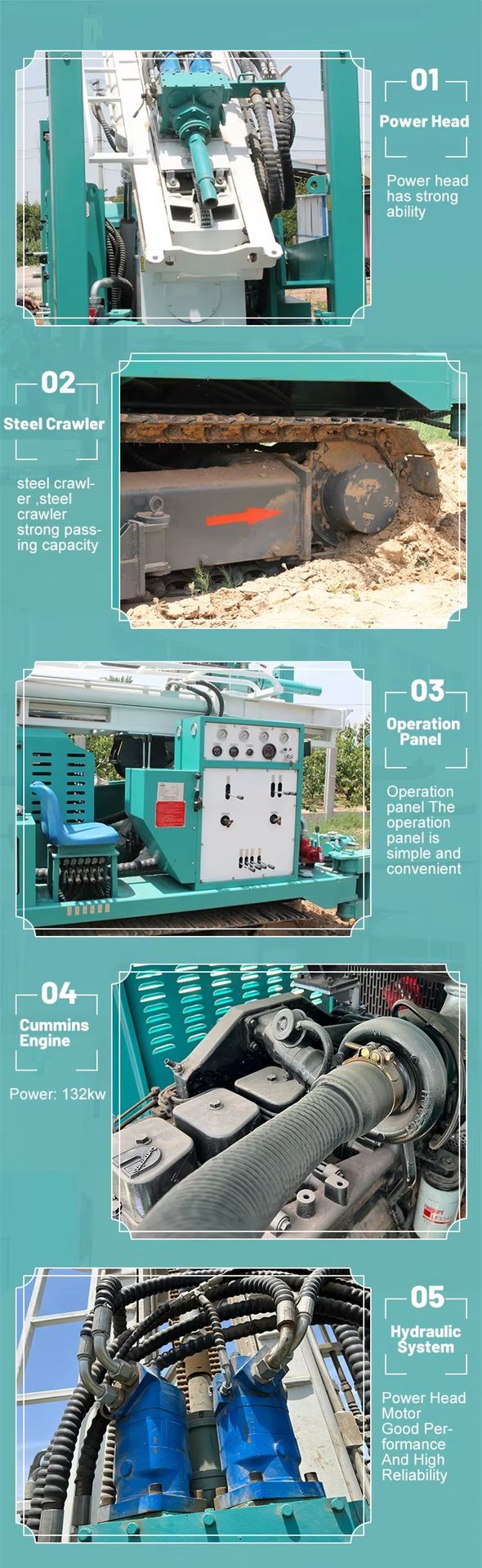

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Usage

Water Well

Type

water well drilling rig

Drilling Depth

Max.460m

Drilling Diameter

89-350MM

Power Type

Diesel

Voltage

220V/380V

Core components

Bearing, Motor, Pump

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Automatic

Place of origin

China, Henan

Weight

8500 KG

Dimension (L*W*H)

5300*2250*2550MM

Working pressure

1.05-3.45MPa

Maximum Lifting Force

24t

Air consumption

16-55m3/min

Drilling rod length

3/4.5/6

Travel Speed (M/h)

3.5

Climbing Ability (degrees)

Power Head Torque (Nm)

6500-8000

Selling Units

Single item

Single package size

380X185X255 cm

Single gross weight

5020.0 kg

Power (W) (Product option)

56-154kw

Model number

HFJ220A, HFJ260A, HFJ360A, HFJ460A, HFJ660A, Rig accessories

Lead time

7 days

Minimum order

1 Units
