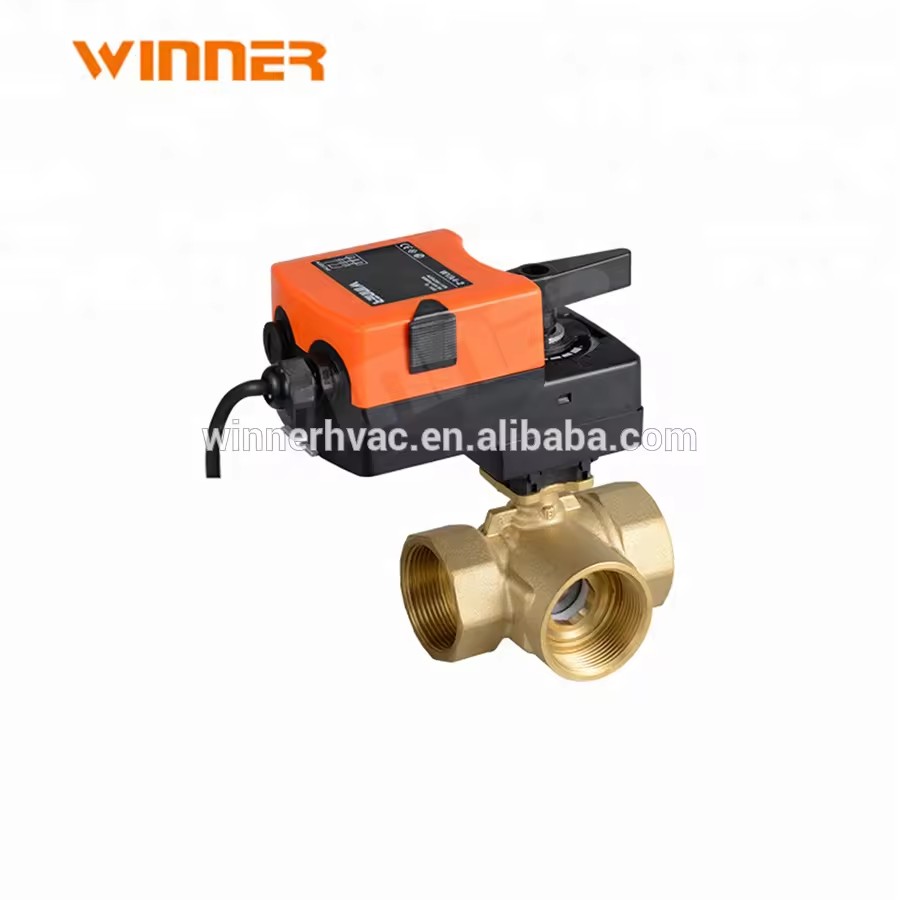

Name: 220VAC On/off Type Hand Operated Electric Solenoid Water Inlet Ball Valve Actuator
SKU: B2B-12790
Price: 100.0 USD
Availability: PreOrder

Product description

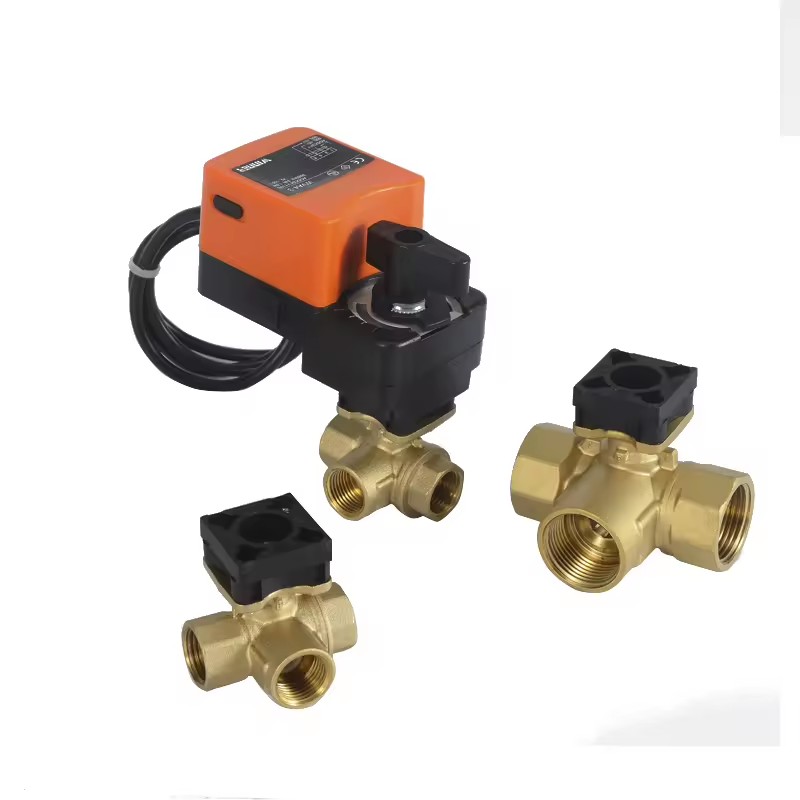

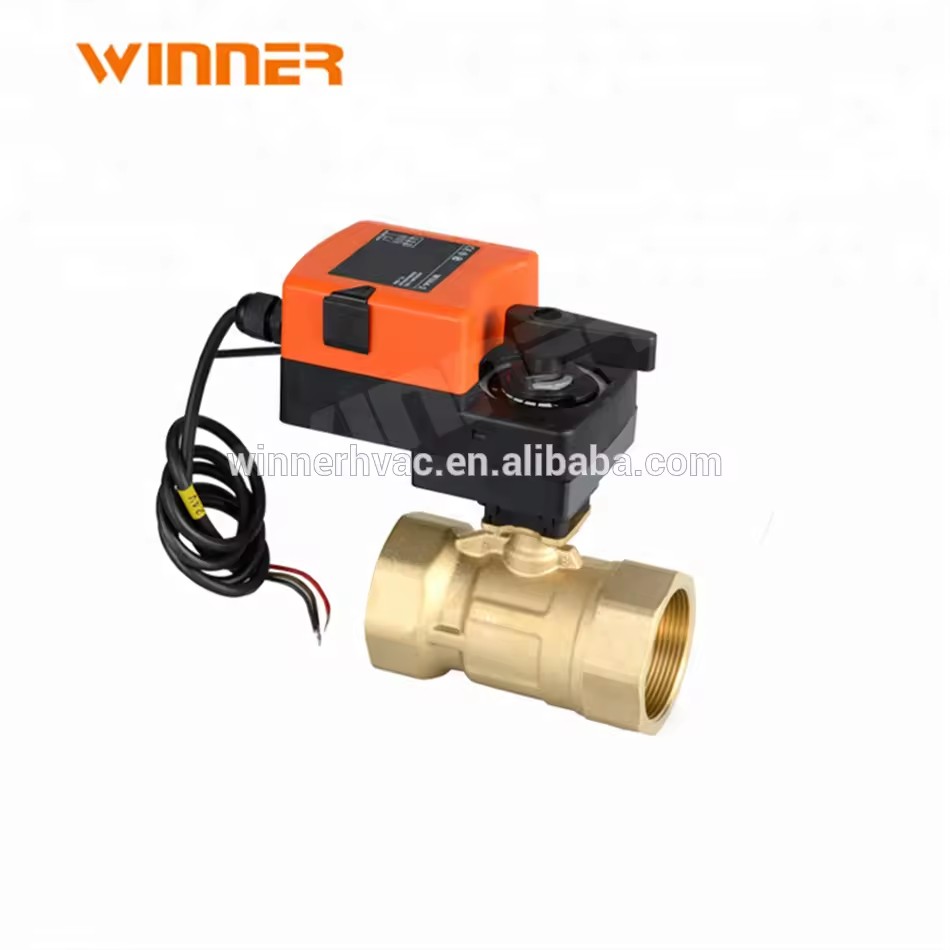

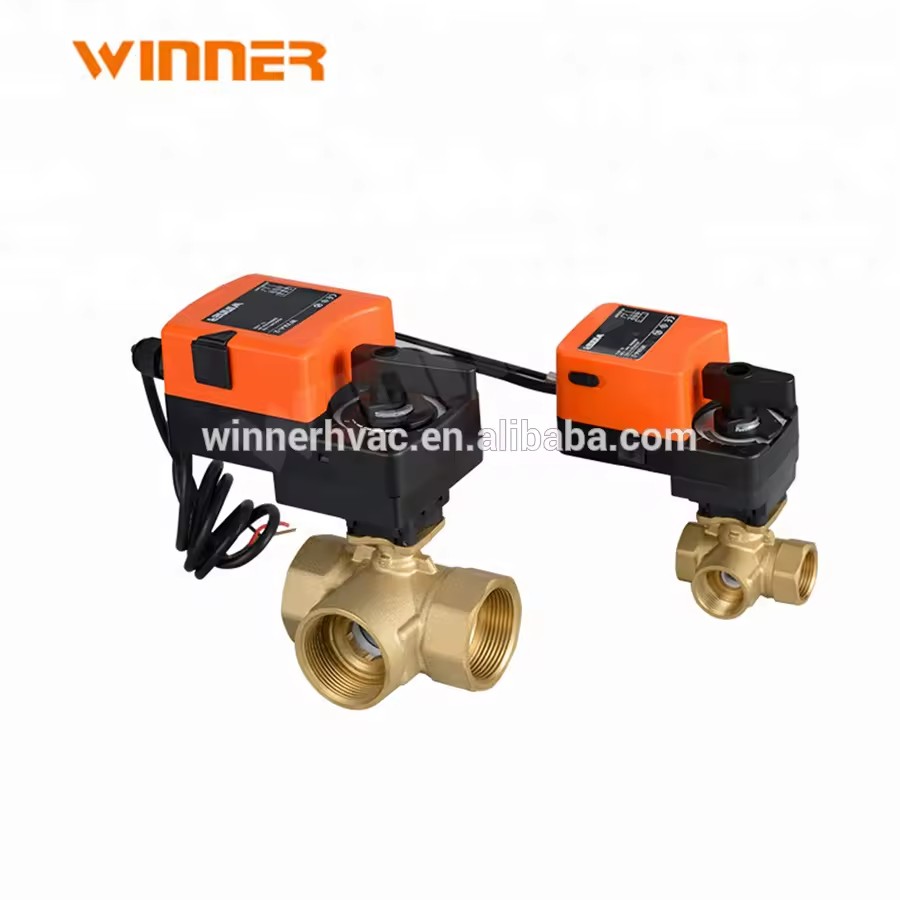

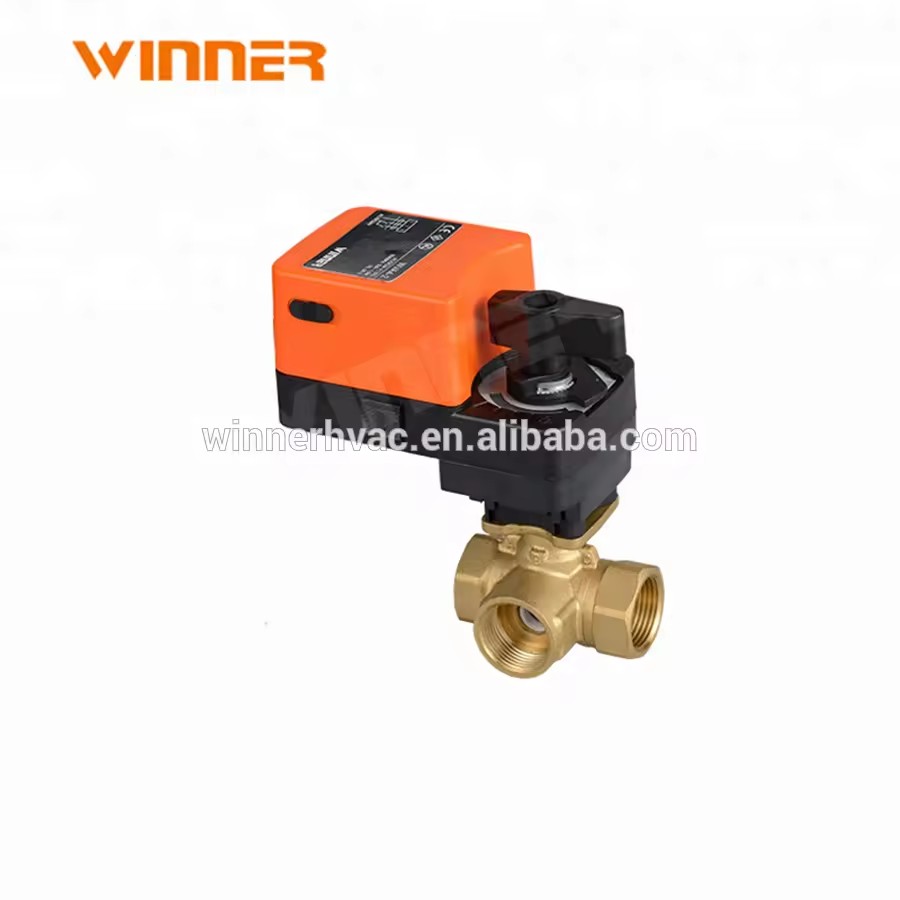

220VAC on/off type hand operated electric solenoid water inlet ball valve actuator

Description

control ball valve consists of WAV4- … series rotary actuator and W CBS … series ball valve. Equal percentage flo w characteristic guarantees the valve performances of stability. Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.

Application

HVAC system

Heating system

Water treatment system

Industrial equipments

Operational mode

control ball valve is motor-operated by a type of WVA4-1 …, WAV4-2 …, and W AV4-3 … actuator. The actuator is controlled by a modulating on/off, 3-point or proportional control system and move the ball of the valve, to the opening position dictated by the control signal.

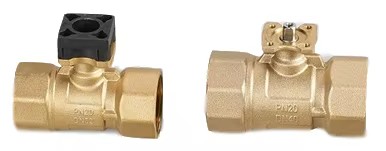

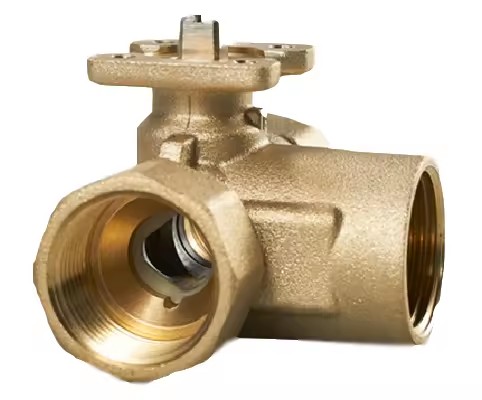

Valve body

Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C... 90 °C

Rated pressure: PN20 Pipe connector: internal thread Ambient temp. range: − 5…+60°C; 0…90%RH Size: G1/2 ’’ -G2 ’’

Valve type: 2-way and 3-way Flow characteristic: equal percentage, on/off

Material

V alve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE

Ball: stainless steel brass stem: EPDM

Valve connector: PC Valve spindle: aluminum alloy

Model No.	DN(mm)	Inch	Kvs(m 3 /h)	Pvmax ( M Pa)	Ps (KPa)
WCBS215	DN15	1/2”	6.3	2.5Mpa	1400
WCBS220	DN20	3/4’’	6.3	2.5Mpa	1400
WCBS225	DN25	1”	10	2.5Mpa	1400
WCBS250	DN50	2”	43	2.5Mpa	1400
WCBS315	DN15	1/2”	6.3	2.5Mpa	1400
WCBS320	DN20	3/4’’	6.3	2.5Mpa	1400
WCBS325	DN25	1”	10	2.5Mpa	1400
WCBS350	DN50	2”	43	2.5Mpa	1400

Actuator

WVA4-2 … 24VAC/DC±15%,3-point

Function ( 3-point,or proportional type )

The actuator is controlled by a modulating on/off, 3-point, and proportional control signal, using high transmitting ratio gear drive to fix and lock.

WVA4-2 … 24VAC/DC±15%, 3-point

Brown wire is power on counterclockwise rotation, valve open

Red wire is power on clockwise rotation, valve close

Brown or red wire is power off Valve keep the current position

Model No.	Working Voltage	Actuator type	Output torque	Consumption	Valve body
WVA4-104	230AC±15%	3-point	4N.m	6VA	DN25,DN20,DN15
WVA4-106	6N.m	DN50,DN40,DN32
WVA4-110	10N.m	DN50

Connector

Model No	Commodity	Application	Actuator	Valve body	Spindle
WCBV-1	Connector	Be used to connect the actuator and the valve body	WVA4-106,WVA4-206 WVA4- 306, WVA4-110 WVA4-210,WVA4-310	WCBV232 WCBV240	WCBV-2
WCBS-1	WVA4-104,WVA4-204 WVA4-304, WVA4-106 WVA4-206,WVA4-306 WVA4-110,WVA4-210 WVA4-310	WCBS232,WCBS240 WCBS250, WCBS332 WCBS340,WCBS350	WCBS-2 WCBS-3

WRA-53 Series	220v ON/OFF, 3-Point
WRA-63 Series	220V/110V/24V ON/OFF, 3-Point
WVA4-.. Series	220V/24V ON/OFF, Proportional
WRA3-.. AC Series	220V/110V/24V ON/OFF, 3-Point
WRA-42 DC Series	24V/12V/3V ON/OFF, 3-Point
WRA3-.. DC Series	24V/12V/3V, ON/OFF, Proportional

Certifications & compliance

Complies with EU standards

Description images

220VAC On/off Type Hand Operated Electric Solenoid Water Inlet Ball Valve Actuator

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Media

Water, 50% glycol

Power

Motorized

Port Size

1/2'' ~ 2''

Application

General

Temperature of media

Medium Temperature

Structure

Ball

Customized support

OEM, ODM

Place of origin

China, Hunan

Model number (Specification)

WVA4-104

Certificate

CE, RoHS

Color

various

Temperature of medium

2°C...90°C

Rated pressure

PN20

Pipe connector

internal thread

Valve type

2-way and 3-way

Flow Characteristic

equal percentage

Packaging Details

Carton,21 units per carton, size:0.05CBM/CTN

Port of dispatch

Changsha

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Supply Ability

1800 pieces per Week

Material (Product option)

Brass

Pressure (Product option)

Medium Pressure

Size (Product option)

1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, 2 in
