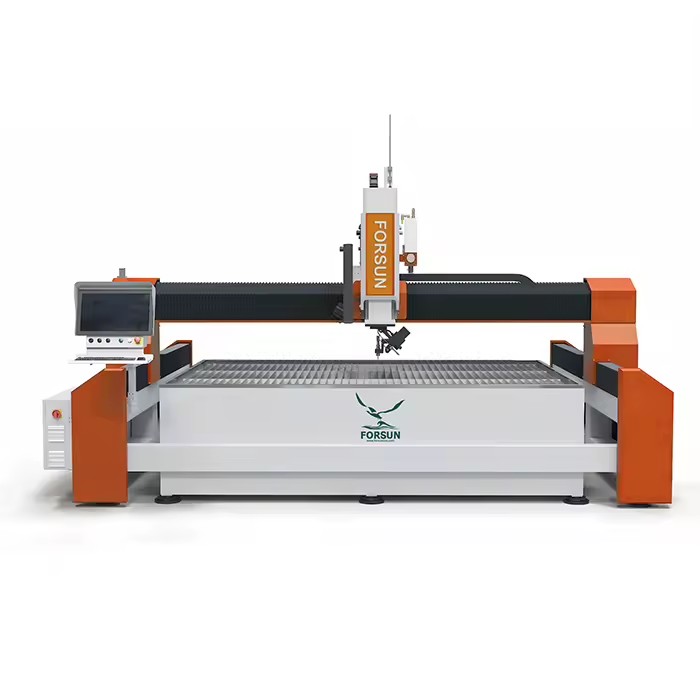

Name: 2040 5 Axis Cut by Water Knife Mini Water Jet Cutter Small Cnc Water Cutter for Metal
SKU: B2B-1751
Price: 1440.0 USD
Availability: PreOrder

Product description

2040 5 Axis Cut by Water Knife Mini Water Jet Cutter Small Cnc Water Cutter for Metal

What's the feature of our Water jet cutting Machine?

1. 2000*4000mm working size

2. Weihong control system BETA inverter

3. Servo motors

4. Servo drivers

5. Heavy duty table

6. 3PH, AC 380V/50HZ

7. Water cooling type

8. Ball screw

9. 5axis water jet cutting

What's the advantage of our Water jet cutting Machine?

What's the benefit of our Water jet cutting Machine?

Applicable Materials

Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble, glass, etc.

What is the package our Water jet cutting Machine?

What is the service for our Water jet cutting Machine?

Guarantee: 1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime. Technical support: 1. Technical support by

FAQ

1) This is the first time I use this kind of machine, is it easy operate?

There are guide video that show how to use machine and english instruction book send to you with machine.

If there is still have any question, we will provide free professinal guide for you until you could use machine well.

2) If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free

3) MOQ?

Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.

CNC ROUTER MACHINE

Co2 Laser MACHINE

Co2 Laser

MACHINE

FIBER LASER MACHINE

name

.sales3

linda(a)

0086-531-88693181

CNC Router Feature

What's the feature of our

Water jet cutting

Machine?

2000*4000mm working size

Weihong control system

BETA inverter

Servo motors

Servo drivers

Heavy duty table

3PH, AC 380V/50HZ

Water cooling type

Ball screw

5axis water jet cutting

CNC Router Advantage

What's the advantage of our

Water jet cutting Machine

01.The machine cutting accuracy is up to 0.1mm.

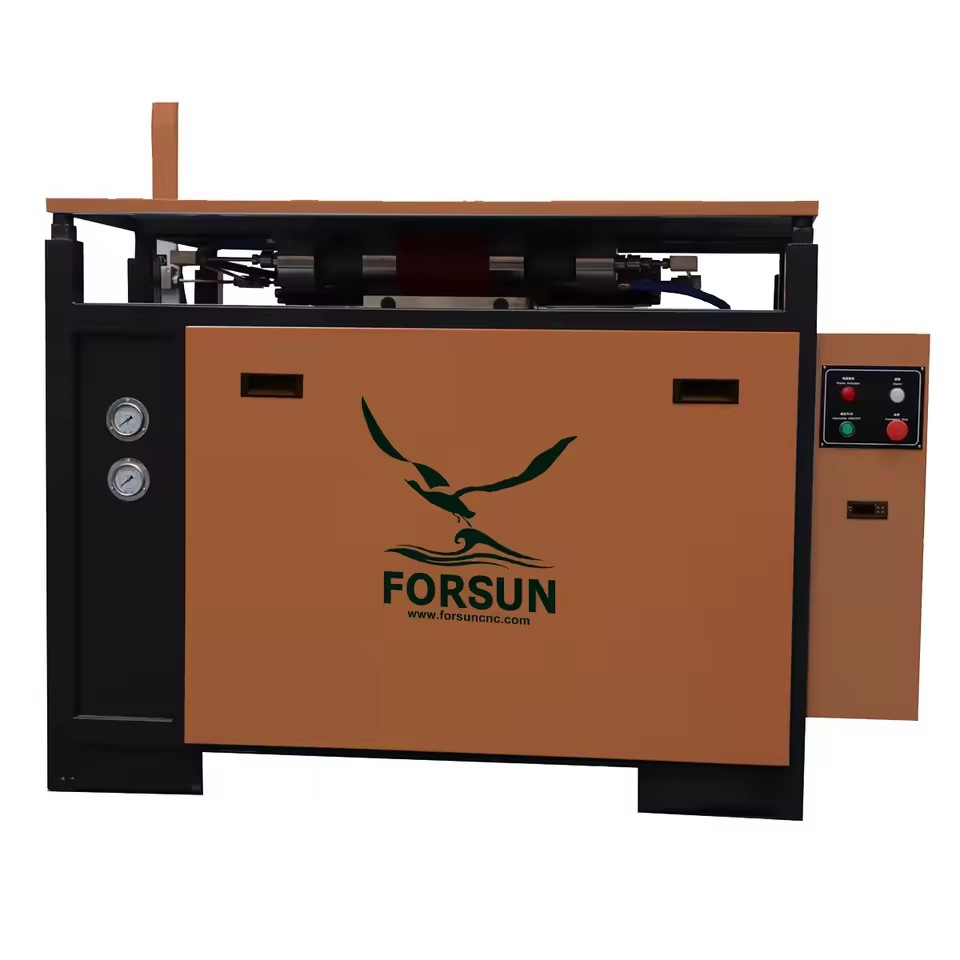

02.The main control components of Intensifier are all international famous brand components.

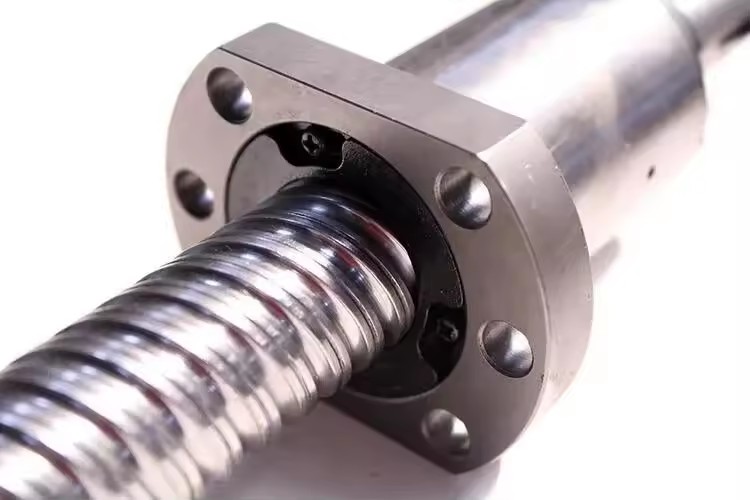

03.The guide rail and ball screw are immersed in the oil tank,which can fully lubricate the guide screw and further isolate the water and abrasive,so as to maintain the cutting accuracy.

04.The high-power servo motor and the guide screw are connected directly by flexible coupling, improves the cutting precision.

CNC Router Benefit

What's the benefit of our

is a full range of cutting. Arbitrary plane curve cutting can be performed.

2.Lathe structure is especially reinforced. So the cutting header won’t be shaken during running at a high speed & high machining accuracy.

3.All the screw and guides are the well-known brand of international. X and Y axis is

with unique injection screw guide rail lubrication. It is waterproof and dustproof well. It

can ensure the processing accuracy of CNC cutting table and it can be maximize extended

the service life of the screw guide rail

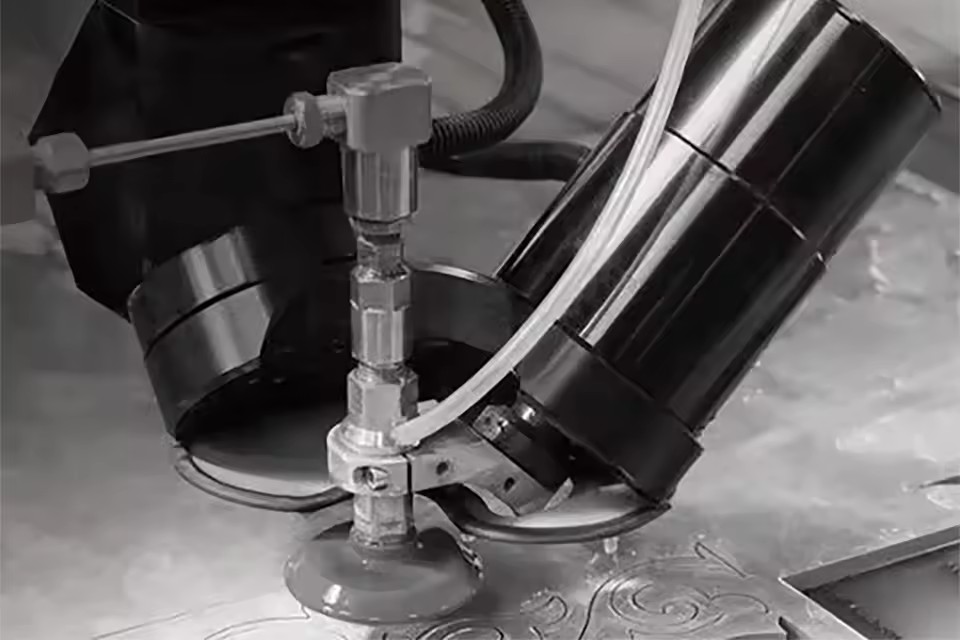

4.The cutting head is equipped with reliable pneumatic high pressure water switch control device to improve production efficiency

5.Special design of the sand valve and simple structure, to make the sand flow more smoothly and prevent the water counter current.

6.All stainless steel protective cover, dust-proof, waterproof, anti-rust, anti-corrosion, easy to clean, keep the cutting platform as bright as new all year round.

7.Have the infrared altimetry function

Packaging & Shipping

What is the package our

Our Services

What is the service for our

Guarantee

1.5 years for the whole machine. Within 18 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 18 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.

Technical support

1. Technical support by

2. Friendly English version manual and operation video CD disk

3. Engineer available to service machinery overseas

After sales services

Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine.

Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by

Customer Visit

Relative Products

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 10 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

9 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 29 fields

Repeatability (x/y/z) (mm)

±0.001

Number of axes

Core components

Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Voltage

3PH, AC 380V/50HZ

Warranty

1.5 year

Key selling points

High-Accuracy

Machinery test report

Provided

Video outgoing-inspection

Provided

Dimension(L*W*H)

4000*2000*200

Rated power

Rated Power

Place of origin

China, Shandong

Weight (kg)

5000

Table travel (x) (mm)

4000

Table travel (y) (mm)

2000

Table travel (z) (mm)

200

Cutting accuracy(mm)

±0.01

Working area (Specification)

4000*2000mm*200mm

Motor and Driver

Servo Motor and Driver

Control system

Weihong Control System

Structure

Gantry type

Cooling type

water cooling

Application Material

Stone Carbon Steel Stainless Steel

Transmit way

Ball screw

Guide Rail

Taiwan PMI Square Guide Rails

Selling Units

Single item

Single package size

50X50X50 cm

Single gross weight

50.0 kg

Model number

2000*3000

Effective cutting range (mm)

4000×2000, 2500×1500, 1000×1000, 1300x2500, 1200×1200, 1300×1300, 1500×1500, 1500×3000, 2000×1500, 2000x3000, 2000×6000, 3000×1500, 3000×2000, 6000×2000, 1300x1300, 1000×3000, 1500×2500, 2000×8000, 2500×1200, 2600×1600, 3000×8000, 3500×2000, 3100×1600

Lead time

9 days

Minimum order

10 Units
