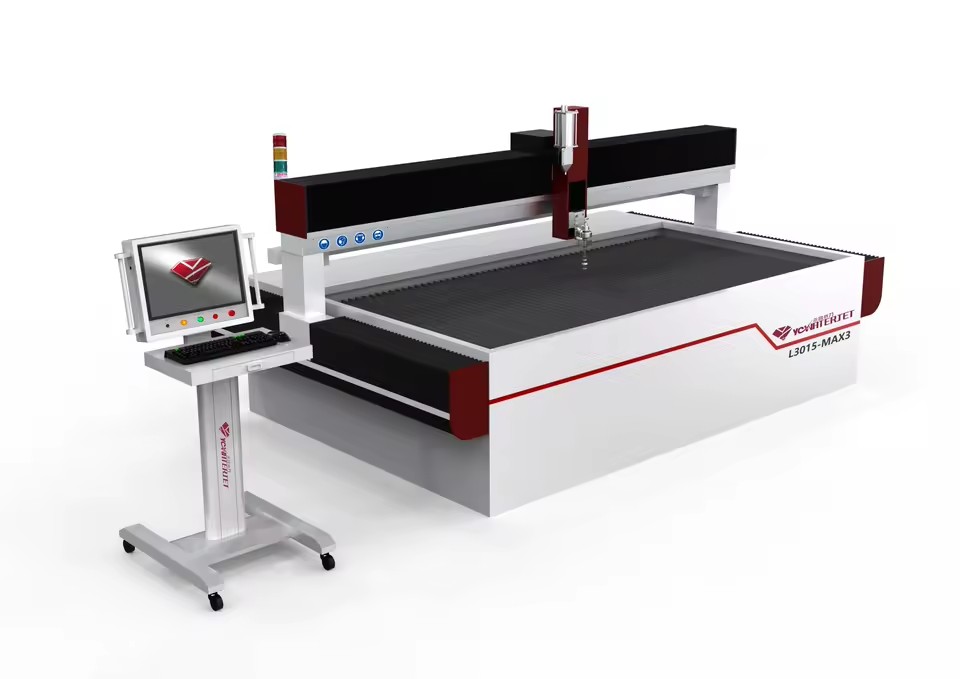

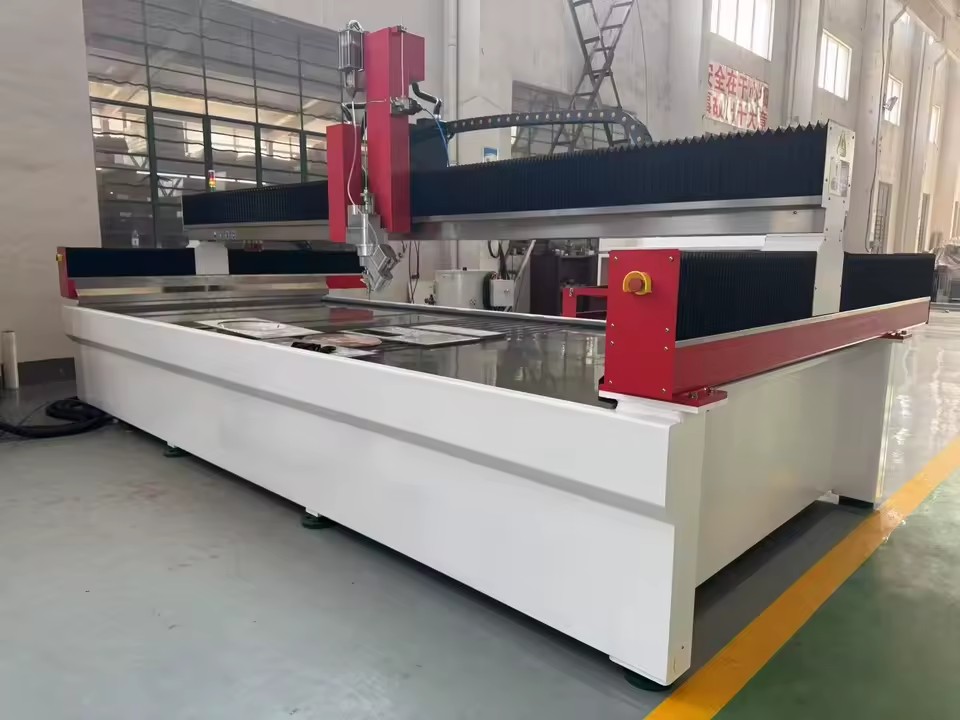

3 axis waterjet cutting machine

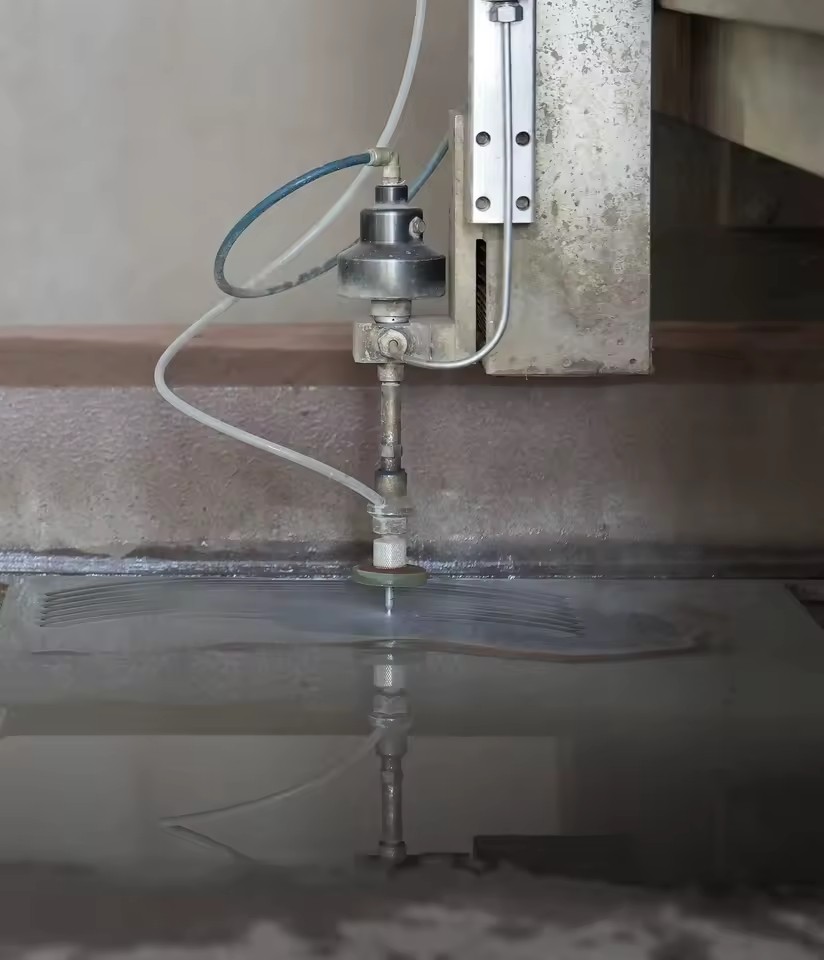

A high pressure water jet cutting machine is a tool which slices into metal and other materials, using a jet of water at high velocity and pressure. Because of its advantages of low noise, no pollution, high precision and good reliability, it has been widely used in mining, automobile, paper-making, food, art, construction and other industries.Waterjet can cut almost every thing, including metal, glass
plexiglass,ceramic,marble, granite, rubber and compound material etc.
Cutting accuracy: +/- 0.1mm
Repeat accuracy: +/- 0.05mm

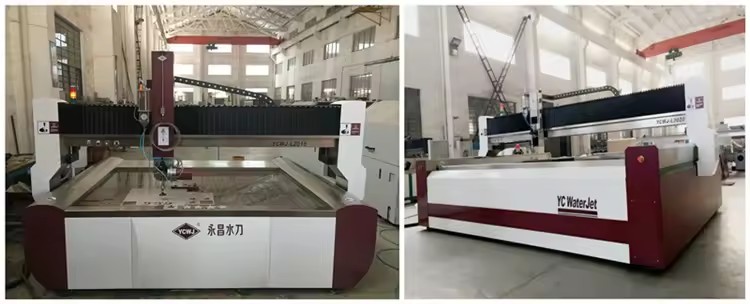

CNC Water Jet Cutting Machine P arameter (L=Gantry type)
Parameters
Unit
YCWJ-L1010
YCWJ-L2015
YCWJ-L3015
YCWJ-L3020
YCWJ-L2060
Efficient Cutting Area
mm
1000×1000
2000×1500
3000×1500
3000×2000
2000×6000
Axis Travel
X
1000
2000
3000
Y
1500
6000
Z
150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy
±0.1
Positioning Accuracy
±0.2
X,Y Dry-run Speed
m/min
0-15 (if need 30m/min speed,we can do as request )
Cutting Speed
as to detail material and thickness
Main Feature: Control: PLC Shifting: electro-hydraulic Control Cooling: cooler/oil heat exchanger Inlet water filter accuracy: ≤0.45μm Oil-return filter accuracy: 20 μm Working temp: 0-50°c Outlet: UNF 3/8" Cooling in/out-let: NPT1" Max orifice size: 0.33mm
High Pressure Pump
Model
YCG-3038
YCG-3742S
YCG-7542S
Max Pressure
3800Bar/55,000Psi
4137Bar/60,000Psi
Max Water Flow
3.7L/min
7.4L/min
Max Orifice/Nozzle
0.011/0.03
0.013/0.04
0.016/0.05
Power
30KW/40HP
37KW/50HP
75KW/100HP
（Bevel Cutting 0-±10°）
3 axis Waterjet Cutting Machine
Max5 axis
Water Jet Cutting Machine
（Bevel Cutting 0-±45°）
1999, was established by Mr. Min, mainly engaged in manufacturing large production line.
2019,YC has sold the products to more than 50 countries.
We are engaged in machinery manufacturing since the year 1999,there are more than 20% workers with more than 8 years experience in water jet cutting field.
Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience. YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers.
For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs. Our Engineers go to many countries for installation and debugging every year.
Product Details
3 axis waterjet cutting
machine
A high pressure water jet cutting machine is a tool which slices into metal and other materials, using a jet of water at high velocity and pressure. Because of its advantages of low noise, no pollution, high precision and good reliability, it has been widely used in mining, automobile, paper-making, food, art, construction and other industries.Waterjet can cut almost every thing, including metal
glass
Cutting accuracy
+/- 0.1mm
Repeat accuracy
+/- 0.05mm
CNC Water Jet Cutting Machine P
arameter
(L=Gantry type)
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt
MITSUBISHI or Yaskawa
Main Feature
Control: PLC
Shifting: electro-hydraulic
Control Cooling: cooler/oil heat exchanger
Inlet water filter accuracy: ≤0.45μm
Oil-return filter accuracy: 20 μm
Working temp: 0-50°c
Outlet: UNF 3/8" Cooling in/out-let: NPT1"
Max orifice size: 0.33mm

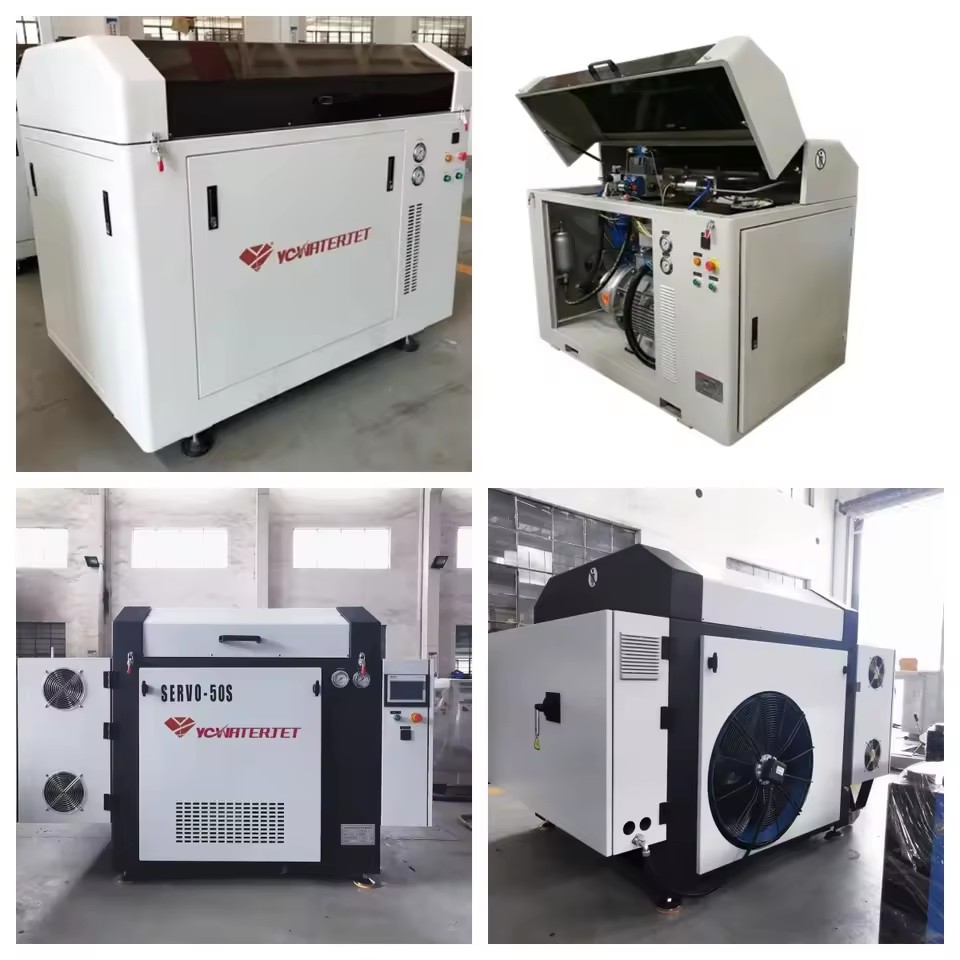

Unique design of this water jet pump makes the installation and the maintenance easier. Stable working pressure to ensure the working efficiency.
We cooperate with Accsutream/Hypertherm since 2008,most water jet parts of the high pressure pumps are imported directly.
Hypertherm high pressure pumps are all available.
Waterjet CNC Controller
1. 17ʺLCD liquid crystal display.
2. DNC on-line working function.
3. Functions of returningarbitrary point,bending and circular are working auto deceleration.
4. Function of cutting figure imitation display.
5. 80GB memory hard disk.
6. MITSUBISHI AC servo driver and motor.
7. 1GB memory card.
8. Multilingual function(Chinese English etc.).
9. Drive-by-wire and hand-hold controller.
10. NAIKY PCIMC-6A special software is special for YC.
Italian ECS Controller for your choice
Specification Parameters：
1. Up to 16 axes interpolated.
2. Hardware Architecture dual core
( Kontron).
3. With high performance and low power.
4. Monitor 15" LCD - Integrated Touch Screen(Optional).
5. Peripheral interface: EtherCAT.
6. Node EtherCAT to manage EcsLink.
7. Mechatrolink® 2 and analogic drives.
8. Up to 2048 I/O with EtherCAT.
9. Modular machine panel (Optional).
10. Alphanumeric keyboard (Optional).
Optional Accessories
Auto sludge removal system
Remove the abrasive from the tank automatically
separate the abrasive and water.
Reduce the labor force,improve work efficiency.The absorption pump sucks up the mixture of sand and water from the tank into a collection box when it works.There are plastic woven filter bags in the collection box,water is recycled to the machine tank, sand and the mixturefrom cutting are collected into filter bags Inside. So as to achieve the purpose of automatic collection to make it easy to clean.
Related Products
Dynamic 5axis Waterjet Machine
Cantilever Type
Waterjet Cutting Machine
Robotic
Waterjet
Cutting Samples
Packing&Delivery
Company Information
2005, YC started to research and developed UHP water jet cutting equipment and cooperated with German KMT as well.
2008, YC started to cooperate with the agent.
2009, YC started to cooperate with Accustream whom is specialized in water jet parts and pumps.
2015, YC WATERJET started to cooperate with RU agent.
Our chief engineer Mr. Tian who started research of water jet when he was a university student has 20 years experience in water jet cutting field, and other technical persons have over 10 years experience.
YC is the partner of Accustream/Hyperthem, every year we have technical meetings with engineers.
For different customers in different industries we will provide different solutions, Your water jet is tailored based on your individual needs.
Our Engineers go to many countries for installation and debugging every year.
Pre-sales service
1. YC owns a 15 years team focusing on waterjet. We promise to provide prompt service.
2. Any question will be replied within 24 hours. We promise to provide a reasonable and detailed quotation.
3. Welcome to send us your materials, and we will cut them into samples as required.
After-sales Service
1. If the product proves detective during the warranty period, we will respond within 12 hours after receiving your request. Our operators will reach you by
2. If you need to purchase wear parts, we will respond within 12 hours and provide technical support after receiving your request.
Customer reviews
FAQ
Q
Can you provide your
certifications
?
A
Yes, our products comply with CE, ISO,SGS and other standards. We ensure all certifications remain valid (the renewal process takes approximately one month).
How about the
delivery time
Standard Motors (380V, 50Hz, 3-Phase): 3-Axis Standard Models: Approximately 25-30 days. AC 5-Axis Models: Approximately 35 days. G-Series Large Gantry Models: Approximately 45 days. Non-Standard Motors (e.g., 220V/50Hz/3-Phase, 380V/60Hz/3-Phase, 400V/50-60Hz/3-Phase): Approximately 50 days, as custom motor procurement takes about 45 days.
Q: How to choose a standard cutting table?
A: You need to offer the size of the materials you want to process or the size of the cutting table.
Q: How to solve the incision bevel problem by 3 axis water cutting?
A: It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system. It can make a small angle compensation in the software.
