Name: 12V DC 38mm Mini Diesel Fuel Water Oil Car Camping Fishing Submersible Transfer Pump
SKU: B2B-17367
Price: 20.0 USD
Availability: PreOrder

Product description

12V DC 38mm MINI Diesel Fuel Water Oil Car Camping fishing Submersible Transfer Pump

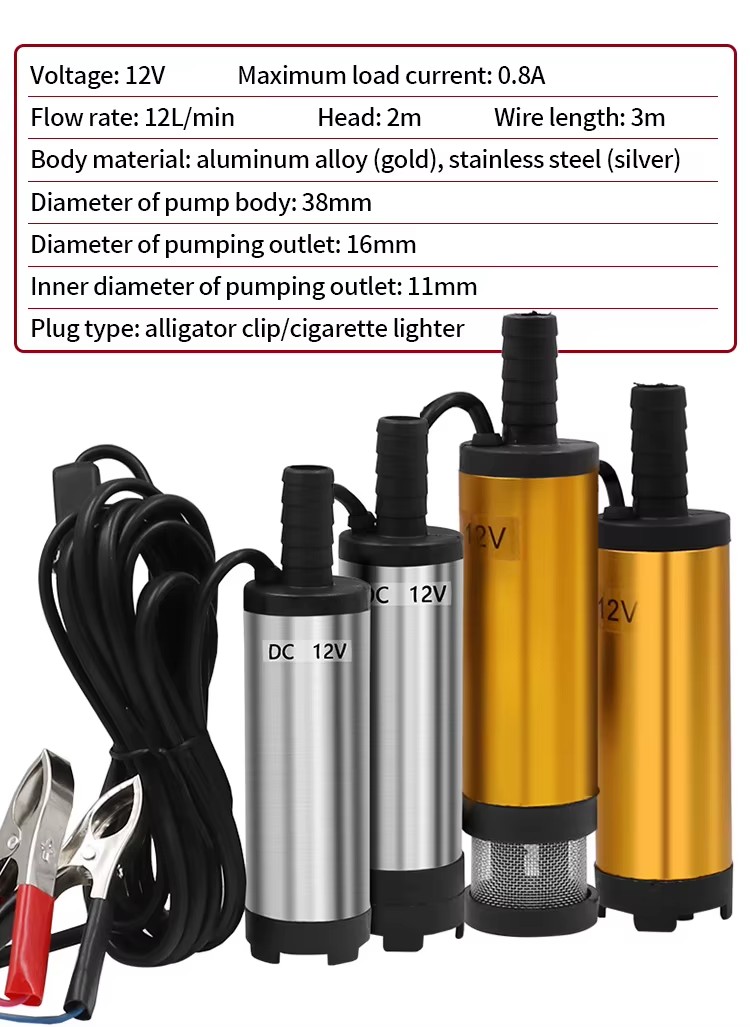

Product Name	12V Water Oil Transfer Pump
Material	aluminum alloy
Voltage	12V (DC)

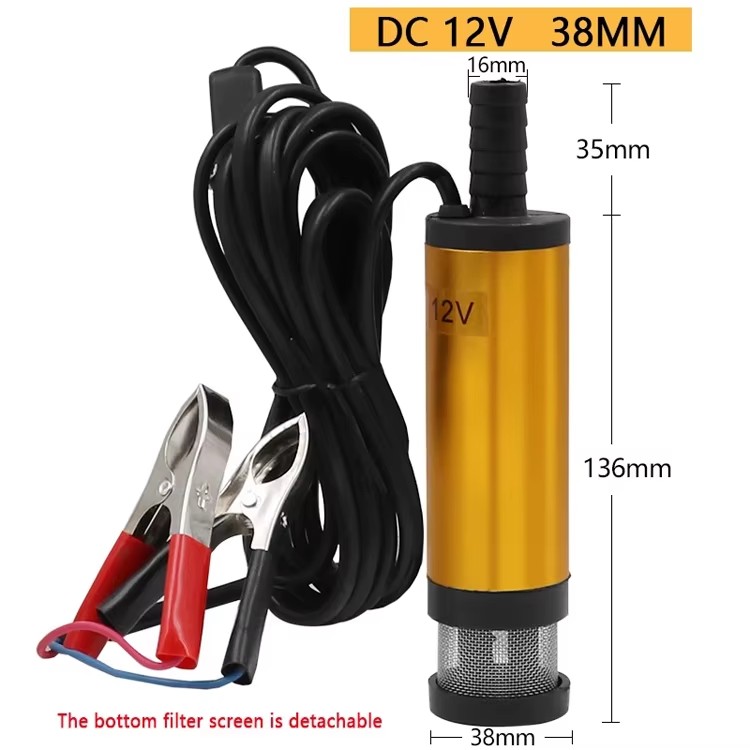

Diameter of pump body	38MM
Power	12v 1.5A
Wire length	3m
Flow rate	12L/min
Head	2m
Outlet diameter	16mm
outlet Inner diameter	11mm
Speed	8500r/min
Packing size	161X88X53mm
Plug type	alligator clip/cigarette lighter

1. This oil well pump adopts DC12V direct current motor, with low noise and fast speed.

2. The oil well pump has good sealing performance and adopts multiple seals to ensure no leakage and prolong service life.

3. The oil well pump increases the thickness of the outer shell, makes the outer shell more sturdy, not easy to deform, and can effectively reduce the occurrence of rust and rot in the outer shell.

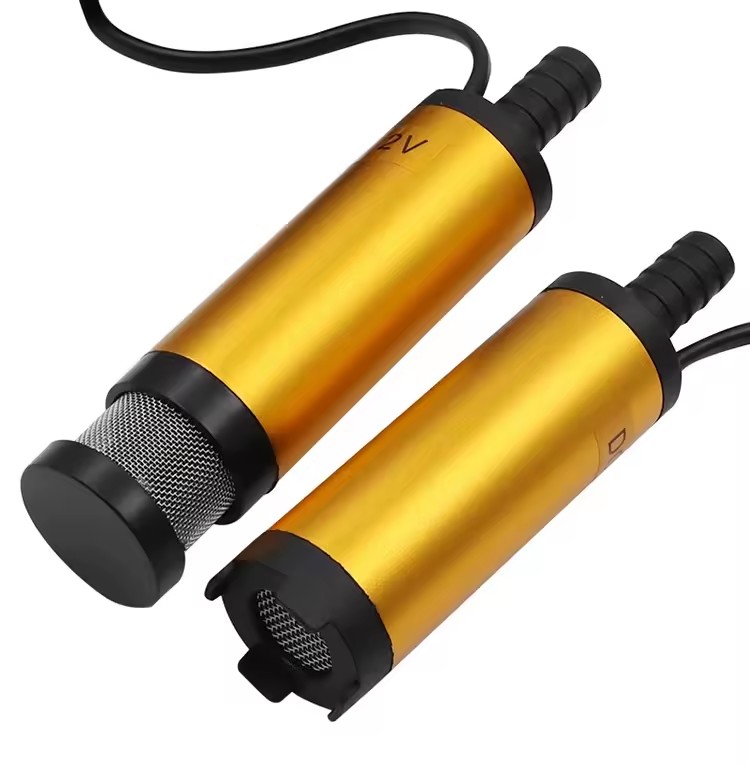

4. There is a stainless steel filter in the bottom filter of the oil well pump to make the pumped diesel oil (or water) cleaner. The bottom filter is equipped with a threaded interface, which is convenient for disassembly, maintenance and replacement. Able to achieve the purpose of repeated use.

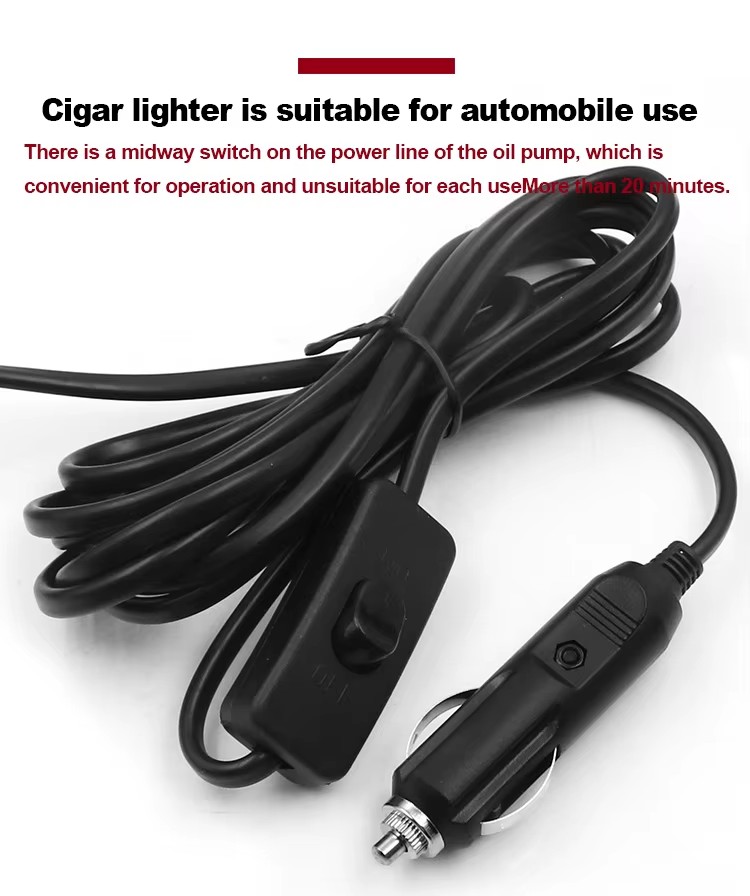

5. There is a midway switch on the power line of the oil well pump, which is convenient for operation.

6. The oil output of this oil well pump is about 12L/min.

7. After the oil well is used, the oil well should be taken out of the oil (or water) in time.

8. When pumping oil, you should first connect the self-prepared oil outlet hose, and then put the oil well pump into clean oil (or water).

9. The oil outlet hose is self-provided.

1. It is strictly forbidden to pump flammable substances such as gasoline and alcohol! No-load operation and dry pumping are not allowed.

2. The oil well pump should work intermittently (that is, it should not be used for more than 20 minutes each time, and then continue to be used after stopping for 10-15 minutes). Note that it cannot work continuously for a long time.

3. Confirm whether the power supply voltage is consistent with the marked voltage of the oil pump, and the voltage tolerance is ±5%. Pay attention to the positive and negative poles.

Description images

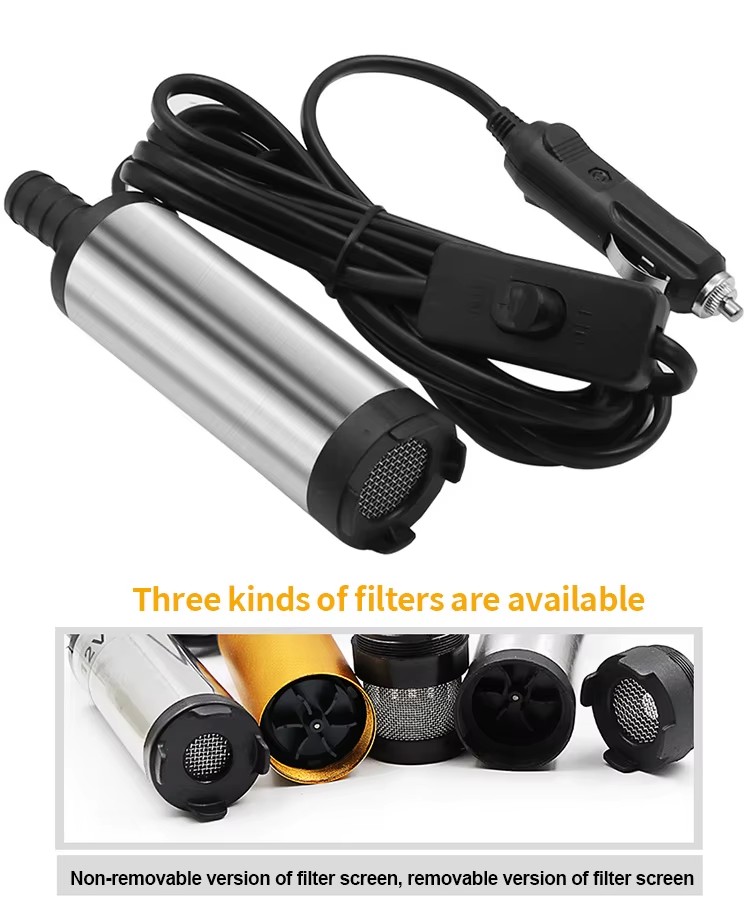

12V DC 38mm Mini Diesel Fuel Water Oil Car Camping fishing Submersible Transfer Pump

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 10 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Application

Automotive Industry

Structure

Single-stage Pump

Voltage

12V (DC)

Power source

Electric

Outlet size

16mm(0.63in)

Warranty

1 Year

Customized support

OEM

Cable length

3m(9.84ft)

Pressure

Low Pressure

Model number (Specification)

KC0008C

Place of origin

China, Guangdong

Material

Aluminum alloy

Diameter of pump body

38MM

Wire length

Outlet diameter

16mm

Packing size

161X88X53mm

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Flow Rate (Product option)

Other

Maximum head

Other

Type (Product option)

Fuel & Oil Transfer Pumps, Submersible Pump

Lead time

7 days

Minimum order

10 Units
