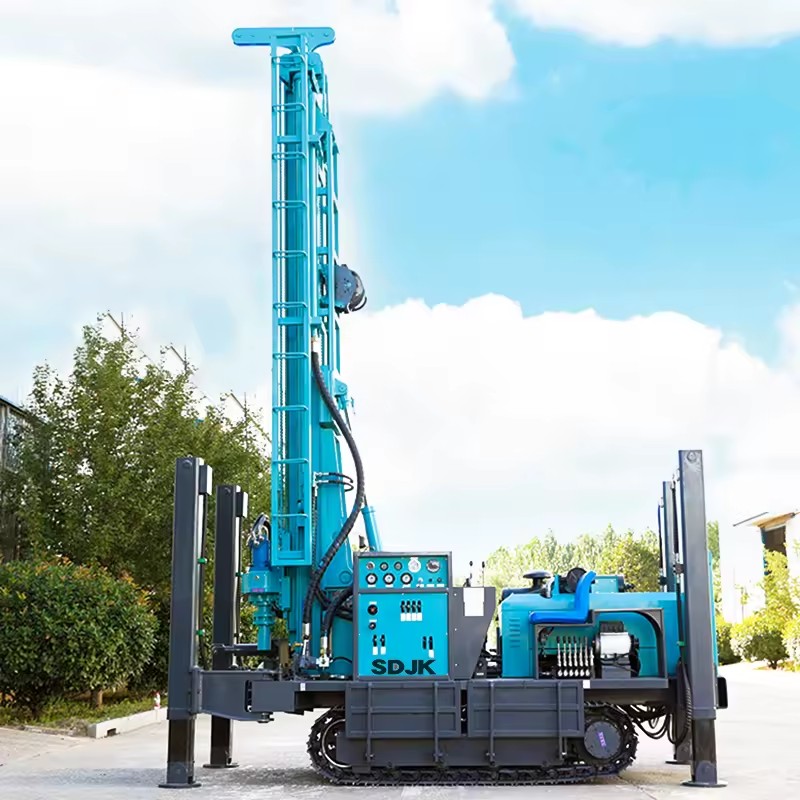

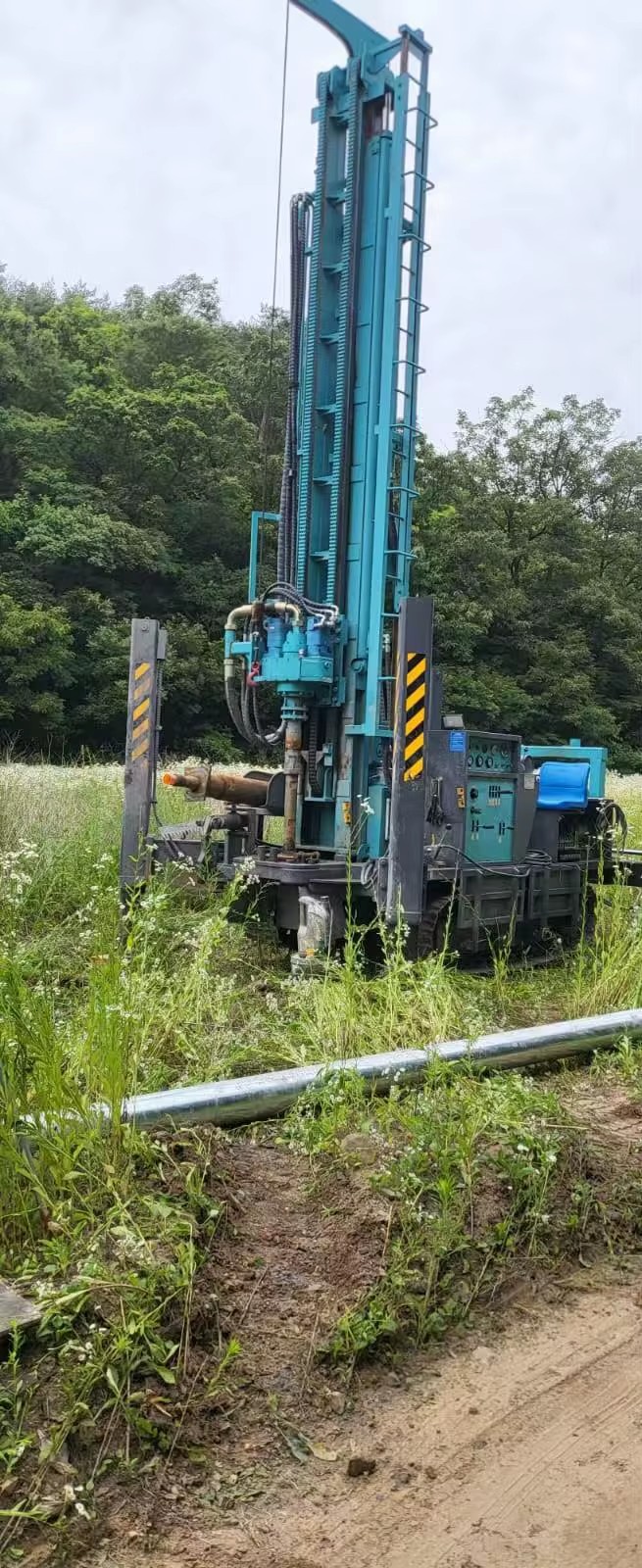

Name: 100m, 150m, 200m, 300m, 350m, 600Meters Steel Crawler Mounted Diesel Mine Water Well Drilling Rig Machine Factory Price
SKU: B2B-39838
Price: 13470.0 USD
Availability: PreOrder

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

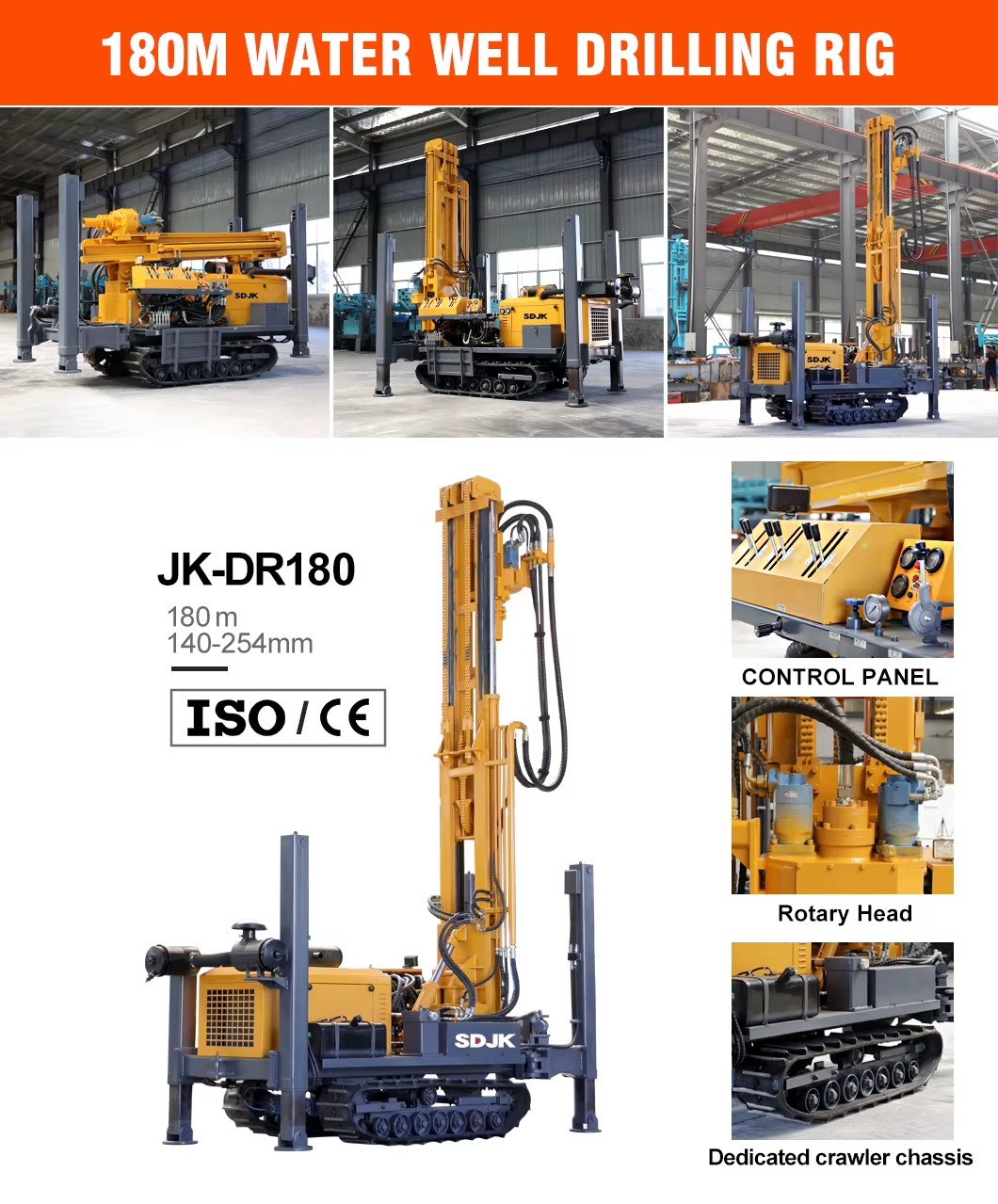

Model & Name	JK-DR180	Travelling speed	2.5km/h
Weight	4500 kg	Gradeability	30%
Dimensions（mm）	380015002200mm	Rated pressure	1.7-2.5MPa
Power Oil	Diesel	Air consumption	17-31m³/min
Engine Model	QUANCHAI	Drill rod diameter	Φ76,Φ89mm
Rated Power	55 kW	Drill rod length	1.5m, 2.0m, 3.0m
Travelling System	Rubber Crawler	Elevating capacity	12 Ton
Drilling depth	180m	Swing speed	45-65rpm
Bore diameter	140-254mm	Swing torque	3200-4600 N.m
Drive Head Stroke	3.4m

Model & Name	JK-DR200X	Drive Head Stroke	3.4m
Weight	5000 kg	Travelling speed	2.5km/h
Dimensions（mm）	395017002300mm	Gradeability	30%
Power Oil	Diesel	Rated pressure	1.7-3.0 MPa
Engine Model	QUANCHAI	Air consumption	17-30 m³/min
Rated Power	65 kW	Drill rod diameter	Φ76,Φ89mm
Travelling System	Rubber Crawler	Drill rod length	1.5m, 2.0m, 3.0m
Drilling depth	200m	Elevating capacity	13Ton
Bore diameter	140-350mm	Swing speed	45-65rpm
Swing torque	3500-4700 N.m

Model & Name	JK-DR350	Travelling speed	2.5km/h
Weight	9000 kg	Gradeability	30%
Dimensions（mm）	590020002850mm	Rated pressure	1.7-3.3MPa
Power Oil	Diesel	Air consumption	17-35 m³/min
Engine Model	YUCHAI	Drill rod diameter	Φ89 / Φ102 mm
Rated Power	92 kW	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Travelling System	Steel Crawler	Elevating capacity	24 Ton
Drilling depth	350m	Swing speed	55-115rpm
Bore diameter	140-325mm	Swing torque	6200-8500 N.m
Drive Head Stroke	6.6m

Model & Name	JK-DR400	Travelling speed	2.5km/h
Weight	10 Ton	Gradeability	30%
Dimensions（mm）	590021002850mm	Rated pressure	1.7-3.5 MPa
Power Oil	Diesel	Air consumption	17-35 m³/min
Engine Model	YUCHAI	Drill rod diameter	Φ89 / Φ102 / Φ108 mm
Rated Power	92 kW	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Travelling System	Steel Crawler	Elevating capacity	25 Ton
Drilling depth	400m	Swing speed	45-115rpm
Bore diameter	140-350mm	Swing torque	6500-9000 N.m
Drive Head Stroke	6.6m

Model & Name	JK-DR500	Rated pressure	1.7-3.5 MPa
Weight	11.5Ton	Air consumption	17-42 m³/min
Bore diameter	140-350mm	Drill rod diameter	Φ102 / Φ108/ Φ114 mm
Drilling depth	500m	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Engine Model	YUCHAI	Elevating capacity	26Ton
Rated Power	118 kW	Swing speed	40-100rpm
Stroke	6.6m	Swing torque	7500-10000N.m
Travelling speed	2.5km/h	Dimensions	600022002950mm
Gradeability	30%

Model & Name	JK-DR600	Travelling speed	2.5km/h
Weight	12Ton	Gradeability	30%
Dimensions（mm）	620022002950mm	Rated pressure	1.7-3.5 MPa
Power Oil	Diesel	Air consumption	17-42 m³/min
Engine Model	CUMMINS	Drill rod diameter	Φ102 / Φ108/ Φ114 mm
Rated Power	132 kW	Drill rod length	1.5m, 2.0m, 3.0m, 6.0m
Travelling System	Steel Crawler	Elevating capacity	28 Ton
Drilling depth	600m	Winch Elevating capacity	3 Ton
Bore diameter	140-350mm	Swing speed	45-115rpm
Drive Head Stroke	6.6m	Swing torque	8500-11000 N.m

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

20 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 30 fields

Usage

Water Well

Type

Rotary Drilling Rig

Drilling Depth

400, 600m, 200, 300, 350, 500, 100,180

Drilling Diameter

200 mm

Power Type

Diesel

Voltage

24v

Core components

Bearing, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Competitive Price

Place of origin

China, Shandong

Weight

4.5 KG

Dimension (L*W*H)

5200*2000*2780mm

Mobility

portable, Crawler Tracked

Certification

CE, ISO

Showroom

None

Engine model

Quanchai

Power Oil

Diesel

Travelling System

Rubber Crawler

Travelling speed

2.5km/h

Name

water well Drilling Rig

Key words

New Mine Drilling Rig

Keyword

Farm Mine Drilling Rig

Selling Units

Single item

Single package size

6000X2200X2950 cm

Single gross weight

50000.0 kg

Model number

Hydraulic Motor, JK-DR180, JK-DR200X, JK-DR200, JK-DR300, JK-DR350, JK-DR400, JK-DR500, JK-DR600, Drill pipes, JK-DR70

Power (W) (Product option)

55KW, 65kw, 132kw, 92KW, 70KW, 85KW, 118KW, 76*3000mm, 89*3000mm, 102*3000mm, BM5-375

Certifications & Compliance

Lead time

20 days

Minimum order

1 Units

Customer reviews

5.0 (3)

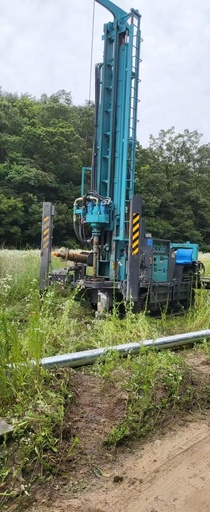

Noel A. Verified buyer Repeat buyer

Italy ·19 Apr 2025

The machine is very good and highly suitable for the requirements of our project. It has been completed very well and can drill holes quickly. Sally has helped me a lot and she will guide me

Cameron J. Verified buyer Repeat buyer

United States ·20 Jun 2024

Everything is going great, i am very happy with the delivery and quality of the product, we will start working soon, thank you very much sally, she is more like a friend to me

Alex V. Verified buyer Repeat buyer

South Korea ·20 May 2024

Thanks to Sally, I received the equipment safely and with kindness and consideration. Responding even at late hours Even if you don't speak English well. They translated and explained it to me, and I am very satisfied. Once again, I would like to express my gratitude to Sally.
