100g-25kg High-Accuracy Semi-Automatic Liquid Filler for Beverage Juice Hand Sanitizer Soapy Water Laundry Detergent Cans

Available for enquiry 0.0 · 0 reviews
USD

6,260.00 6260.0 USD 6,260.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Filling material
  • Packaging type
  • Filling Volume
  • Filling nozzle
  • Automatic grade
  • Voltage
  • Driven Type
  • Application
  • Packaging material
  • Core components
  • Machinery test report
  • Video outgoing-inspection
  • Warranty
  • After-sales Service Provided
  • Key selling points
  • Filling accuracy
  • Place of origin
  • Weight (kg)
  • Dimension(L*W*H)
  • Selling Units
  • Single volume
  • Single gross weight
  • Machinery capacity (Product option)
  • Power (Product option)
  • Model number

This combination is unavailable.

Key attributes

View all
Filling material
Water, Milk, Oil, Juice, Other
Packaging type
Cartons, Bottles, Bags, Barrel, Cans, Other, Stand-up Pouch
Filling Volume
100ml(3.38fl.oz), 300mL(10.14fl.oz), 200mL(6.76fl.oz), 400 mL(13.53fl.oz), 500 mL(16.91fl.oz), 2000 mL(67.63fl.oz)
Filling nozzle
2
Automatic grade
Semi-Automatic
Voltage
220 V, 110 V
Product description

Product details

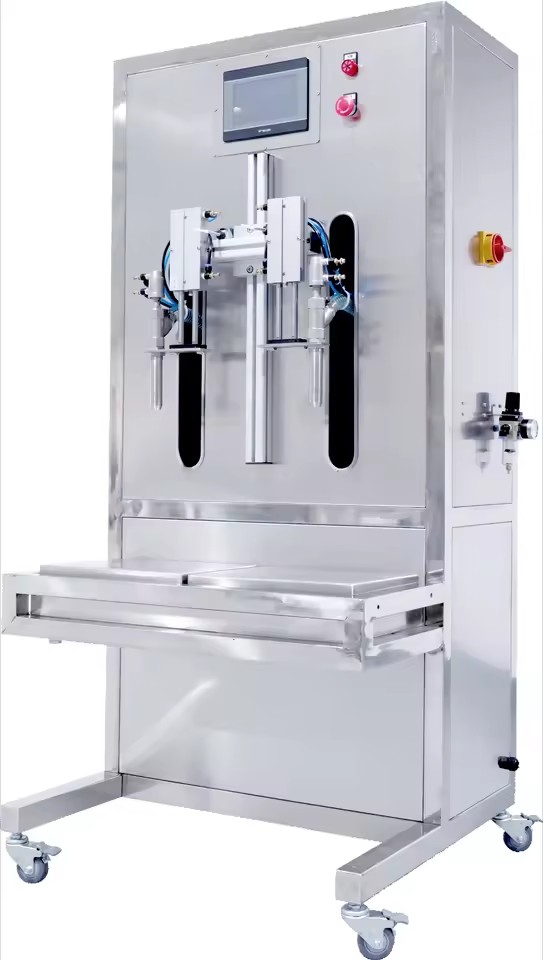

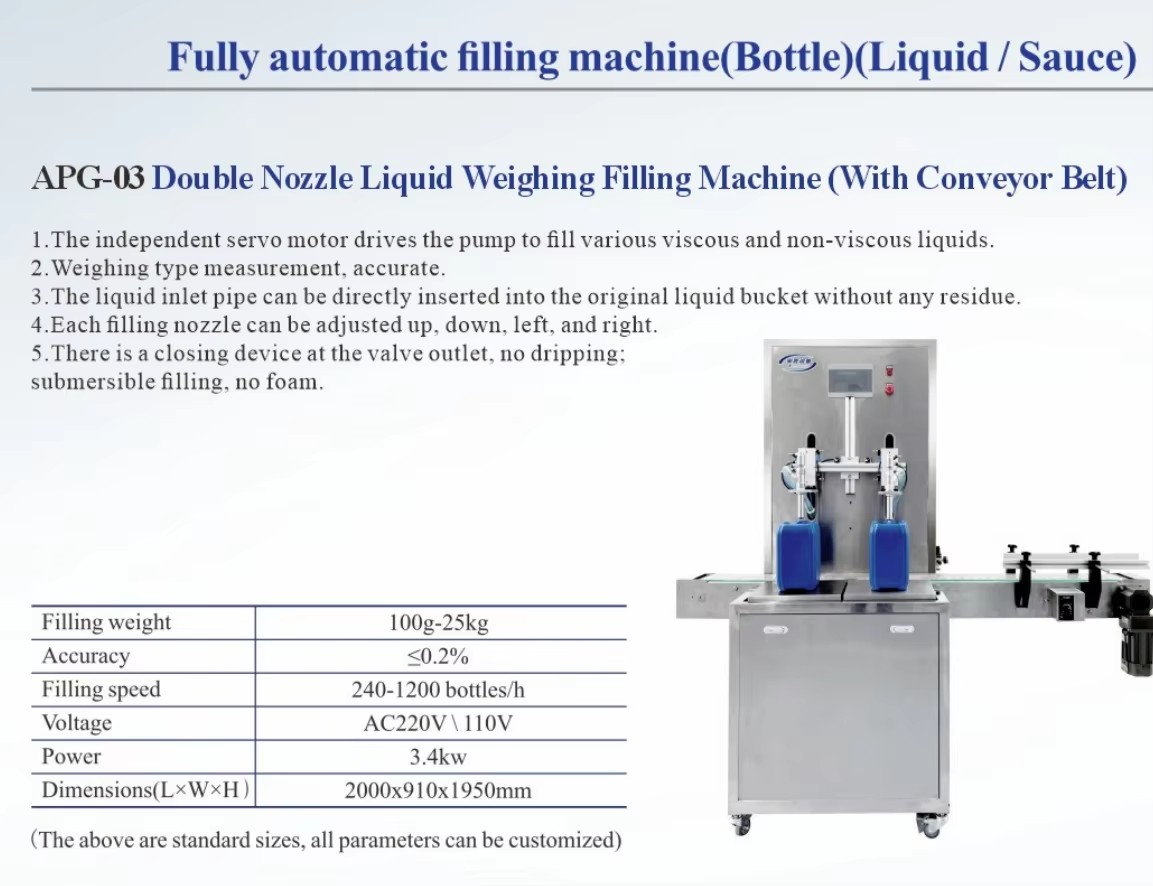

APG-03 Double Nozzle Liquid Weighing Filling Machine (3/4 nozzles)

1. High precision: weighing measurement, each filling nozzle is driven by a separate servo motor

2. Strong anti-interference: the filling nozzles are independent; equipped with industrial grade PLC system.

3. Wide range of application: rotor pump supply liquid for all kinds of viscous, non-viscous liquid.

4.Less waste of material: inlet pipe is directly inserted into the stock bucket.

5. Many bottled specifications: the filling nozzle can be adjusted up, down, left and right.

6. No foam: Diving filling, servo motor can be unlimited speed control

7. No dripping: there is a sealing device at the outlet of the pneumatic valve.

8. Strong corrosion resistance: the filling valve adopts Swiss technology, the overall material is 304/316 and teflon.

Description images
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    15 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Filling material
Water, Milk, Oil, Juice, Other
Packaging type
Cartons, Bottles, Bags, Barrel, Cans, Other, Stand-up Pouch
Filling Volume
100ml(3.38fl.oz), 300mL(10.14fl.oz), 200mL(6.76fl.oz), 400 mL(13.53fl.oz), 500 mL(16.91fl.oz), 2000 mL(67.63fl.oz)
Filling nozzle
2
Automatic grade
Semi-Automatic
Voltage
220 V, 110 V
Driven Type
Pneumatic
Application
Chemical, food, Beverage, Commodity, Apparel
Packaging material
Plastic, metal, Glass, Other
Core components
PLC, Motor, Pump, Other
Machinery test report
Provided
Video outgoing-inspection
Provided
Warranty
1 Year
After-sales Service Provided
Video Technical Support, Online Support, Field maintenance and repair service, Field installation, commissioning and training, Free spare parts
Key selling points
High-Accuracy
Filling accuracy
better than 0.2%
Place of origin
Zhejiang, China
Weight (kg)
120

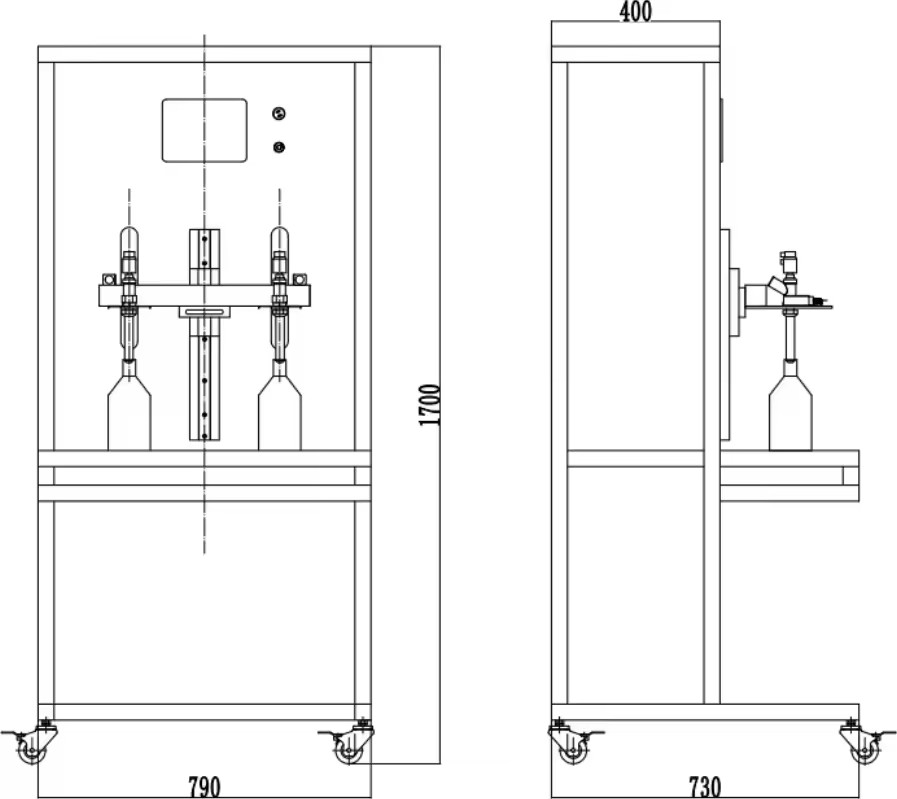

Dimension(L*W*H)
790*730*1700mm(31.10*28.74*66.93in)
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Machinery capacity (Product option)
240-1200BPH
Power (Product option)
3 kW(4.02hp)
Model number
APG-03 Liquid Weighing Filling Machine (Semi-Automatic), APG-03 Liquid Weighing Filling Machine with Conveyor Belt
Lead time
15 days
Minimum order
1 Units
