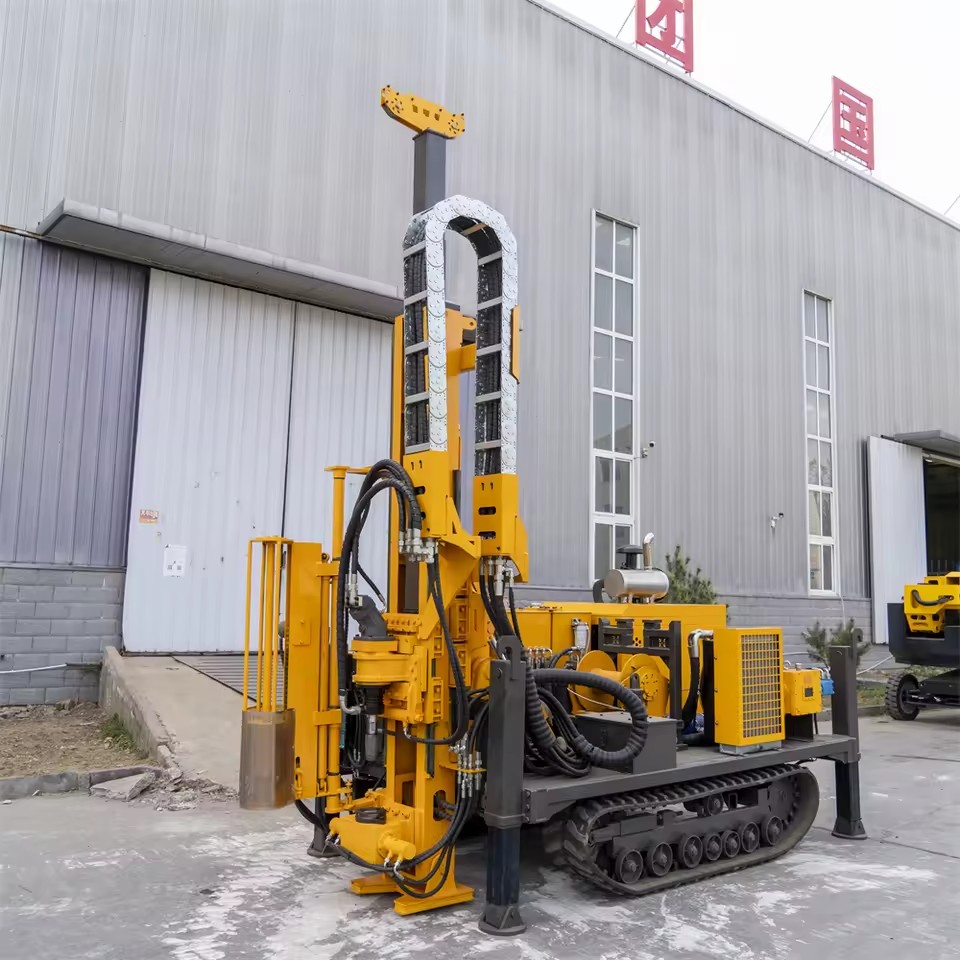

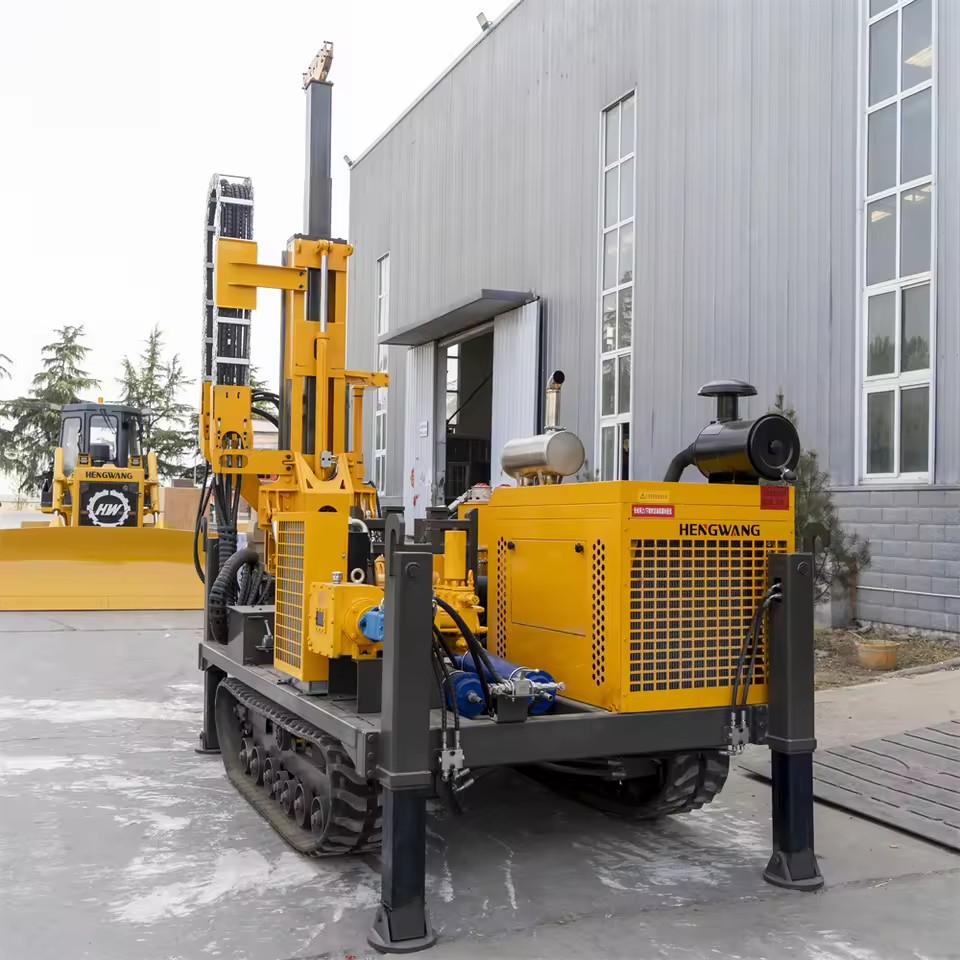

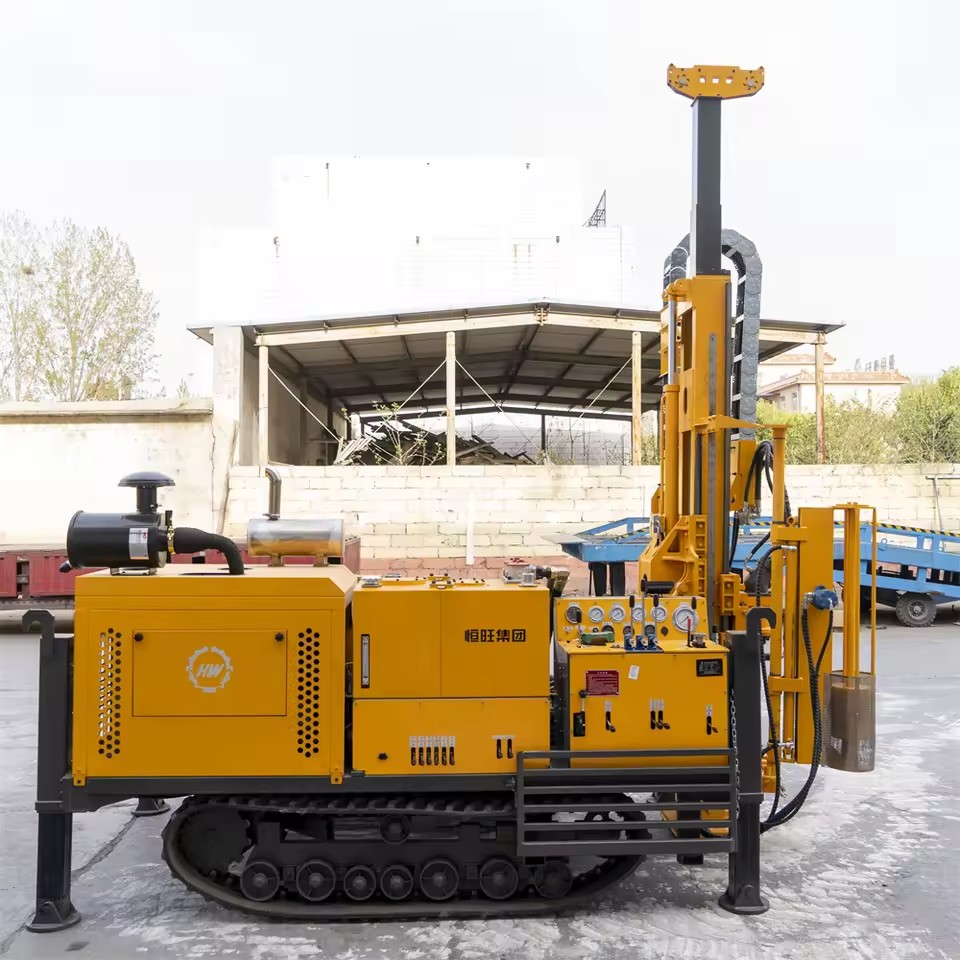

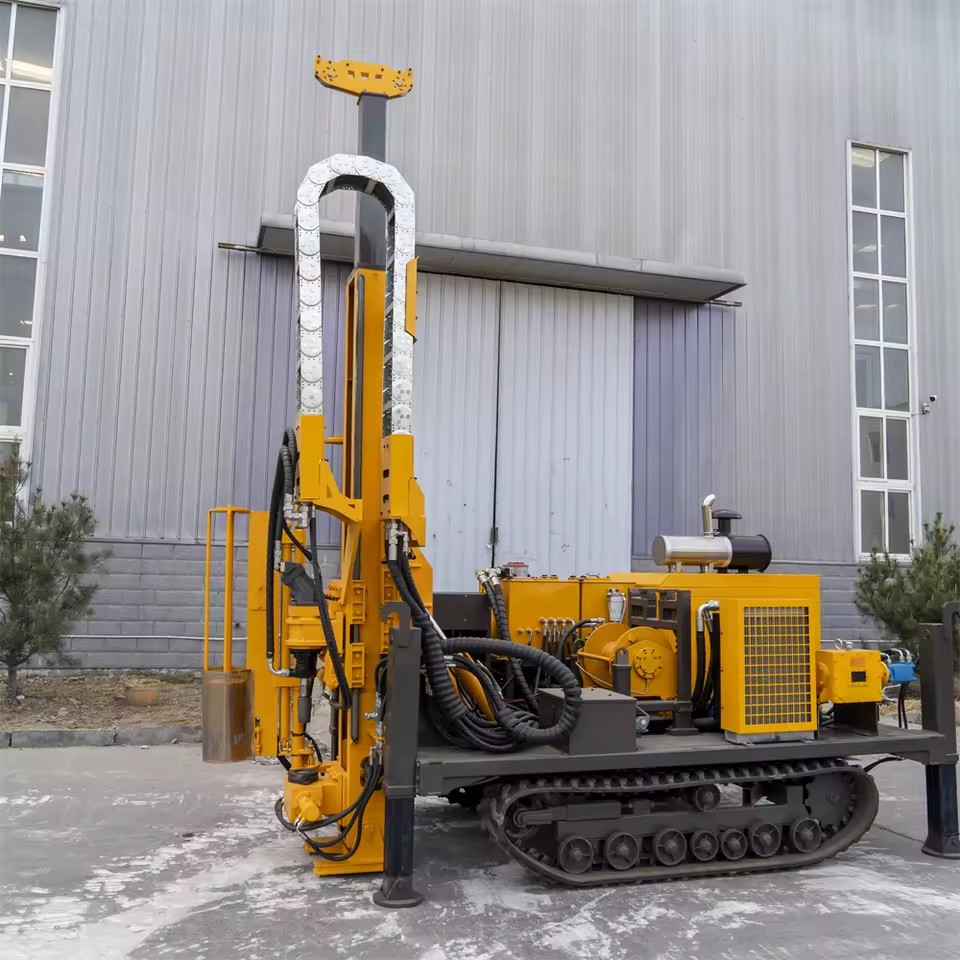

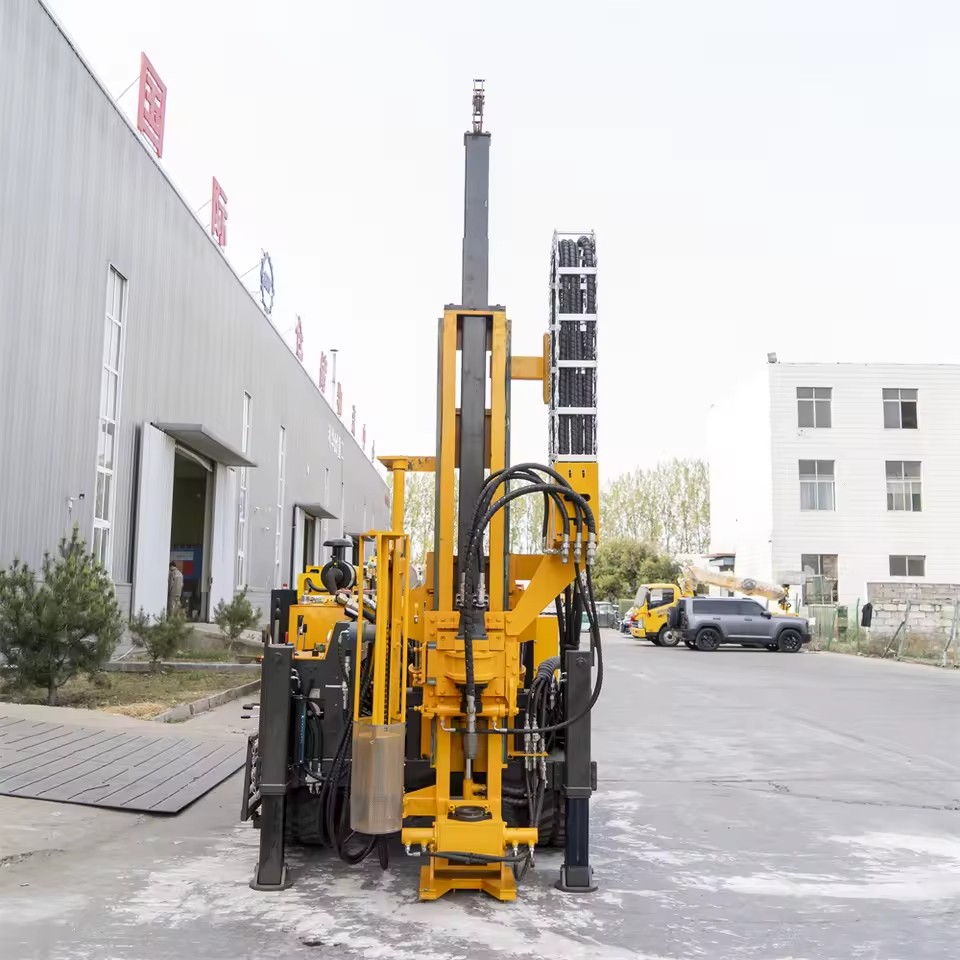

1000 Meters Depth Geotechnical Drill Rig Borehole Core Drilling Machines with Good Quality for Mining Exploration With NQ and BQ

Available for enquiry 0.0 · 0 reviews
USD

$ 3,270.00 3270.0 USD $ 3,270.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • Showroom Location
  • Condition
  • Warranty of core components
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number
  • Power (W) (Product option)

This combination is unavailable.

Key attributes

View all
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
Max.1000m
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in), 450 mm(17.72in), 600mm(23.62in)
Power Type
Diesel
Voltage
Diesel engine
Product description
ModelHW-YDX-400XLHW-YDX-600XLHW-YDX-600GLHW-YDX-800XLHW-YDX-800GLHW-YDX-1000GL
Drilling capacity
DiameterHTW-NTW-BTWHTW-NTW-BTWHTW-NTW-BTWHTW-NTW-BTWHTW-NTW-BTWHTW-NTW-BTW
Depth(m)180-400-500(M)200-600-650(M)200-600-650(M)400-800-1000(M)400-800-1000(M)500-1000-1100(M)
Hydraulic system
Rated pressure(Mpa)21(MPA)21(MPA)21(MPA)25(MPA)25(MPA)28(MPA)
Rated flow(L/min)168(L/min)192(L/min)192(L/min)260(1./min)260(1./min)300(L/min)
Cooling typeAir cooling + Water coolingAir cooling + Water coolingAir cooling + Water coolingAir cooling + Water coolingAir cooling + Water coolingAir cooling + Water cooling
Engine
Engine BrandYuchaiYuchaiYuchaiYuchaiYuchaiCummins
TypeTurbochargeTurbochargeTurbochargeTurbochargeTurbochargeTurbocharge
Rated rotary speed(rpm)2400(RPM)2400(RPM)2400(RPM)2400(RPM)2400(RPM)2400(RPM)
Rated power(KW)78/70929292 (6 cylinders)92 (6 cylinders)154
Power head
Maximum torque(Nm)300-500(N.M)450-1000(N.M)450-1000(N.M)950-1300(N.M)950-1300(N.M)1000-3500(N.M)
Maximum rotary speed(rpm)1300(RPM)1300(RPM)1300(RPM)1300(RPM)1300(RPM)1300(RPM)
Feeding stroke(mm)1900(MM)1900 (MM)1900 (MM)2400 (MM)2400 (MM)3500(MM)
Drilling tower
TypeGround contact integrated drilling towerGround contact integrated drilling towerGround contact integrated drilling towerGround contact integrated drilling towerGround contact integrated drilling towerGround contact integrated drilling tower
Drilling angle(°)45-90(°)45-90(°)45-90(°)45-90(°)45-90(°)45-90(°)
Lifting force(T)12(T)16(T)16(T)24(T)24(T)30(T)
Feeding force(T)6(T)8(T)8(T)12(T)12(T)15(T)
Winch
Lifting force(KG)500(KG)600(KG)600(KG)600(KG)600(KG)1000(KG)
Rotary speed(rpm)100-240(RPM)100-300(RPM)100-300(RPM)100-300(RPM)100-300(RPM)100-300(RPM)
Wire rope diameter(mm)6(MM)6(MM)6(MM)6(MM)6(MM)6(MM)
Rope capacity(m)500(M)600(M600(M800(M)800(M)1000(M)
Traveling system
TypeManual + remote controlManual + remote controlManual + remote controlManual + remote controlManual + remote controlManual + remote control
Traveling speed(km/h)2.5(KM/H)3.5(KM/H)3.5(KM/H)3.5(KM/H)3.5(KM/H)3.5(KM/H)
Climbing angle(°)45(°)45(°)45(°)45(°)45(°)45(°)
Hydraulic mud pump
Mud PumpBW-90BW-90BW-90BW-90BW-90BW-160
Flow(L/min)30-90(L/min)30-90(L/min)30-90(L/min)90-180(L/min)90-180(L/min)90-180(L/min)
Pressure(Mpa)4-7(MPA)4-7(MPA)4-7(MPA)4-7(MPA)4-7(MPA)4-7(MPA)
Transport dimension(mm)4000*1900*1800(MM)4000*2000*1800(MM)4000*2000*1800(MM)5500*2100*2000(MM)5500*2100*2000(MM)6000*2200*2400(MM)
Weight(T)4.3(T)4.5/5.5(T)4.5/5.5(T)6.5(T)6.5(T)7.5(T)
Description images

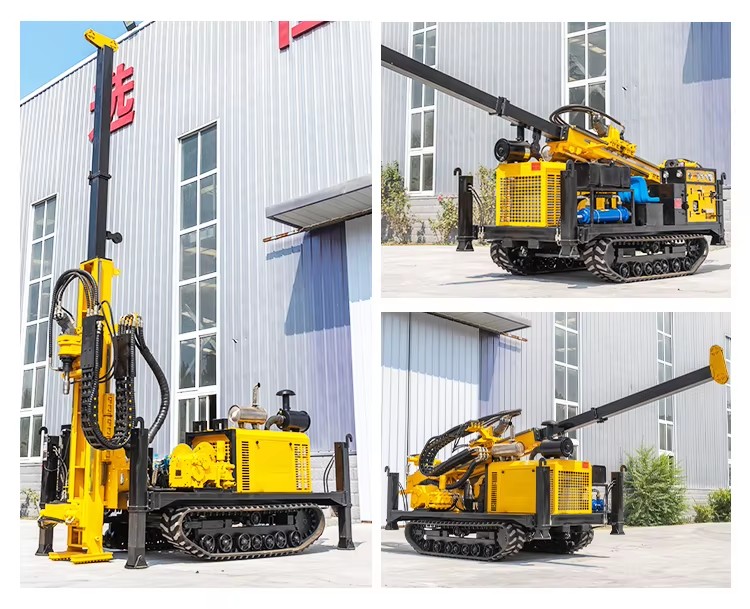

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    10 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 23 fields
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
Max.1000m
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in), 450 mm(17.72in), 600mm(23.62in)
Power Type
Diesel
Voltage
Diesel engine
Core components
Motor, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Shandong
Weight
4300 KG(9479.88lb)
Dimension (L*W*H)
4000*1900*1800mm(157.48*74.80*70.87in)
Mobility
YES
Showroom Location
None
Condition
New
Warranty of core components
1 Year
Selling Units
Single item
Single package size
400X190X180 cm
Single gross weight
4300.0 kg
Model number
HW-YDX-400XL, HW-YDX-600XL, HW-YDX-600GL, HW-YDX-800XL, HW-YDX-800GL, HW-YDX-1000GL
Power (W) (Product option)
92KW(123.37hp), 78KW(104.60hp), 154KW(206.52hp)
Lead time
10 days
