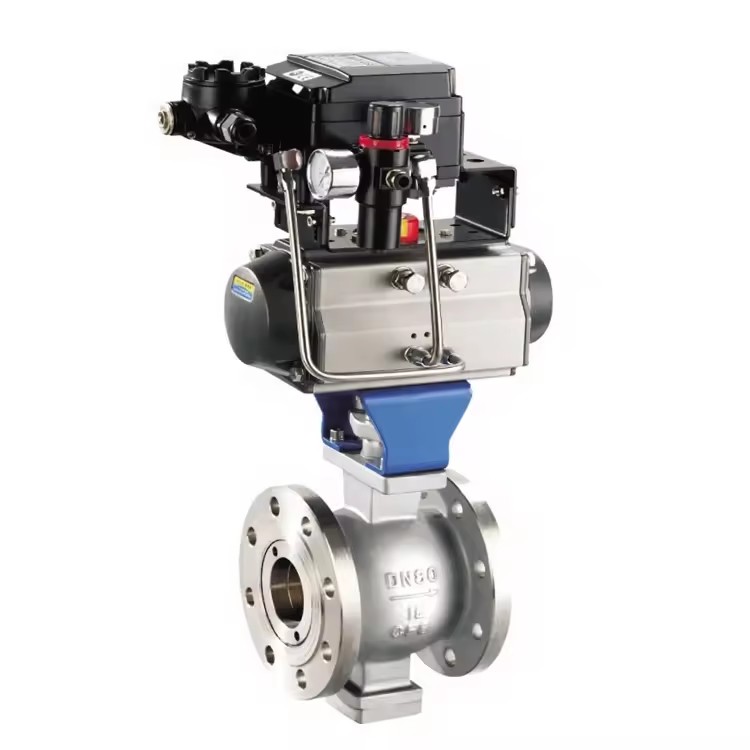

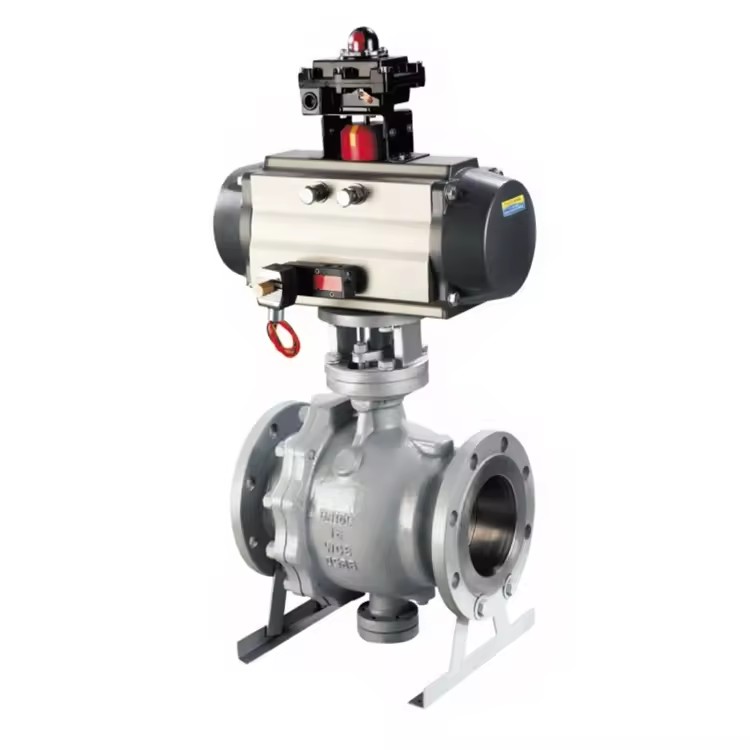

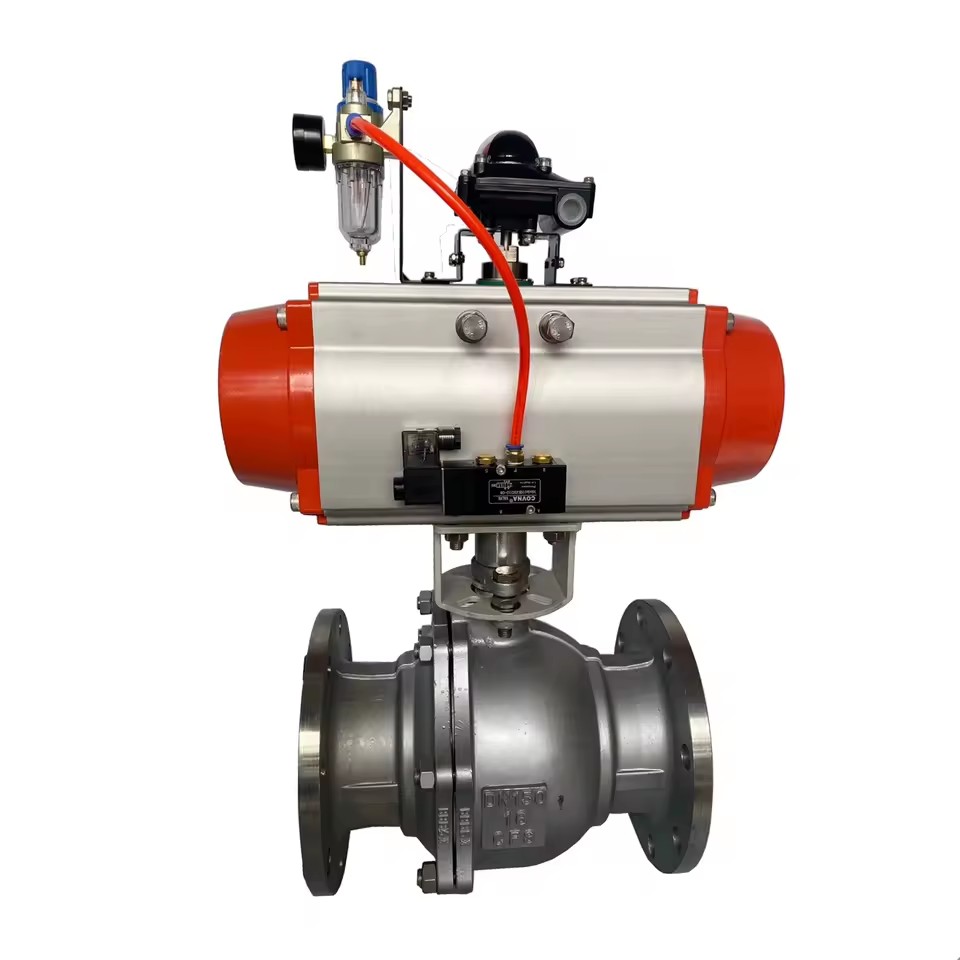

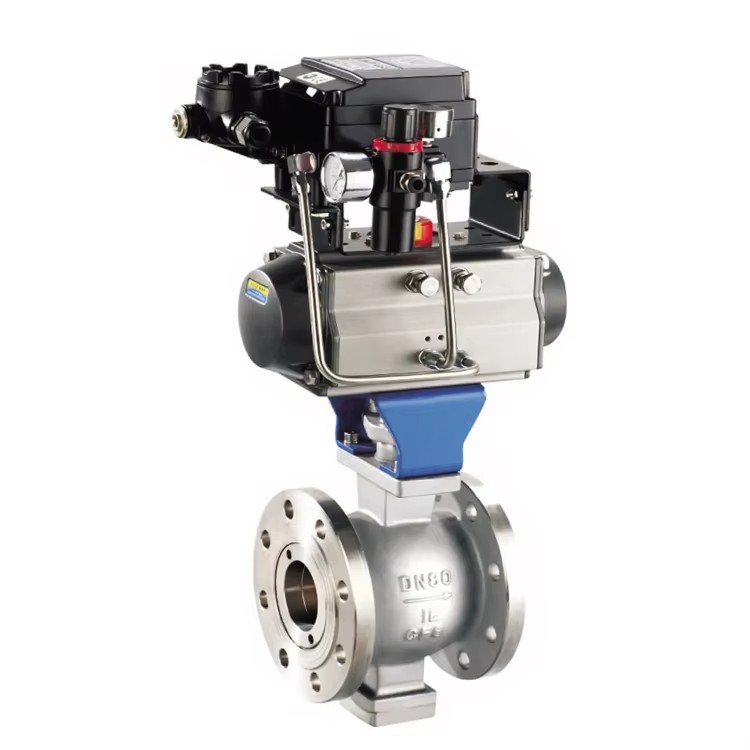

Name: 1/2"- 6" Stainless Steel Flanged v Port Ball Valve Pneumatic Segment Ball Valve
SKU: B2B-11913
Price: 110.0 USD
Availability: PreOrder

Product description

1/2"- 6" Stainless steel Flanged v port ball valve pneumatic segment ball valve

Our Advantages

• Over 30 YEARS manufacturer of actuated valves, MASS CUSTOMIZATION acceptable.

• 3 production base, large stock, SHORT LEAD TIME, same day shipping.

• German imported manufacturing facilities, 100% Q.C passed before shipping, quality assured. Industrial standard 1 YEAR (12 months) warranty.

• ISO 9001 certificated, with extra certifications include CE, RoHS, SGS.

• OEM / ODM service available.

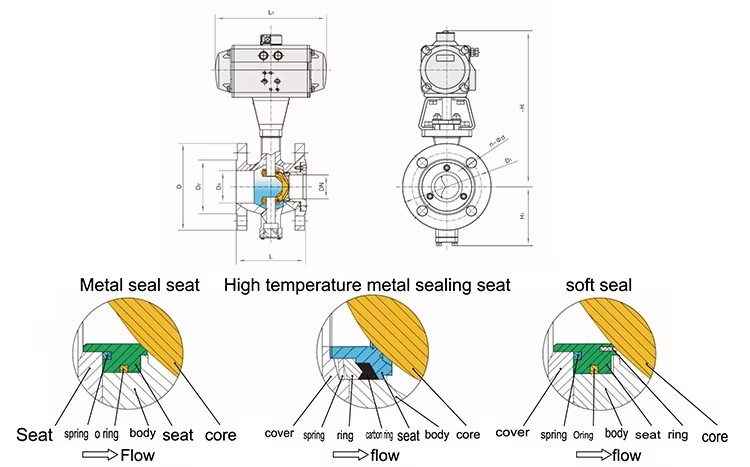

Product Specification

The pneumatic V control ball valve is used to adjust the parameters of pressure, flow, temperature and liquid level by using the RTKQ series actuator. The valve core is opened with the V type incision, and the shear force is generated by the relative rotation of the hard seal valve group. The fiber can be cut off to prevent the death of the card. It has the characteristics of large circulation capacity, high adjustment precision, large adjustable ratio, good sealing, and important light and so on. It is suitable for most occasions with small caliber, corner type and three way connection. It is the best product of too imported products, especially for mud and fiber medium, which has been regulated by small solid suspension medium of aviation oil. It is widely used in the automation control system of paper making, sugar, oil, chemical, liquid crystal, air conditioning, fire protection and water supply and drainage.

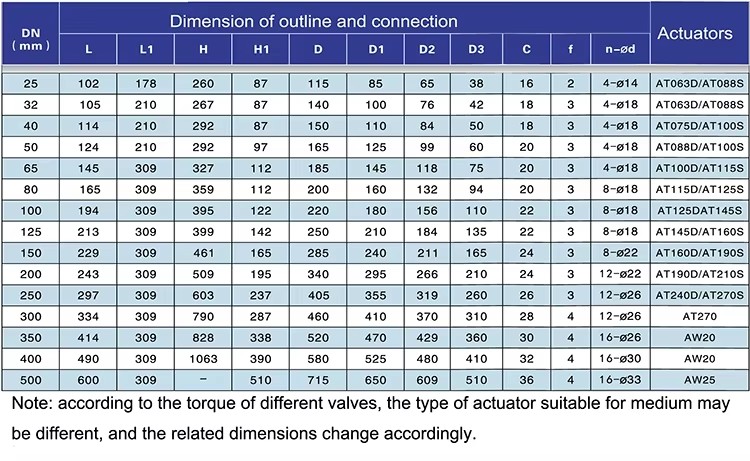

Technical Parameters

Size Range	1/2"~8", DN15~200
Acting Mode	Double Acting, Spring Return (Single Acting)
Operating Pressure	1.6MPa
Air Supply Pressure	2.5 to 8 bar
Lifespan	1,000,000 (1 Million) Times
Angle of Rotation	90° ±4°
Body Material	SS304, SS316, SS316L
Sealing Material	PTFE: -30°C~180°C, PPL: -30°C~250°C
Number of Ways	2 Way
End Connection	Flanged
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Optional Actuation	Handlever, Electric Actuated, or Pneumatic Actuated

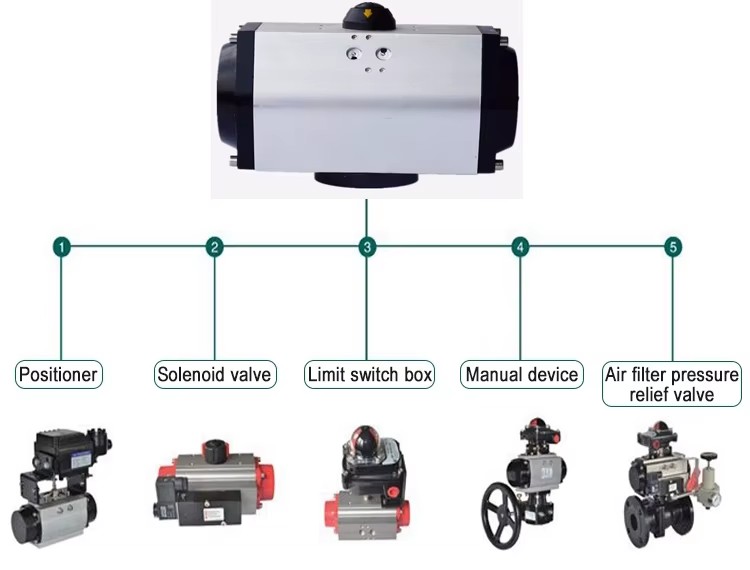

Optional Accessories	Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application	Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper

Design and Manufacturing Standards Design and Manufacture: GB/T12238-2008 Connection Standard: JB/T 79.1-1994 ASME B16.10 Structure Length: GB/T12221-2005 ASME B16.5 Pressure Testing: GB/T13927-2008

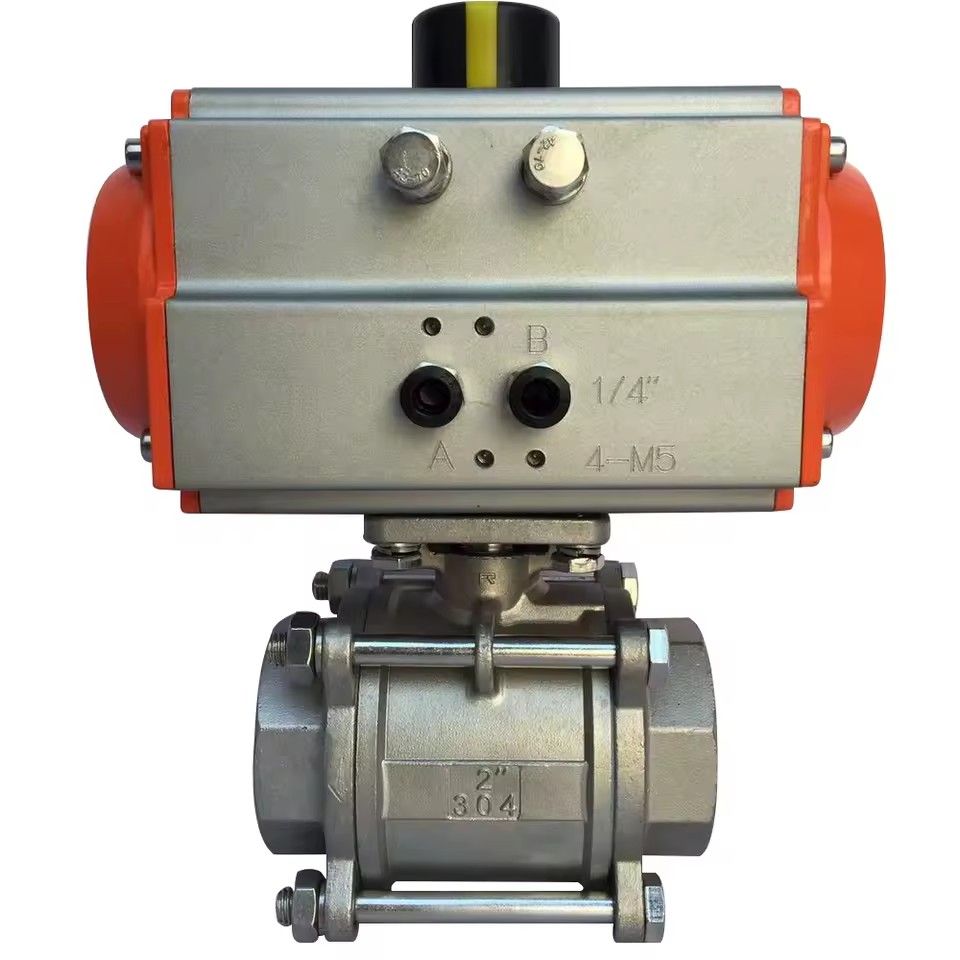

Pneumatic Actuator

Transmission structure principles

When the compressed air enters the pneumatic actuator through Nozzle A (as shown in Fig 1), the air will drive the double piston straightly moving toward two ends ( cylinder head end) and the piston rack will drive the gear of the rotary shaft by 90 degrees counter-clockwise. In this case, the valve will be opened. At this moment, the air in both ends of pneumatic actuator is discharged through Nozzle B. On the contrary, when the compressed air entered both ends of the pneumatic actuator through Nozzle B (as shown in Fig 1), the air will drive the double piston to straightly move towards the middle position and the piston rack will drive the gear of the rotary shaft by 90 degrees clockwise. In this case, the valve is closed. At this moment, the air in the middle of the pneumatic actuator is discharged through Nozzle A. What is aforementioned is the transmission principle. According to users' needs, the pneumatic actuatorcan be equipped with transmission principles contrary to the standard type. In other words, the valve will be opened when the rotary shaft rotates clockwise, while the valve is closed when it rotates counterclockwise. Single acting (spring return type) pneumatic actuation is implemented along the Nozzle A which is the air inlet, while Nozzle B is the air outlet (a muffler shall be installed in the Nozzle B). When Nozzle A inlets air, the valve will be opened, while the valve will be closed by the spring force when the air source is cut off.
