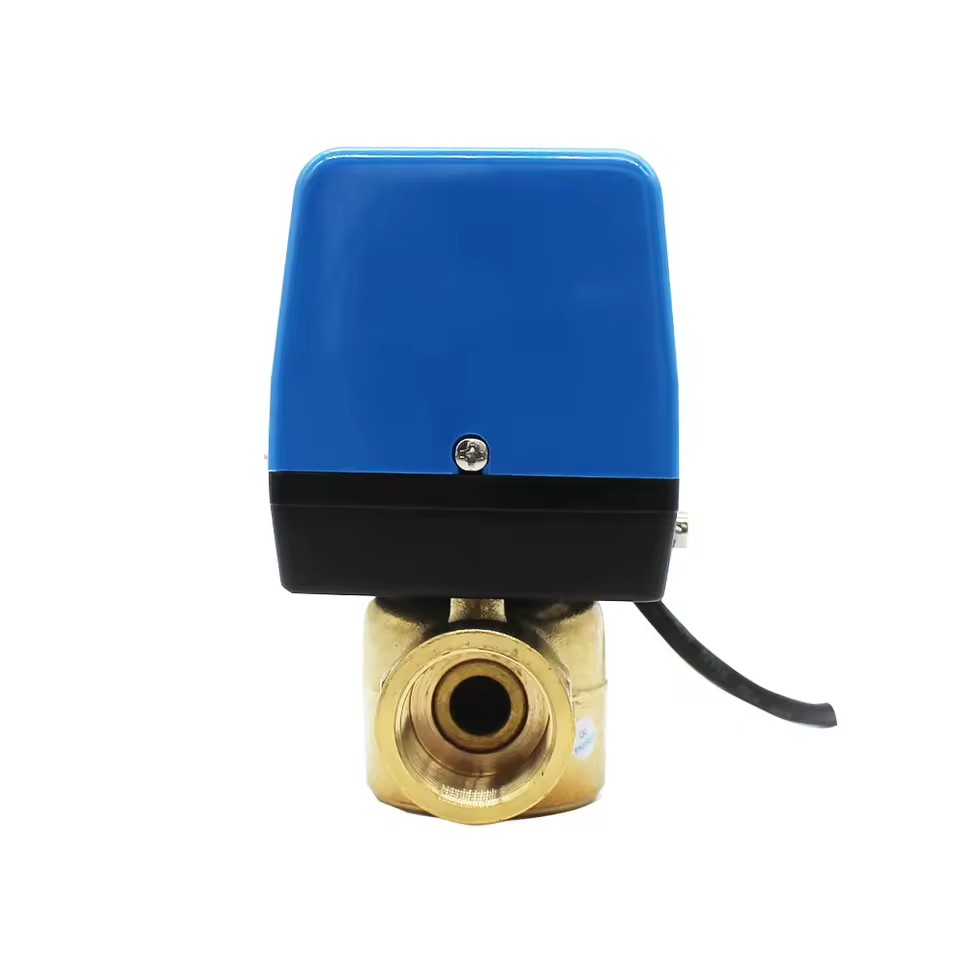

Name: 0-10V Modulating 2 Way Brass Water Valve Proportional Electric Actuator Motorized Valve with 24Vac
SKU: B2B-12895
Price: 50.0 USD
Availability: PreOrder

Product description

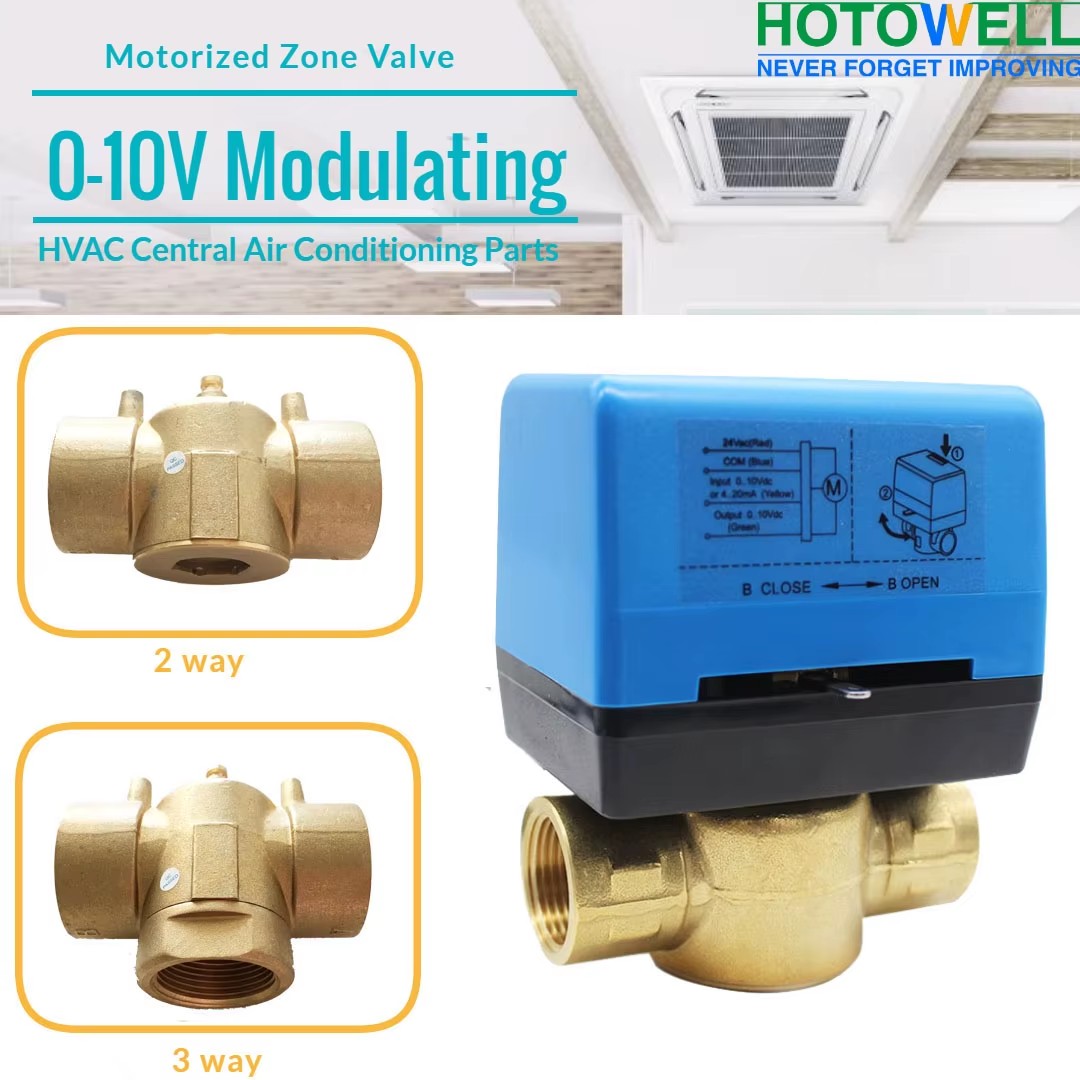

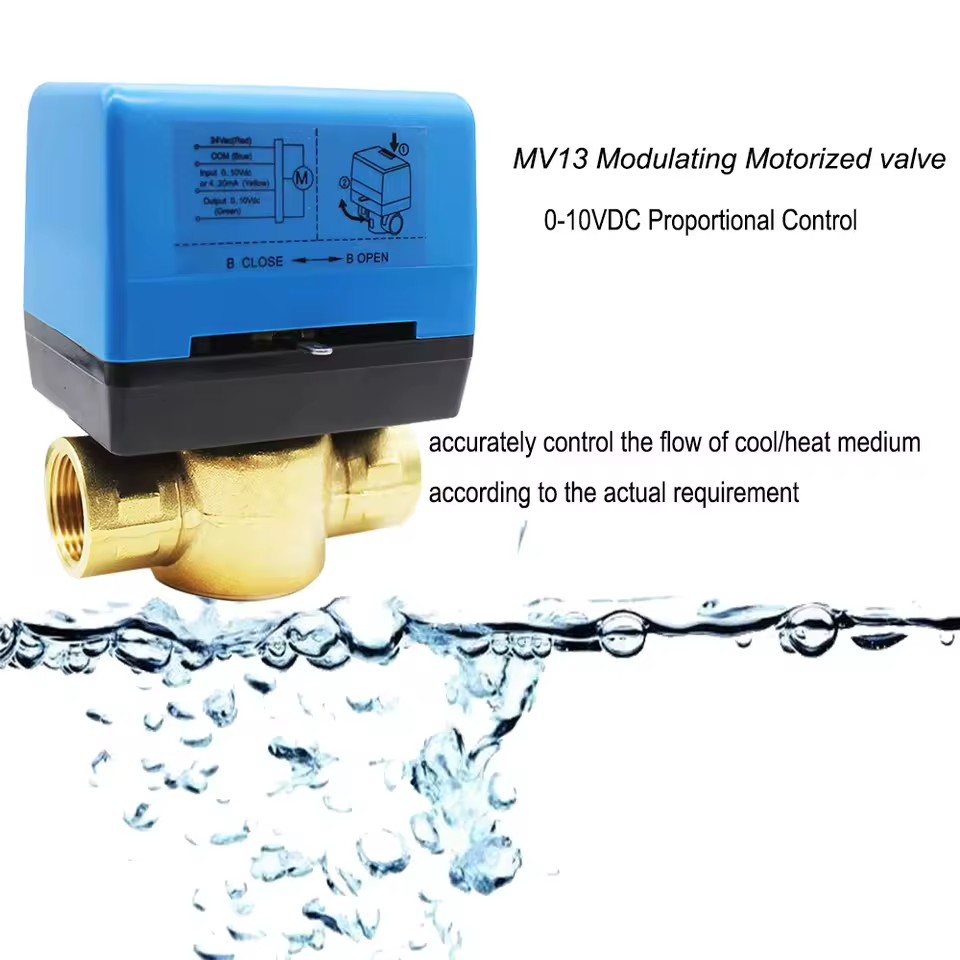

HTW-MV13 series Motorized Modulating Control Valve are mainly used in central air- conditioning cool/heat water system. It can accurately control the flow of cool/heat medium according to the actual requirement, and will not result in sudden change of temperature and to control the room temperature accurately. It provides two types: 2-way and 3-way with sizes: 1/2", 3/4", 1" and 1.1/4'' optional.

Screw Thread default provided with BSP(G), Specific NPSC(N), SWEAT(S), INVERTED FLARE(I), etc. can be customized.

>> Model summary

Type	Model	KV	Size
2-Way	HTW-MV13-215-K20	2.0	1/2"
HTW-MV13-215-K32	3.2	1/2"
HTW-MV13-220-K32	3.2	3/4"
HTW-MV13-220-K46	4.6	3/4"
HTW-MV13-225-K57	5.7	1"
HTW-MV13-225-K68	6.8	1"
HTW-MV13-230-K100	10.0	1.1/4"
3-Way	HTW-MV13-315-K32	3.2	1/2"
HTW-MV13-320-K42	4.2	3/4"
HTW-MV13-325K57	5.7	1"
HTW-MV13-332-K84	8.4	1.1/4"

>> Features

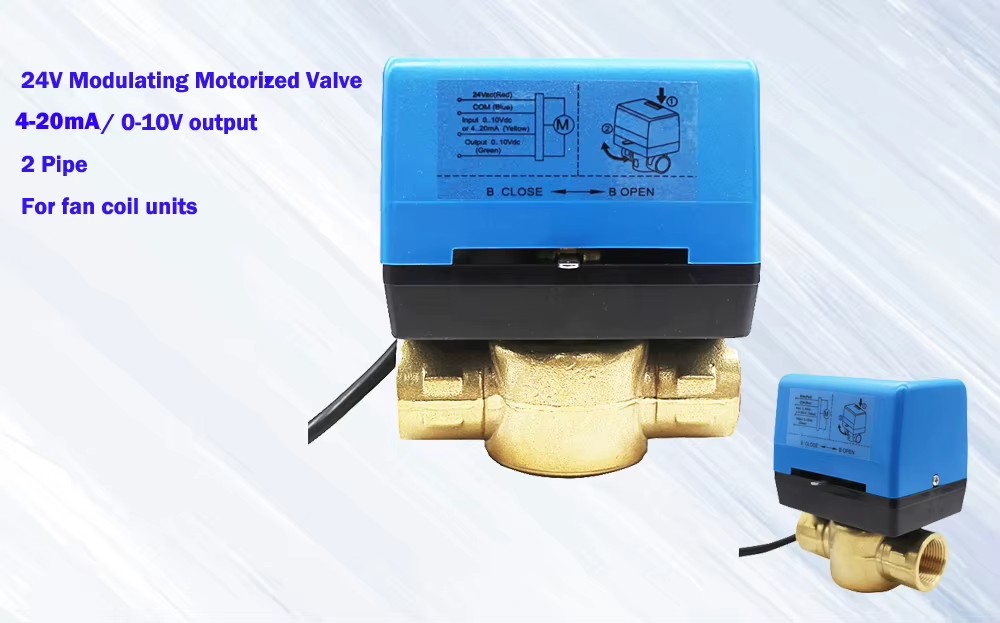

▇ High precision and sensitivity of temperature control; ▇ 24Vac, 50/60Hz; ▇ Timing protection device (for 24V working power supply, it can be assembled for optional), to ensure motor reliable and durable life; ▇ Built-in electronic card (24V working power supply only) can receive 0~10V (input impedance: 200KΩ) or 4~20mA DC (input impedance: 500Ω) input control signal, and provide proportional control, and 0~10Vdc (1mA) feedback signal. ▇ The valve actuator and valve body is used tight lock connection. The actuator can be installed after the installation of valve body. It has flexible and convenient assembly.

>> Dimensions

>> Wiring Diagram (Modulating)

Q1:What is the unit price? A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming... Anyway, we are always ready to discuss details with you via

Q2:What is the MOQ, small quantities accetaple? A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.

Q3:How is your products' quality and warrenty? A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.

Q4:Can I print my logo on the products, and customize my own designed packing? A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.

Q5:Do you supply OEM or ODM? A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.

Q6:Why should I buy products from your company? A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton,... In a word, WE ARE DIFFERENT, why not just try from the

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 100 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

25 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 23 fields

Structure

Control

Media

Water

Power

Solenoid

Voltage

AC 220 V, Dc 24V, AC 110 V

Port Size

20mm, 15mm, 25mm

Customized support

OEM

Warranty

2 Years

Temperature of media

Medium Temperature, Low Temperature, High Temperature

Application

General

Model number (Specification)

HTW-MV13

Place of origin

China, Fujian

Power supply

24VAC,50/60Hz

Pressure(MPa)

1.6

Connection Type

Female Connection

Input Signal

on/off, 0~10V, 4~20mA, Floating Configurable

Port

2 Port (Way)/ 3 Port (Way)

Type

SOLENOID VALVES

Selling Units

Single item

Single package size

25X15X15 cm

Single gross weight

2.0 kg

Material (Product option)

Brass

Pressure (Product option)

Medium Pressure

Size (Product option)

1/2 in, 3/4 in, 1 in

Lead time

25 days

Minimum order

100 Units
