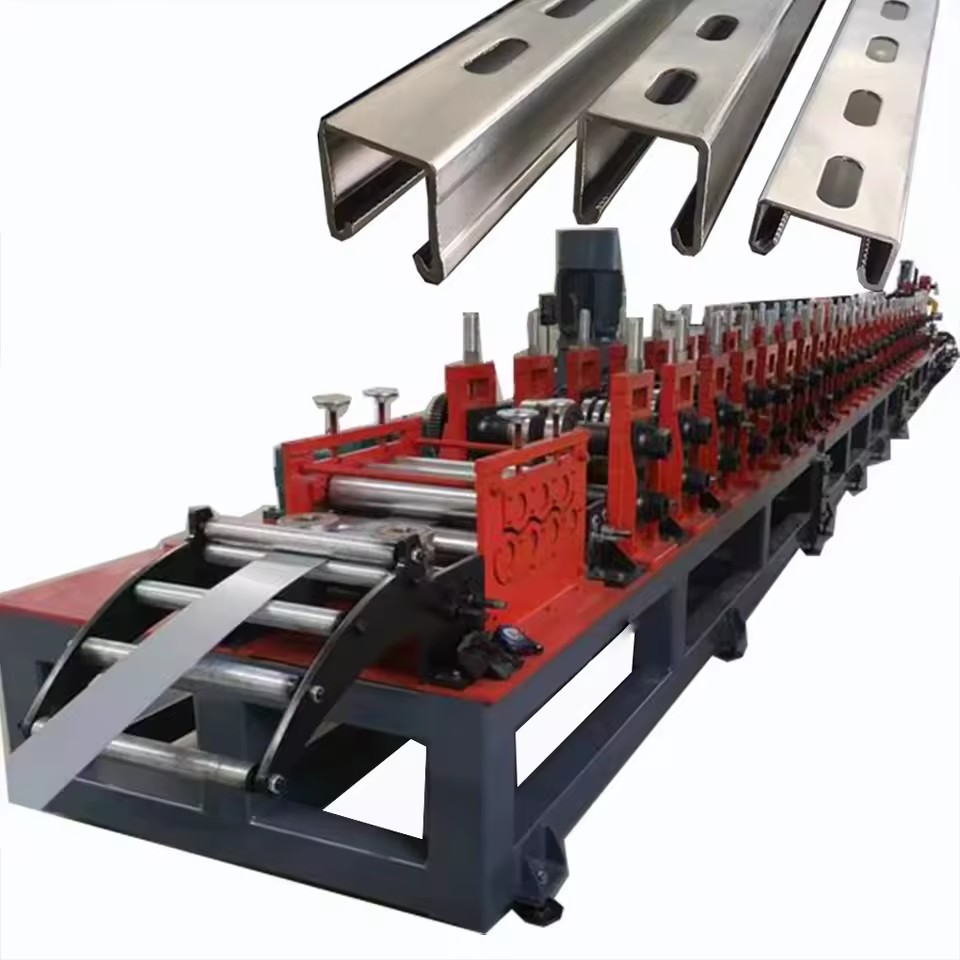

Photovoltaic Panel Bracket Roll Forming Machine Auto Solar Mounting System Production Line Unistrut C Channel Making Machine

Available for enquiry 5.0 · 1 reviews 1 sold
USD

$ 38,440.00 38440.0 USD $ 38,440.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Photovoltaic bracket production line
Tile Type
Steel
Feeding width
141mm
Rolling thinckness
1.5-4mm
Voltage
380V/220V/415v
Core components
PLC, Motor
Product description
itemvalue
Production Capacity10 m/min
Voltage380V/220V/415V
Dimension(L*W*H)11000*1800*1500
Weight11000kg
Rolling thinckness1.5-4mm
Feeding width139-141mm
Equipment footprint25*2.5M
Total power20KW
Hydraulic oil46#
Gear oil18 # hyperbola
Forming rows22
Transmission mode180 model gearbox
Shaft material80mm high-quality 40 chromium quenching and tempering
KeywordsPhotovoltaic Solar Bracket Roll Forming Machine
Equipment NameQuantity
Vertical uncoiler with 3T1 SET
Forming host1 SET
Hydraulic non-stop cut-off1 SET
Rotary punching device（Maximum speed 50m/min）1 SET
Leveling machine1 SET
PLC fully automatic electrical control system1 SET
Powered roller receiving table6M
Certifications & compliance
CE
Complies with EU standards
Description images

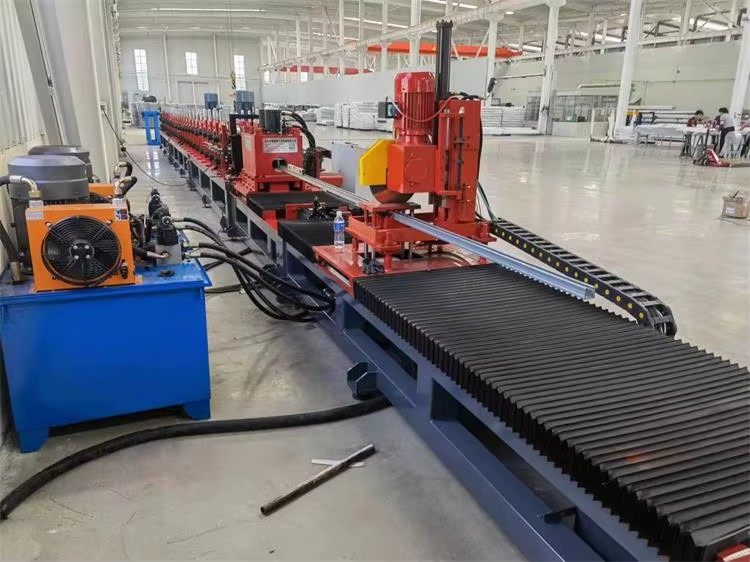

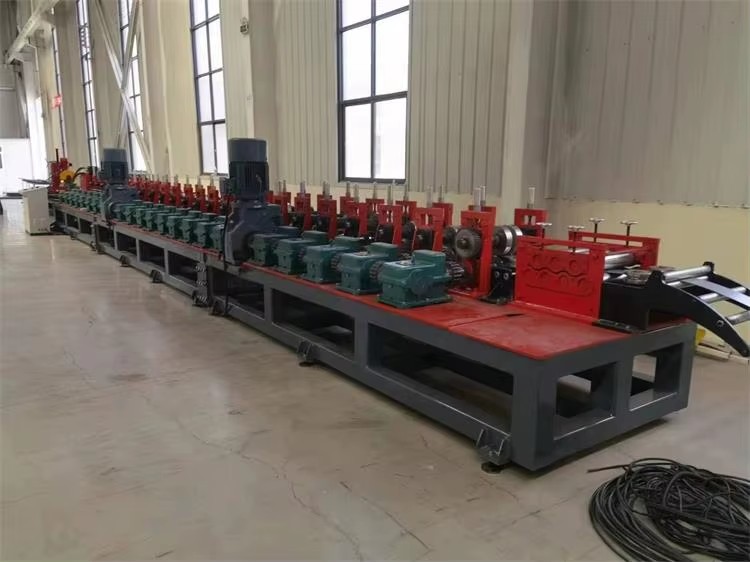

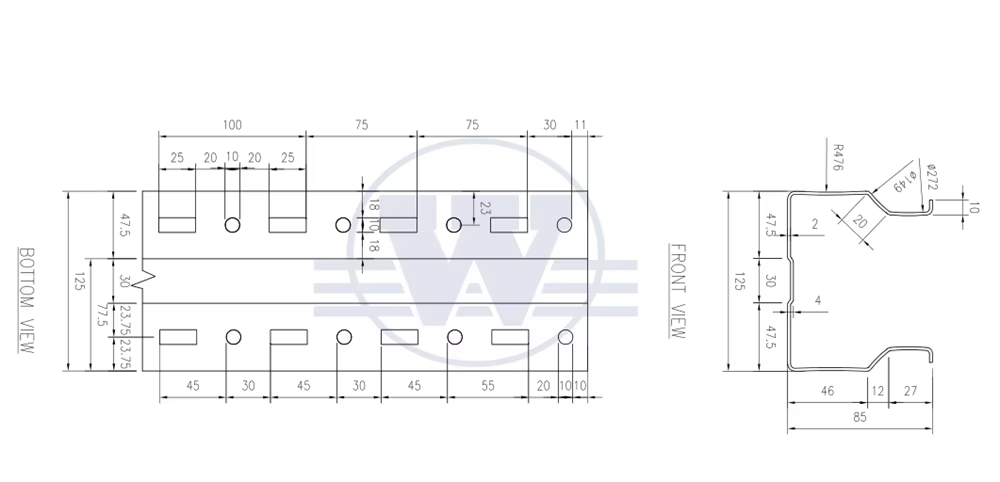

Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    20 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Type
Photovoltaic bracket production line
Tile Type
Steel
Feeding width
141mm
Rolling thinckness
1.5-4mm
Voltage
380V/220V/415v
Core components
PLC, Motor
Use
Photovoltaic bracket
Warranty
2 Years
Video outgoing-inspection
Provided
Machinery test report
Provided
Key selling points
High-Accuracy
Place of origin
China
Weight
9500 KG
Dimension (L*W*H)
9000*1800*1500
Material
galvanized Sheet, Zinc aluminum magnesium, black tape can be used
Total power
20kw
Hydraulic oil
46#
Gear oil
18 # hyperbola
Forming rows
22
Transmission mode
180 model gearbox
Shaft material
80mm high-quality 40 chromium quenching and tempering
Warranty of core components
3 years
Selling Units
Single item
Production Capacity (Product option)
10 m/min
Model number
WL-125
Power (W) (Product option)
15kw
Certifications & Compliance
CE
Lead time
20 days
Minimum order
1 Units
