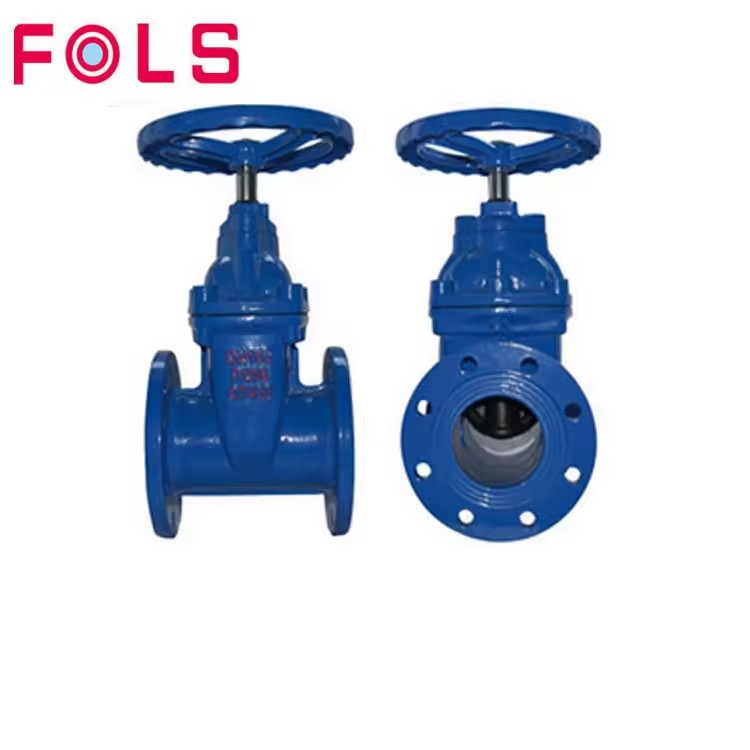

Handwheel Flange Type Cast Iron Gate Valve for Hdpe Pipe

Product Importer Gallery 01 · 08bc944d48

Product Importer Gallery 02 · b5172d311c

Product Importer Gallery 03 · d40ba7990f

Product Importer Gallery 04 · 6a7098f2ee

Product video

Certifications CE

Handwheel Flange Type Cast Iron Gate Valve for Hdpe Pipe

Name: Handwheel Flange Type Cast Iron Gate Valve for Hdpe Pipe
SKU: ZXX3-7ZNP-BJCE
Price: 30.0 USD
Availability: PreOrder

Available for enquiry 5.0 · 3 reviews

USD

$ 30.00 30.0 USD $ 30.00

Minimum order quantity: 1 Units

Key attributes

View all

Pressure

Medium Pressure

Media

Water

Material

Stainless Steel

Temperature of media

Normal Temperature

Power

Manual

Port Size

Standard, DN50-DN600

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Product Description

Materials of major parts

No.	Parts Name	Material
1	valve body	ductile cast iron
2	strobe	Ductile iron coated with EPDM
3	bolt	galvanize
4	sealing ring	NBR
5	bonnet	ductile cast iron
6	stem	stainless steel
7	O sealing ring	NBR
8	gasket	tin bronze
9	shaft sleeve	tin bronze
10	bolt	galvanize
11	shaft-cup	ductile cast iron
12	dust cover	NBR
13	hand wheel	cast zinc
14	clamp nut	cast zinc

Main size

No.	DN	D	D1	N-ød	L	H
1.0MPa	1.6MPa	1.0MPa	1.6MPa	1.0MPa	1.6MPa
GJZX-45-16	50	182	125	4-19	178	340
65	194	145	4-19	190	370
80	207	160	8-19	203	410
100	228	180	8-19	229	450
125	257	210	8-19	254	480
150	270	240	8-23	267	550
200	294	295	8-23	12-23	292	630
250	405	350	355	12-23	12-28	330	750
300	460	400	410	12-23	12-28	356	820
350	520	460	470	16-23	16-28	381	980
400	580	515	525	16-28	16-31	406	1010
450	640	565	585	20-28	20-31	432	1270
500	715	620	650	20-28	20-34	457	1270
600	840	725	770	20-31	30-37	508	1390

Main Picture

handwheel flange type cast iron gate valve for hdpe pipe

Our main products the series of electric actuator are elaborately designed and ma nufactured by the most advanced technology according to the practical situation. The series of electric actuator are ch aracterized by driving device and transmission gear in one, small volume, light weight, good-looking appearance, and remarkable performance. They have been widely used in various fields, such as paper making, pharmaceuticals, food, chemical, petroleum, electricity, fire protection, air-condition, water supply and industrial automation and so on.

Production Process

Test & Certifications

Trade Terms

1. Trade term: EXW FOB CIF etc.

2. Delivery way: By express, By Sea, By air.

3. Payment term: TT Western Union L/C etc.

4. Payment condition: Payment: T/TSample cost: 100% payment. Order payment: T/T, 35% deposits before production, 65% balance to be paid before dleiverying

5. Delivery time: Sample days: 5 working days Order days: 15 days

6. Shipping freight are quoted under your requests

7. Shipping port: Guangzhou, Shenzhen

8. Discounts are offered based on order quantities

9. MOQ:1pcs sample

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

Lead time will be confirmed with your quotation.
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Pressure

Medium Pressure

Media

Water

Material

Stainless Steel

Temperature of media

Normal Temperature

Power

Manual

Port Size

Standard, DN50-DN600

Application

valve

Structure

Gate

Model number (Specification)

GJZX-45-16

Place of origin

China, Guangdong

Color

Stainless Steel Color

Seal Material

PTFE, Flexible graphite

Valve Body

gate valve

Disc

WCB+stainless Steel

Rotation angle

0-90°

Weight

depens on differenct size

Name

handwheel flange type cast iron gate valve for hdpe pipe

Working medium

Water, oil, gas

Surrounding Temperature

30°C - +60°C

Packaging Details

wooden packing

Port of dispatch

GuangZhou port, Shenzhen port

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Supply Ability

5000 pieces per Month
