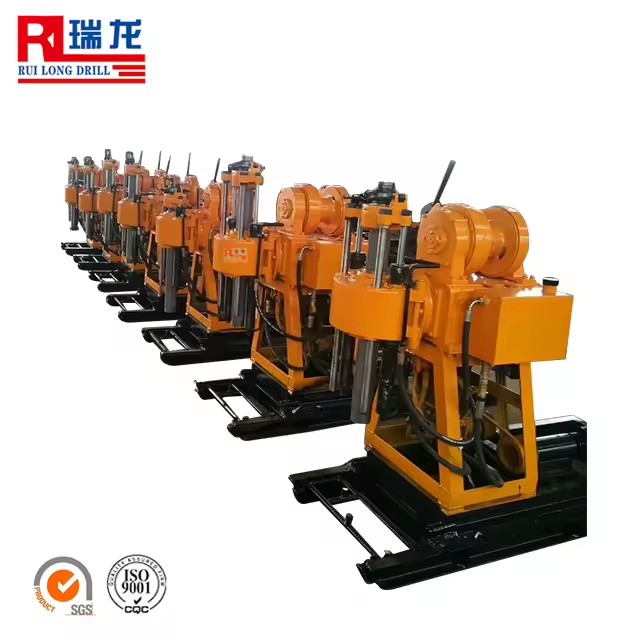

Product Importer Gallery 01 · 5ee6a7721b

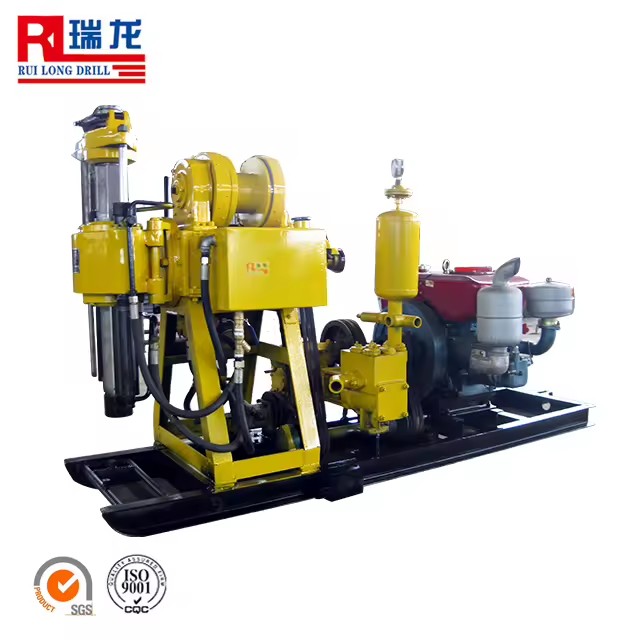

Product Importer Gallery 02 · 75756439b5

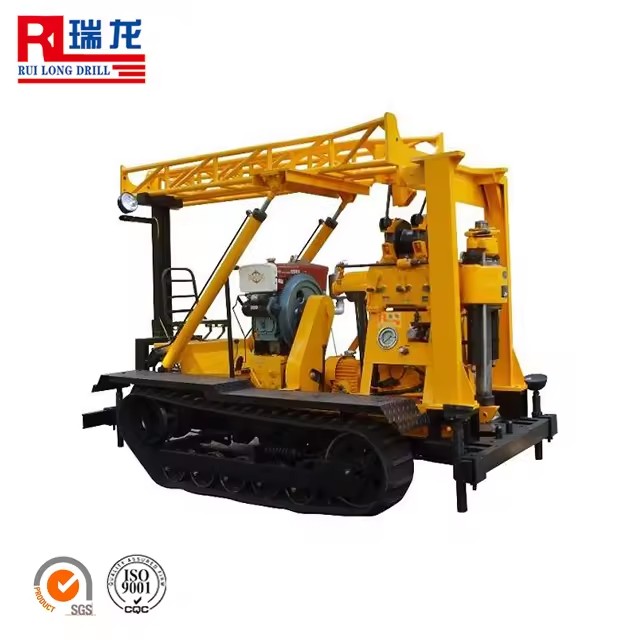

Product Importer Gallery 03 · 720b890414

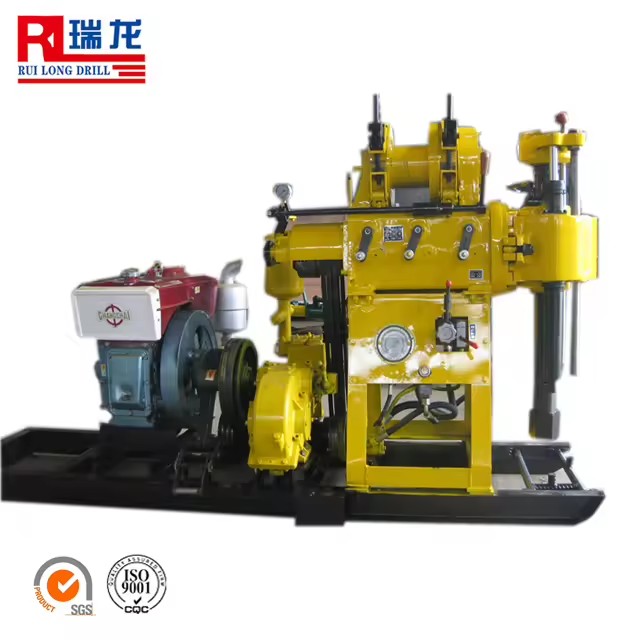

Product Importer Gallery 04 · 44f2aa4b1c

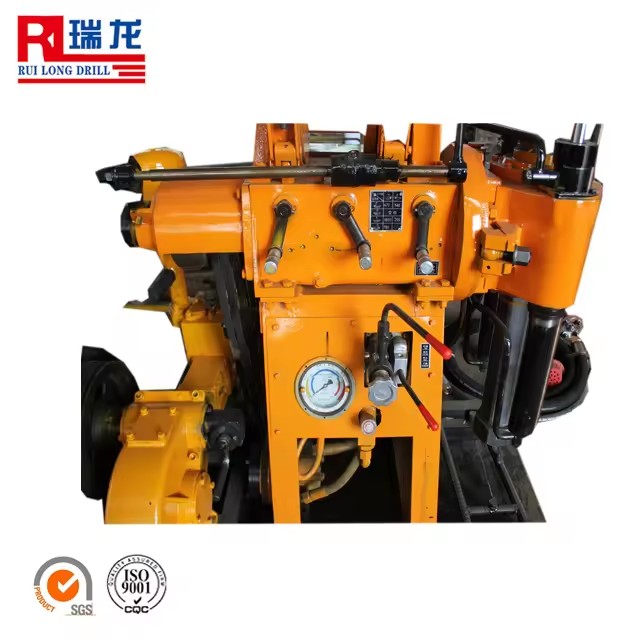

Product Importer Gallery 05 · dc4c1d0ba0

Product video

Certifications ISO

Drilling Machine Water Well Drilling Rig

Name: Drilling Machine Water Well Drilling Rig
SKU: ZWFY-9BSX-FH9Z
Price: 7820.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 7,820.00 7820.0 USD $ 7,820.00

Minimum order quantity: 1 Units

Key attributes

View all

Usage

Water Well, Ore

Type

Rotary Drilling Rig

Drilling Depth

Max.100m

Drilling Diameter

60 mm(2.36in), 50 mm(1.97in), 75mm(2.95in)

Power Type

Diesel

Voltage

380V

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Our drilling rigs are widely used in water well drilling,geological exploration,construction building exploration,drilling inspection of concrete structure holes,river dam construction,subgrade grouting hole drilling abd direct grouting,ground temprerature central conditioning construction,etc..

Product Parameters

Drilling rig and accessaries technical parameters and specification is as the following

1.Drilling Rig Technical Parameters
Drilling Depth(m)	50~100m
Max. Open Hole Diameter(mm)	260
End Hole Diameter(mm)	75
Drill Rod Diameter	50mm
Drilling Angle	90~75
Drill Weight (No include power)	810kg
Overall Dimension	25009001300mm
2.Spindle
Spindle Speed	142,285,570r/min
Spindle Stroke	450mm
3.Hoist
Max. Single Line Hoisting Capacity	960kg
Reel Lifting Speed	0.41,0.82,1.64m/s
Tightrope Diameter	10mm
Tightrope Cubic Measure	27mm
Hug Follgate Belt Width	70mm
4.Mud Pump
Type	Horizontal Single Urn Twin-action
Discharge/Displacement	95/77L/Min.
Diesel	S1105 18HP
Electric Motor	11KW,1440r/min
Max. Pressure	1.2Mpa
Work Pressure	0.7Mpa
Water Inlet Diameter	30mm
Water Outlet Diameter	25mm
Triangle Conveyre Belt	B1575mm

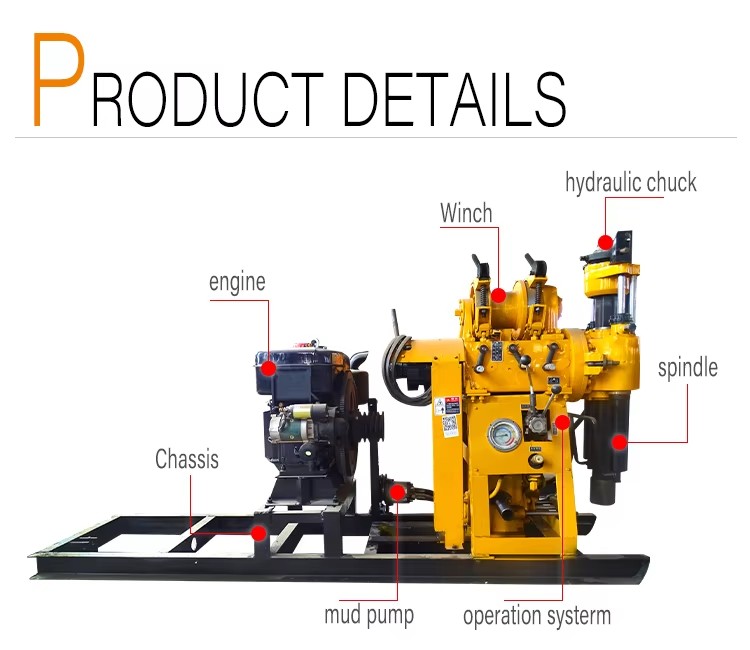

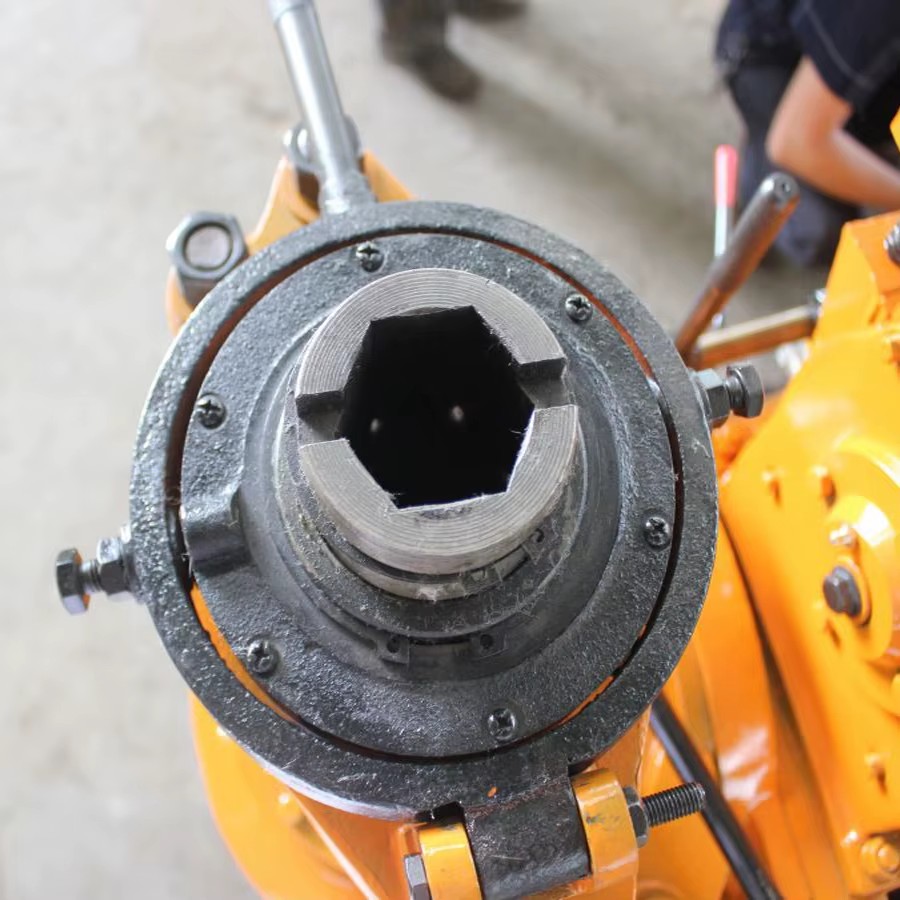

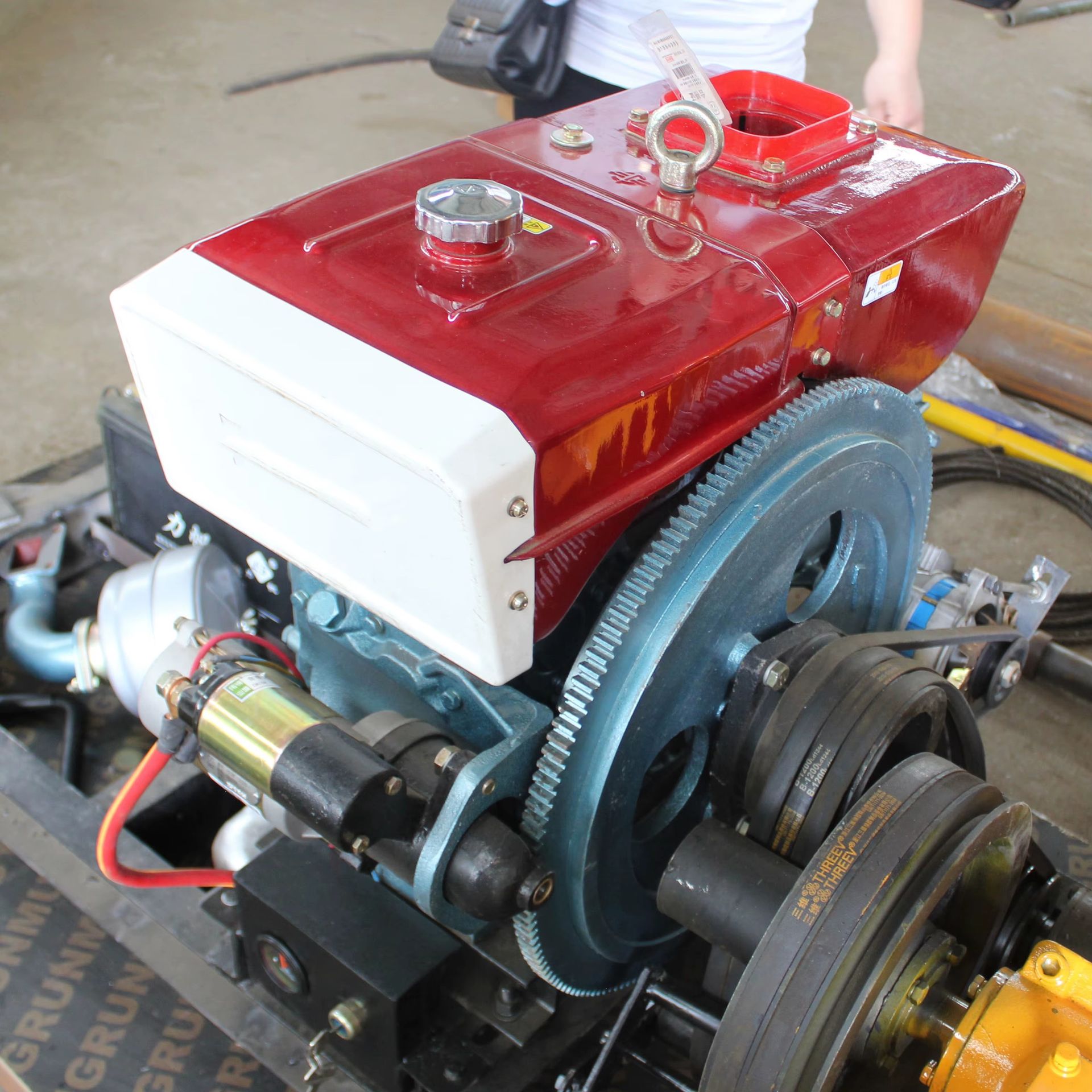

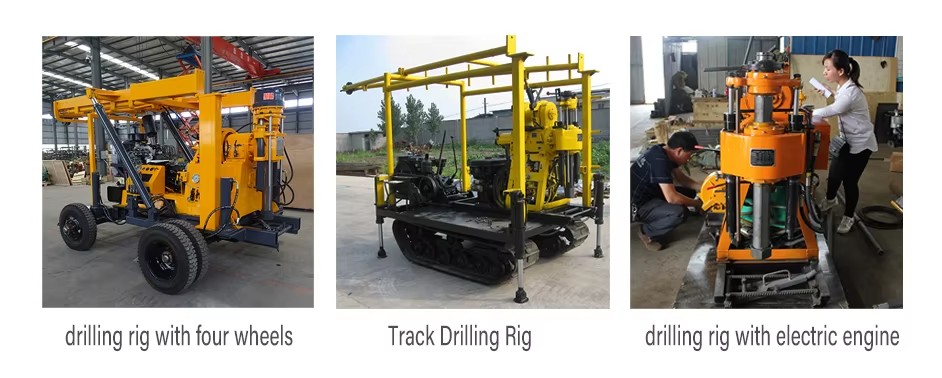

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

25 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Usage

Water Well, Ore

Type

Rotary Drilling Rig

Drilling Depth

Max.100m

Drilling Diameter

60 mm(2.36in), 50 mm(1.97in), 75mm(2.95in)

Power Type

Diesel

Voltage

380V

Core components

Motor, Gear, Engine, Pump, Gearbox

Warranty

6 Months

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

China

Weight

1000 kg(2204.62lb), 880Kg

Dimension (L*W*H)

21*15*16

Power(w)

22kw

Dimension(L*W*H)

2.7*0.9*1.5m

Certification

ISO

Local Service Location

None

After-sales Service Provided

Video Technical Support

Selling Units

Single item

Model number

HZ-200YY

Power (W) (Product option)

18KW(24.14hp)

Lead time

25 days

Minimum order

1 Units

Customer reviews

0.0 (0)

No reviews yet

Be the first customer to review this product.

Write a review

Name

Country

Rating

Photos

Up to 5 JPG, PNG or WebP images; 5 MB each.

Review

Request custom sourcing

Can’t find what you’re looking for? Share the requirement and our sourcing team will find the right industrial product.

Best-match productsCompetitive quotesFast turnaround

Request custom sourcing

Product sheet Official website https://gofinch.cloudpepper.site

Drilling Machine Water Well Drilling Rig

Open URL

Price

$ 7820.00

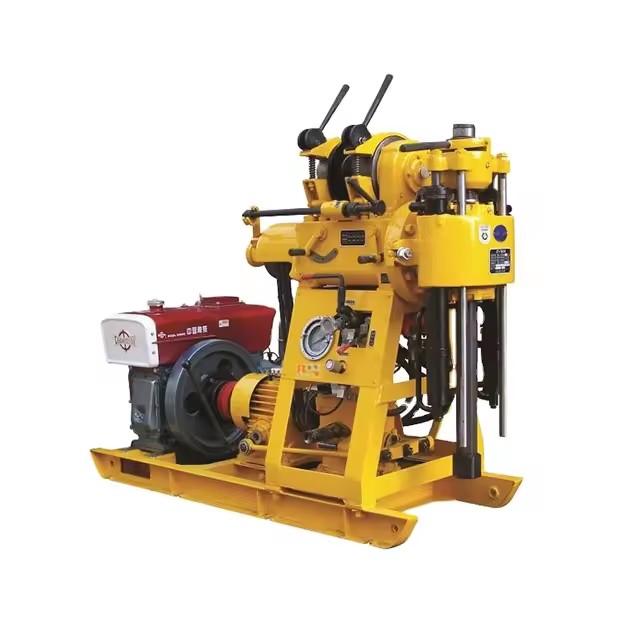

Drilling Machine Water Well Drilling Rig product image
