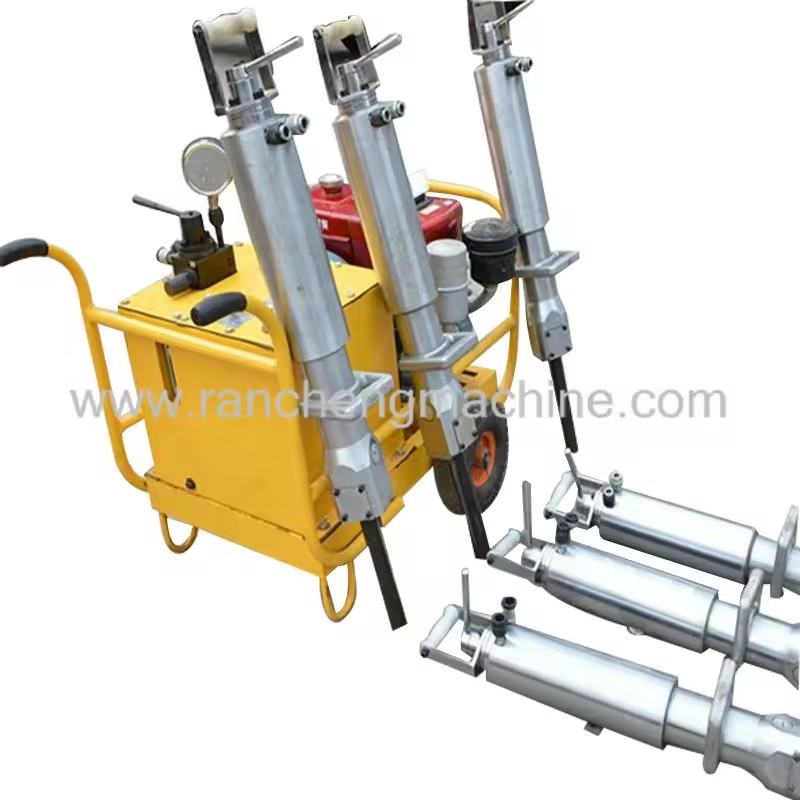

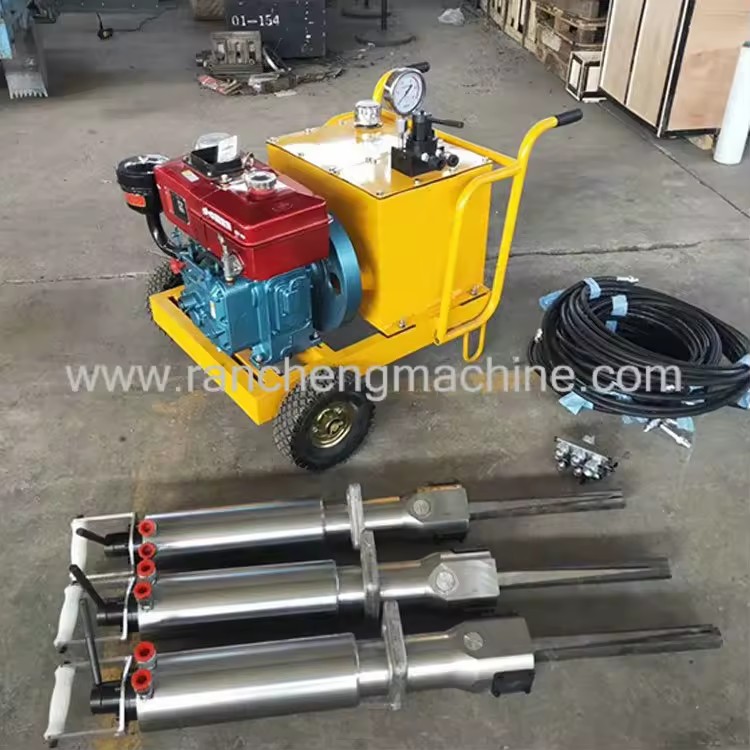

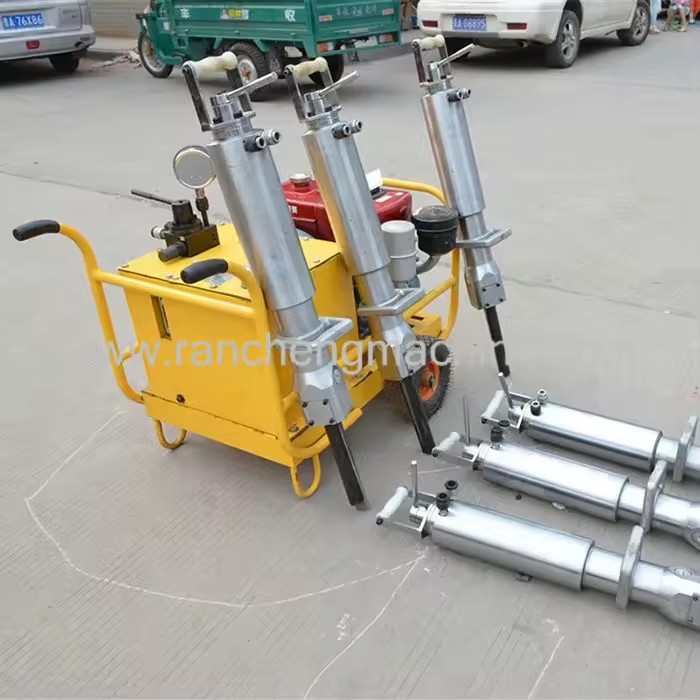

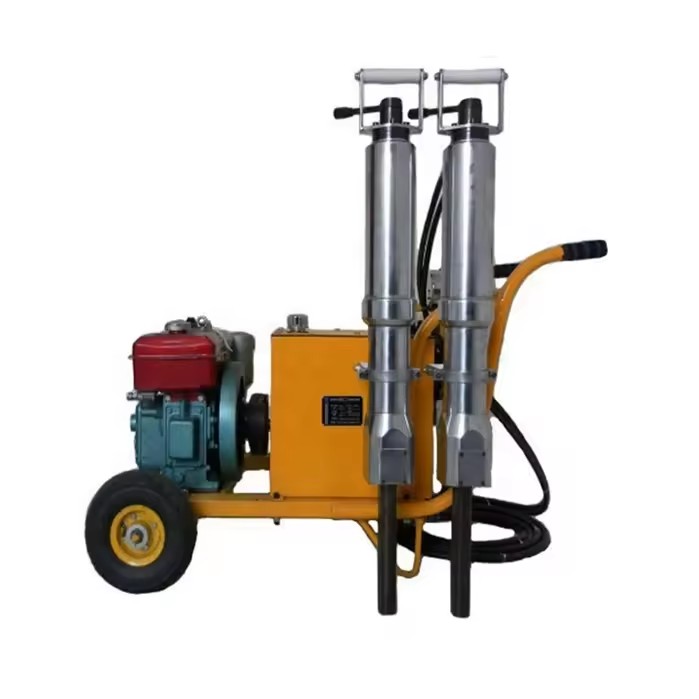

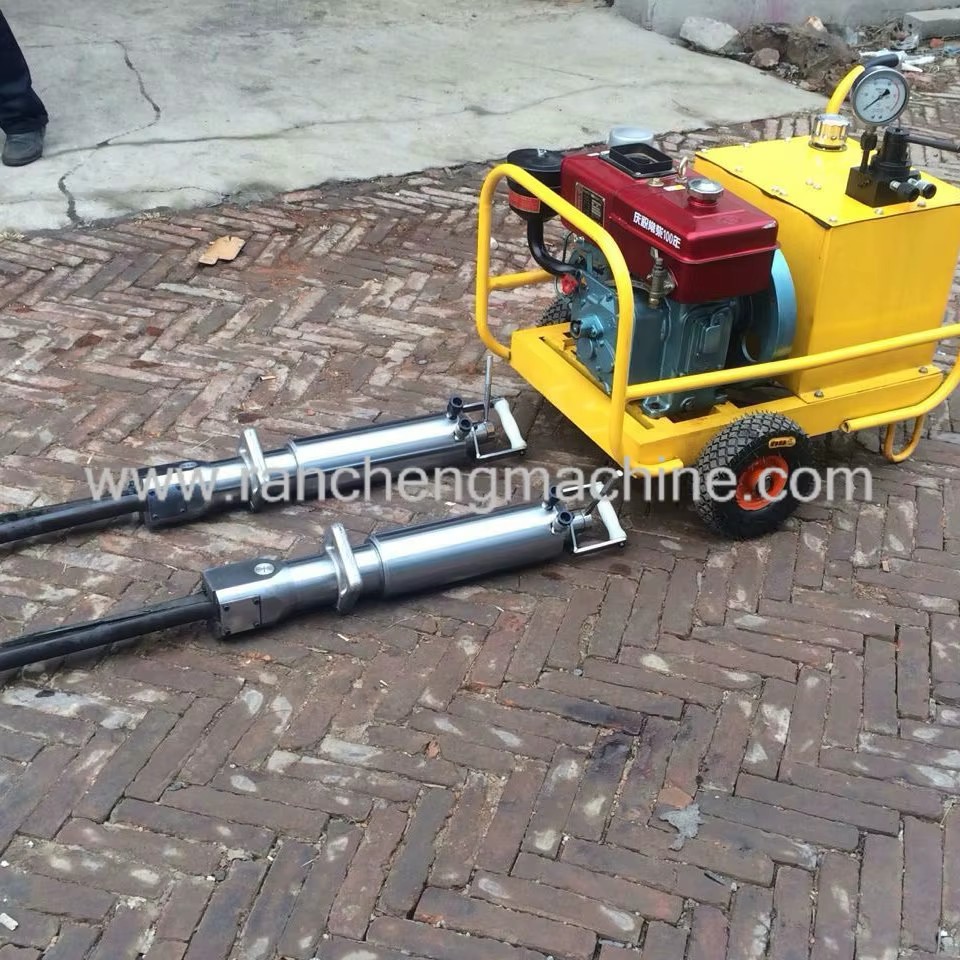

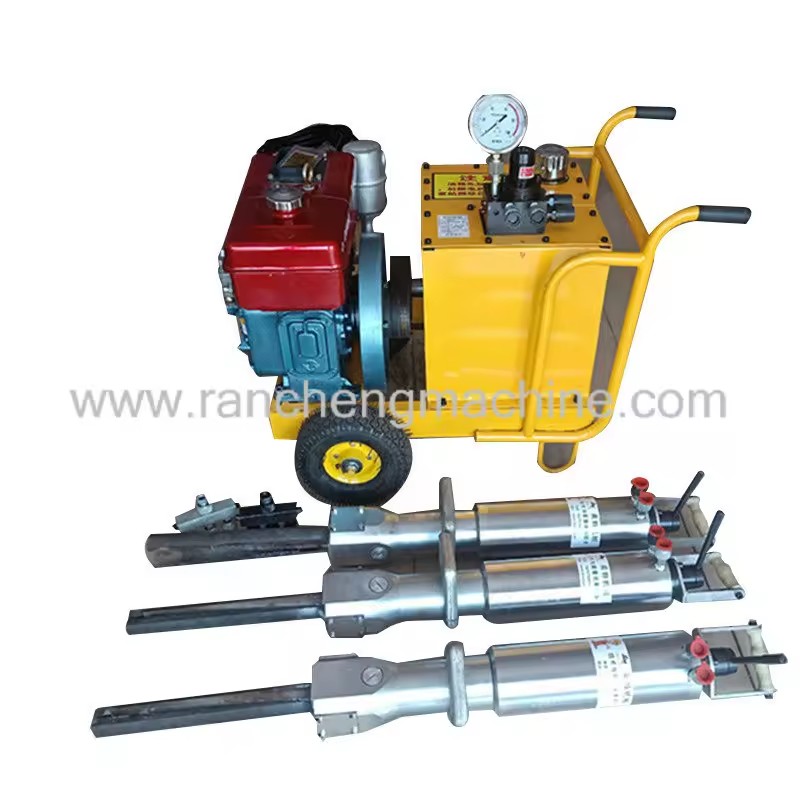

The hydraulic rock splitter consists of two parts: a power station and a splitter. The splitter is driven by the ultra-high pressure oil output from the pumping station to generate a huge driving force, and after mechanical amplification, the split object can be split in a predetermined direction. The product is mainly used for construction and stone mining operations; the secondary disintegration of large ore (metallic or non-metallic minerals); partial and complete demolition of concrete components (cement pavement, locomotive foundation, bridge and house components); natural stone.
Compared with traditional operation methods in the above fields, the splitting machine has simple structure, convenient operation, small size, light weight, large splitting force (single machine splitting force up to 680T), no vibration, no impact, No noise, fast splitting, high operating efficiency, low cost, safety, energy saving and a series of advantages. Compared with similar foreign products, the splitter has low price (about 1/4 of the price of foreign products), high efficiency (double the speed), and good performance. It is more suitable for the secondary disintegration of large ore.
Features for hydraulic rock splitter
1. Safe This splitting machine performs controllable work in a static hydraulic environment, and will not produce some hidden dangers like original mining and other impact demolition and rock drilling equipment; there is no need to take complex safety measures.
2. Environmental friendly When the splitter is working, it will not produce vibration, impact, noise, dust, flying debris, etc. The surrounding environment will not be affected, even in densely populated areas or indoors, and near precision equipment, can work without interference.
3. Low cost This splitting machine can complete the splitting process in a few seconds, and can work continuously without interruption, with high efficiency, low operation and maintenance costs, and no need to take isolation or other time-consuming and expensive safety measures like the original operation.
4. accuracy Different from most dismantling methods and equipment for transmission, this splitter can accurately determine the splitting direction, split shape and size to be split in advance, with high splitting accuracy.
5. Applicability The humanized appearance design and durable structure design of this splitter ensure that its use is simple and easy to learn, only requires one person to operate, convenient maintenance and long service life; the splitter and hydraulic pump station are very convenient to transport.
advantages of hydraulic rock splitter
1) Powerful( Max:1000T ), it can split the stone or concrete easily.
2) High Efficiency, it can split the stone in 5-10 seconds.
3) Long-life, the wedges stands wear and tear
4) Easy to operate and maintain
5) Now it is widely used in mineral mining(cave mining), civil engineering construction and demolition. It is also an indispensable tool in construction, river dredging, salvation etc.
6) Split all kinds of natural stones, rock, granite, marble mining & quarrying.
technical data of hydraulic rock splitter
| Splitter Gun |
| Model | RC -250 | RC -350 | RC -450 |
| Wedge Length(mm) | 250 | 350 | 450 |
| Splitter Lebght(mm) | 1000 | 1100 | 1200 |
| Drilling Depth(mm) | 500 | 700 | 900 |
| Drilling Diameter (mm) | 42 | 46 | 46 |
| Crack Width(mm) | 10-20 | 10-20 | 10-20 |
| Splitting Time(s) | 10-15 | 10-15 | 10-15 |
| Splitting force(T) | 500 | 800 | 800 |
| Weight (kg) | 30 | 30 | 30 |

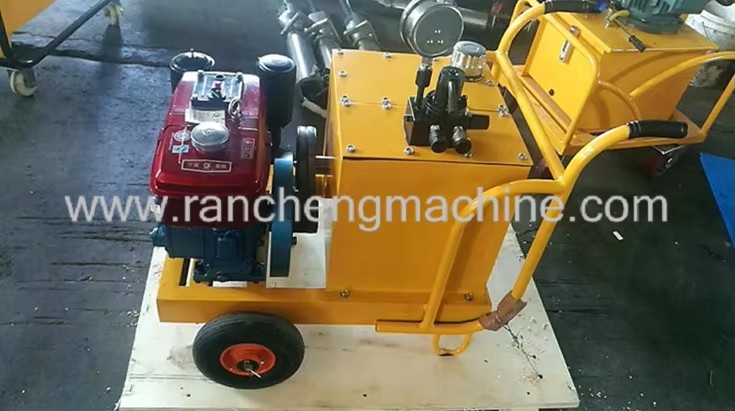

| Hydraulic Pump Pack Parameters |

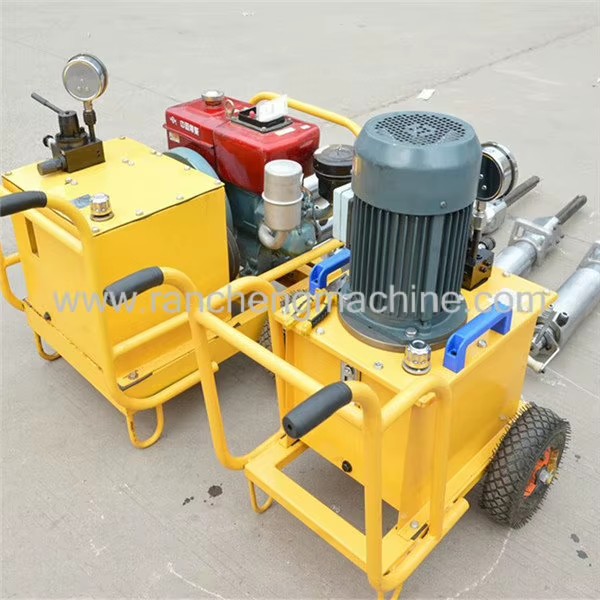

| Engine | Diesel | Electric | Pneumatic | Gasoline |
| Power | 6HP | 4kw,5.5kw | 8HP | 8HP |
| Weight | 150kg | 130kg | 130kg | 150kg |

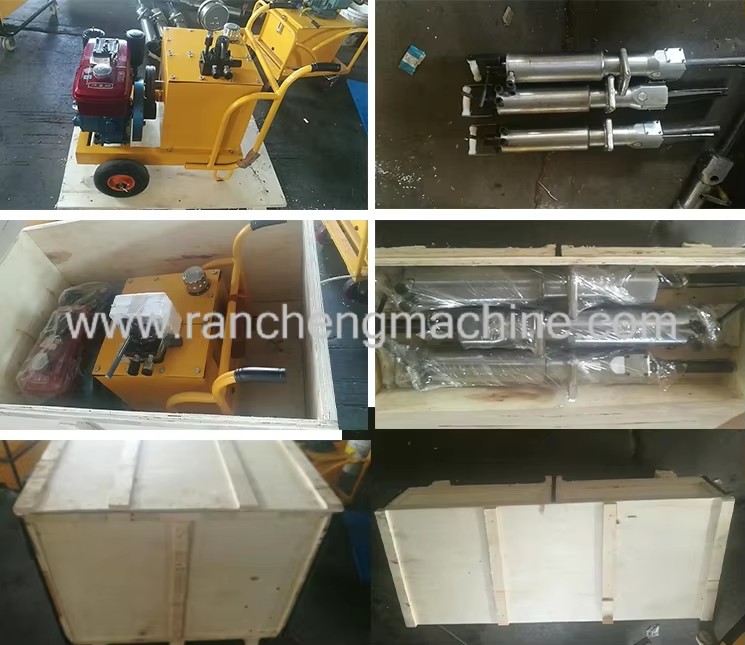

the rock splitter is packed into plywood box,it can be shipped by LCL
1,24/7 service by chat online and
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
are dedicated in designing and manufacture drilling rigs,mud pump,air compressor and drilling tools etc,with rich experience,our products are exported to around 200 countries and areas in the world,get very good feedbacks from our clients
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
1.
Machinery is a very professional drilling rig supplier. We have rich experience in this industry for 11 years.Now our products are serving around the world.we have High Quality, Competitive Price, and Fast Shipment.
2.Do you offer any custom designs?
Yes,we have our own trade factory. We provide services to top range partners.Produce a superior product for you by your designs.
3,How to make sure the quality we sent to you is same with what we said?
We are the Golded supplier on, order through the
4.How To Order?
Step 1, please tell us what model and quantity you need
Step 2, then we will make a PI for you to confirm the order details
Step 3, when we confirmed everything, can arrange the payment
Step 4, finally we deliver the goods within the stipulated time.
5. When will make delivery?
About 10-15 work days after receipt of the payment.
6.After-sales Service
1 year warranty for all kinds of products
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
7,whether we can visit your factory
Yes,you are warmly welcome to visit us.
