Product video
Certifications CE

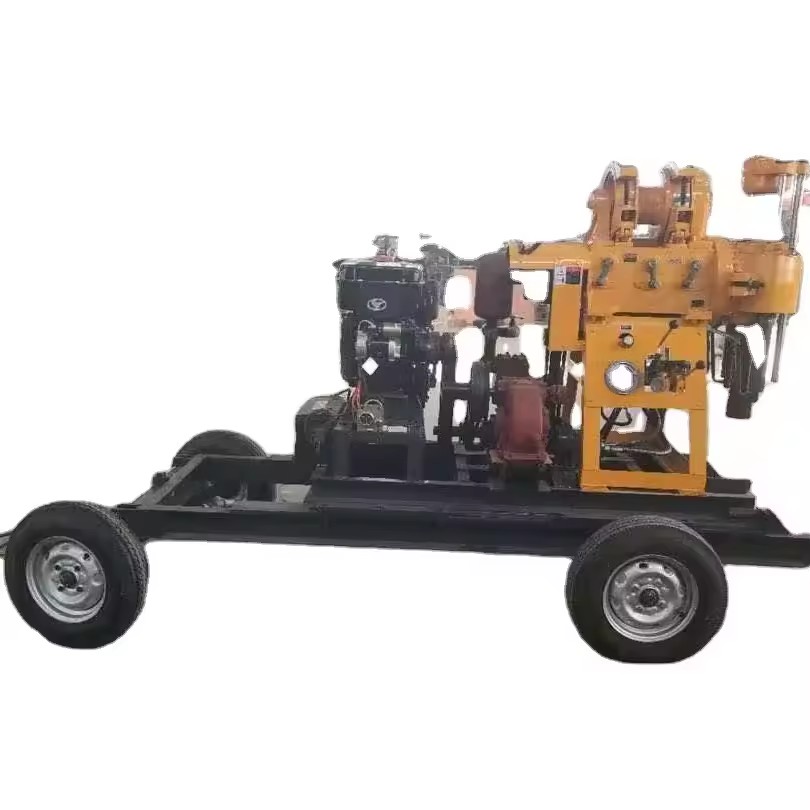

200m Deep Drilling Rig for Water Well Drilling Diesel-Powered Portable Engine Pump Motor Gear Bearing 300mm Drilling Diameter

Available for enquiry 0.0 · 0 reviews
USD

$ 5,220.00 5220.0 USD $ 5,220.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Water Well
Type
Core Drilling Rig
Drilling Depth
Max.200m, 200m
Drilling Diameter
300 mm, 75-325mm
Power Type
Diesel
Voltage
380V
Product description

Product Application

Drill for Water well, Geological exploration/investigation, Soil sample taking,Soil test, SPT Test, Mining project, etc.

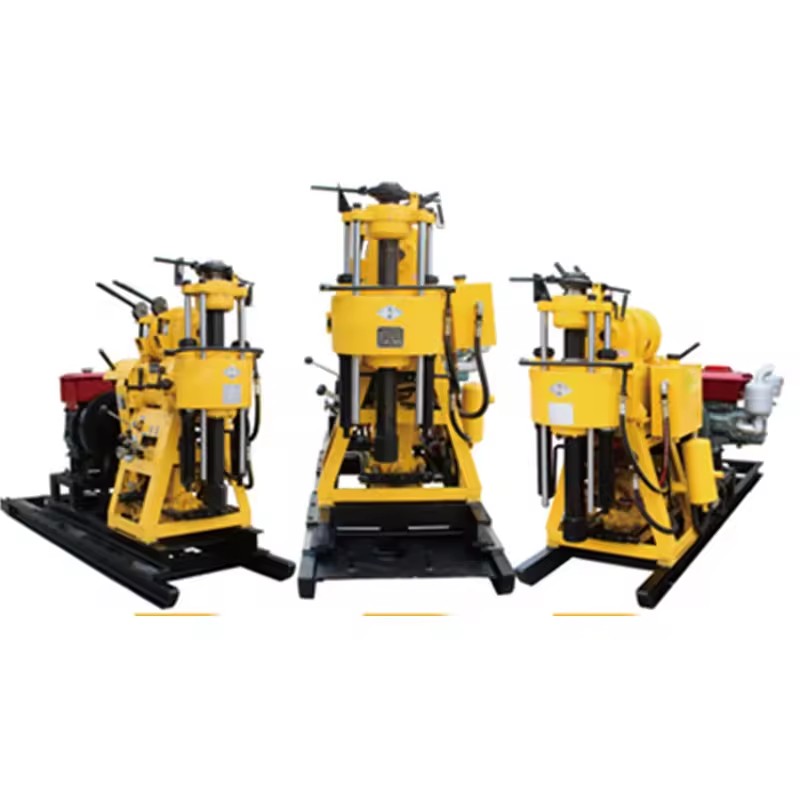

SPECIFICATIONS FOR 100m depth / 80 meters shallow water well drilling rig
Main parametrModelYT-130YYT-180YYT-200Y
Drill depth130m180m220m
Drill diameter75-225mm75-225mm75-325mm
Drill pipe size55mm*4.2m
Drill angle90-75 degree
Power13.2kw13.2kw14.7kw
Weight740kg750kg970kg
Size.m2.4x0.8x1.42.4x0.8x1.42.7x0.9x1.5
SpindleSpeed(r/min)142/285/570130/300/480/730/830/104564/128/287/557
Stroke(mm)450
WinchMax pull capacity(kg)200021002500
pull speed(m/s)0.41-1.640.35-2.230.12-0.95
Rope diameter(mm)9.39.312.5
Rope capacity(m)272735
Drill mastHeight(m)6.5
Rated Load(T)18
Mud pumpFlow(L/Min)9595145
Max pressure(MPa)1.21.22
Times/min939393
Inlet hose dia(mm)515151
Outlet hose dia(mm)323238

Main Features

1.Drills up to 250m deep, 75-300mm diameter, trailer mounted. 2. Hydraulic control, diesel engine/electric engine, trailer mounted. 3. Drill on soil, sand, gravel, thick\hard rocks, marble, Quartz, and any other hard ground, etc. 4. In the accessory list there are alloy bit for soil, diamond bit for rock, PDC bit for small rock. 5. It is a full set of machine with all 200m accessory can be used upon arrival.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Machine Parts

Name: Diesel engine

Brand: changchai

Original

Domestic famous engines, strong driving force, low fuel consumption, 14.7KW

Name: Mud pump Brand: YT Original: Flow: 145L/min

Max pressure: 2MPa

Times/min: 93

Inlet hose dia:51mm

Outlet hose dia: 38mm

Name: Drilling pipe/rod.

Brand: YT

50mm /60mm diameter

4.2m length

Name: Skid mounted Brand:YT Original: Skid mounted and trailer mounted

Machine part

Name: SPT Tools

Main parts

Alloy bit: for sand, soil drilling

Diamond bit: rock, hard rock, quarry, marble, gold ground drilling

3 wing bit: Hole opening drilling

Packaging
Size460mm (L) *30mm (W) * 40mm(D)
Weight1.2 T
Packaging DetailsThe machine package is wooden it contains drilling machine with accessory..
Packaging
Size251mm (L) *97mm (W) * 170 (D)
Weight1.2T
Packaging DetailsThe drilling pipe and drilling mast package is PVC pipe (Size: 251mm*97mm*170mm). Mast(Size: 262mm*90mm*40mm)

1400m core drill rig

91.8% Response Rate

Certifications & compliance
CE
Complies with EU standards
Description images

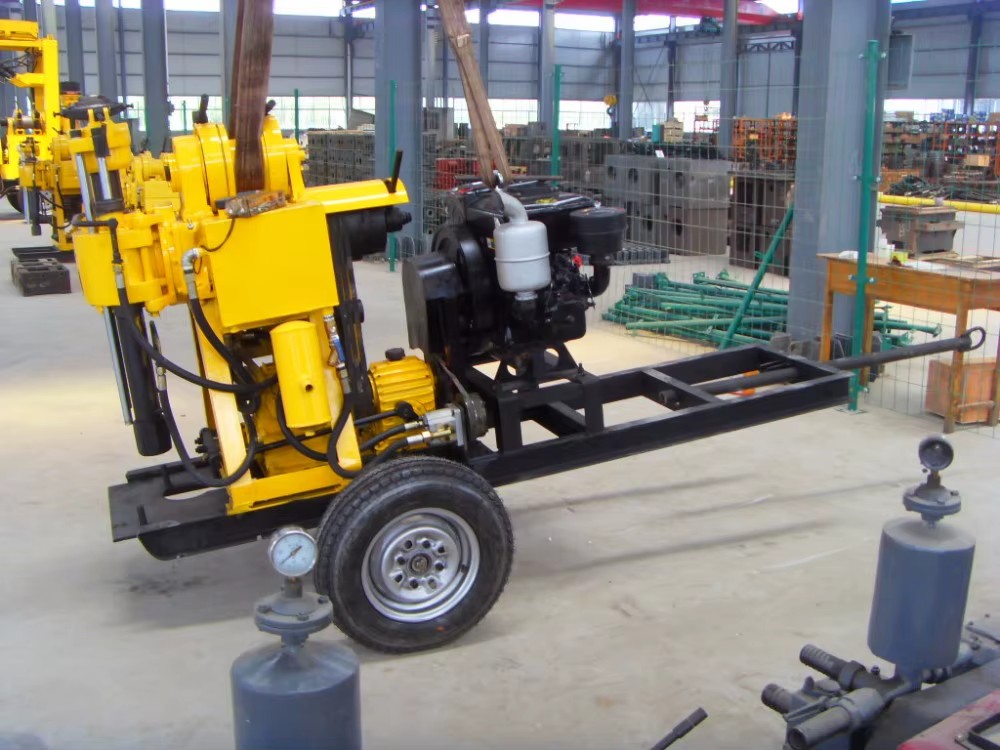

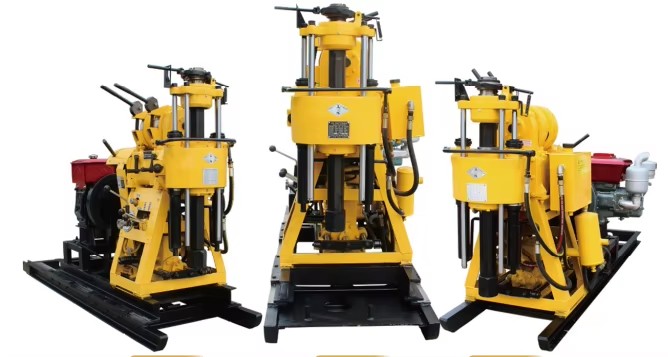

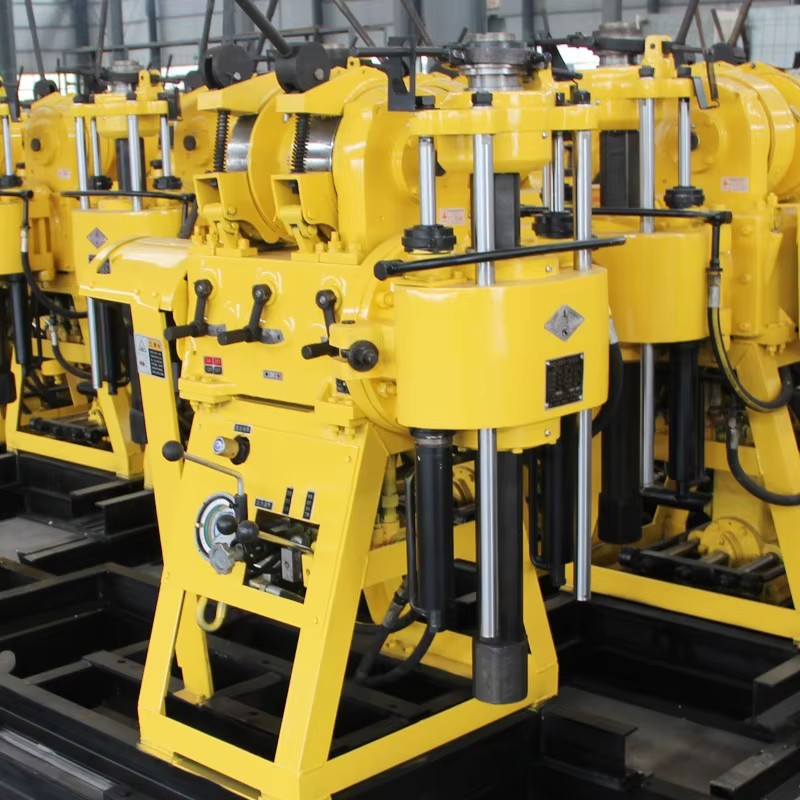

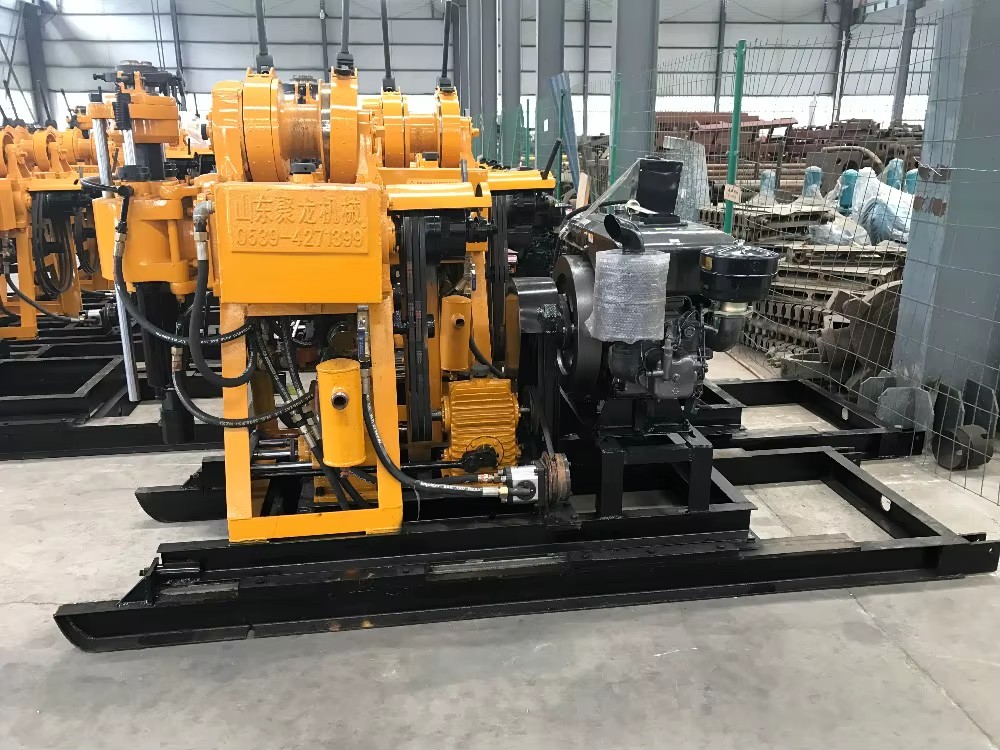

Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 25 fields
Usage
Water Well
Type
Core Drilling Rig
Drilling Depth
Max.200m, 200m
Drilling Diameter
300 mm, 75-325mm
Power Type
Diesel
Voltage
380V
Core components
Bearing, Motor, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Shandong
Weight
650 kg
Mobility
YES
Application
water well drilling and soil test
Drill pipe size
50mmx4.2m
Drill angle
65-90 degree
Spindle speed
64/128/287/557r/m
Max Winch pull capacity
2500kg
Mud Pump
145L/Min
Drill Mast
6.5m
Selling Units
Single item
Model number
130YY
Power (W) (Product option)
20KW
Certifications & Compliance
CE
Lead time
7 days
Minimum order
1 Units
