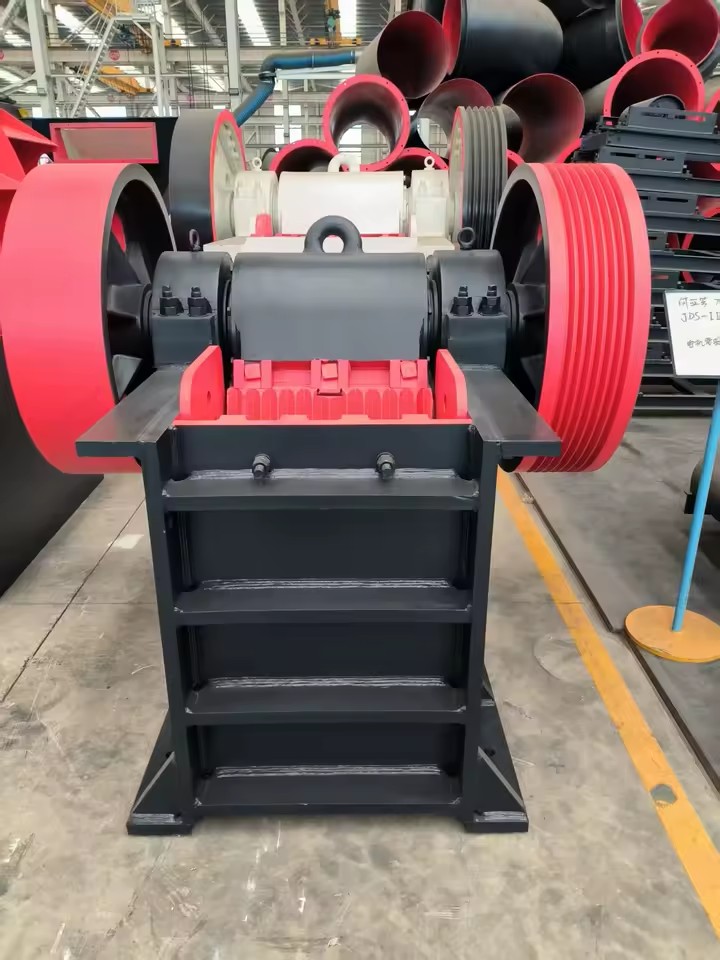

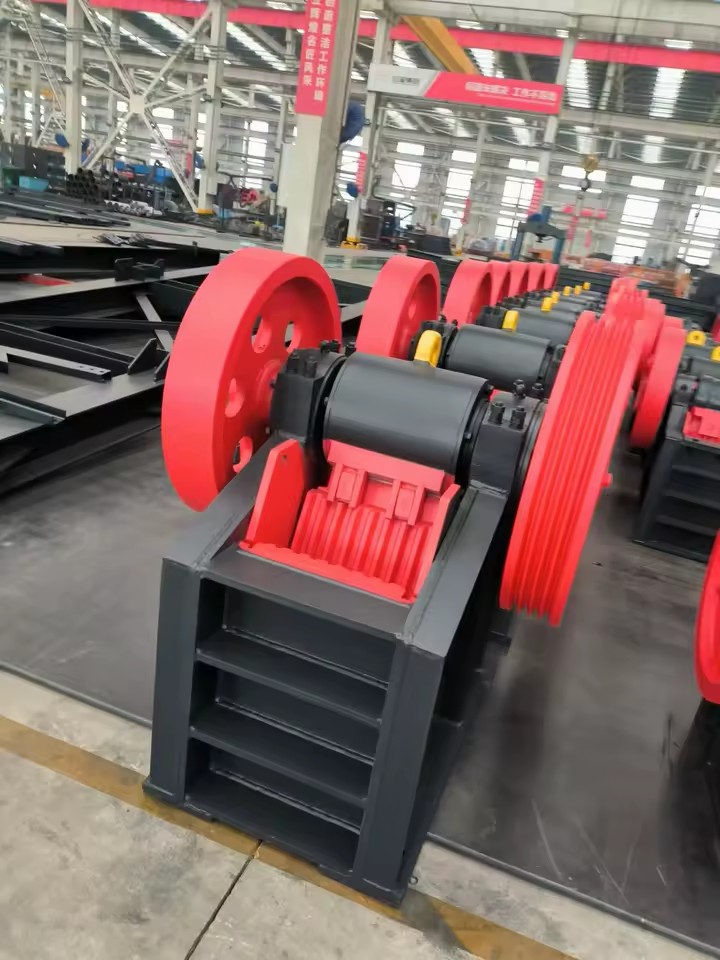

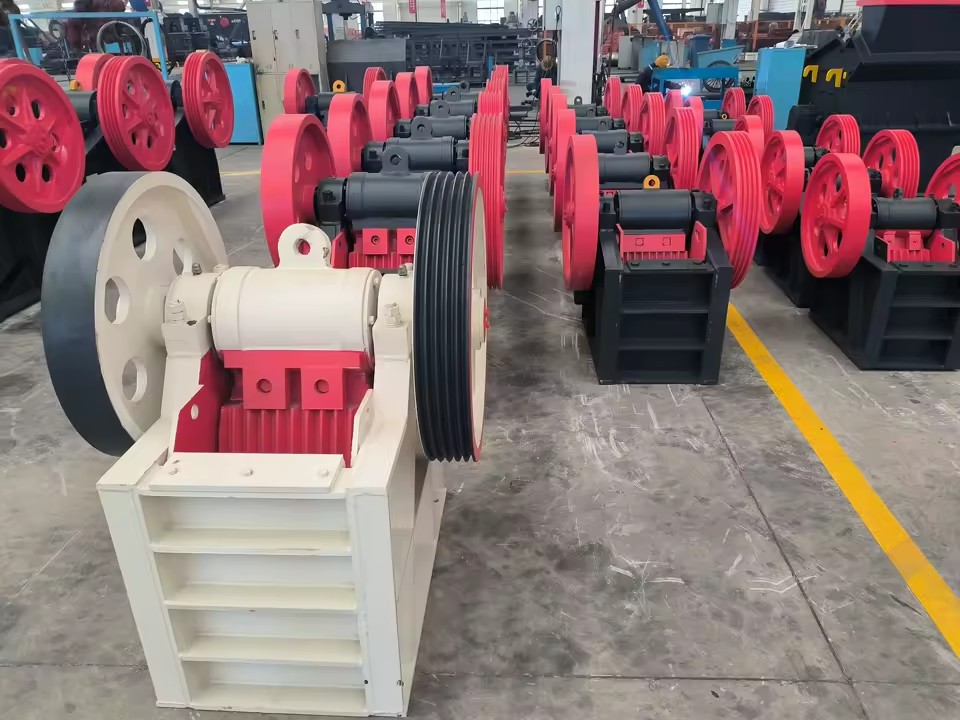

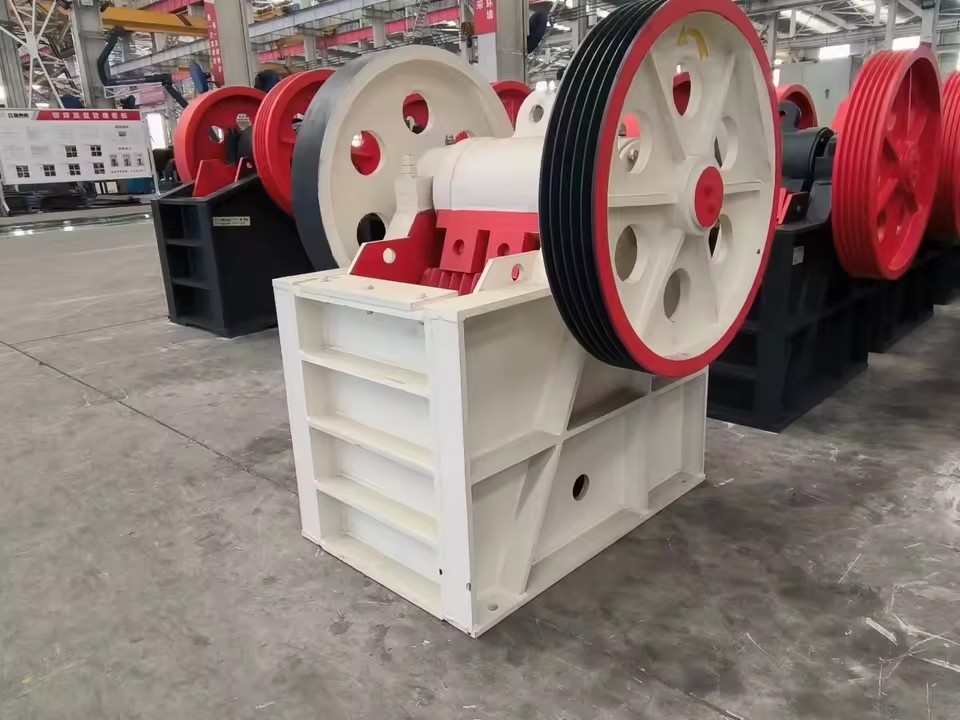

Factory Small Scale Good Price Jaw Crusher PE200*350 for Mining & Construction with 3-10t/h Capacity AC Motor Easy Operation

Product Application

Jaw crusher is mainly used for the medium-granularity crushing of all kinds of ores and large materials in mine, metallurgy, building material, highway, railway, water conservancy and chemistry. The maximum compression strength of the materials to be crushed is 320MPa.

Main Features

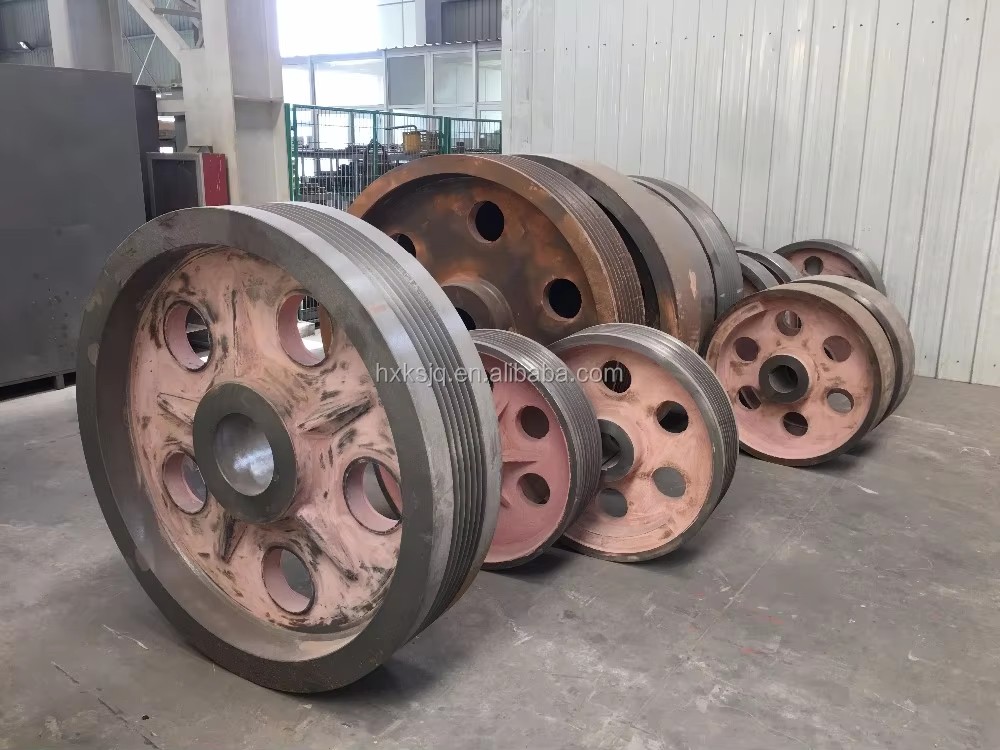

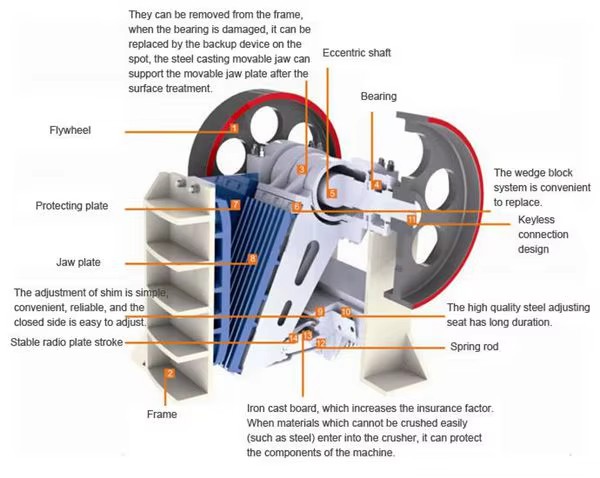

1. It adopts world-level manufacturing technology and high-end manufacturing materials. 2. More advanced movable jaw assembly makes it more durable. The movable jaw assembly uses high-quality steel casting and drives through two large-sized cast steel flywheels. In addition, the heavy eccentric shaft also adopts forging stock which makes JC series jaw crusher have extraordinary reliability. 3. The bearing pedestal adopts unitary cast steel structure. The unitary cast steel bearing pedestal can ensure comprehensive fitting with the crusher rack, and at the same time, greatly increase the radial strength of the bearing pedestal, whereas split type bearing pedestal does not have these advantages.

Jaw Crusher working principle

The working manner of this series crushing machine is dynamic extrusion type, and its working principle goes like this: the electro motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft, and then movable jaw goes up, the angle between the toggle pate and the movable jaw is bigger, thus pushing the movable jaw to get close to the fixed jaw, and at the same time, the materials are crushed or smashed, thus reaching the goal of crushing; when the movable jaw goes down, the angle between the toggle pate and the movable jaw is smaller, under the effect of the draw bar and the spring, the movable jaw moves always from the fixed jaw, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber. With the continuous rotation of the electro motor, the movable jaw of the crusher will do periodic motion to crush and discharge the materials, thus realizing mass production.

Jaw crusher

Material: hard stone

Brand

Capacity: 200t/h

Input size: 600mm

Ouput size: >50mm

Stone Crushing line includes hopper, vibrating feeder, jaw crusher, cone crusher, vibrating screen, conveyor belts etc.

Material: gold ore Brand: Capacity: 80t/h Input size: 600-700mm Ouput size: 35mm Stone Crushing line includes hopper, vibrating feeder, jaw crusher, cone crusher, vibrating screen, conveyor belts etc.

Jaw crusher

Material: river stone Brand: Capacity: 180t/h Input size: 500mm Ouput size: 5mm Stone Crushing line includes hopper, vibrating feeder, jaw crusher, impact crusher, vibrating screen, sand making machine conveyor belts etc.

Jaw crusher

Material: limestone Brand: Capacity: 50t/h Input size: 500mm Ouput size: 20mm Stone Crushing line includes hopper, vibrating feeder, jaw crusher, impact crusher, vibrating screen, conveyor belts etc.
