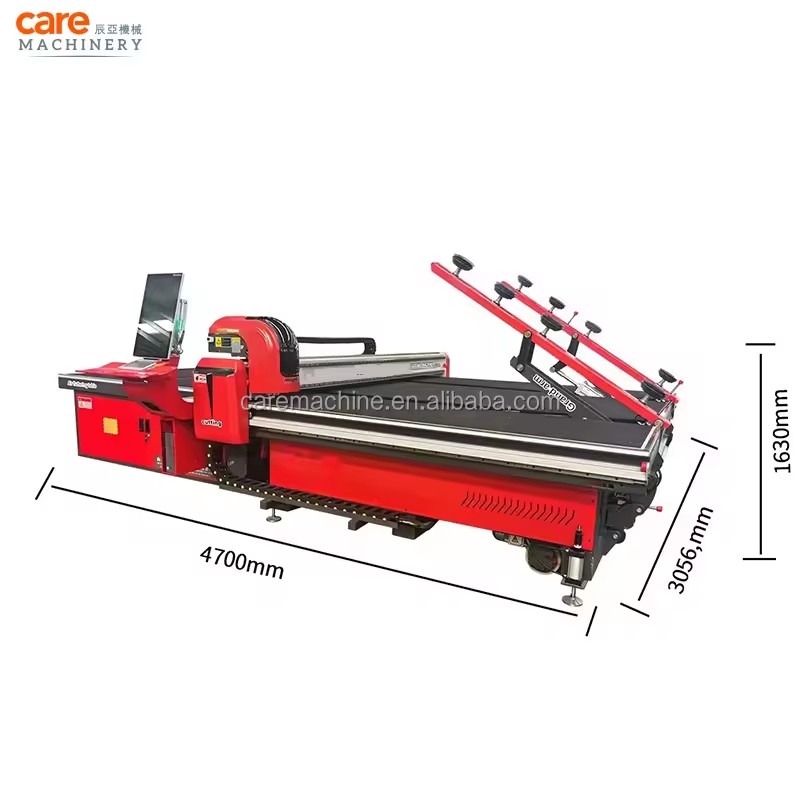

High Speed Full Automatic CNC Glass Cutting Machine Table for Tempered Glass

Product Introduction：

Parameters of CNC automatic glass cutting line

Power supply

380V 50Hz 3P or customized

Total power

22KW

Process glass scale

Max glass size

4200x2800mm

Glass thickness

3-19mm

Cutting precision

≤±0.2mm/m

Cutting speed

180m/min

Dimension

L×W×H (mm)

14470×3900x1200

Machine parameters

Dimensions(L*W*H)

3100*2400*1630mm

4100*2900*1400mm

Weight

1200kg

2300kg

Table height

880±30mm(Adjustable feet）

Power requirements

380V，50Hz

Installed power

8.5kW

Compressed air

0.6Mpa

Processing parameters

Cut Glass size

MAX.2500*2000mm

MAX.3600*2400mm

Cut Glass thickness

3~19mm

Cutter head speed

0 ～ 200m / min (can be set)

Cutting bridge speed

Cutting acceleration

≥8m/s²

Cutting knife seat

Cutting head can rotate 360 degrees (precise cutting of straight lines and special shapes)

Cutting accuracy

≤±0.25mm/m（Based on the size of the cutting line before the glass breaking）

CNC Glass Cutting Machine

Product Video Show

00:00

Products Description

CNC automatic glass cutting line is composed of auto glass loading machine, CNC glass cutting machine and pneumatic glass breakout table. The three machines are controlled by one central controller, and compose an automatic glass cutting line in high efficiency and precision.

Machine

parameters

More Information About The Machine：（产品细节展示及介绍）

Delta PLC Programmable Controller：

Compared with the general controller 1: High reliability, strong anti-interference ability 2: Strong general performance, variable control program, easy to use 3: Strong function, wide adaptation 4: Small size, light weight, low power consumption, easy maintenance

Yaskawa Servo Drive Servo Motor (optional)

1: Strong overload resistance 2: Smooth at low speed 3: Good performance at high speed 4: High precision, rated speed 2000-3000 rpm

Big operation Screen, easy to operate. OPTIMA optimization sytem, famous brand, Chinese Famous Gugool cutting software.

Product Features

1, CNC industrial controlling system, double side and double position loading. 2, CNC automatic glass cutting line adopts independent air source; 3, Use specialized glass typesetting optimization software; 4, Adopt servo motor driving, ensure stable operation, high precision and long service life; 5, Use imported high hardness cutting wheel as machine cutting knife; 6, Available for cutting of common glass and Low-E glass; 7, Automatic labeling or laser printing optional; 8, Low E film deletion fuction optional

Send Inquiry And Get The Quoter

Recommend Products

Recommended by seller

$8,850

set

$6,500-7,800

$5,150-8,250

$6,350-6,750

Company Profile

Certifications

FAQ

Q: Are you manufacture?

A:Yes,we are the professional manufacture which have more than 5 workshops.

Q: How about the service?

A:1).reply it at once if from Ali-trade manager,if by

Q:What’s the guarantee?

A:1).Our guarantee for 18 months. 2).24 hour’s technical support by

Q: Do you provide equipment operation training?

A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

Q: If our price is higher than another company or factories?

A:please check, what is is the different of the machine parts,service and guarantee,especially the machine inner electric parts,sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.

Q: How long is the delivery time?

A:For standard machines, it would be 3-15 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15 to 30 days.

Q: What is the payment?

A:Any payment method you want,such as L/C,T/T,D/P,West-union and so on.
