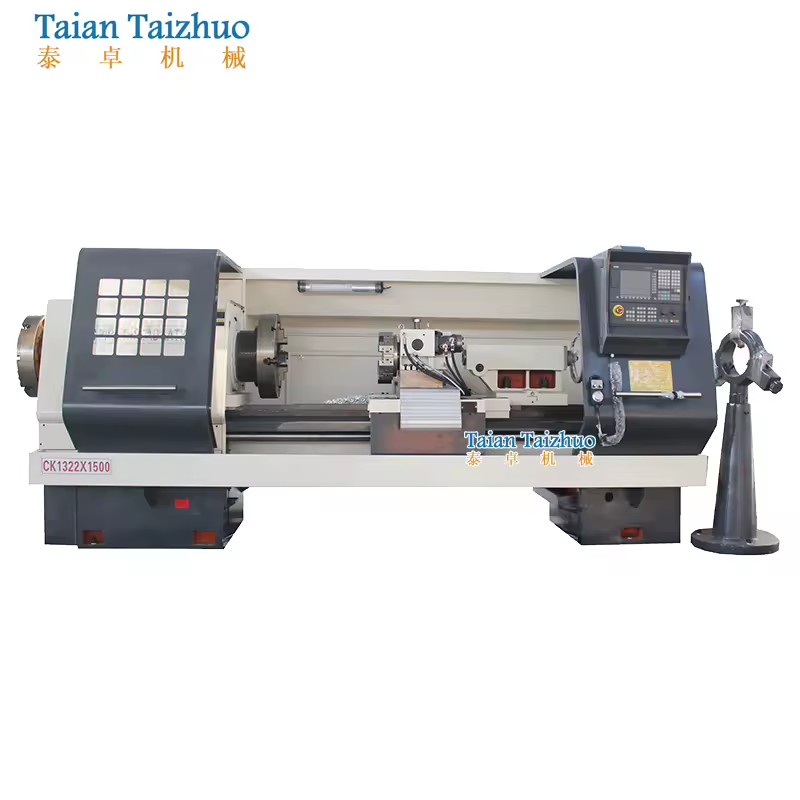

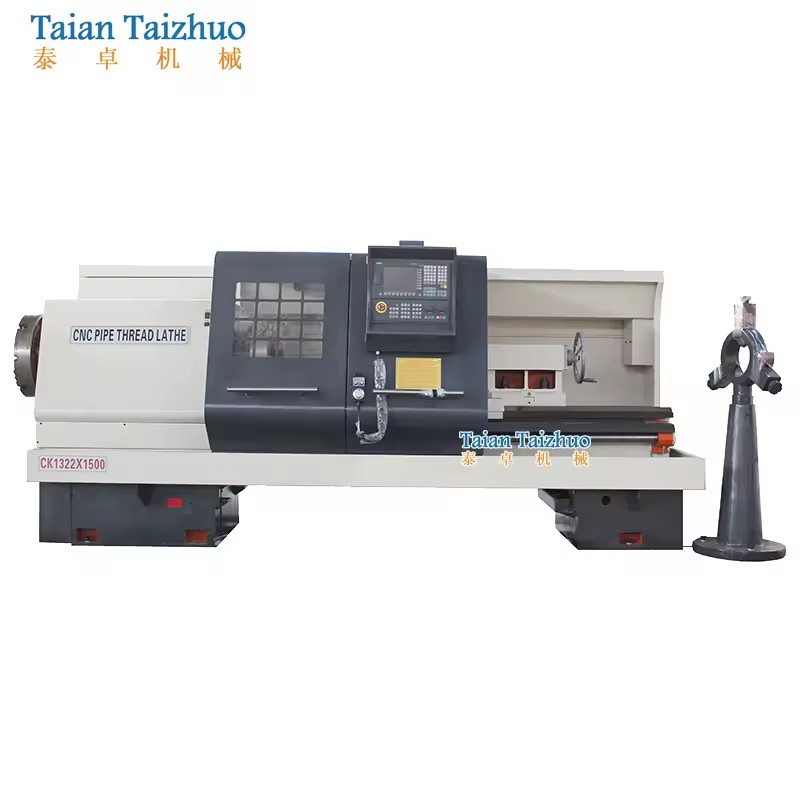

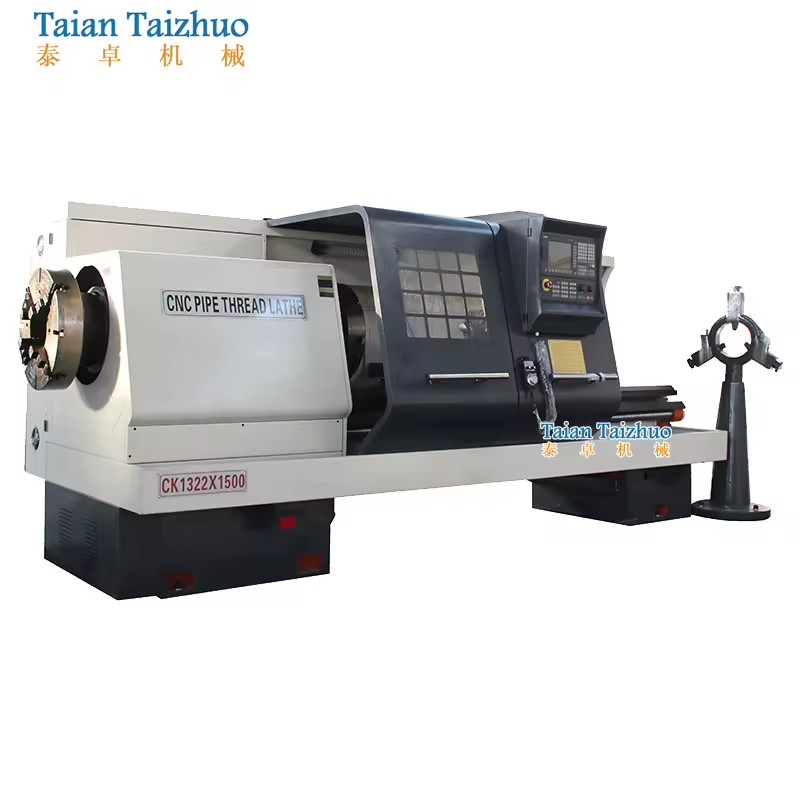

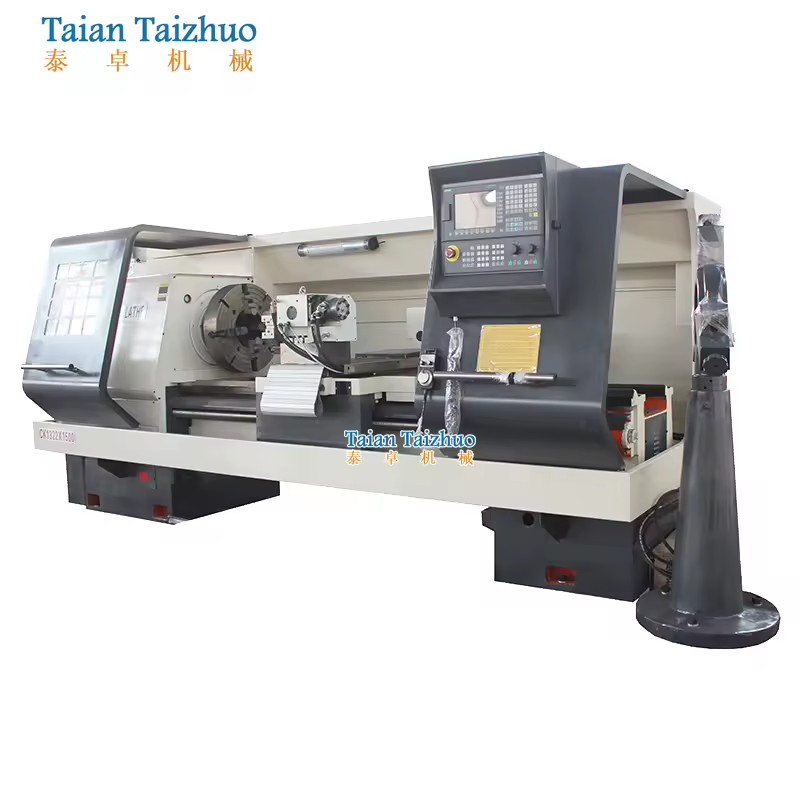

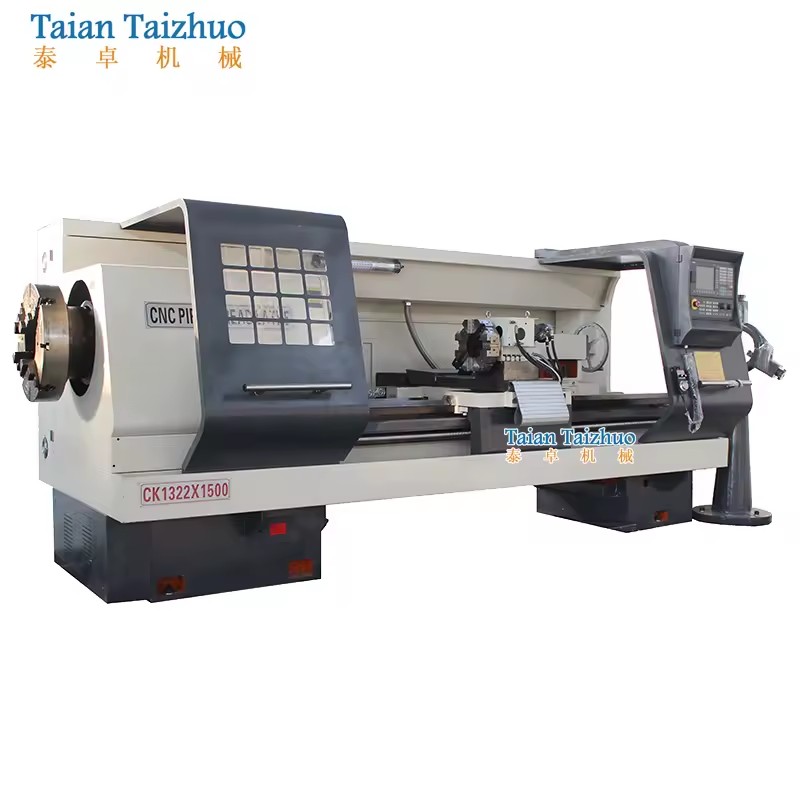

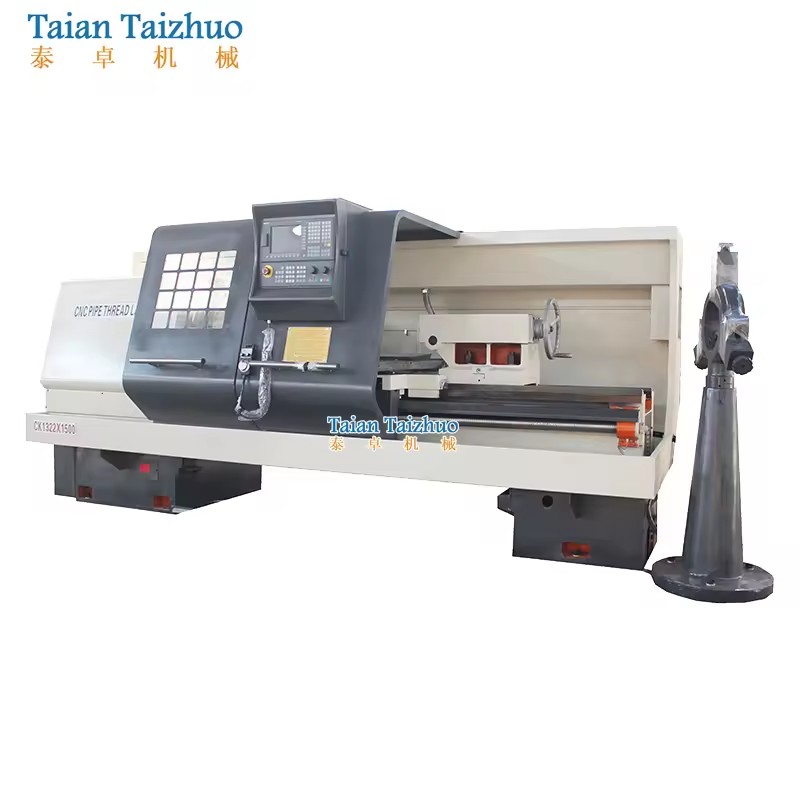

CK1322 Wholesale Heavy Duty Large Bore Lathe Electric Pipe Thread Machine Tools Equipment Price for Process Petroleum Pipeline

Available for enquiry 0.0 · 0 reviews
USD

$ 44,870.00 44870.0 USD $ 44,870.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Horizontal
Max. length of workpiece (mm)
1500 mm
Positioning accuracy (mm)
0.01 mm
Repeatability (x/y/z) (mm)
±0.005
Number of axes
2
No. of Spindles
Single
Product description

CK1322 Wholesale Heavy Duty Large Bore Lathe Electric Pipe Thread Machine Tools Equipment Price For Process Petroleum Pipeline

The machine through the numerical control system could automatically process the inside and outside cylinder surface, cone surface, circular, arc surface, end face etc. Also can process the single and multiple threads in metric, inch and other standards.

ItemUnitCK1313CK1319CK1322
Max dia. swing over bedmm630630670
Max dia. swing over cross slidemm330330370
Max length of workpiecemm150015001500
Width of bedmm550550550
Spindle boremm135200225
Power of spindle motorKw111111
Mode of spindle speedTwo gears Smooth adjustmentTwo gears Smooth adjustmentTwo gears Smooth adjustment
Range of spindle speedr/min(L): 0-130 (H): 130-800(L): 25-120 (H): 100-500(L): 25-120 (H): 100-500
X/Z axis travelmmX:350 / Z:1250X:350 / Z:1250X:350 / Z:1250
X/Z axis rapid traversemm/min400040004000
X axis motor speedr/min150015001500
X axis motor torqueN.m101010
X axis motor powerKw1.51.51.5
Z axis motor speedr/min150015001500
Z axis motor torqueN.m151515
Z axis motor powerKw2.32.32.3
Tailstock quill diametermm100100100
Tailstock quill travelmm250250250
Tailstock quill taperMT5MT5MT5
Turret modelHAK-21240HAK-21240HAK-21240
Tool post typeVertical 4- stationVertical 4- stationVertical 4- station
Turret dimensionmm240x240240x240240x240
Turret indexing times2.62.62.6
ChuckK11-380 Three jaw chuckK11-500 Three jaw chuckK11-500 Three jaw chuck
Positioning accuracymm0.020.020.02
Repositioning accuracymm0.010.010.01
Machine sizemm3700x1755x18003700x1755x18003700x1755x1800
Machine weightKg400046005200

Standard Configuration

1) CNC system: GSK980TC3. 2) Front and rear three-jaw manual chuck. 3) Vertical four-station electric turret. 4) With tailstock.

5) With two gears. 6) Automatic lubrication system. 7) Turning cooling system.

8) The rear bracket.

Optional accessory

1) CNC system:KND, Siemens, Fanuc. 2) Pneumatic chuck, hydraulic chuck. 3) Horizontal 6/8-station electric turret.

4) Center rest.

Important note: 1. Please confirm your local voltage with our sales staff before ordering. 2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.

Workpiece Examples

To Choose More Models

Pipe Threading Lathe CK1313

Pipe Threading Lathe CK1319

Pipe Threading Lathe CK1327

Packaging Details

Standard export package, custom suffocating free. Using iron base has good bearing capacity.

After-Sales Service

1. Training how to instal the machine, training how to use the machine. 2. Engineers are available to service machinery overseas. 3. Provide tools and accessories. 4. Warranty is one year, we would offer the parts (quality problem) free of charge during this period. Note: GSK, Servo driven, motor and transformer, warranty is 3 years.

Q1. How to send my enquiry? You can

If any interest about our cnc lathe machine, cnc milling machine or cnc machining center, please just

Description images

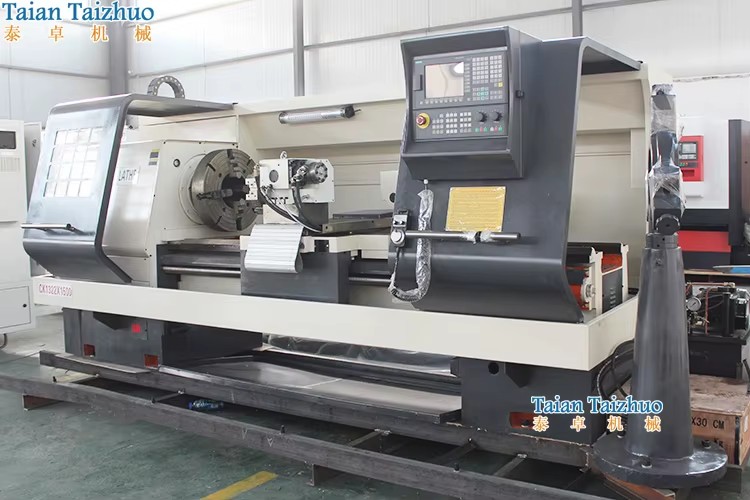

Product detail

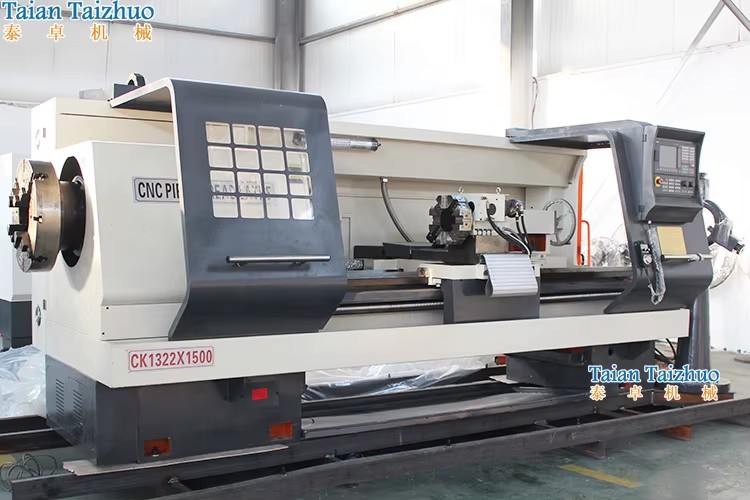

Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    13 days

  • Step 3

    Packaging and dispatch

    Approx. shipping fee: $ 6,500.00 for 1 unit · Fastest delivery: Nov 4 (60 days)

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 34 fields
Type
Horizontal
Max. length of workpiece (mm)
1500 mm
Positioning accuracy (mm)
0.01 mm
Repeatability (x/y/z) (mm)
±0.005
Number of axes
2
No. of Spindles
Single
Tool post stations
8, 4, 6, 12
Machining capacity
Heavy Duty
Voltage
3 Phase 380V/220V/415V
Warranty
1 Year
Key selling points
Competitive Price
Max. weight of workpiece(kg)
500
Travel (x axis)(mm)
350
Travel (z axis)(mm)
1500
Place of origin
China
Dimension(L*W*H)
3700x1755x1800mm
Model number (Specification)
CK1322
Weight
5200
Range of spindle speed
25 - 500
Cutting torque
0
Name
Pipe Threading Lathe Machine CK1322
Max swing over bed
670mm
Function
Pipe threading
Control system
GSK SIEMENS FANUC KND
Keyword
3-jaw Chuck
Accessory
Pipe threading lathe
Turret Type
4-station vertical electric tool post
Spindle Bore (Specification)
225mm
Power(w)
11KW
Selling Units
Single item
Single package size
390X200X210 cm
Single gross weight
5500.000 kg
Max. swing diameter (mm)
670mm
Spindle motor power(kw) (Product option)
11
Lead time
13 days
Minimum order
1 Units
