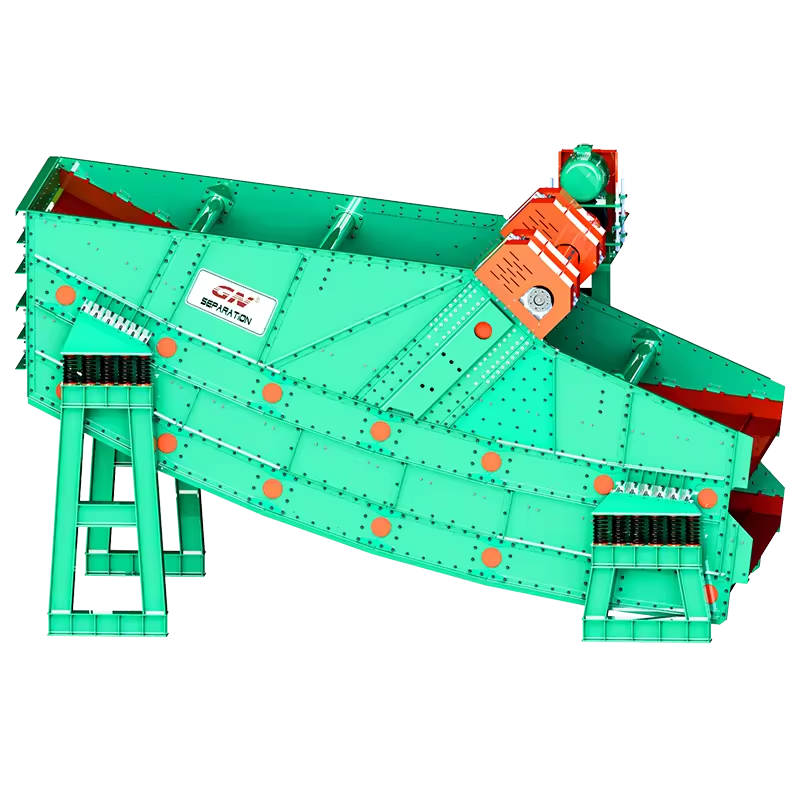

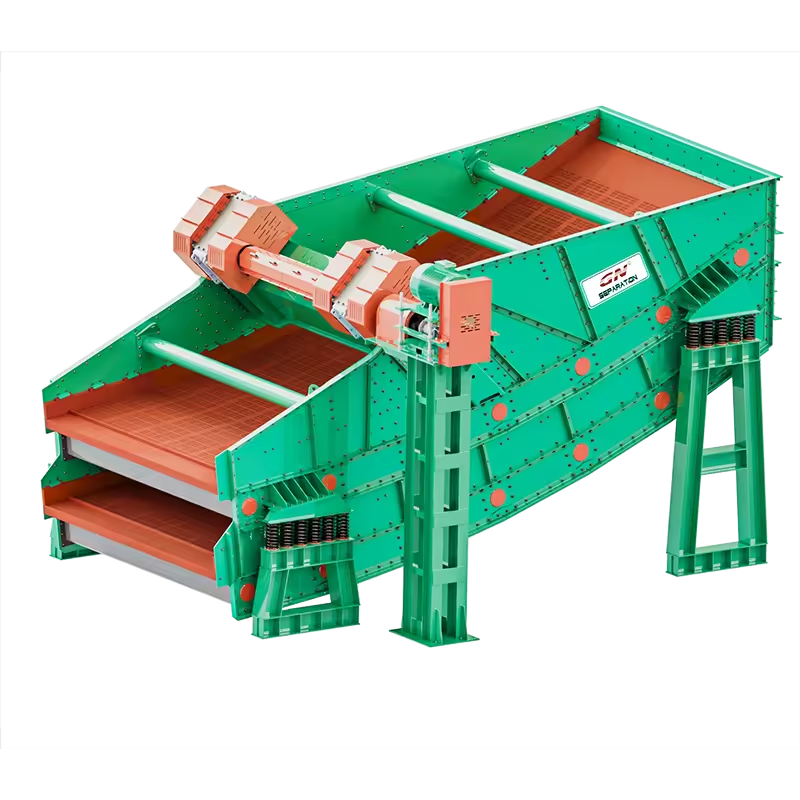

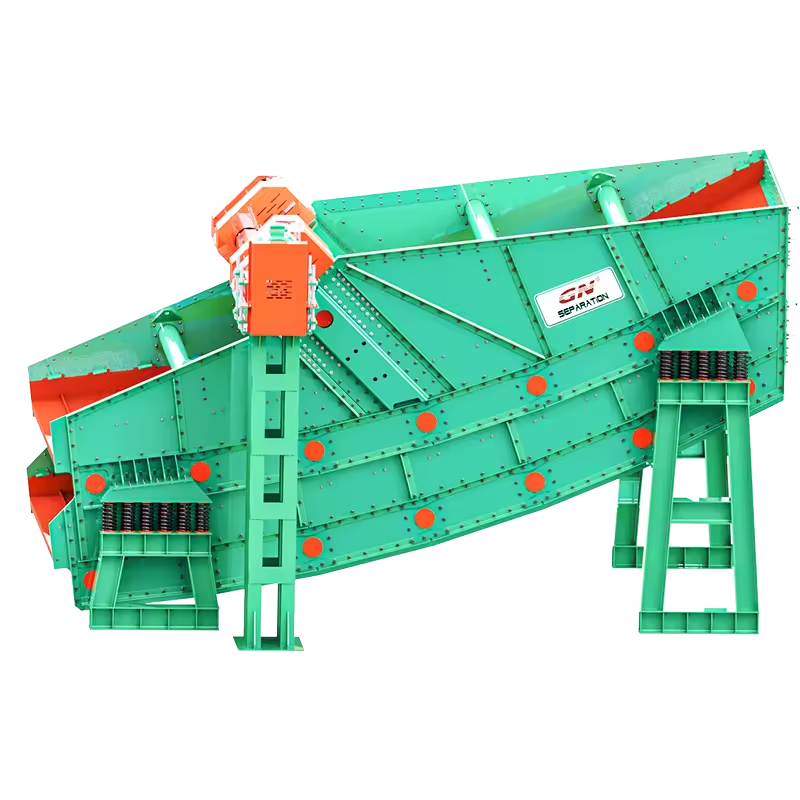

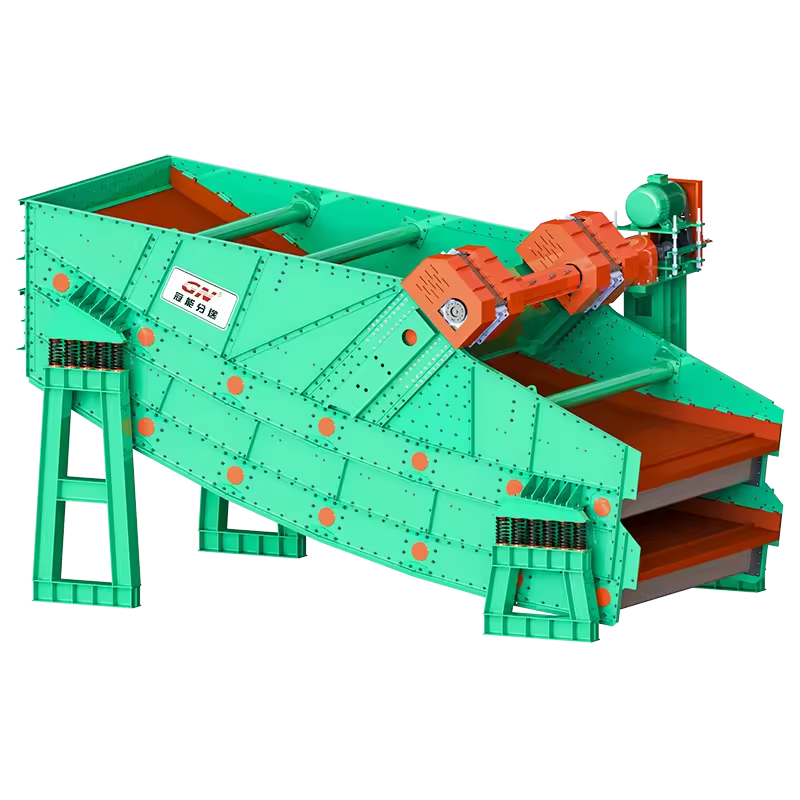

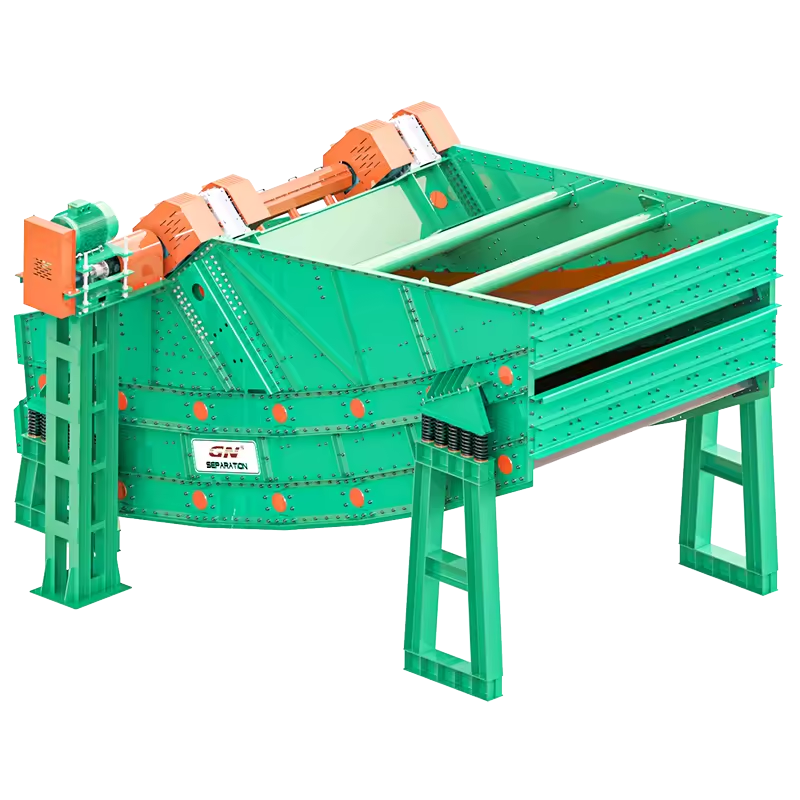

GN Large Banana Vibrating Screen for Mining Ore Dewatering and High Efficiency Screening Equipment

Available for enquiry 0.0 · 0 reviews
USD

$ 107,270.00 107270.0 USD $ 107,270.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Application
Ore
Voltage
Customize
Type
circular
Core components

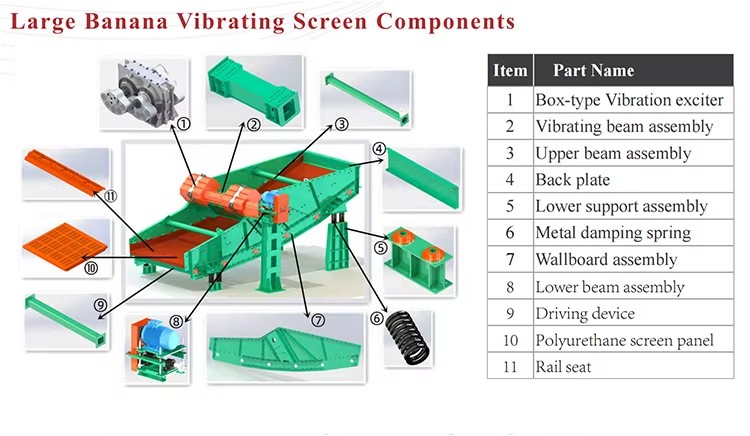

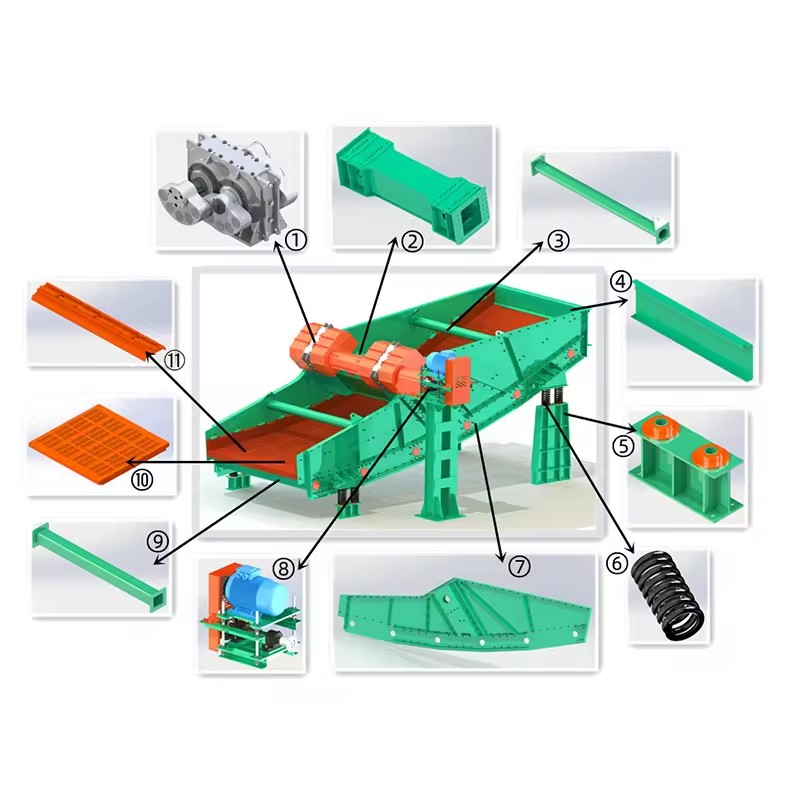

Screen Box Frame, Multi-Slope Deck, Vibrating Motor / Exciter, Screen Panels (Polyurethane / Wire Mesh), Side Plates (Side Walls), Support Springs (Vibration Isolation System), Drive System (Motor + Belt / Coupling), Base Frame (Support Structure)
Machinery test report
Provided
Warranty
1 Year
Product description

Highlights at a glance

  • High-Efficiency Screening Performance: The large banana vibrating screen adopts an optimized multi-slope deck design, enabling faster stratification and higher screening capacity, especially for fine and medium particles.
  • Increased Processing Capacity: Compared with traditional screens, its unique banana-shaped structure improves material flow rate, delivering significantly higher throughput in mining and aggregate applications.
  • Superior Screening Accuracy: The variable inclination design ensures efficient separation efficiency across different particle sizes, reducing oversize contamination in final products.
  • Energy-Saving Operation: Designed with optimized vibration dynamics, it achieves high output with relatively lower energy consumption, improving overall operational efficiency.
  • Heavy-Duty & Wear-Resistant Structure: Built with reinforced screen panels and robust frame construction, it performs reliably under high-load and abrasive working conditions.
  • Stable Continuous Performance: The screen maintains consistent vibration performance, reducing material blockage and ensuring uninterrupted production.
  • Widely Used in Mining & Mineral Processing: Ideal for iron ore, coal, aggregate, and other bulk material screening applications requiring large-scale, high-efficiency separation.
    • Certifications & compliance
    CE
    Complies with EU standards
    API
    Petroleum and natural gas standards
    EAC
    **market access**
    Frequently asked questions

    A large banana vibrating screen is designed for high-capacity screening of bulk materials such as coal, ore, aggregates, and industrial minerals. It is widely used in mining, metallurgy, and material processing industries.

    It is named after its multi-inclined deck shape, which resembles a banana. This design allows different screen angles in one deck, improving material stratification and screening efficiency.

    It provides higher processing capacity, better screening efficiency, reduced clogging, and improved performance for fine and wet materials compared with traditional linear vibrating screens.

    It can process coal, iron ore, limestone, sand, gravel, and other bulk solids. It is also suitable for wet and sticky materials with proper screen mesh selection.

    It is widely used in mining, coal preparation plants, quarry operations, metallurgy, construction materials, and power plant raw material processing.

    Compared with linear vibrating screens, banana screens have multiple inclination angles, which increases material flow speed at the feed end and improves separation efficiency at the discharge end.

    Selection depends on feed size, capacity requirement, moisture content, screen deck number, screen mesh size, and processing material type.

    Regular inspection of vibration motors, screen panels, spring systems, and structural bolts is required. Proper maintenance ensures stable vibration and long service life.
    Description images
    Product detail
    Product detail
    CE
    API
    EAC
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      15 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 26 fields
    Application
    Ore
    Voltage
    Customize
    Type
    circular
    Core components
    Screen Box Frame, Multi-Slope Deck, Vibrating Motor / Exciter, Screen Panels (Polyurethane / Wire Mesh), Side Plates (Side Walls), Support Springs (Vibration Isolation System), Drive System (Motor + Belt / Coupling), Base Frame (Support Structure)
    Machinery test report
    Provided
    Warranty
    1 Year
    Video outgoing-inspection
    Provided
    Place of origin
    China, Hebei
    Weight
    16000 KG(35273.96lb)
    Dimension (L*W*H)
    6906*4545*3700
    Screen Type
    Large Banana Vibrating Screen / Multi-slope vibrating screen
    Screening Capacity
    50-1800 TPH (customizable according to material)
    Deck Layers
    Single / Double / Triple deck optional
    Screening area
    14-36 m2 high-efficiency large area design
    Vibration Type
    Linear motion high-frequency vibration system
    Motor power
    30-90 kW heavy-duty industrial vibration motors
    Screen Angle Range
    5-45° adjustable multi-slope design
    Screen Mesh Material
    Polyurethane / stainless steel / woven wire mesh
    Application Material
    Ore, sand, Coal, aggregates, tailings, industrial solids
    Installation type
    Skid mounted / fixed installation / modular system integration
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Model number
    GNBD
    Power (W) (Product option)
    30000-90000
    Certifications & Compliance
    CE, API, EAC
    Lead time
    15 days
    Minimum order
    1 Units
