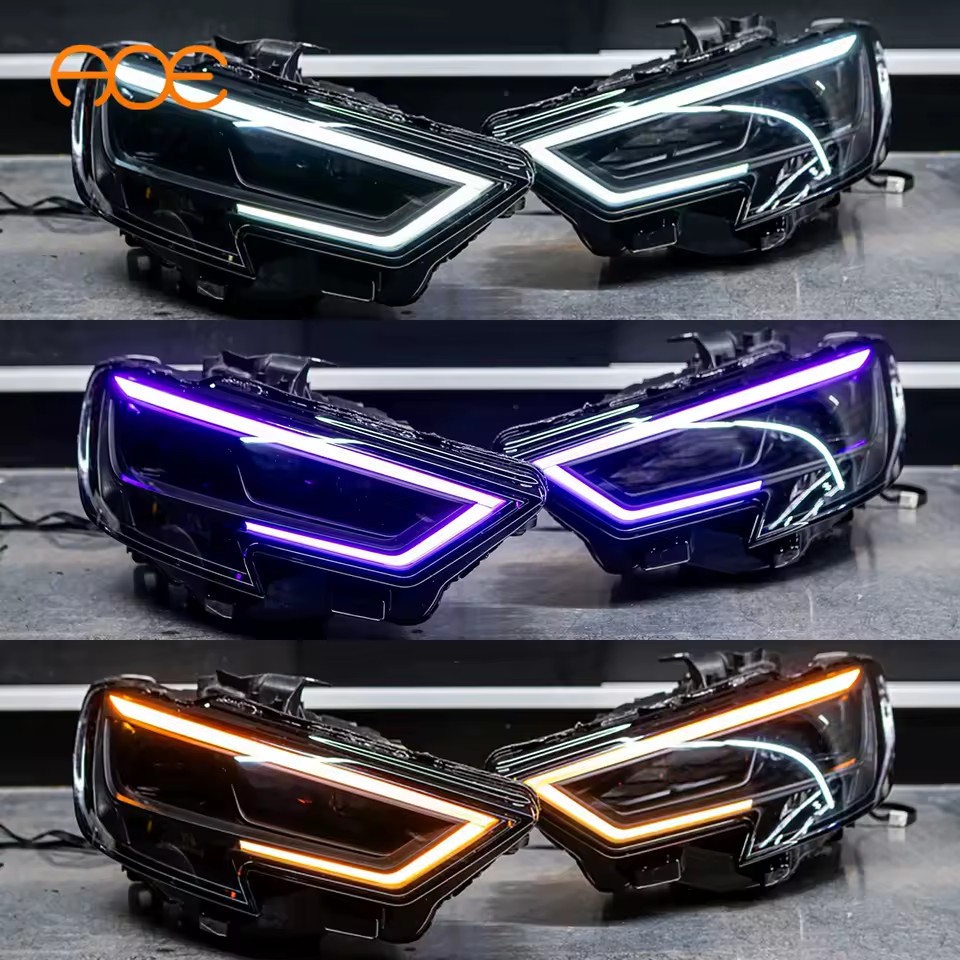

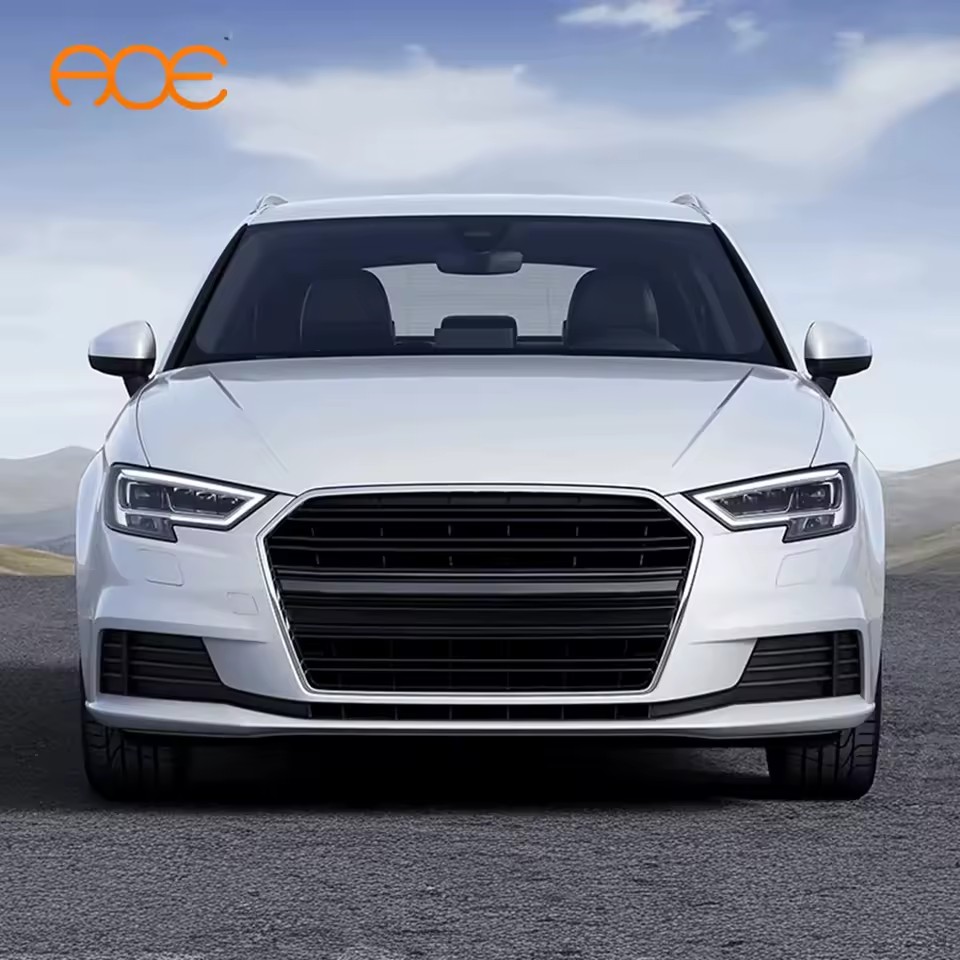

AOE Audi A3 S3 RS3 2016-2020 Matrix LED Headlight Color Changing RGBW DRL with /Wireless Remote

Product details

DESCRIPTION

1.

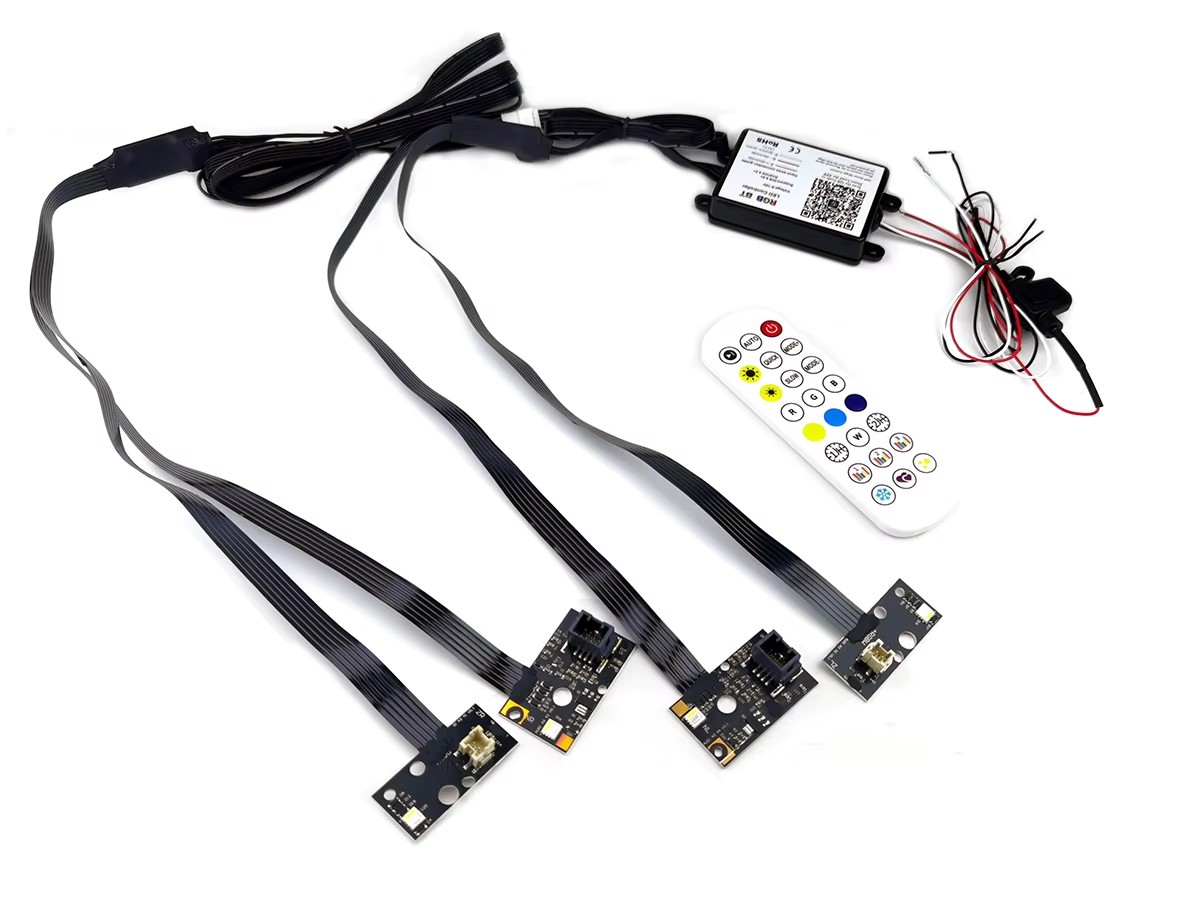

es with a bluetooth controller which will require wiring (12V power and ground and VCC )

3.Wireless Remote +

Installation Guide

1.Turn off the daytime running lights on the central control screen and remove the headlights.

2.Remove the original white DRL Module from the headlight assembly.

3.Remove the OEM white DRL boards from the heat sinks, clean the heat sinks thoroughly, apply thermal glue to the back of our RGBW DRL boards, attach the RGBW DRL boards to the heat sinks and secure them. Wait for half an hour for the glue to dry, then you can install the DRL module back into the headlight assembly. (If you purchased the kit RGBW with heat sinks, this step can be skipped.)

nnect the controller and extension wires, input wire connection guide:Red wire:start-up, Black wire:GND, White wire: ACC.

e electrical tape to wrap the wiring harness and connectors for better protection.

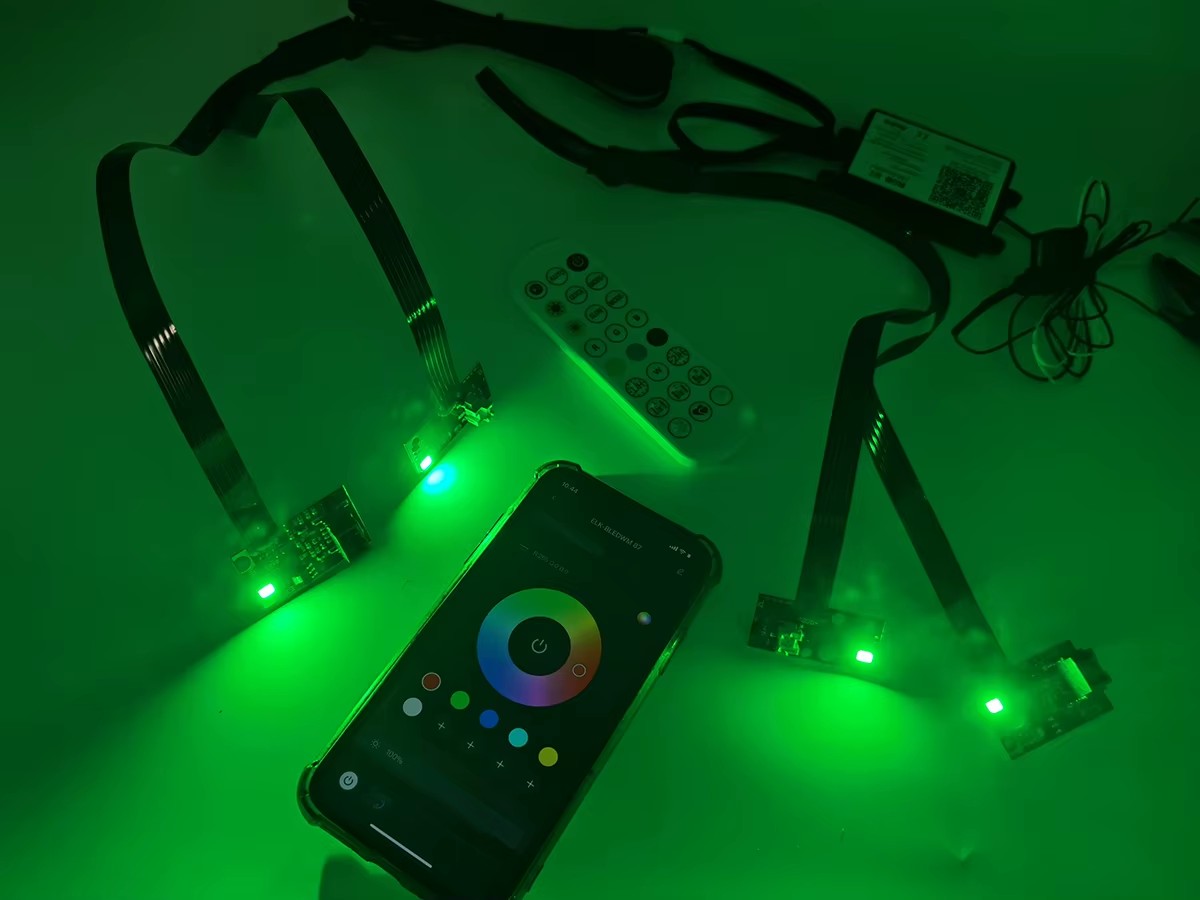

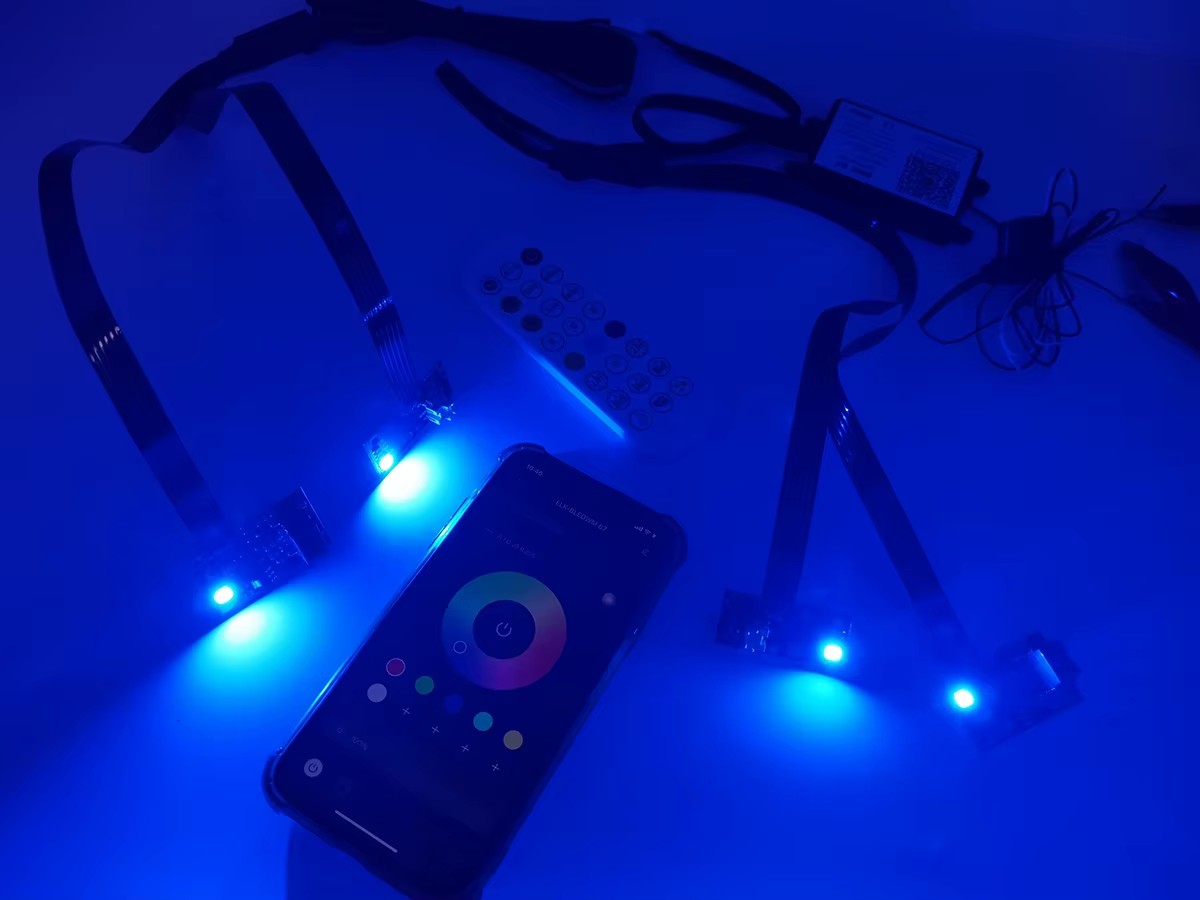

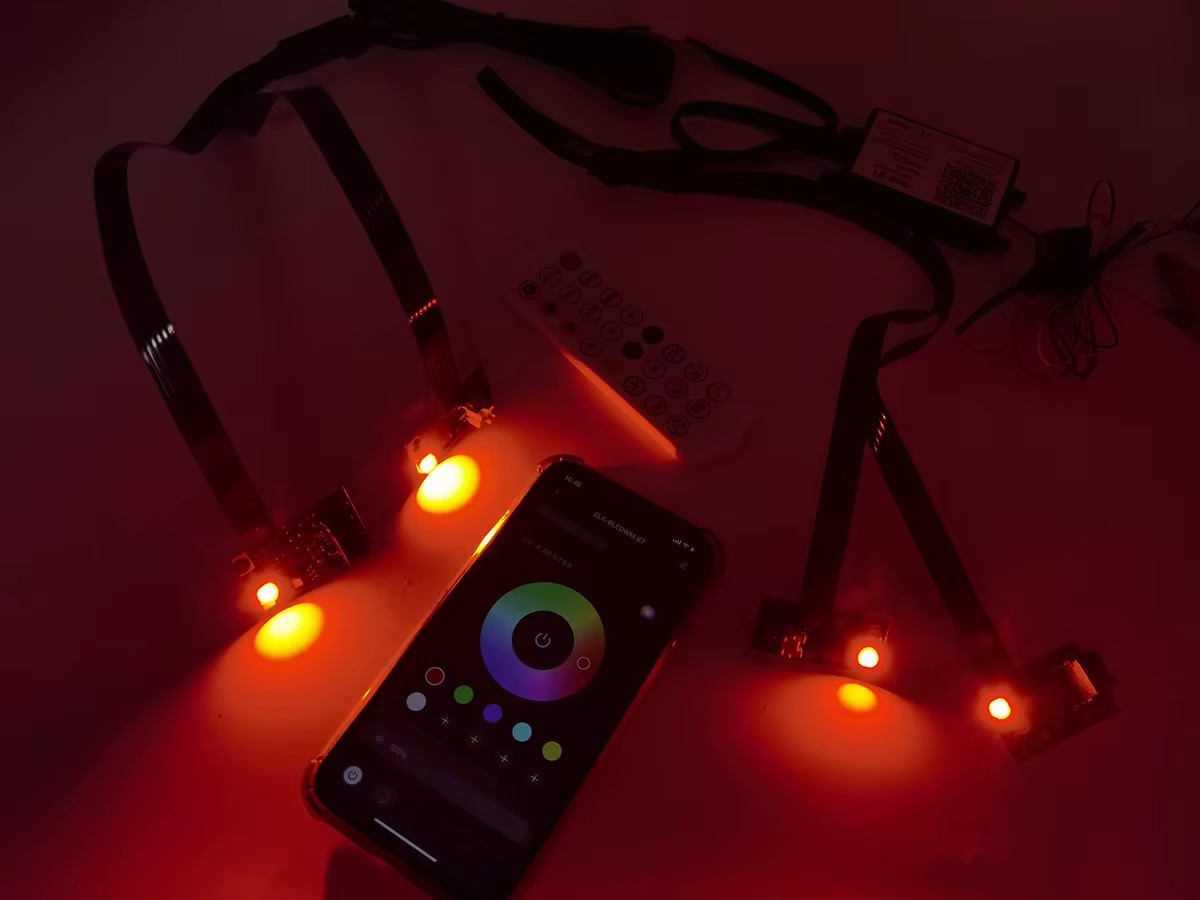

6.Scan the QR Code to down load the APP, once the DRL is power on, open the App and connect the bluetooth signal came out from the controller, then you can free control the colors, brightness and color modes. Also the wireless remote can free control the RGBW DRL.

FITMENT

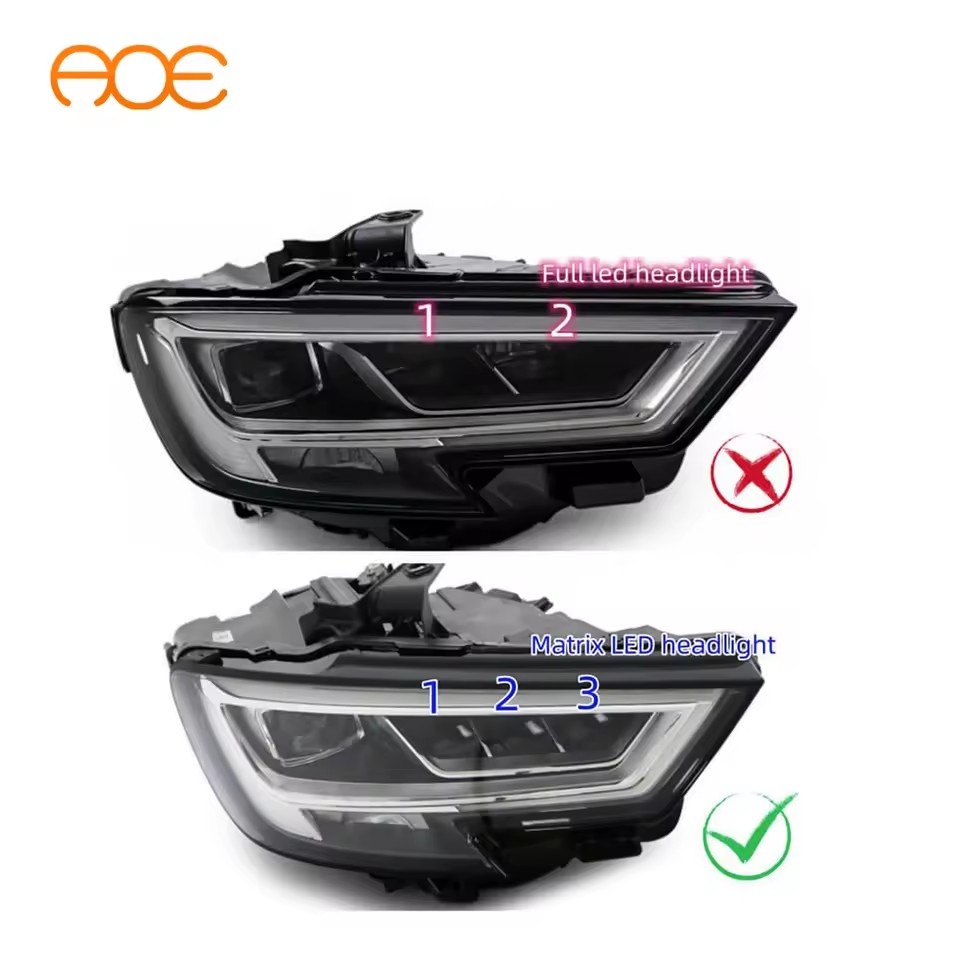

Audi S3A3 8V RS3 Matrix LED Headlight 2016-2020 OE# 8V0998473B 8V0998474B
