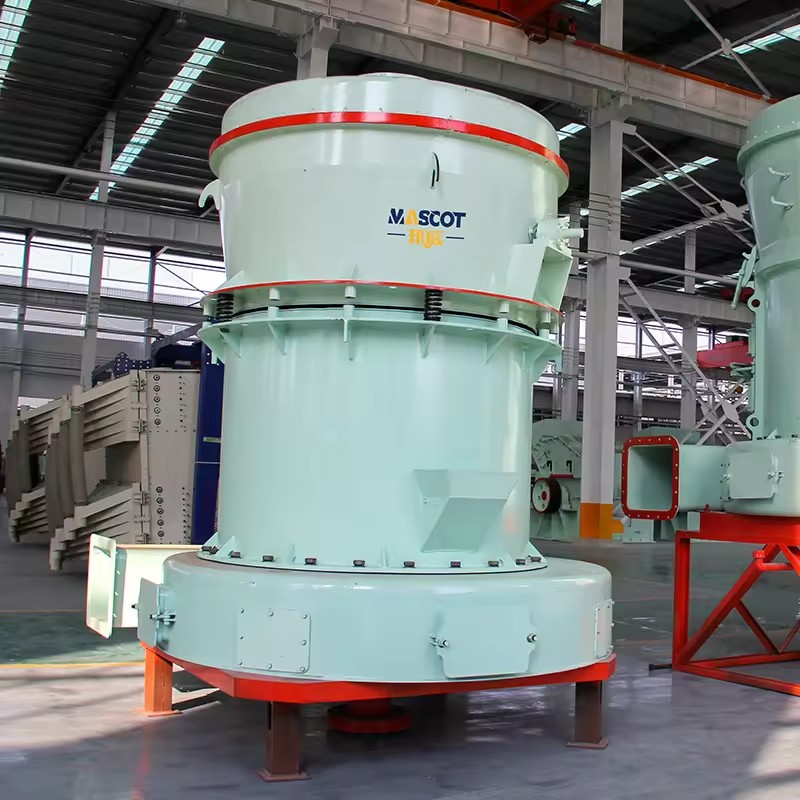

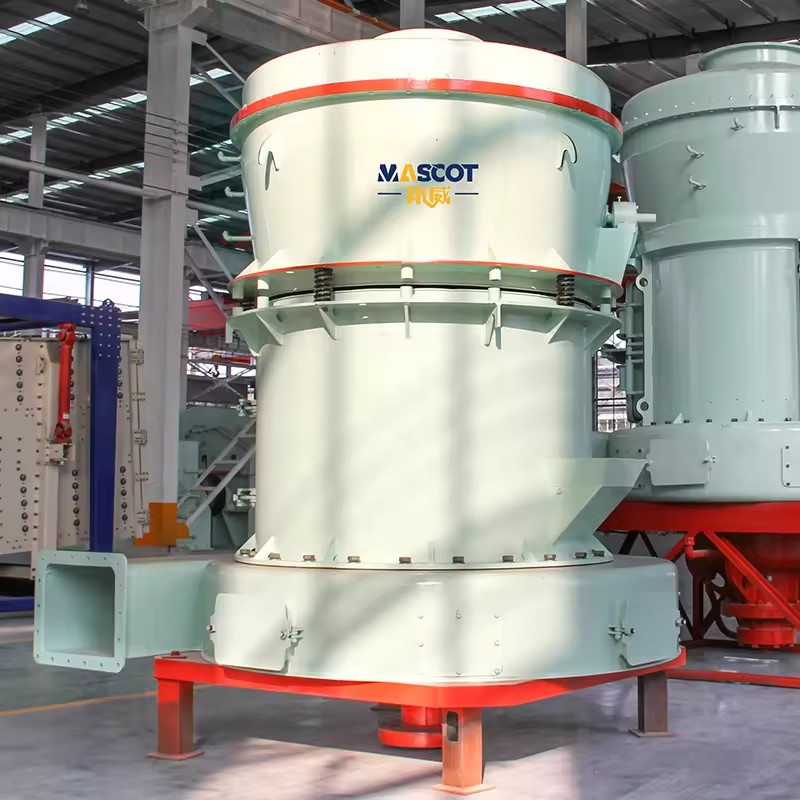

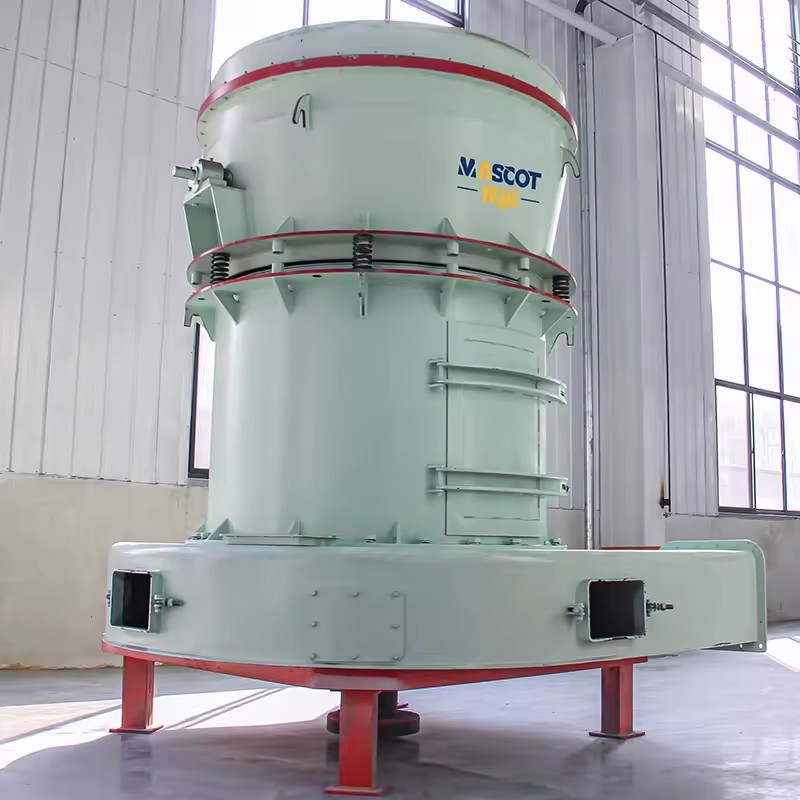

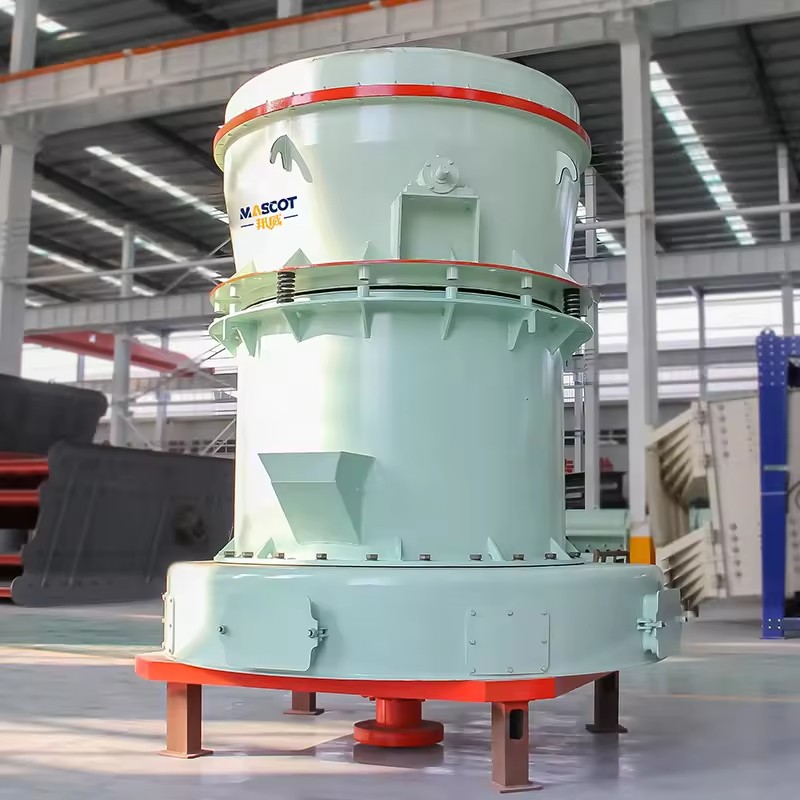

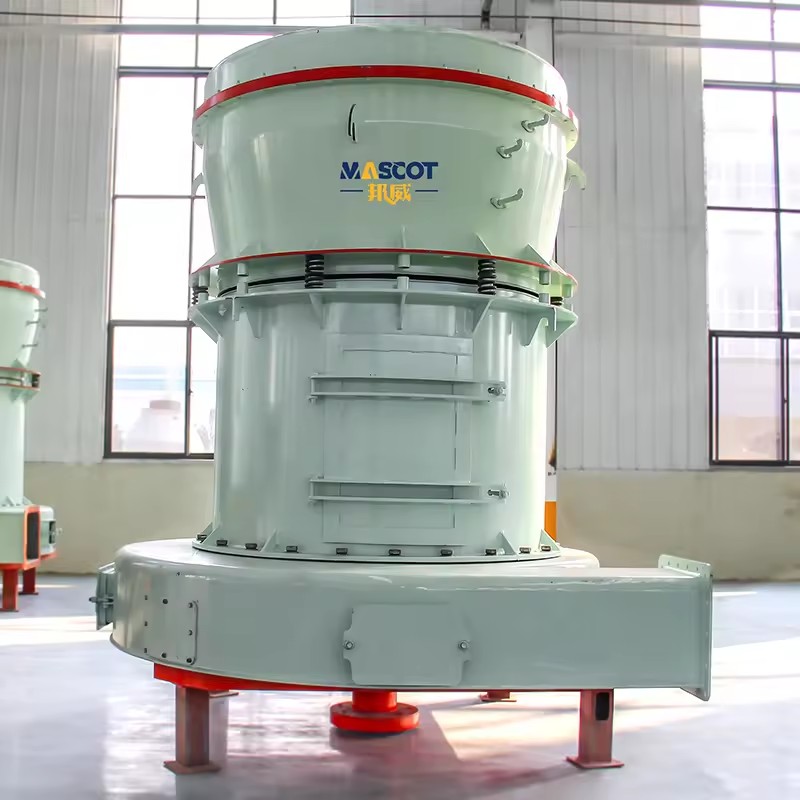

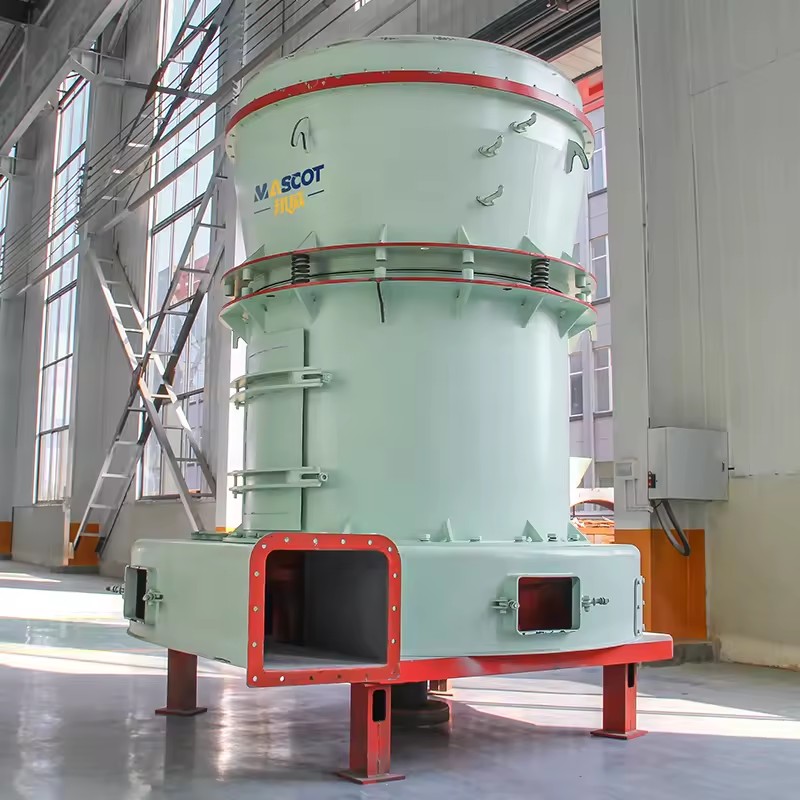

Name: YGM Mining Machine High-Pressure Medium Speed Raymond Mill Engine for Calcite Limestone Marble Mineral
SKU: B2B-55126
Price: 8750.0 USD
Availability: PreOrder

Product description

Features of YGM G rinding Mill

1. High Efficiency & Large Capacity: An optimized roller and ring design delivers significantly higher output than traditional mills under the same power consumption.

2. Precise Particle Size Control: An advanced impeller classifier ensures stable and accurate powder fineness, adjustable from 80 to 425 mesh.

3. Strong Durability: Key grinding components (roller and ring) are made of high-quality wear-resistant materials, extending service life and reducing maintenance costs.

Suitable Materials

Carbonate Minerals: Calcite, limestone, marble, dolomite, potassium feldspar.

Silicate Minerals: Quartz, feldspar, bentonite, clay, kaolin.

Industrial Materials: Barite, fluorite, activated carbon, talc, gypsum.

Technical Parameters

Model	Roller No.	Roller Size (mm)	Grind Ring Inner Dia. (mm)	Feeding Size (mm)	Output Size (mm)	Capacity (t/h)	Power (Kw)	Overall Dimension (mm)
YGM65	3	210×150	650×150	≤ 15	0.613-0.033	0.4-1.8	15	4100×3300×4500
YGM75	3	260×150	780×150	≤ 15	0.613-0.033	1-3	18.5	4300×3500×5100
YGM85	3	270×150	830×150	≤ 20	0.613-0.033	1.2-4	22	5300×4100×5200
YGM85B	3	270×150	830×150	≤ 20	0.613-0.03	1.2-3.5	22	5300×4100×5200
YGM95	4	310×190	950×190	≤ 25	0.613-0.033	2.1-5.6	45	7100×5900×7900
YGM130	5	410×230	1280×230	≤ 30	0.613-0.033	2.5-9.5	90	7900×8000×9700
YGM160	6	450×300	1600×300	≤ 35	0.613-0.033	8-16	132	12550×5700×8355
YGM190	6	500×330	1900×330	≤ 40	0.613-0.033	18-36	250	11200x8530x9685

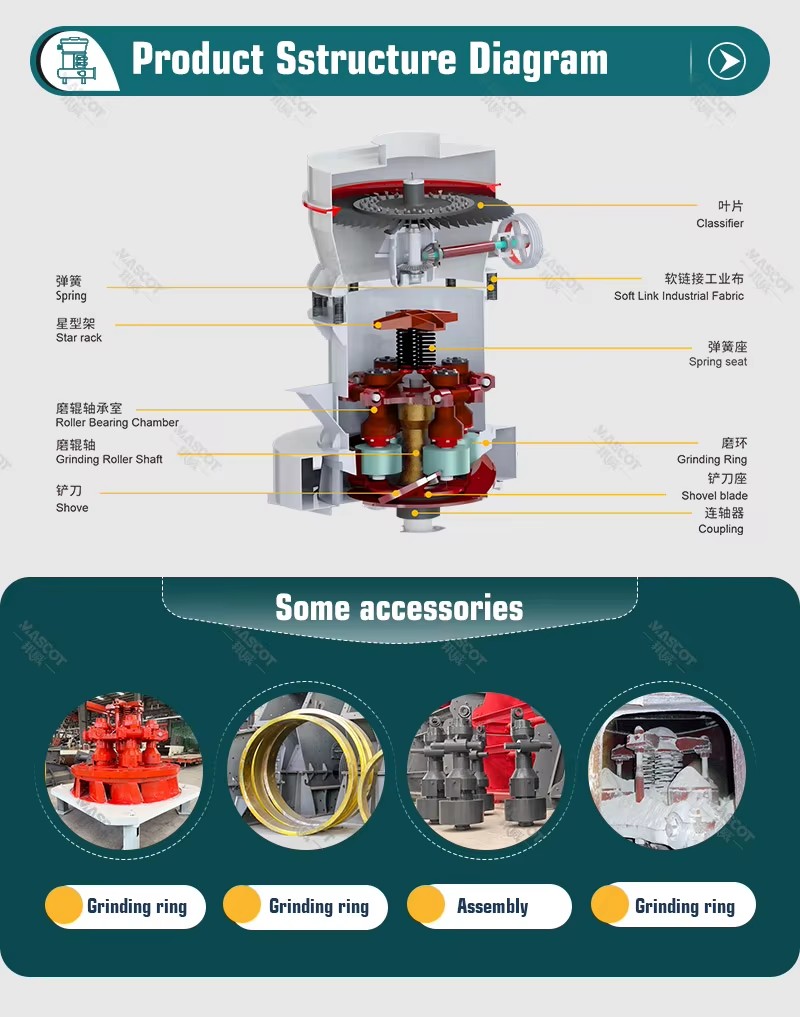

Working Process of YGM Grinding Mill

1. Feeding:Raw mineral materials are evenly and continuously fed into the grinding chamber via the feeding device under stable feeding speed.

2. Grinding: Driven by the main motor, grinding rollers and grinding ring squeeze, impact and grind raw materials repeatedly into fine powder particles.

3. Classification: High-speed air flow cooperates with the built-in p owder classifier to screen and separate qualified fine particles from coarse ones precisely.

4. Collection: Qualified fine powder is transported by airflow into the dust collector and collected as finished mineral powder products.

5. Re-circulation: Oversized unqualified particles fall back to the grinding area automatically for secondary regrinding until reaching required fineness.

The Customer Site

1.Proven Reliability & Durability: Our machines are built for 24/7 operation in the toughest environments.

2.Professional Technical Support: From plant design to installation and maintenance, we are with you every step of the way.

3.Quality You Can Trust: We use premium materials and strict QC to ensure every machine performs as promised.

's Service

We offer a 12-month warranty for the whole machine and also a 12-month warranty for core components such as rollers, rings, and classifiers, along with 24/7 online consultation via

FAQ

1. Are you a manufacturing or trading company?

We are a factory, established in 2010.

2. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

3. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

4. How long is the warranty? Does your company supply the spare parts?

One year. Spare parts for you at the lowest cost.

5. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

10 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Type

Raymond Mill

Motor Type

AC Motor

Core components

Engine

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Capacity(t/h)

0.5-60t/h

Place of origin

China, Henan

Weight

5000 kg(11023.11lb)

Dimension (L*W*H)

According to the models

Device Type

YGM

MAX Feed size(mm)

40mm

Output Size (mm)

0.613-0.033mm

Application materials

quartz, feldspar, barite, fluorite, dolomite, garnet, silicon carbide

After-sales Service

Online Video or Dispatch After-sales Team

Accessories Supply

Anytime

About Installation

Dispatch professional technicians to install on site

Process Design

Free

Factory Visit

Welcome to Visit

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Power (W) (Product option)

250kw(335.26hp)

Model number

YGM65, YGM75, YGM85, YGM95, YGM130, YGM160, YGM190, YGM85B

Lead time

10 days

Minimum order

1 Units
