Energy Saving Lead And Zinc Ore Processing Ball Mill Machine
[Ball Mill Machine Feed Size]: ≤20-≤25mm
[Ball Mill Machine Capacity]:0.9-353t/h
[Ball Mill Machine Processible Materials]: Gypsum, limestone, feldspar, quartz, clay, cement, refractory material, chemical, non-ferrous and ferrous metals.etc.
[Application]:Cement, silicate product, new building materials, refractory materials, chemical fertilizer, ferrous and non-ferrous metals, glass ceramic, etc.
Ball mill machine classification
ball mill is mainly used for grinding in mining (metallic minerals and non-metallic minerals), cement, refractories, chemical, power plant, aluminum,building material, glass, ceramic, steel slag and fly ash, ect. It follows more crushing and less grinding principle to save energy. The feed size to ball mill shall be smaller than 25mm, the output size can be adjusted by revising steel balls ratio.
According to discharge mode, there are MQG series dry type grate ball mill, MQS series wet type grate ball mill, MQY series wet type overflow ball mill, MQZ series peripheral discharge type ball mill; According to liner type, there are A series of (high manganese steel liner, magnetic liner) standard type and B series of (rubber liner, high aluminum liner, silica liner, ceramic liner) energy-saving type; According to transmission mode, there are edge driving ball mill and center driving ball mill; According to chamber quantity, there are single chamber type, double chambers type and multiple chambers; According to processing technic, there are open circuit and closed circuit (matched with classification equipment). We are capable of designing non-standard, special ball mill as per client requirement.
Ball mill Working principle Ball mill is an efficient machine for fine powder grinding and key equipment for grinding after the crushing process.There are two ways of ball mill grinding: the dry way and the wet way. It is used to grind many kinds of mineral ores and other materials, or to select mine. Ball mill is also widely used in the manufacturing industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics and can be used for the dry and wet grinding for all kinds of ores and other grindable materials.

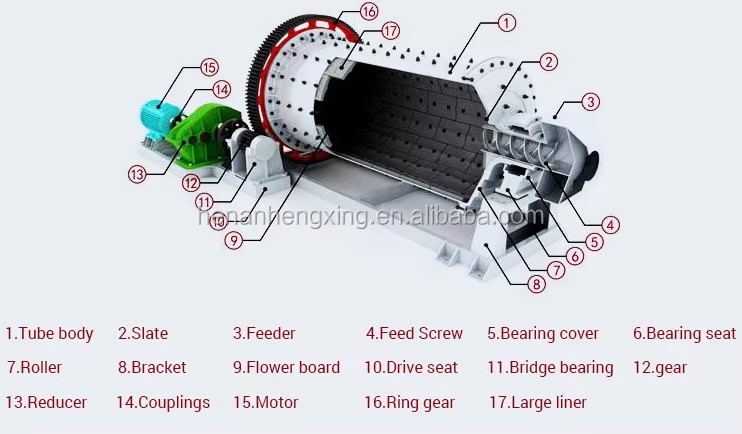

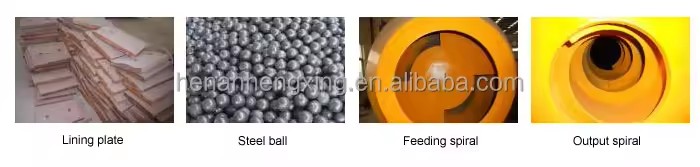

Ball mill Structure: The machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control).
Ball mill Feature
1. When the diameter of ball mill is less than 3200mm its conventional configuration is using rolling bearing instead of bush sliding bearing energy saving 10% - 20%; 2. When the diameter of ball mill is more than 2700mm its conventional configuration is using slow driving device for installing liner and maintenance; 3. When the diameter of ball mill is less than 1500mm its conventional configuration is monolithic large chassis then reduce installation requirements and shorten installation time; 4. When the power of ball mill is less than 110 KW it uses cage asynchronous motor; When the power of ball mill is more than 110 KW it uses wire wound asynchronous motor; When the power of ball mill is more than 400 KW it uses high voltage (6 KV or 10 KV) asynchronous motor or the TDMK series high voltage (6 KV or 10 KV) synchronous motor; 5. Drum Feeder Spiral Feeder and Joint Feeder are available for meeting different working condition; 6. The gear lubrication mode has grease lubrication thin oil lubrication and automatic oil mist lubrication for meeting different working condition; 7. The bearing lubrication has manual and electric grease lubrication pump for automatic lubrication; 8. There are a variety of liner plates type to select. Compared to A series standard type B series energy-saving type can save energy 10% - 20%.
Ball Mill Machine Technical Parameter
| Model | Shell rotation speed(r/min) | Ball load(t) | Feeding size(mm) | Discharging size(mm) | Capacity | Motor power(kw) | Weight(t) |
| (t/h) |
| Ø900*1800 | 36-38 | 1.5 | <=20 | 0.075-0.89 | 0.65-2 | 18.5 | 4.6 |
| Ø900*3000 | 36 | 2.7 | <=20 | 0.075-0.89 | 1.1-3.5 | 22 | 5.6 |
| Ø1200*2400 | 36 | 3 | <=25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
| Ø1200*3000 | 36 | 3.5 | <=25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
| Ø1200*4500 | 32.4 | 5 | <=25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Ø1500*3000 | 29.7 | 7.5 | <=25 | 0.074-0.4 | 2-5 | 75 | 15.6 |
| Ø1500*4500 | 27 | 11 | <=25 | 0.074-0.4 | 3-6 | 110 | 21 |
| Ø1500*5700 | 28 | 12 | <=25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| Ø1830*3000 | 25.4 | 11 | <=25 | 0.074-0.4 | 4-10 | 130 | 28 |
| Ø1830*4500 | 25.4 | 15 | <=25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
| Ø1830*6400 | 24.1 | 21 | <=25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| Ø1830*7000 | 24.1 | 23 | <=25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Ø2100*3000 | 23.7 | 15 | <=25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
| Ø2100*4500 | 23.7 | 24 | <=25 | 0.074-0.4 | 8-43 | 245 | 42 |
| Ø2100*7000 | 23.7 | 26 | <=25 | 0.074-0.4 | 8-48 | 280 | 50 |
| Ø2200*4500 | 21.5 | 27 | <=25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
| Ø2200*6500 | 21.7 | 35 | <=25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Ø2200*7000 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-28 | 380 | 54 |
| Ø2200*7500 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-30 | 380 | 56 |
| Ø2400*3000 | 21 | 23 | <=25 | 0.074-0.4 | 7-50 | 245 | 54 |
| Ø2400*4500 | 21 | 30 | <=25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Ø2700*4000 | 20.7 | 40 | <=25 | 0.074-0.4 | 12-80 | 400 | 94 |
| Ø2700*4500 | 20.7 | 48 | <=25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Ø3200*4500 | 18 | 65 | <=25 | 0.074-0.4 | 800 | 137 |

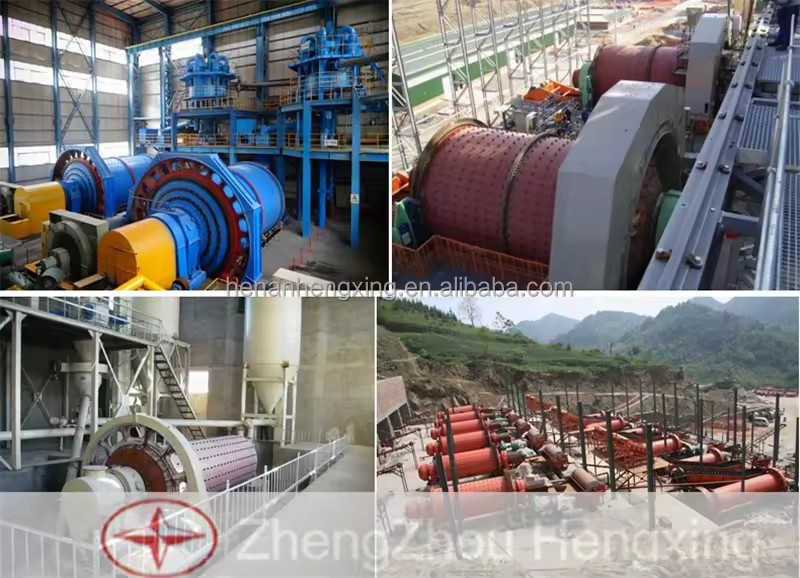

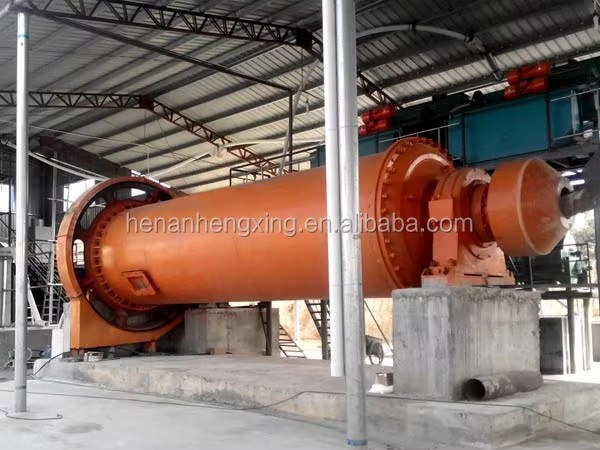

Ball Mill Machine User Site
Ball Mill Machine Flowchart With Auxiliary Equipment:( wet ball mill process for gold ore,lead &zinc ore,iron ore,manganese ore,copper ore etc)
Ball Mill Machine from Factory Package And Shipping

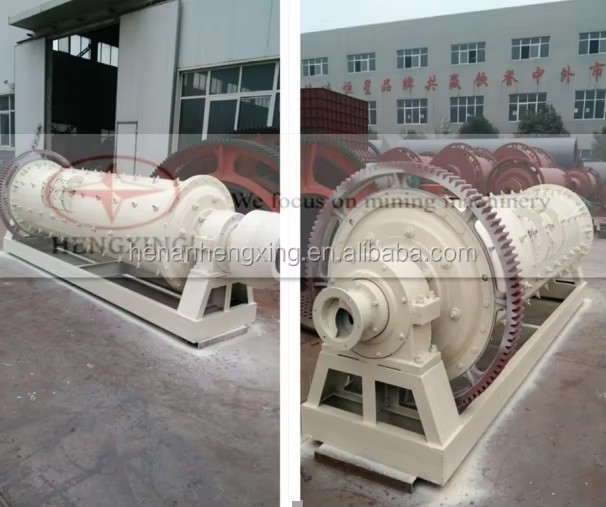

Equipment Factory
About Installation and Commissioning we are able to guide the overall installation of whole set ball mill
Our Service
Pre-sale service
Process designing
Freely provide project designing
Choosing suitable equipment for you
Medium-sales service
Complete process of export
Draft the construction scheme and detailed process
Accompany you to complete the acceptance of the equipment
After-sales service
Good and fast arrangement for the shipment
We sent engineer to the scene to guide installation debugging and training operators
For more ball mill machine price,and technical files,please contact
