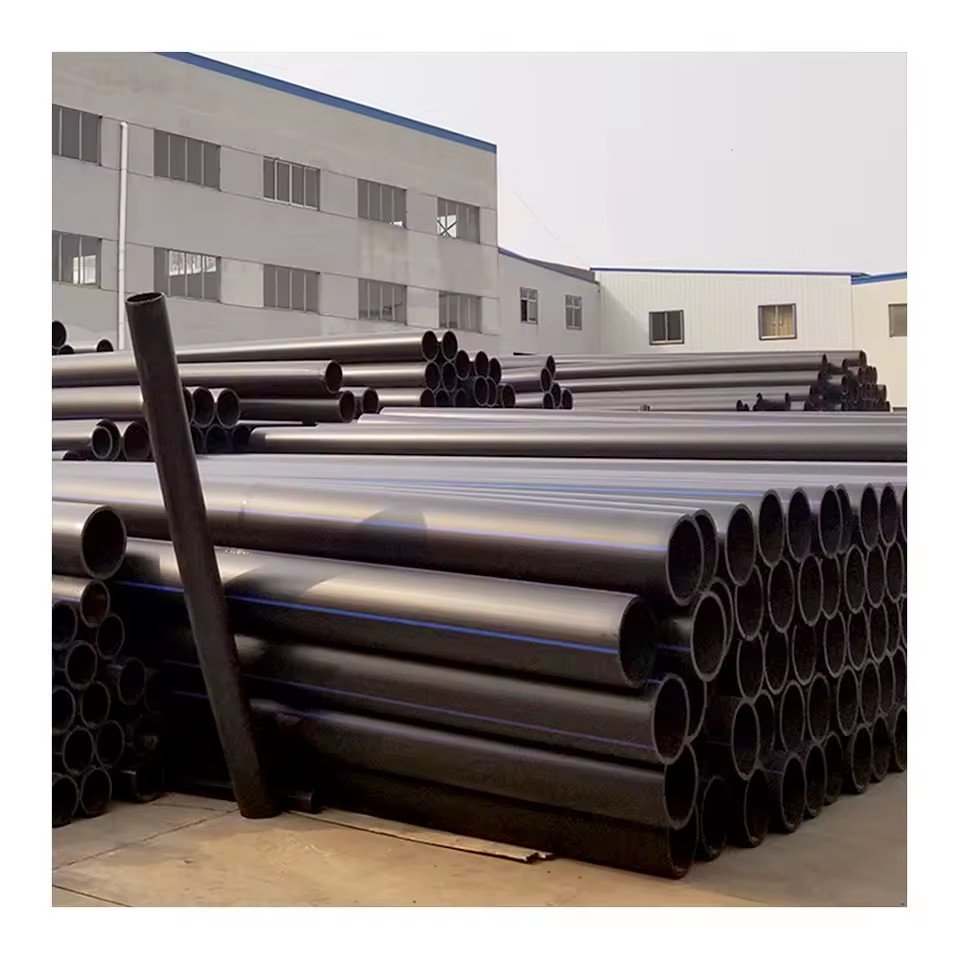

Price List of HDPE SDR21 Polyethylene Roll Pipe

Available for enquiry 0.0 · 0 reviews
USD

20.00 20.0 USD 20.00

Not Available For Sale

Minimum order quantity: 100 Units

Key attributes

View all
Material
PE
Place of origin
China, Henan
Thickness (Specification)
2-60mm
Model number (Specification)
SDR11
Specification (Specification)
20-1200mm
Length
6m or as required
Product description

Price List of HDPE SDR21 Polyethylene Roll Pipe

Product NamePE100 Water Supply HDPE Pipe
MaterialHigh-Density Ppolyethylene
StandardGB/T13663-2000,ISO 4427-1:2007
Specificationdn20-dn1200
PressureSDR11,13.6,17,21,26
Length6 meters or as needed, dn20-dn63 can produce coils
Main applicationWater Supplying and Draining
PressurePN0.6MPaPN0.8MPaPM1.0MPaPN1.25MPaPN1.6MPa
Outer Diameter (mm)Thickness (mm)Thickness (mm)Thickness (mm)Thickness (mm)Thickness (mm)
202.3
252.3
323.0
403.7
504.6
634.75.8
754.55.66.8
904.35.46.78.2
1104.25.36.68.110.0
1254.86.07.49.211.4
1405.46.78.310.312.7
1606.27.79.511.814.6
1806.98.610.713.316.4
2007.79.611.914.718.2
2258.610.813.416.620.5
2509.611.914.818.422.7
28010.713.416.620.625.4
31512.115.018.723.228.6
35513.616.921.126.132.2
40015.319.123.729.436.3
45017.221.526.733.140.9
50019.123.929.736.845.4
56021.426.733.241.250.8
63024.130.037.446.357.2
71027.233.942.152.2
80030.638.147.458.8
90034.442.953.3
100038.247.759.3
120045.957.2

Descriptions

Meets GB/T13663-2000, ASTM D2239, ASTM D2737, ASTM D3035, ASTM F714. Our high-density polyethylene water and sewer pipe is available in 1/2-inch to 48-inch diameters. The product's physical properties make it applicable to open-trench, horizontal directional drilling, pipe-bursting and slip-lining installations. It can be manufactured with the color striping to identify application, such as a blue stripe for potable water, a yellow stripe for gas applications and a red stripe for mining applications.

Benefits

Our HDPE pipe for water and sewer is manufactured for excellent performance and a long life expectancy. Its butt-fused joints eliminate potential leak points, common at 10 to 20 feet with ductile iron pipe, for a zero leak rate. Highly resistant to corrosion and weather, recent studies conclude it will last at least 50 years. Its light weight and flexibility make it easy to install, eliminate the need for fittings required with directional changes, and make it highly suitable for use in earthquake prone areas. Its high-strength walls give it the highest PE pressure rating, outstanding resistance to SCG and increased resistance to rapid crack propagation. The increased working stress rating of high-performance PE resin material makes it a superior choice over steel or ductile iron pipe, especially for the large diameter pipe sizes.

Application

Pipe Industry's high-performance high-density polyethylene water pressure pipes are suitable for municipal and industrial transmission systems for potable water, sewer, drain, mining, irrigation, and reclaimed water.

Recommendations for you

PE CouplingPE Equal TeePE Quick Connection Tee

Packing Details: Container

Delivery Details: Within 15 days

Q: What is your MOQ? A: As customer's request. Q

you immediately. More specify the information that you provided more faster and easier you will get the quotation. Q: Can I make my own design and logo on the product? A: Yes, we do OEM. Welcome partner from globally, we can make your product. Q: What's the payment term? A: Order amount <=1,000USD, 100% in advance. Order amount>=1,000USD, 30% T/T in advance, balance before shipment. Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable. Order amount>100,000USD, 100% L/C at sight acceptable. Q: Still have more questions? A: Please use the table below and send your questions to us. Thank you.

Certifications & compliance
RoHS
RoHS compliant
CPR(2)
Compliant with EU regulations
Description images
Product detail
Product detail
Product detail
Product detail
RoHS
CPR(2)
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 100 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    90 days

  • Step 3

    Packaging and dispatch

    Ocean + Truck via Maersk · Approx. shipping fee: $ 150.96 for 100 meters · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 19 fields
Material
PE
Place of origin
China, Henan
Thickness (Specification)
2-60mm
Model number (Specification)
SDR11
Specification (Specification)
20-1200mm
Length
6m or as required
Standard
GB/T13663-2000,ISO4427-1:2007
Color
Black with bule line
Certification
CE ISO
Warranty
50years
Pressure
1.6MPA
Application field
Building water supply and drainage
Feature
Corrosion Resistant
Temperature
60°C-60°C
Usage
WaterSupply
Selling Units
Single item
Single package size
30X11X11 cm
Single gross weight
3.89 kg
Certifications & Compliance
CPR(2), RoHS
Lead time
90 days
Minimum order
100 Units
