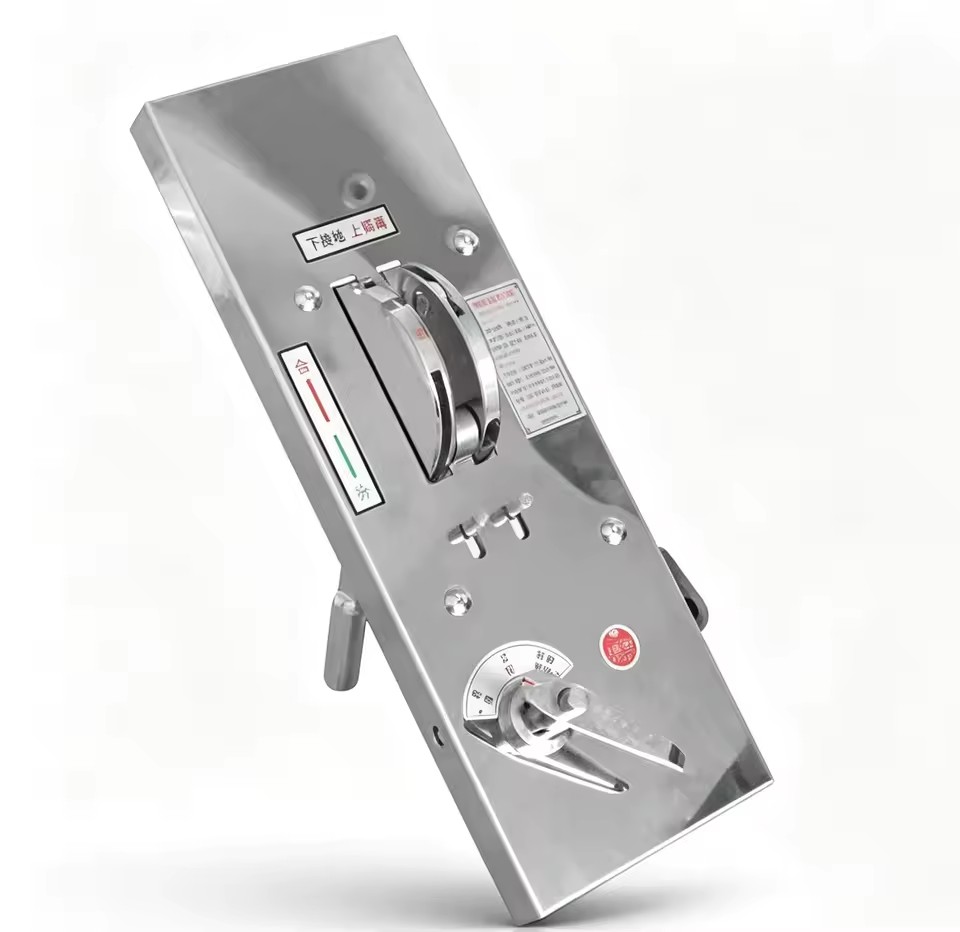

High Voltage Operating Mechanism For Photovoltaic Box Transformer Medium Voltage Switchgear

Product details

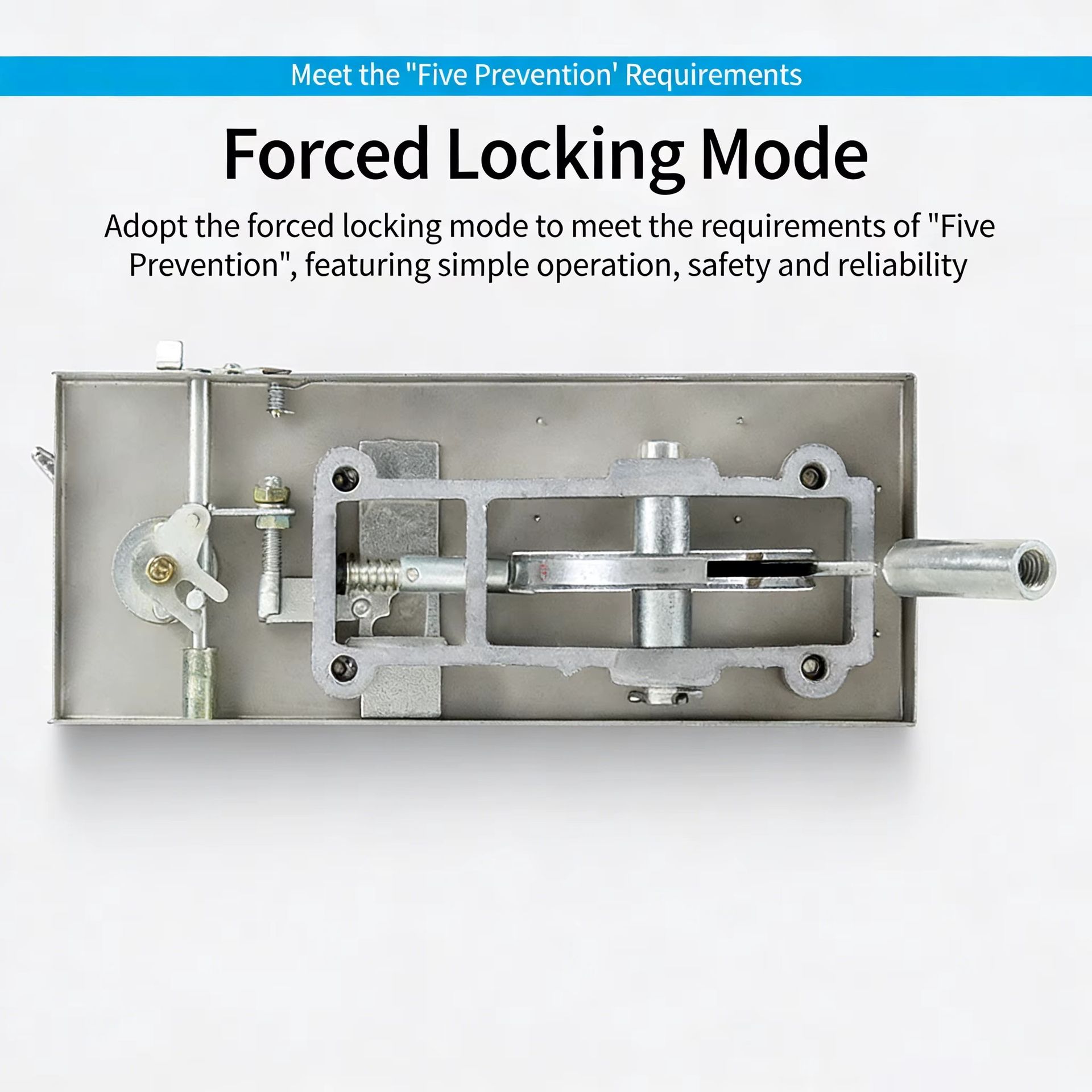

By forcing the operation sequence through mechanical structure, it effectively prevents dangerous operations such as live closing of grounding switches and accidental opening and closing of isolation switches, comprehensively ensuring the safety of equipment and personnel.

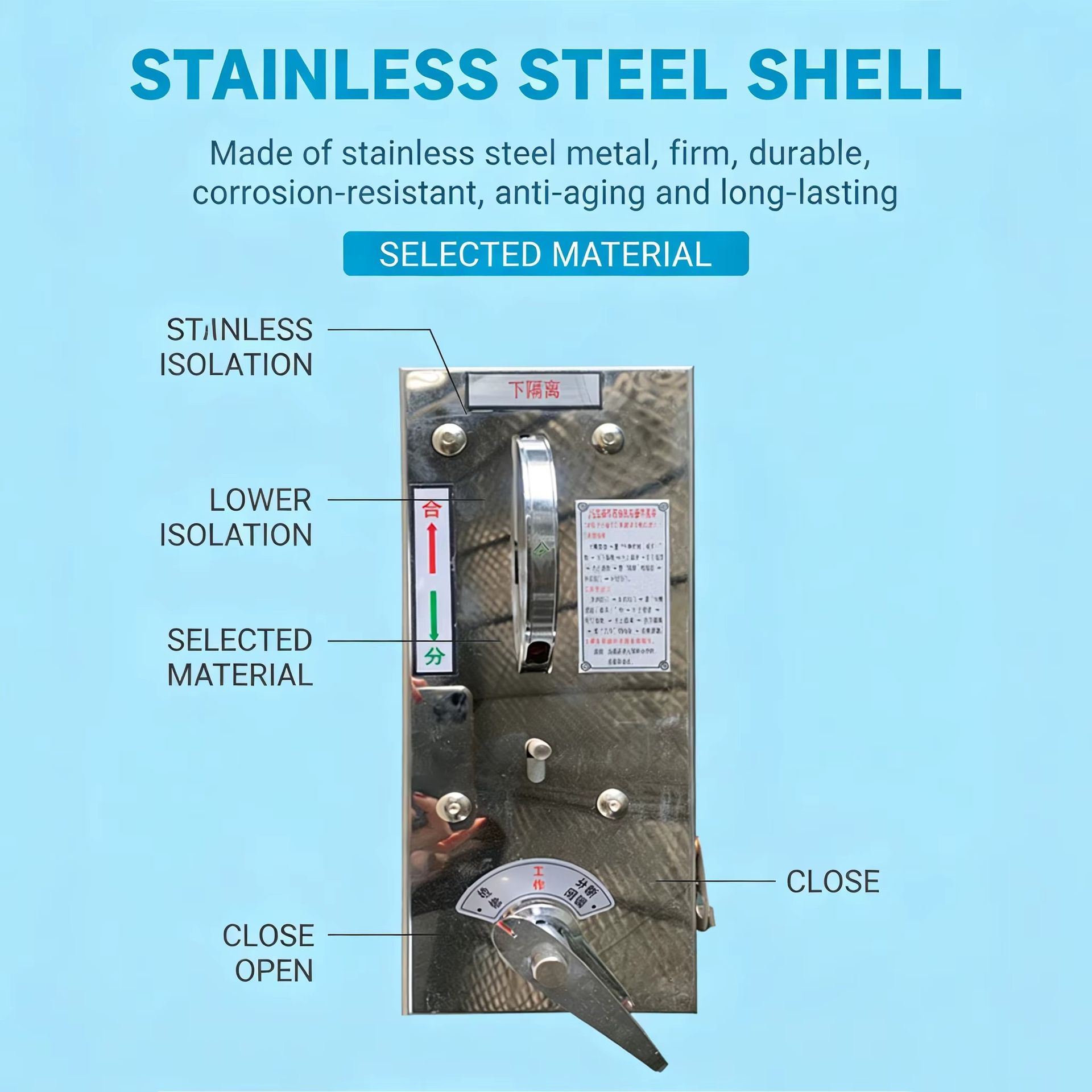

Made of stainless steel material, corrosion-resistant and impact resistant, it can operate stably in indoor environments ranging from -10 ℃ to+40 ℃ and humidity ≤ 95%, meeting the requirements of Class II pollution level.

Support multiple configurations (such as upper/lower isolation, bypass isolation, grounding, etc.), suitable for various types of box type switchgear with 12kV voltage levels, to meet the needs of different wiring schemes.

The panel is equipped with "on" and "off" indicators and operation handles, which are displayed in conjunction with the status panel. The operation process is clear at a glance, reducing the risk of misoperation.

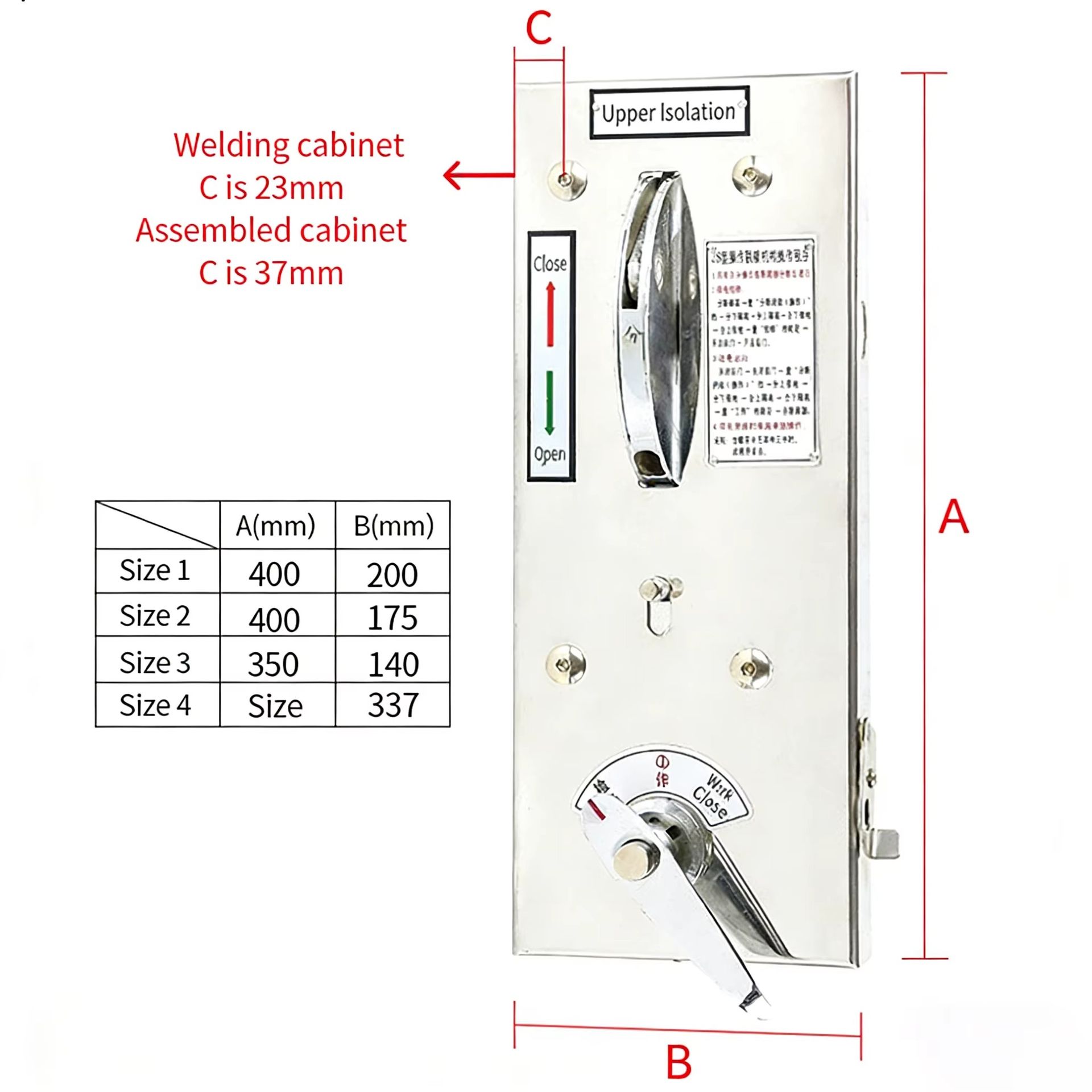

Provide multiple installation sizes, suitable for welding cabinets and assembly cabinets, with simple and efficient on-site installation.
