API 7K Swivel for Well Drilling API Standard Swivel for Drilling Rig Oil Well Drilling Power Swivel for Oilfield

Water Swivel with Spinner

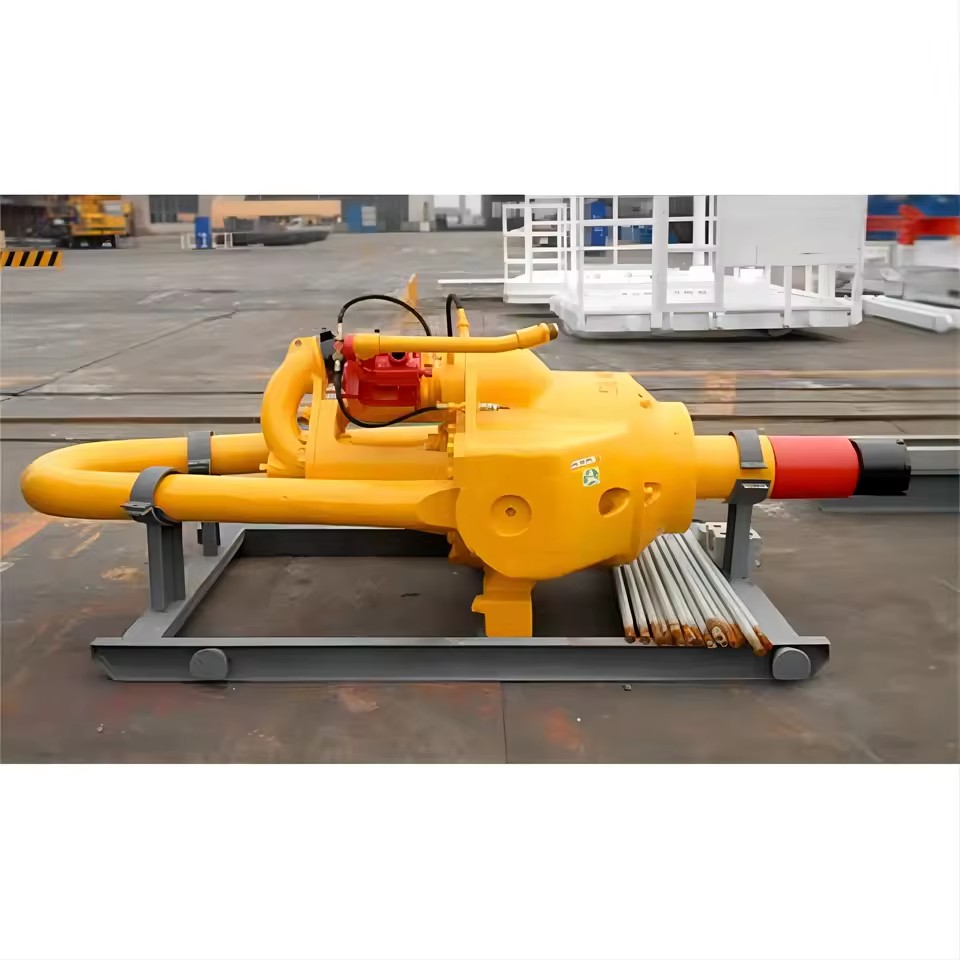

XSL-swivel with spinner is a combination of swivel and kelly spinner, driven by air motor or hydraulic motor, with keyless connection adopted between spinner and central pipe of swivel. It is designed and manufactured according to API Spec 7K "specification for drilling and Production Hoisting

Water Swivel for Drilling 1.Ma.Static load:4500KN 2.Max.rotary speed:500r/min 3.Max.WP:35Mpa 4.ID of center pipe:75mm

Water Swivel for Drilling

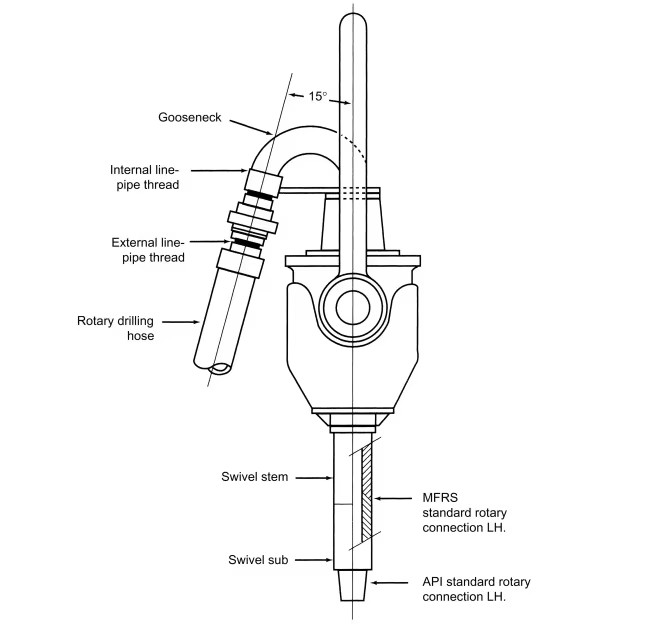

The swivel includes two main categories, which are common swivel and double duty swivel. Double duty swivel is a common swivel combined with a spinner. Common swivel consists of swivel bail, shell, support, gooseneck, central pipe, master bearing, joint and other parts. The lower end is connected with kelly stem by REG thread. The swivel bail is hung on the hook. Gooseneck and rotary hose can be connected by REG thread connection or union connection.

Washpipe packing set assembly adopts cassette structure, so it can be quickly replaced without disassembling rotary hose and gooseneck. 3LP and 4LP internal or external thread hose connection thread are available for you. We can also manufacture low temperature resistant swivel according to customer's requirements.

Our swivel meets API SPEC 8CPSL1 standards. It has been awarded the API certification issued by the American Petroleum Institute and is allowed to use API monogram.

Lake Petro is located in City, which is famous for Shengli Oilfield and the largest manufacturing hub of petroleum equipment. Following the principle of “quality first, science and technology innovated, people oriented”, every Lake Petro person is sparing no effort to provide the customers with best products and services. Our products are based on advanced

How can I place order?

A: You can

How can I pay you? A: After you confirm our PI, we will request you to pay. T/T (HSBC bank), L/C, D/P, Western Union are the most usual ways we are using. If you want to use other way, please tell me, we can discuss. What’s the order procedure? A: First we discuss order details, production details by

A: After you confirm our PI, we will request you to pay. T/T (HSBC bank), L/C, D/P, Western Union are the most usual ways we are using. If you want to use other way, please tell me, we can discuss.

A: First we discuss order details, production details by

A: replacement. If there are some defective items, we usually credit to
